UbiquitiSKU: UA-G3-SK-Gate

Availability:

❌ Back Order - Contact Us for ETA

Price:
$1,373.00
Contact Us for ETA

Description

Overview

G3 Gate Starter Kit
UA-G3-SK-Gate

Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

Note. 10 free 1-year Touch Passes included.

Optional LPR Cameras
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
UVC-AI-PTZ
UVC-G6-PTZ
UVC-AI-PTZ-Precision

UA-G3-SK-Gate Specifications

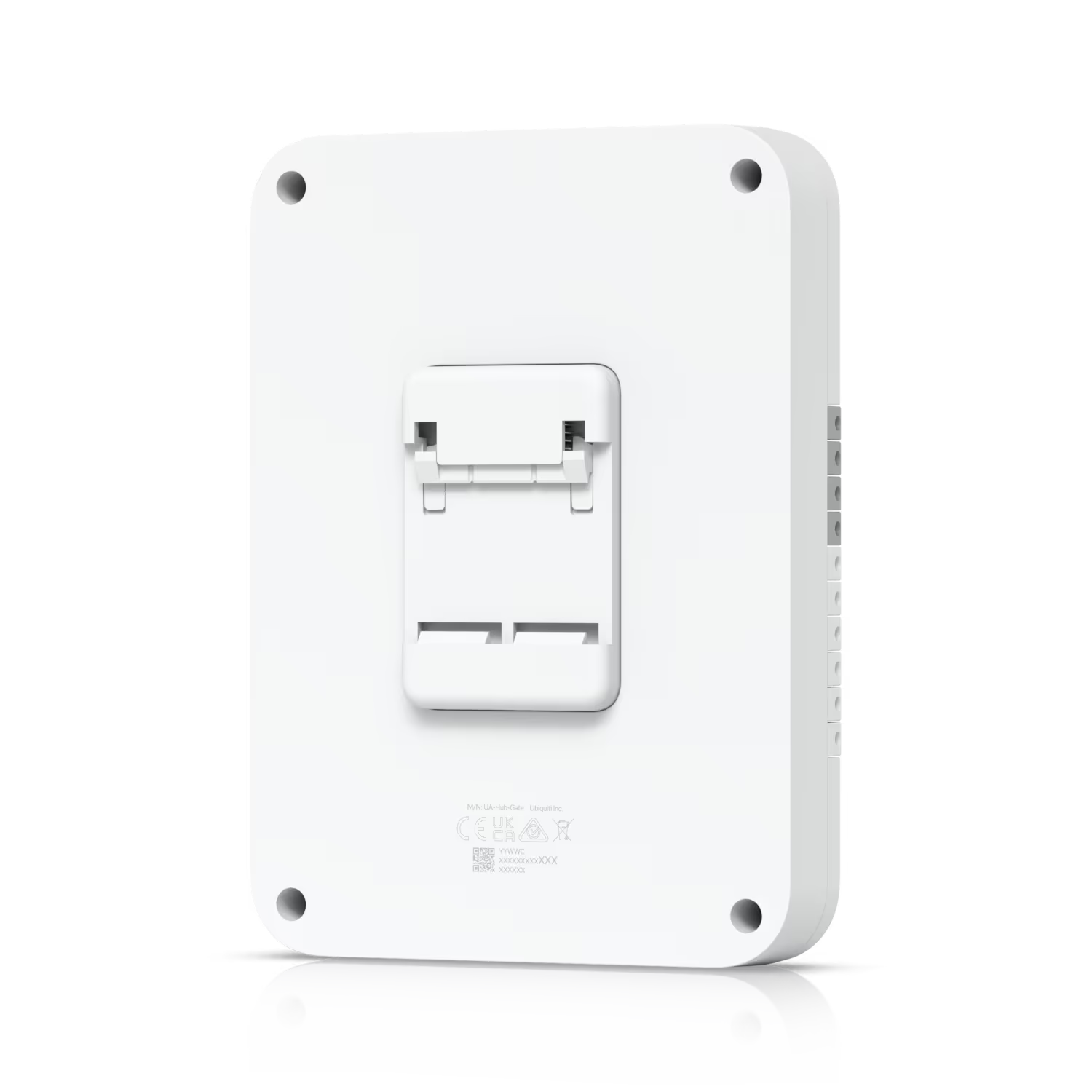

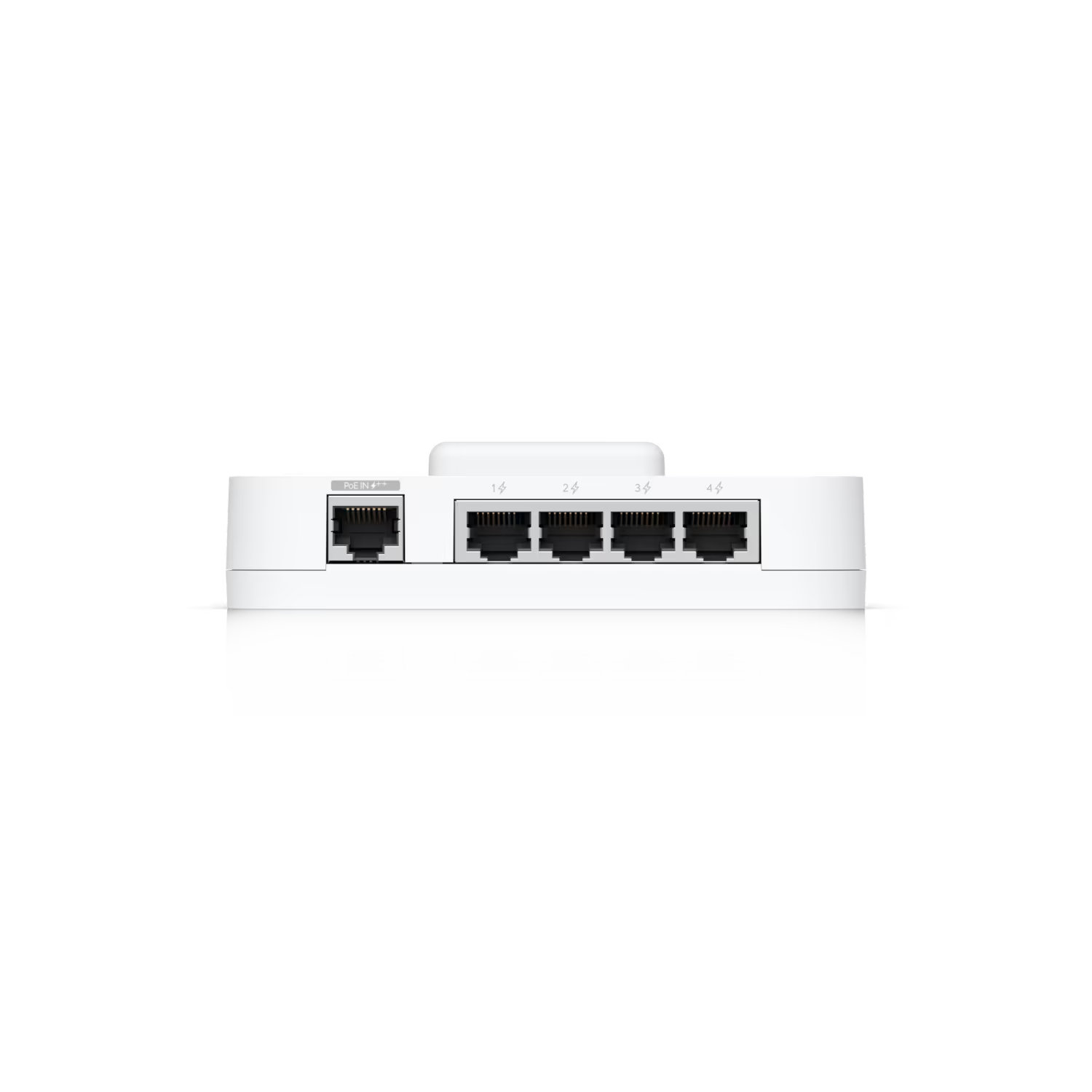

Gate Hub
Dimensions 175 × 126 × 26 mm (6.9 × 5 × 1")
Weight 460 g (1 lb)
Networking Interface (5) 10/100/1000 Base-T
Power Method PoE++ (50V DC, 1A)
PoE Output (4) PoE ports, 50V DC, 30W per port (Max 55W aggregated)
Max. Power Consumption 22W (without PoE), 60W (with PoE)
Mounting DIN-rail (included)
Enclosure Material Polycarbonate
Digital Inputs Gate exit request
Gate position
Side door exit
Side door position
Emergency
Dry Output Relays (2) Operator: 30V DC, up to 1A
(1) Aux: 30V DC, up to 1A
Powered Output Relay Side door lock: 12V DC, up to 1A
LEDs White/Blue status indicator
Button (1) Factory-reset
Operating Temperature -30 to 60° C (-22 to 140° F)
Operating Humidity 5 to 90% noncondensing
Weatherproofing Indoor only (outdoor use requires waterproof junction box)
NDAA Compliant ✓
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Kit Contents
Included Devices (1) Gate Hub

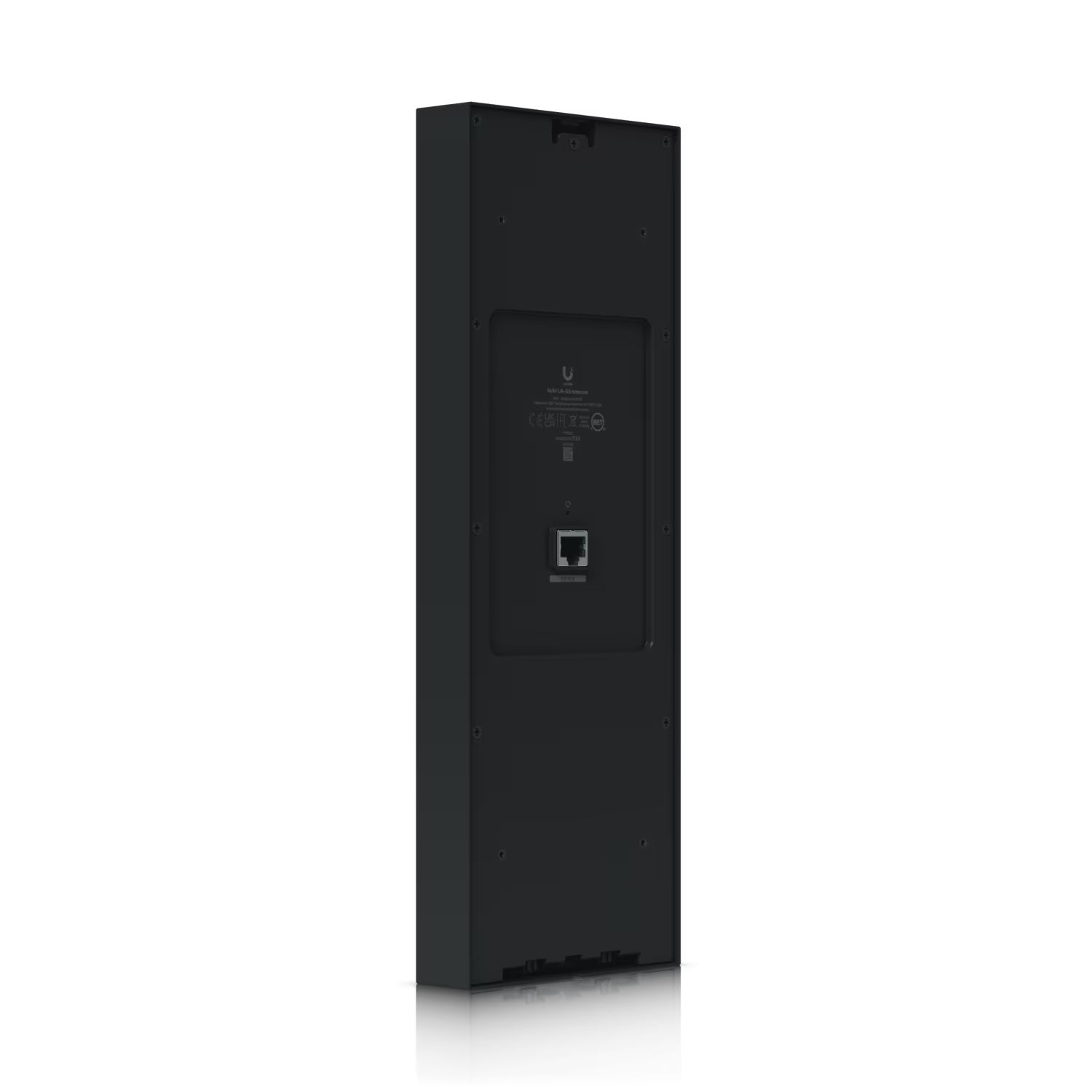

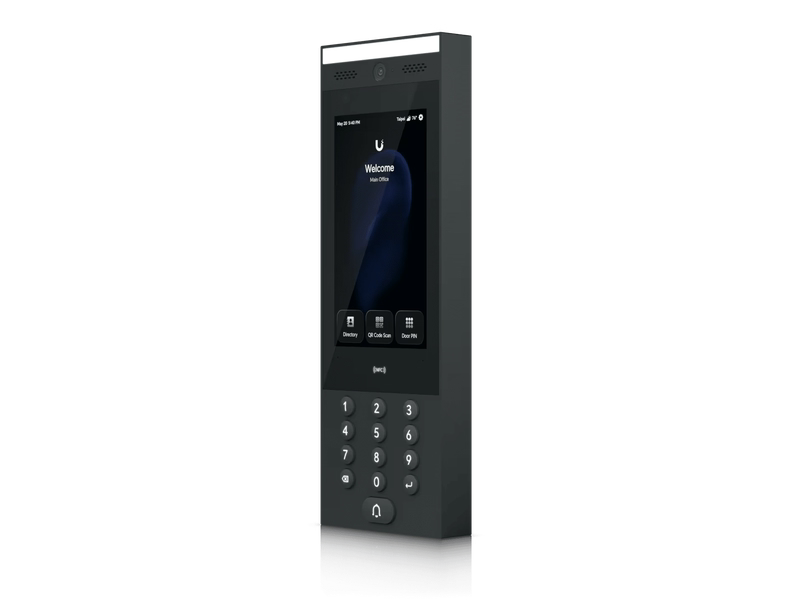

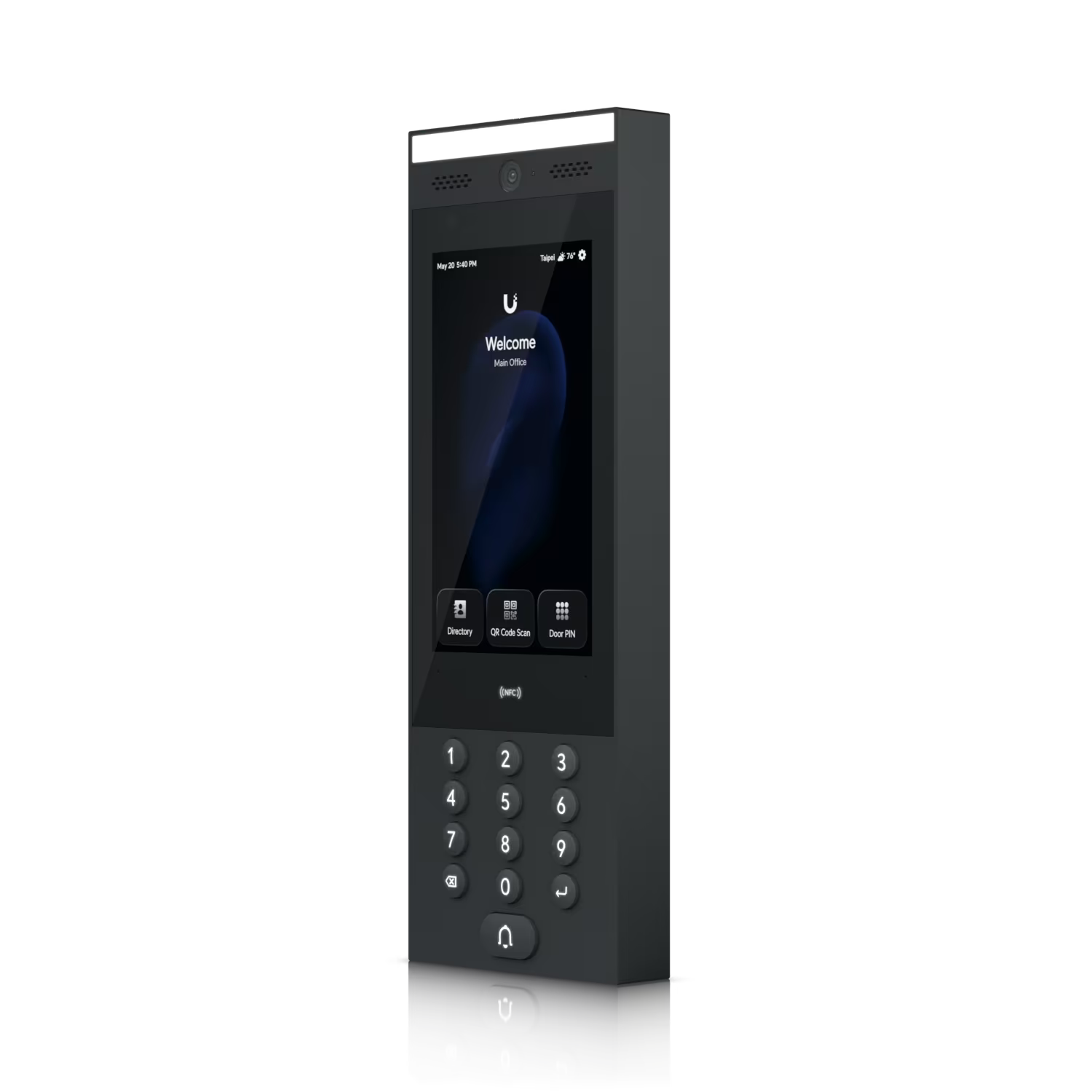

(1) G3 Intercom
(1) PoE++ Adapter

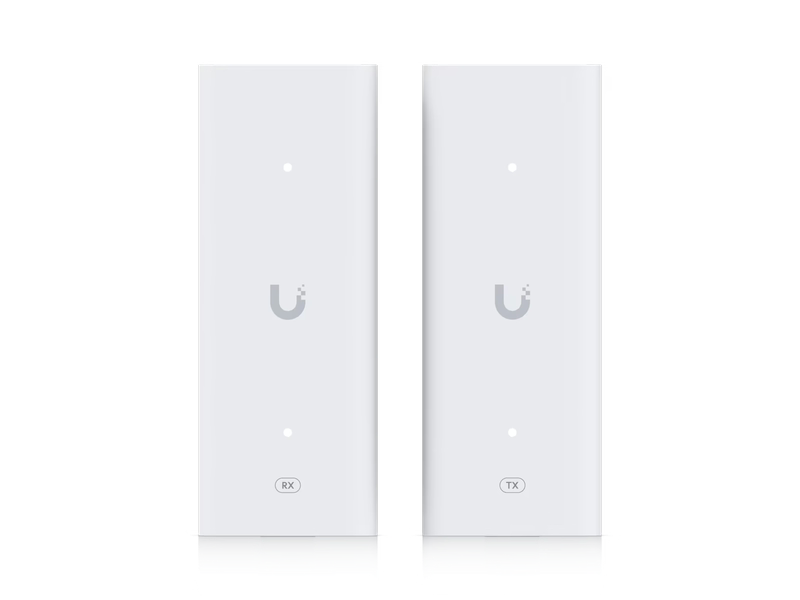

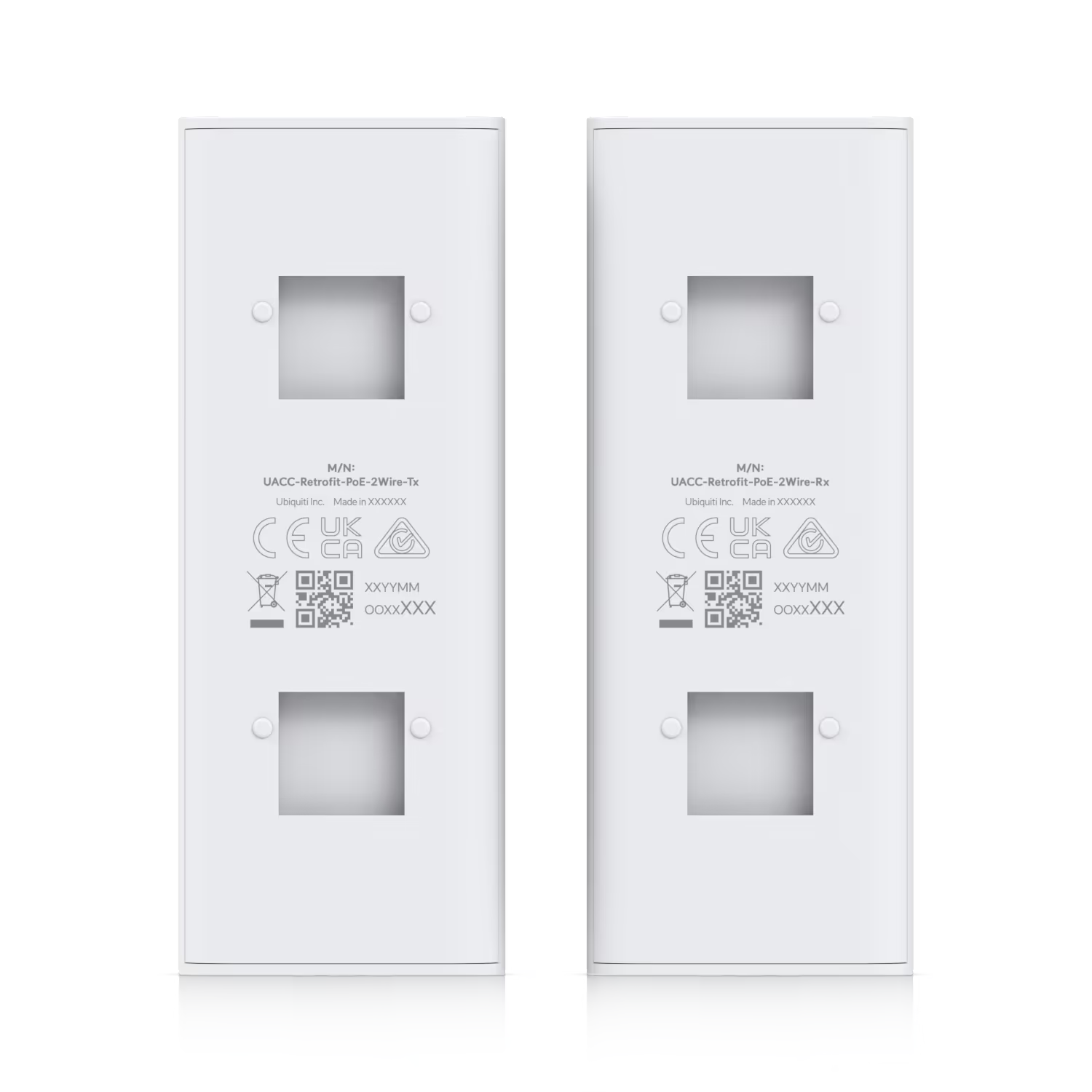

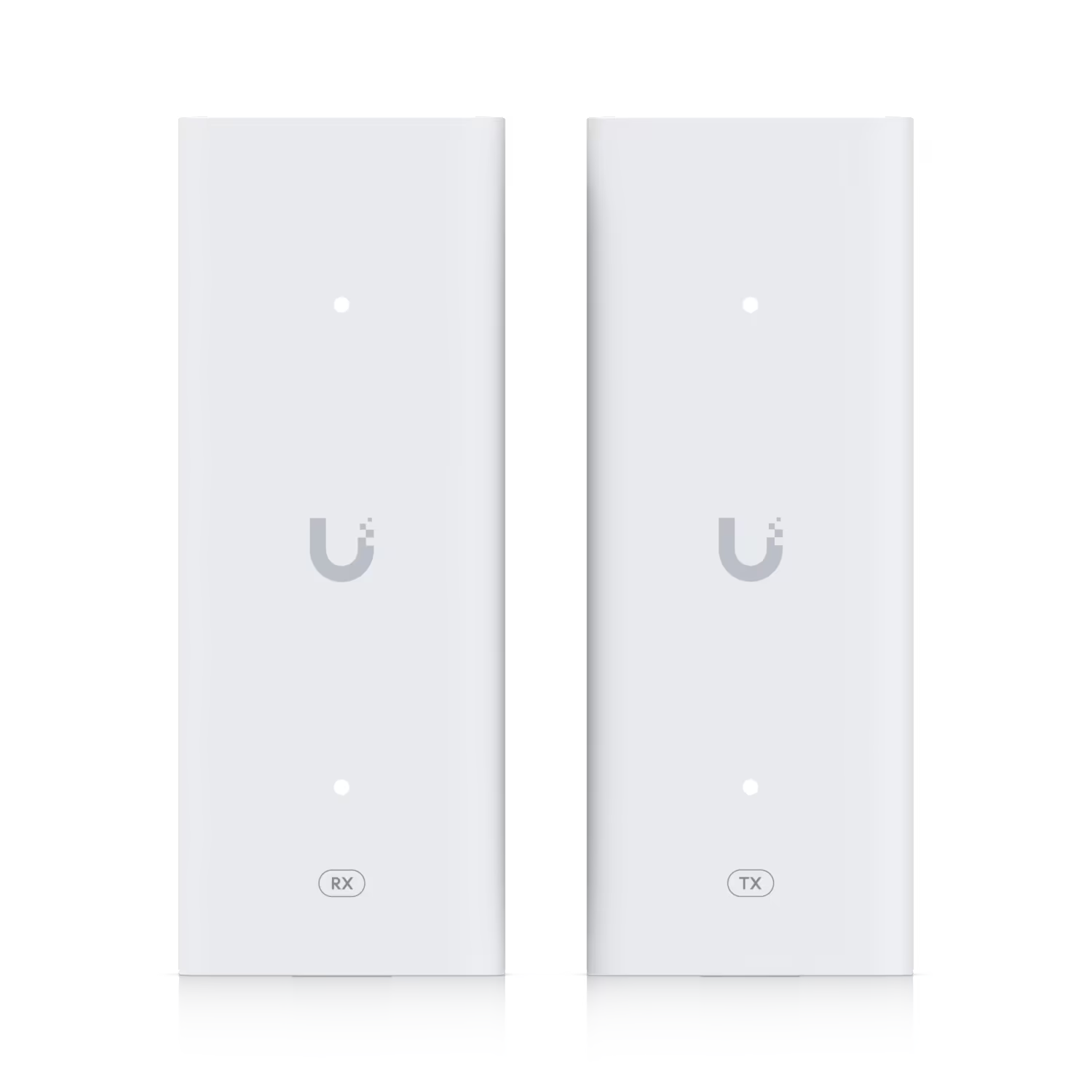

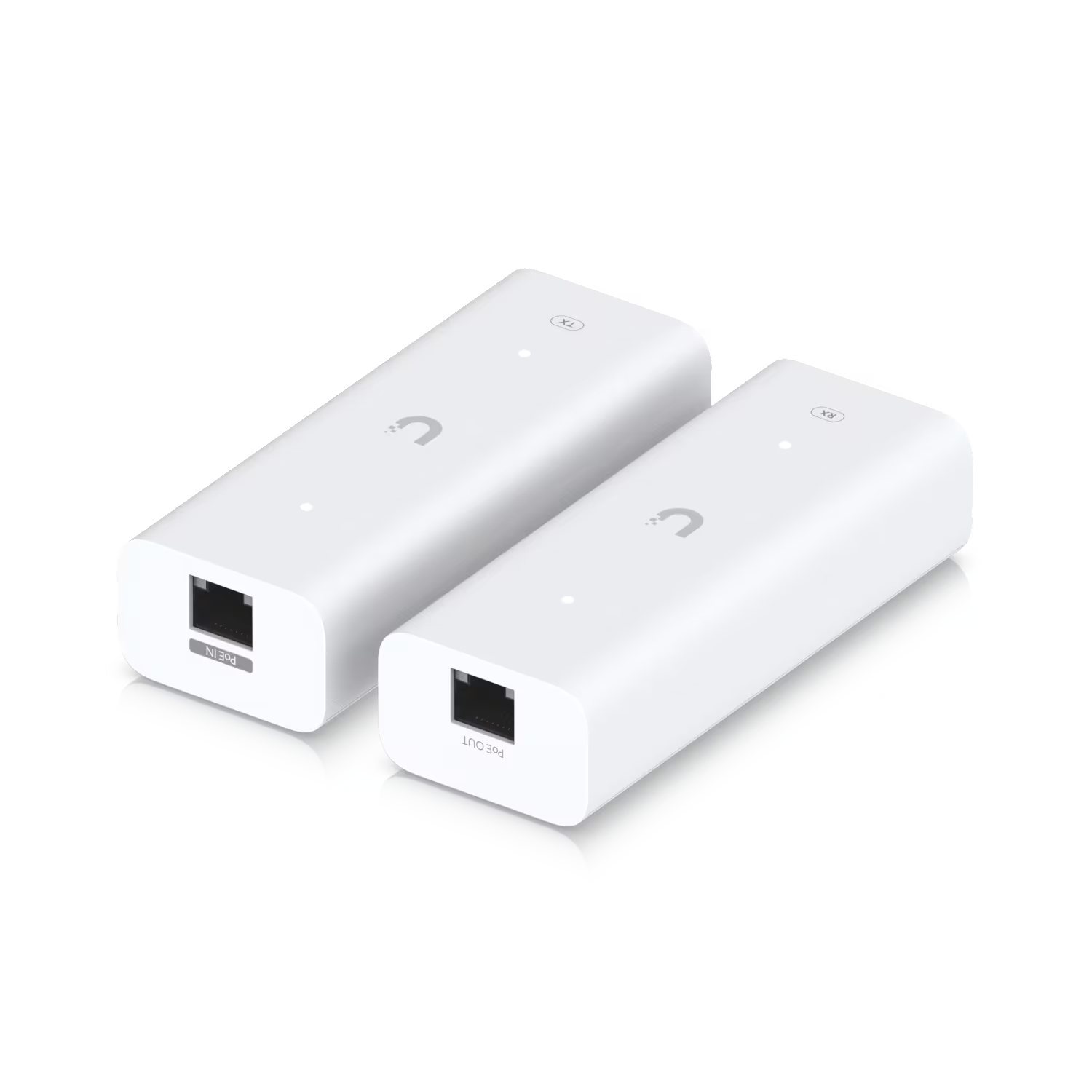

(2) 2-wire Retrofit Extenders
Touch Pass Licenses 10 × 1-year Touch Passes included
