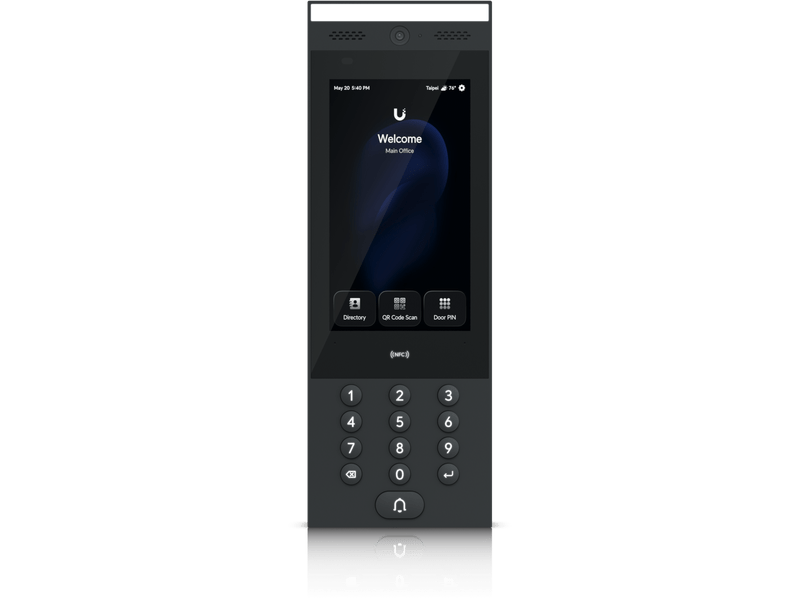

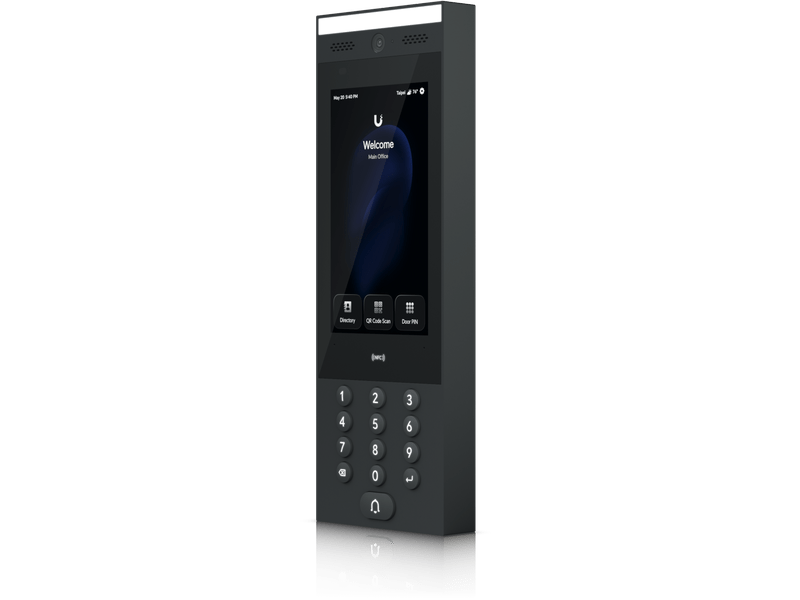

G3 Intercom
UA-G3-Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Note. 10 free 1-year Touch Passes included.
G3 Intercom
UA-G3-Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Note. 10 free 1-year Touch Passes included.
| UA-G3-Intercom Specifications | |
|---|---|
| Dimensions | 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1") |
| Weight | Device: 965 g (2.1 lb), Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mounting Material | Powder-coated stainless steel |
| Mounting Options | Wall mount, gooseneck pedestal adapter (included), flush/surface/sunshield kits (optional) |
| Weatherproofing | IP65 |
| Display Size | 177 mm (7") diagonal |
| Resolution | 1024 × 600 px |
| Touch Technology | Capacitive multi-touch |
| Luminance | Max. 1000 nits (typical) |
| Orientation | Portrait |
| Camera | Integrated |
| Microphone | ✓ |
| Speaker | ✓ |
| NFC Card & Keyfob | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Touch Pass | ✓ |
| Two-Way Intercom & Doorbell | ✓ |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire Sony FeliCa™ (ID only) NFC Forum tags T1T–T5T ECP 2.0 |
| Sensors | Proximity sensor, Ambient Light Sensor (ALS) |
| LEDs | Amber |
| Button | (1) Factory-reset |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Operating Temperature | Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Reference | UA-G3-Intercom, V01 |
| Software Management | Access application via UniFi OS |
| Software Info | https://unifi.ui.com |
