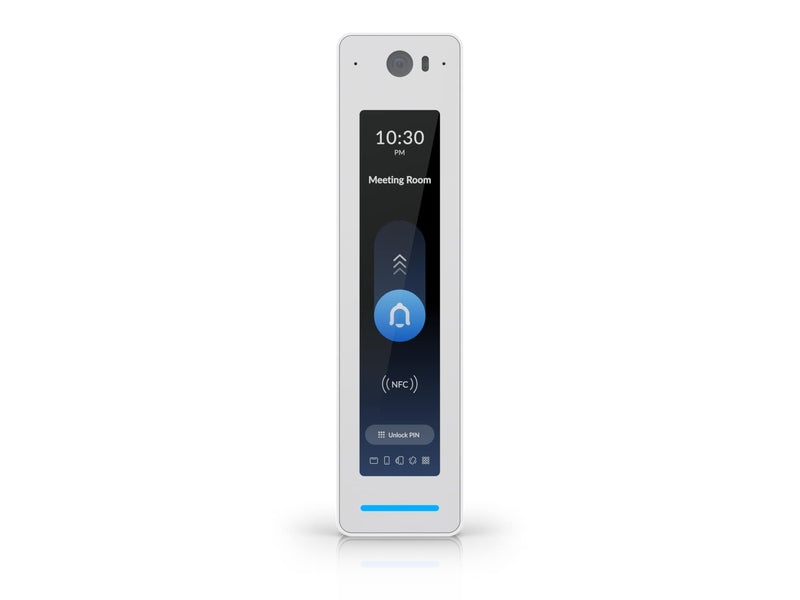

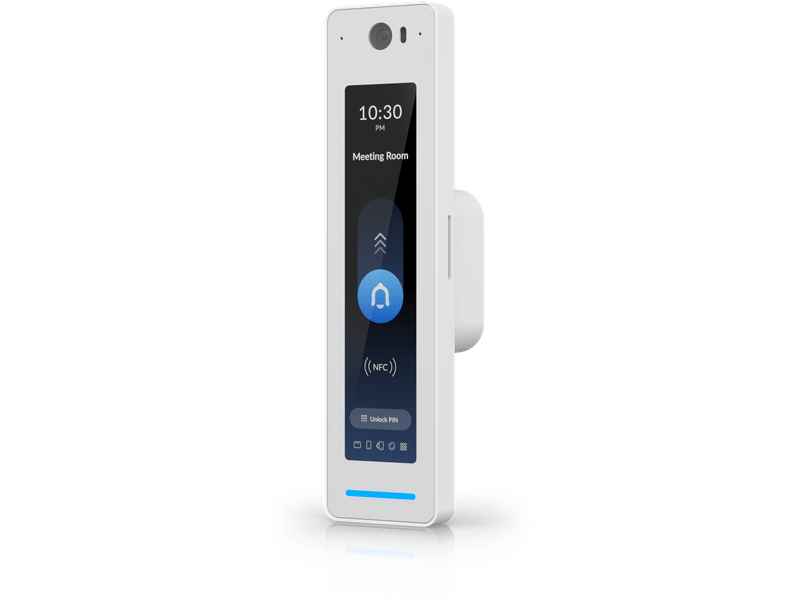

G3 Reader Pro
UA-G3-Pro-W
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Note. 10 free 1-year Touch Passes included.
G3 Reader Pro
UA-G3-Pro-W
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Note. 10 free 1-year Touch Passes included.
| UA-G3-PRO-W Specifications | |
|---|---|
| Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mounting Material | Aluminum alloy |
| Mounting Options | Wall, gang box (included); angle/junction box (optional) |
| Weatherproofing | IP55 |
| Display Size | 120 mm (4.7") diagonal |
| Resolution | 1280 × 286 px |
| Touch Technology | Capacitive touch |
| Luminance | 480 nits (typical) |
| Orientation | Portrait |
| Camera | Integrated |
| Microphone | ✓ |
| Speaker | ✓ |
| NFC Card & Keyfob | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell | ✓ |
| Touch Pass | ✓ |
| Networking Interface | (1) GbE RJ45 port |
| Wireless | BLE 4.2, NFC |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire Sony FeliCa™ (ID only) NFC Forum tags T1T–T5T ECP 2.0 |
| Sensors | Proximity sensor |
| LEDs | RGBW + Amber |
| Button | (1) Factory-reset |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 6W |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| Operating Temperature | Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Management Platform | UniFi Access |
| Minimum Version | v3.0.15 and later |
