G3 Starter Kit
UA-G3-SK
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.
G3 Starter Kit
UA-G3-SK
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.
| UA-G3-SK (UniFi G3 Starter Kit) Specifications | |
|---|---|

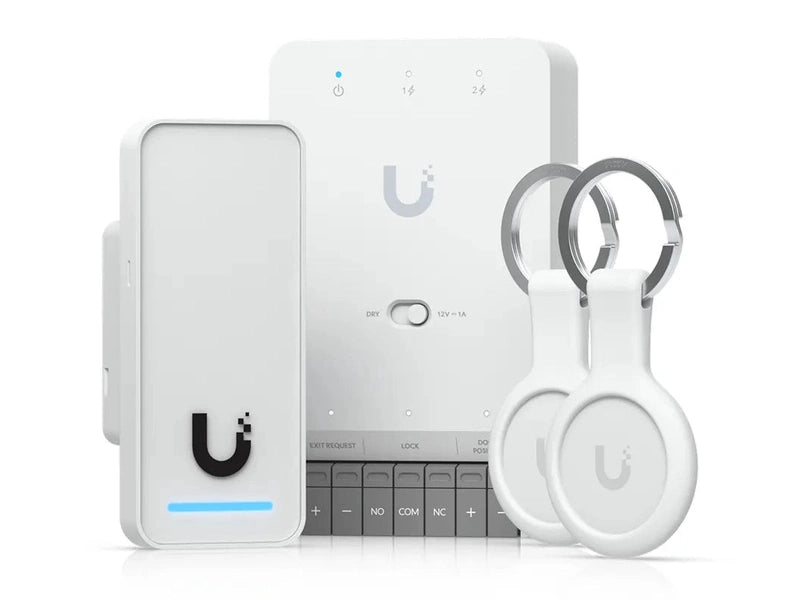

| In the Box | (1) Door Hub Mini (1) G3 Reader (2) Pocket Keyfobs 10 free 1-year Touch Passes |

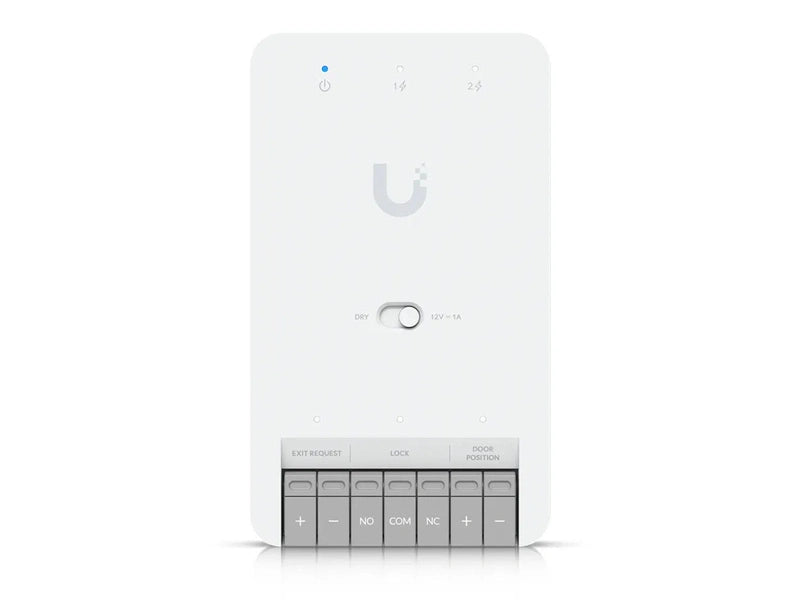

| Door Hub Mini | |
| Dimensions | 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1") |
| Supported Doors | 1 |
| Input Terminals | Door Exit Request, Door Position |
| Power Method | PoE++ UL 294 Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |

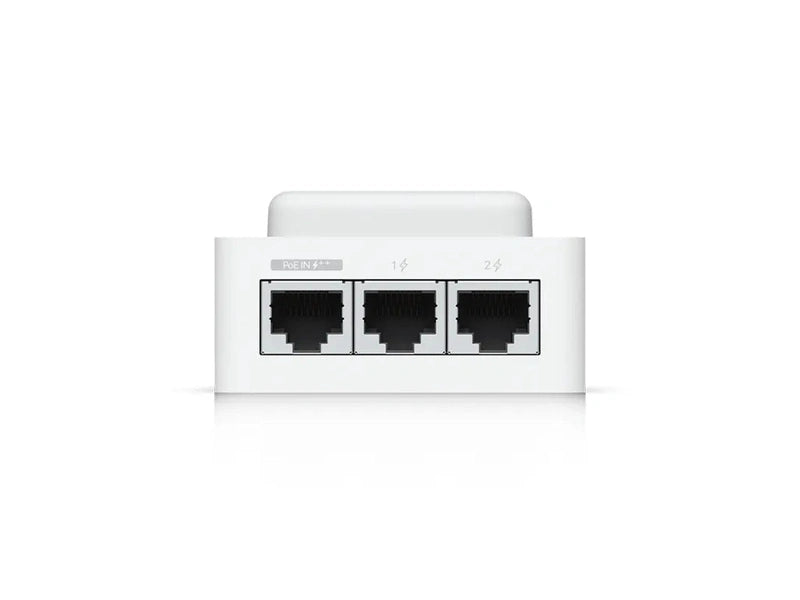

| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | Input: PoE++, 50V DC, 1A Output: (2) PoE+, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 19W (Without PoE output) 50W (With PoE output) |
| Relays | Dry: 30V DC, 1A Wet: 12V DC, 1A |
| Mounting | DIN-rail (Included) |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |

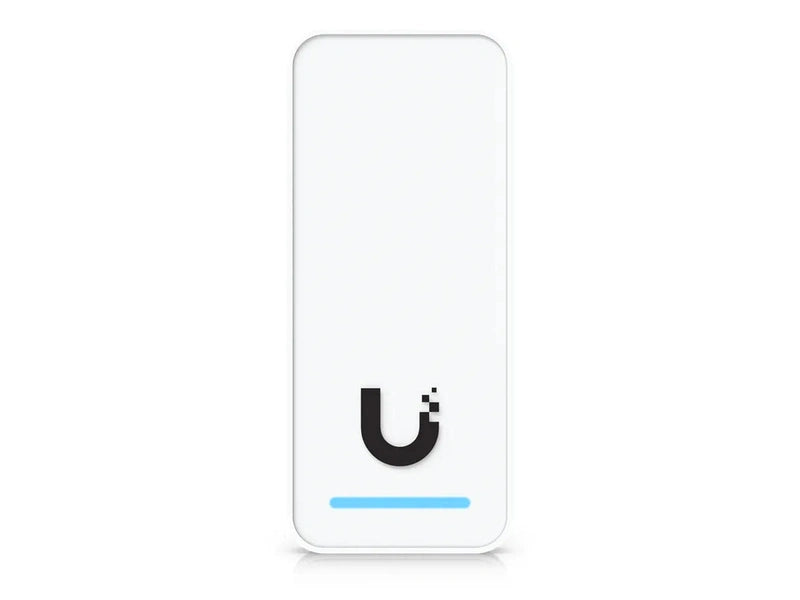

| G3 Reader | |
| Dimensions | 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4") |
| Weight | 82 g (2.9 oz) |
| Access Methods | NFC Card & Keyfob, Apple/Google Wallet, Mobile Unlock, Handwave Exit |
| Weatherproofing | IP55 |
| Mounting | In-wall, gang box (Included); Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 |
| Connectivity | BLE 4.1, NFC |
| Power Method | PoE |
| Max. Power Consumption | 5W |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443A/B, 15693, 18092 (Ecma 340) MIFARE Classic / DESFire Sony FeliCa™ (ID only) NFC Forum tags T1T–T5T |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |

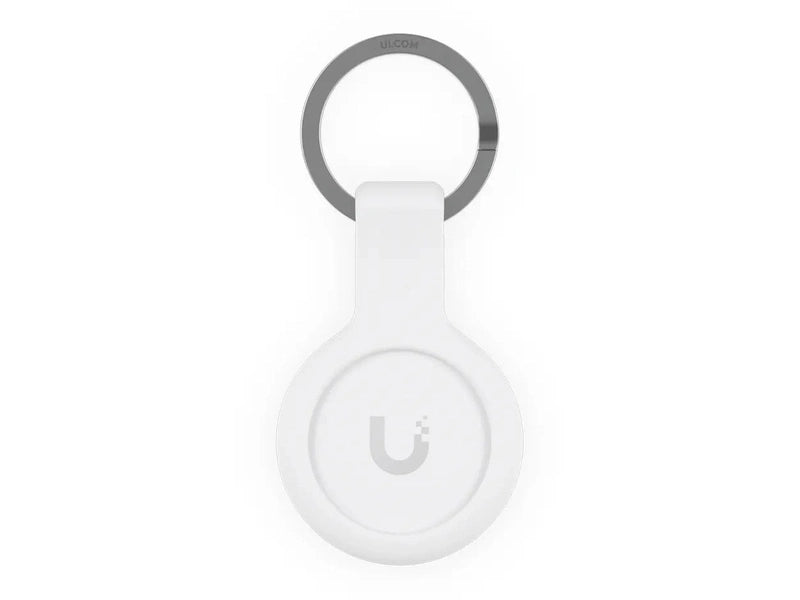

| Pocket Keyfob | |
| Dimensions | 84 × 39 × 7.4 mm (3.3 × 1.5 × 0.29") |
| Weight | 16 g (0.56 oz) |
| Enclosure Material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K, UniFi Access Protocol |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certification | CE |
| NDAA Compliant | ✓ |
