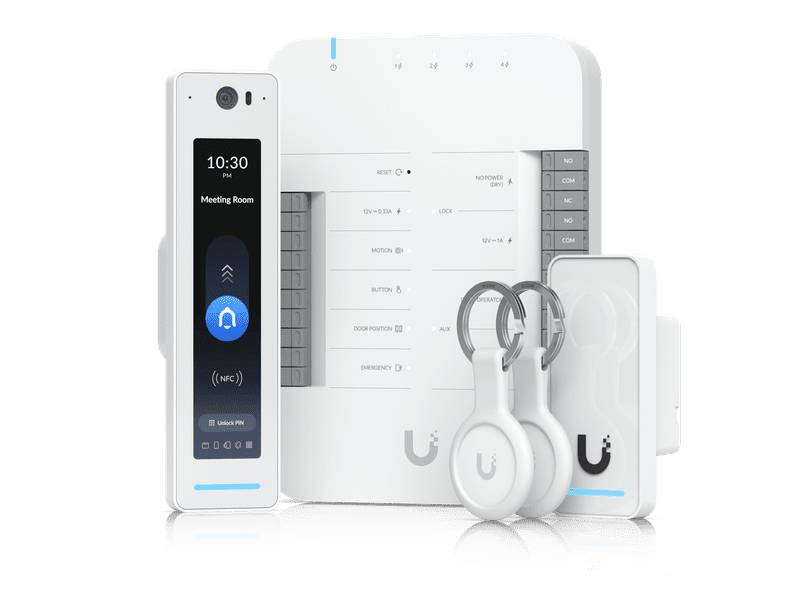

G3 Starter Kit Pro
UA-G3-SK-Pro
Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.
Note. 10 free 1-year Touch Passes included.
G3 Starter Kit Pro
UA-G3-SK-Pro
Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.
Note. 10 free 1-year Touch Passes included.
| UA-G3-SK-Pro Specifications | |
|---|---|
| Included Components | (1) Door Hub (1) G3 Reader Pro (1) G3 Reader (2) Pocket Keyfobs 10 × 1-year Touch Passes |
| Door Hub Dimensions | 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3") |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (without PoE output) 50W (with PoE output) |
| Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A |
| Mounting | DIN-rail (Included) |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Integrated Camera | ✓ |
| Access Methods | NFC Card & Keyfob PIN Access Touch Pass Mobile Unlock |
| Intercom & Doorbell | ✓ (Two-way) |
| Weatherproofing | IP55 |
| Mounting Options | Wall mount (Included) Gang box mount (Included) Angle mount (Optional) Junction box (Optional) |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Operating Temperature | Door Hub: 0 to 40° C (32 to 104° F) G3 Reader Pro: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |
| Management Platform | UniFi Access |
| Software Version | Check via unifi.ui.com |
