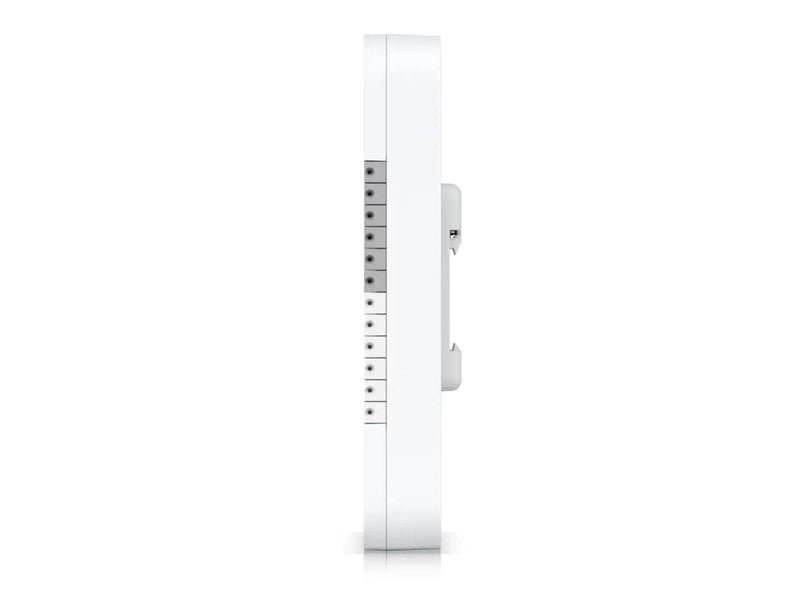

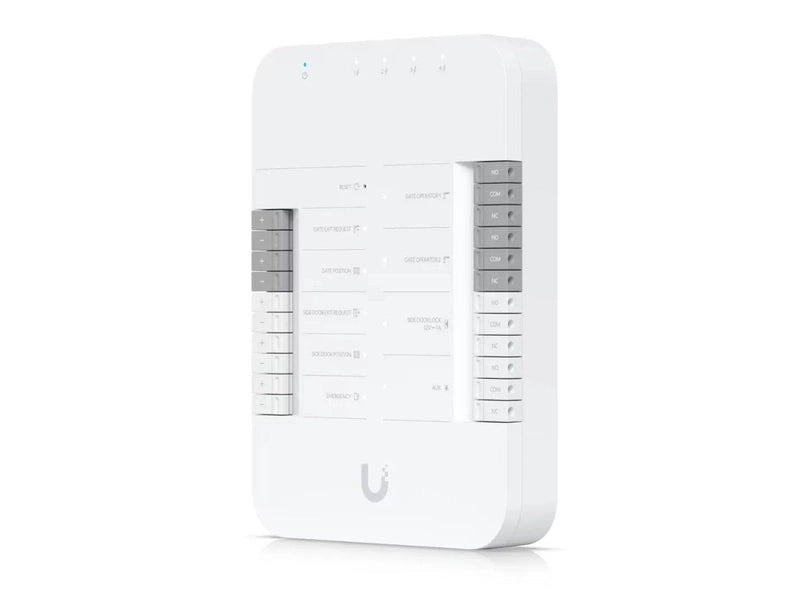

Gate Hub
UA-Hub-Gate
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
Note: Access integration for G6 Series coming soon
Optional LPR Cameras
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
UVC-AI-PTZ
UVC-G6-PTZ
UVC-AI-PTZ-Precision
Gate Hub
UA-Hub-Gate
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
Note: Access integration for G6 Series coming soon
Optional LPR Cameras
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
UVC-AI-PTZ
UVC-G6-PTZ
UVC-AI-PTZ-Precision
UA-Hub-Gate Specifications | |
---|---|
Dimensions | 175 × 126 × 26 mm (6.9 × 5 × 1") |
UniFi Application Suite | Access ✓ |
Supported Doors | 1 gate, 1 side door |

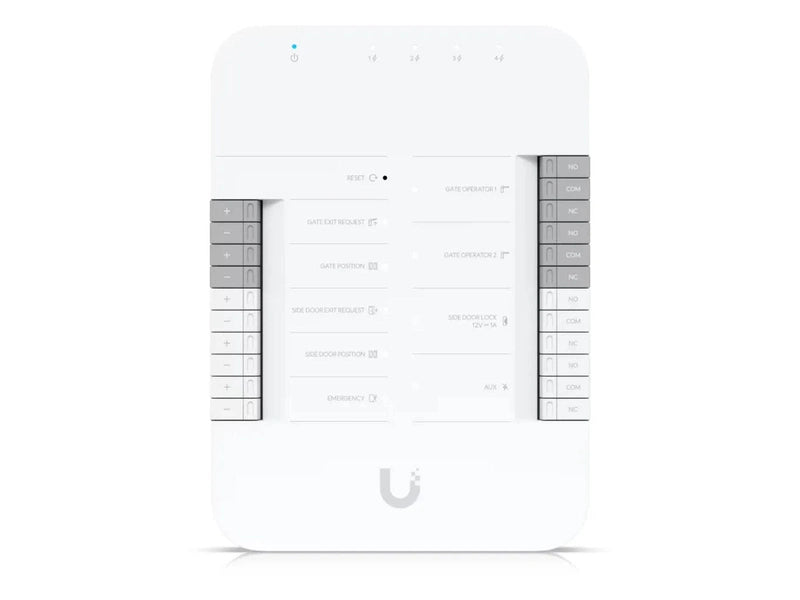

Input Terminals | (1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency |
Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS / PS2 PSU |
NDAA Compliant | ✓ |
UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Weight | 460 g (1 lb) |
Enclosure Material | Polycarbonate |

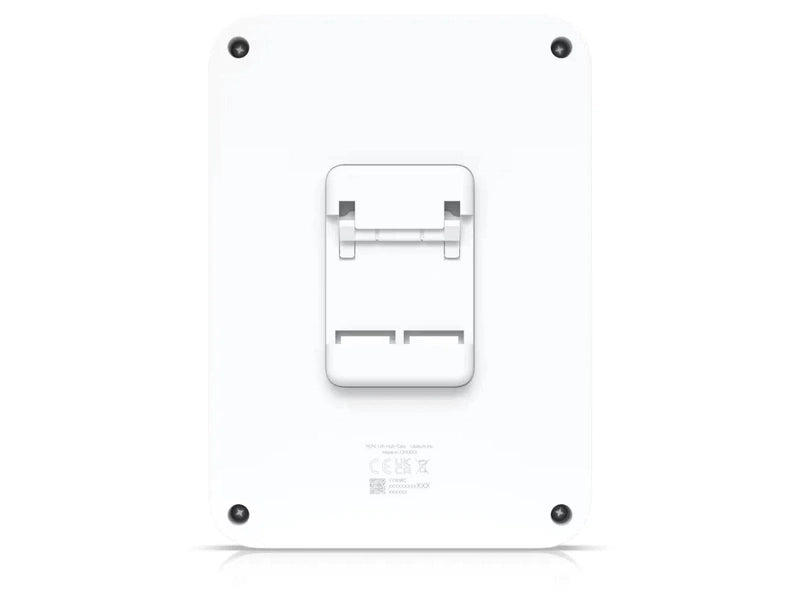

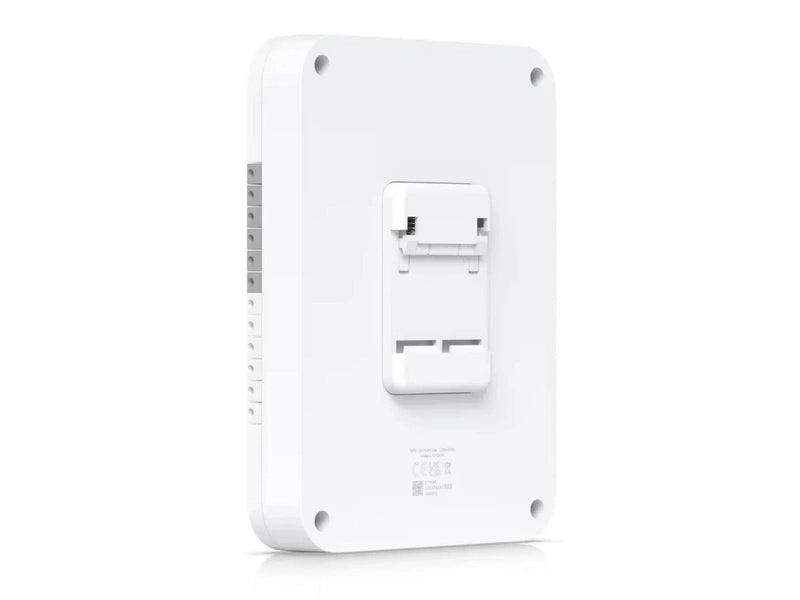

Mounting | DIN-rail (Included) |
Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
Dry Output Relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
Powered Output Relay | Side door lock: 12V DC, up to 1A |
Indoor and Outdoor Use | Indoor only (device itself) Outdoor (with waterproof junction box) |
Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
Ambient Operating Humidity | 5 to 90% noncondensing |
Networking Interface | (5) 10/100/1000 Base-T |
PoE Interface | (1) PoE++ input: 50V DC, 1A (4) PoE outputs: 50V DC, 30W per port (Max 55W aggregated) |
Max. Power Consumption | 22W (Without PoE output) 60W (With PoE output) |
LEDs | W/B Learn More |
Buttons | (1) Factory-reset |
Recommended Max. Cable Length |
UA-Lock-Electric (400mA) 24 AWG: 25 m 22 AWG: 42 m 20 AWG: 66 m 18 AWG: 100 m UA-Lock-Magnetic-540kg (500mA) 24 AWG: 20 m 22 AWG: 32 m 20 AWG: 51 m 18 AWG: 80 m UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m 22 AWG: 20 m 20 AWG: 30 m 18 AWG: 46 m Other locks (1A) 24 AWG: 9 m 22 AWG: 15 m 20 AWG: 24 m 18 AWG: 36 m |
PoE Cabling Requirements | Minimum: Cat 5e Patch cords: ≥ 26 AWG (0.13 mm²) Horizontal/riser cable: ≥ 24 AWG (0.21 mm²) |
UL 294 Statement | Compliance with IEEE 802.3 not verified under UL 294. Intended to comply with NEC Article 725.121 for Class 2/3 circuits. |
CAN/ULC-60839-11-1 Grade | Grade I |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Document Reference | UA-Hub-Gate, V01 |
Management Application | Access |
Software Information | Version available at unifi.ui.com |
