Description
Overview

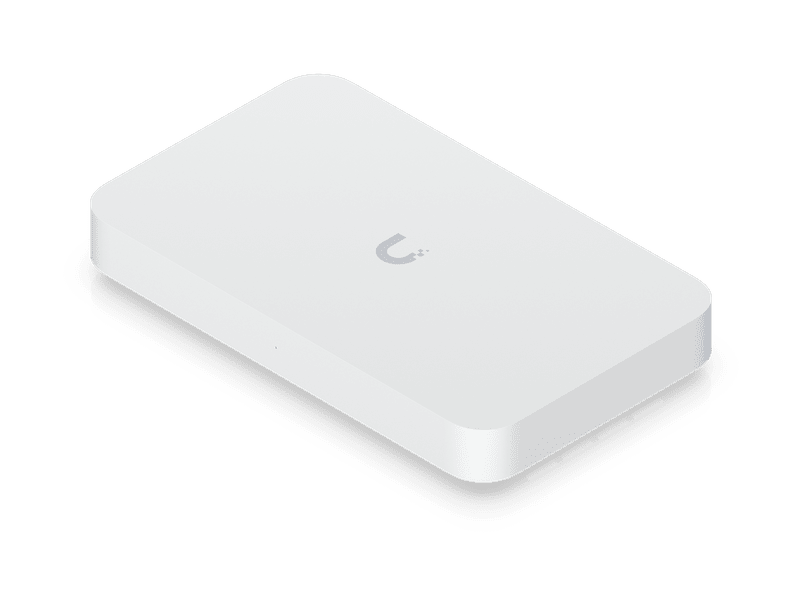

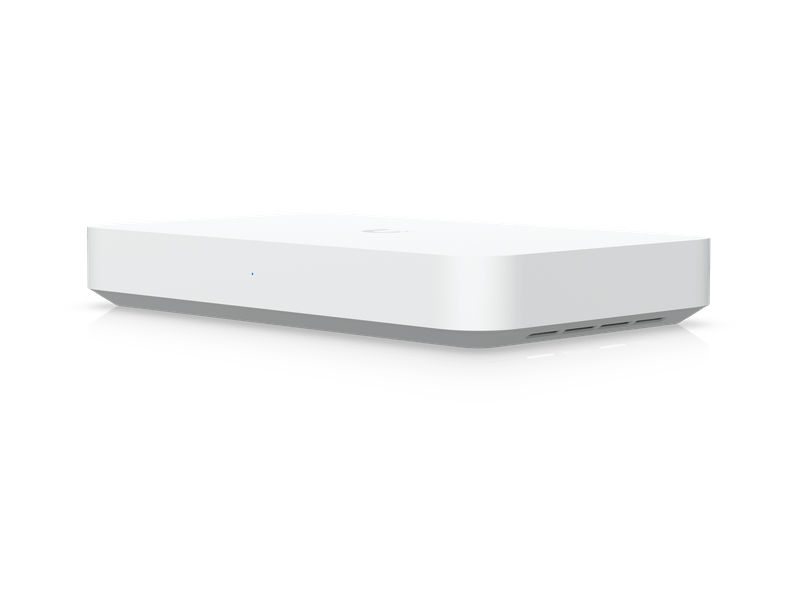

Gateway Fiber
UXG-Fiber (30W)
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS

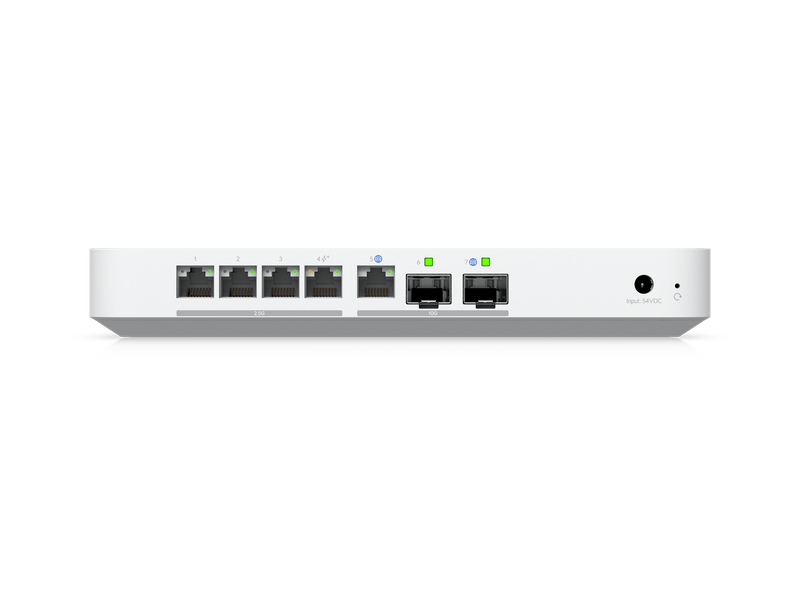

(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
Gateway Fiber
UXG-Fiber (30W)
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
| UXG-Fiber Specifications | |
|---|---|
| Form Factor | Compact desktop |
| Dimensions | 212.8 × 127.6 × 30 mm (8.4 × 5 × 1.2") |
| Weight | 605 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| WAN Ports | (1) 10G SFP+, (1) 10G RJ45 |
| LAN Ports | (1) 10G SFP+, (4) 2.5GbE RJ45 (1 PoE+) |
| Management | Ethernet, Bluetooth |
| IDS/IPS Throughput | 5 Gbps |
| MAC Address Table Size | 4,000 entries |
| Processor | Quad-core ARM® Cortex®-A73 @ 2.2 GHz |
| System Memory | 2 GB |
| Firewall | Stateful, Zone-based, Layer 7 filtering |
| DPI & Traffic Identification | ✓ |
| Content Filtering & Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ (CyberSecure) |
| VPN Server | WireGuard, OpenVPN, L2TP, Teleport |
| VPN Client | WireGuard, OpenVPN |
| Site-to-Site VPN | IPsec, OpenVPN, Site Magic |
| SD-WAN | License-free |
| Routing | Dynamic (OSPF), Static |
| Multi-WAN Load Balancing | ✓ |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT |
| QoS | Advanced |
| Multicast DNS (mDNS) | ✓ |
| Integrated RADIUS Server | ✓ (RadSec supported) |
| LTE Failover Support | ✓ (via UniFi LTE Backup) |
| Internet Quality Reporting | ✓ |
| Power Method | DC jack (54V DC, 1.1A) |
| Power Supply | 54V DC, 1.1A adapter (included) |
| Supported Voltage Range | 100–240V AC |
| PoE Budget | 30W (PoE+) |
| Max Power Consumption | 25W (excluding PoE output) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| LEDs | Ethernet, SFP+, System |
| Button | Factory-reset |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
