Description
Overview
Intercom Viewer
UA-Intercom-Viewer
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Compatibility: UA-Intercom, UA-G3-Pro, UA-G2-Pro

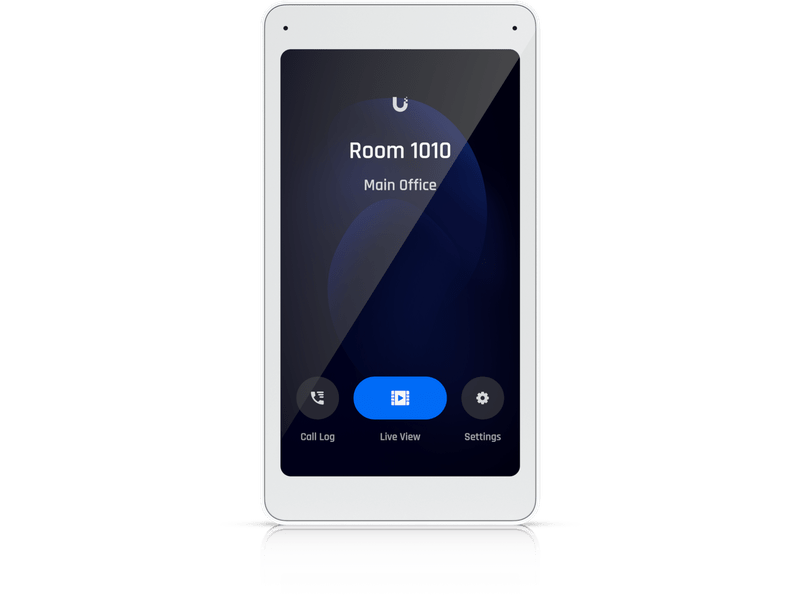

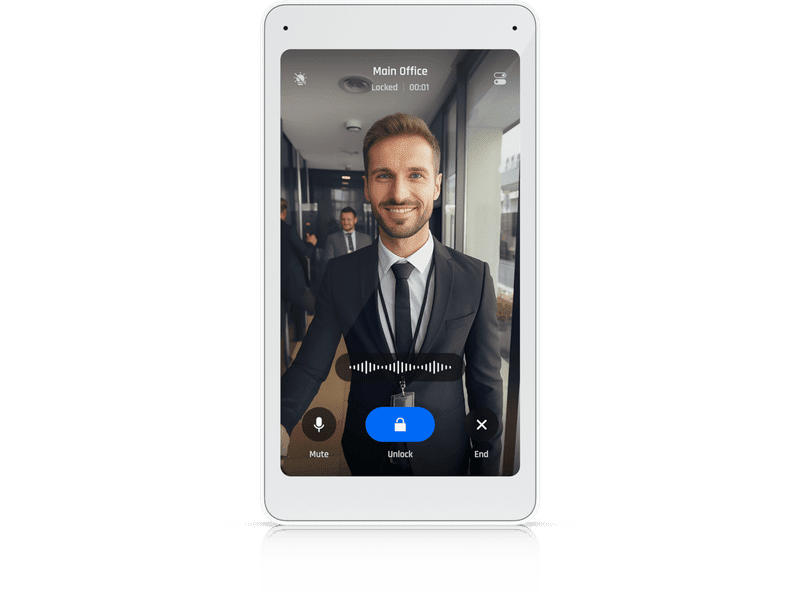

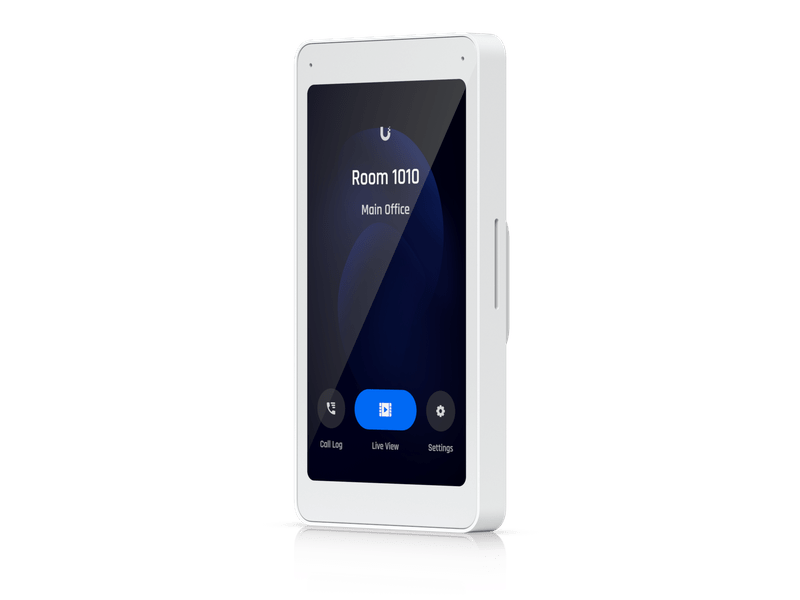

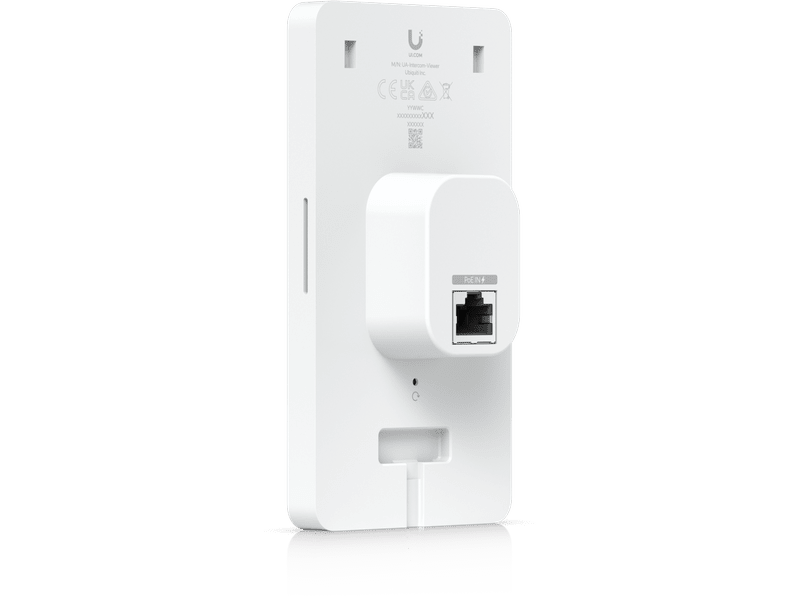

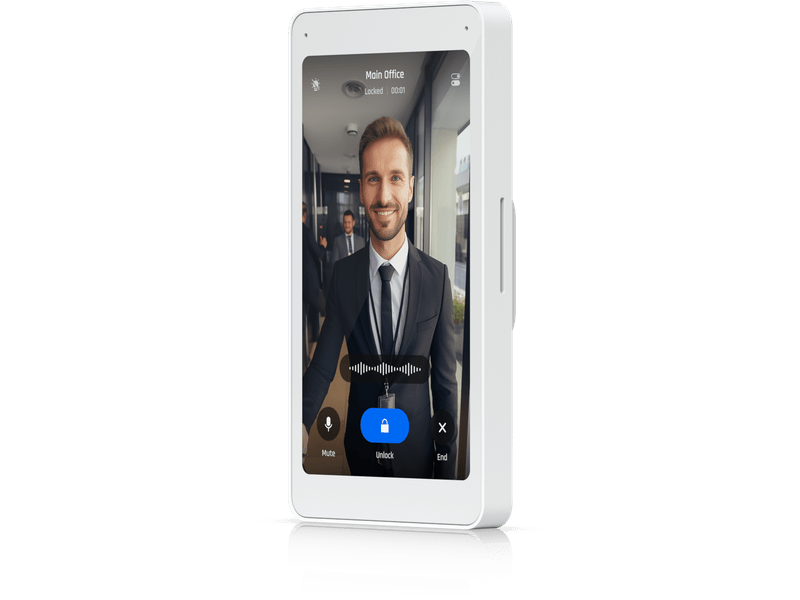

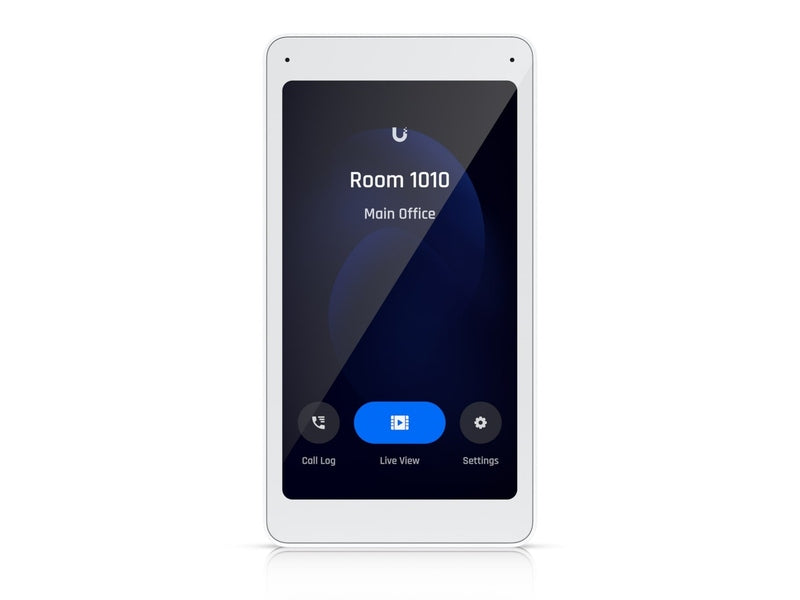

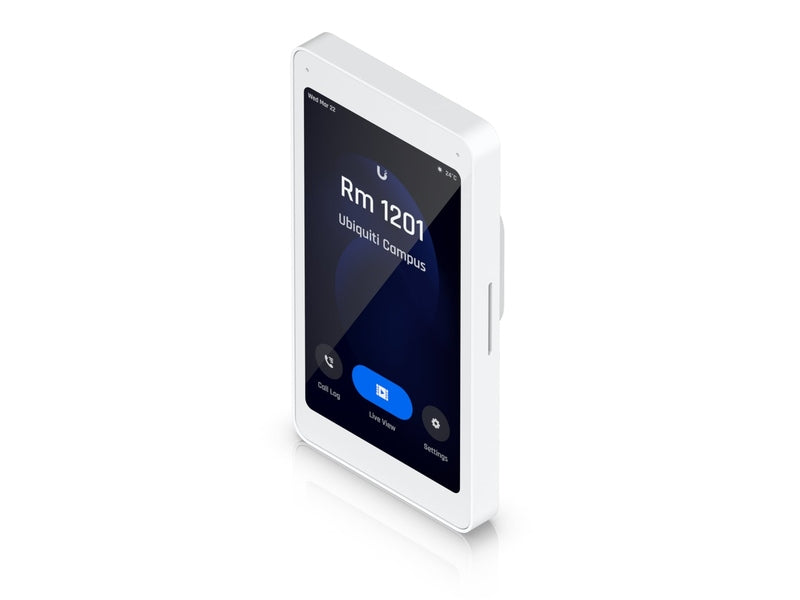

Intercom Viewer
UA-Intercom-Viewer
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Compatibility: UA-Intercom, UA-G3-Pro, UA-G2-Pro
UA-Intercom-Viewer Specifications | |
---|---|
Product Type | Touchscreen Intercom Display |
Display Size | 127 mm (5") diagonal |
Resolution | 1280 × 720 px |
Touchscreen Technology | Capacitive multi-touch |
Screen Orientation | Portrait |
Display Luminance | 300 nits (typical) |
Mobile Unlock | ✓ |
Audio | Microphone and speaker |
Button | (1) Factory-reset |
Dimensions | 135 × 185 × 32 mm (5.3 × 7.3 × 1.3") |
Weight | 168 g (5.9 oz) |
Enclosure Material | Glass, polycarbonate |
Mount Material | Aluminum alloy |
Mounting Options | Wall (Included), Gang box (Optional) |
Networking Interface | (1) 10/100 Mbps RJ45 port |
Connectivity | Ethernet |
Power Method | PoE |
Supported Voltage Range | 44–57V DC |
Max. Power Consumption | 5W |
Power Supply Standards | UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS / PS2 PSU |
Operating Environment | Indoor only |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
CAN/ULC-60839-11-1 Grade | Grade I |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Management Application | UniFi Access |
Software Version | Check via unifi.ui.com |
