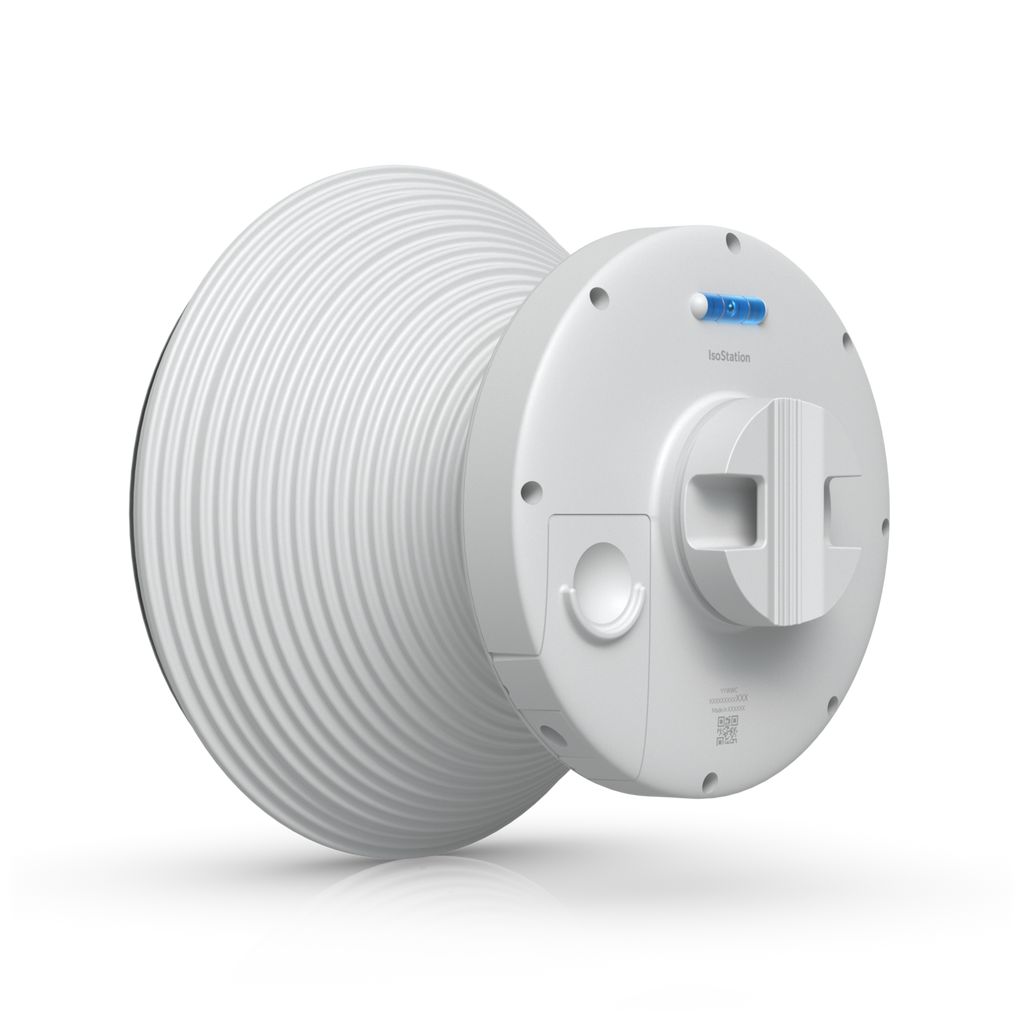

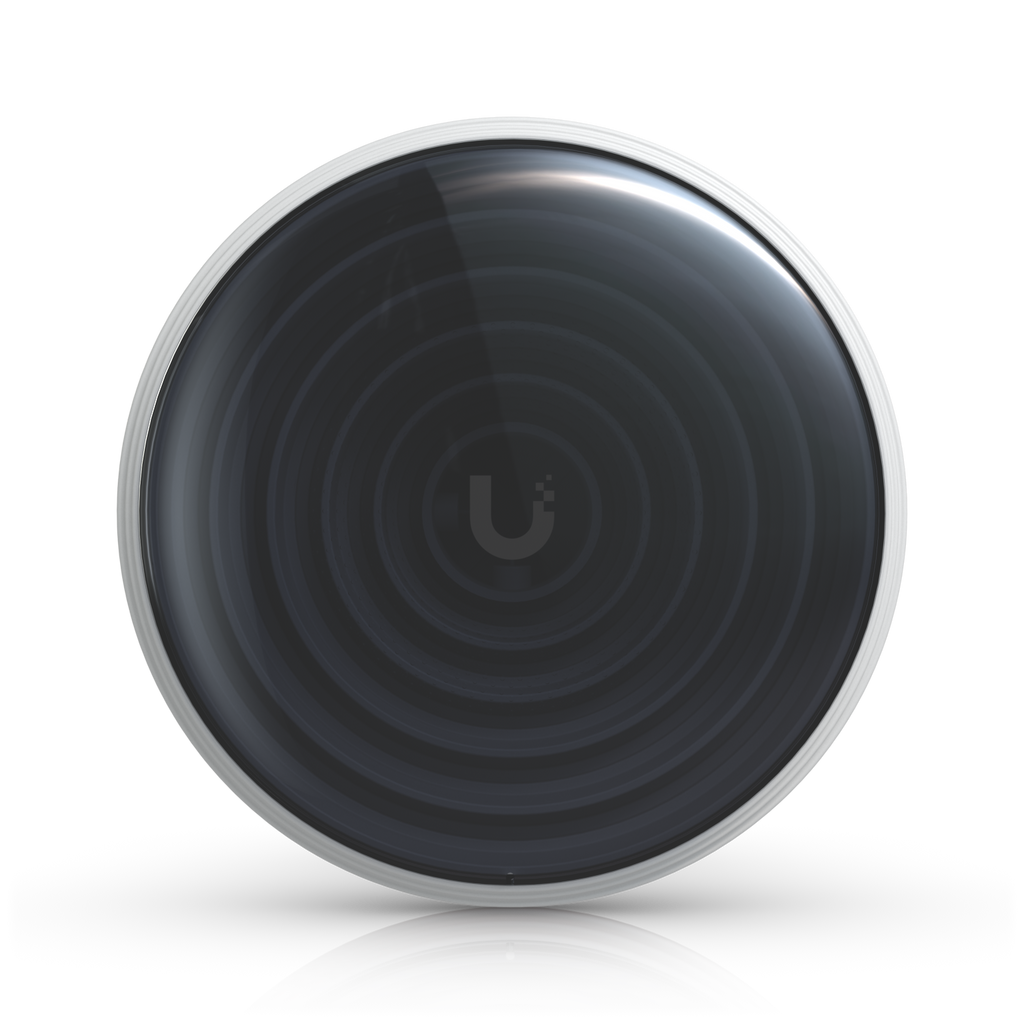

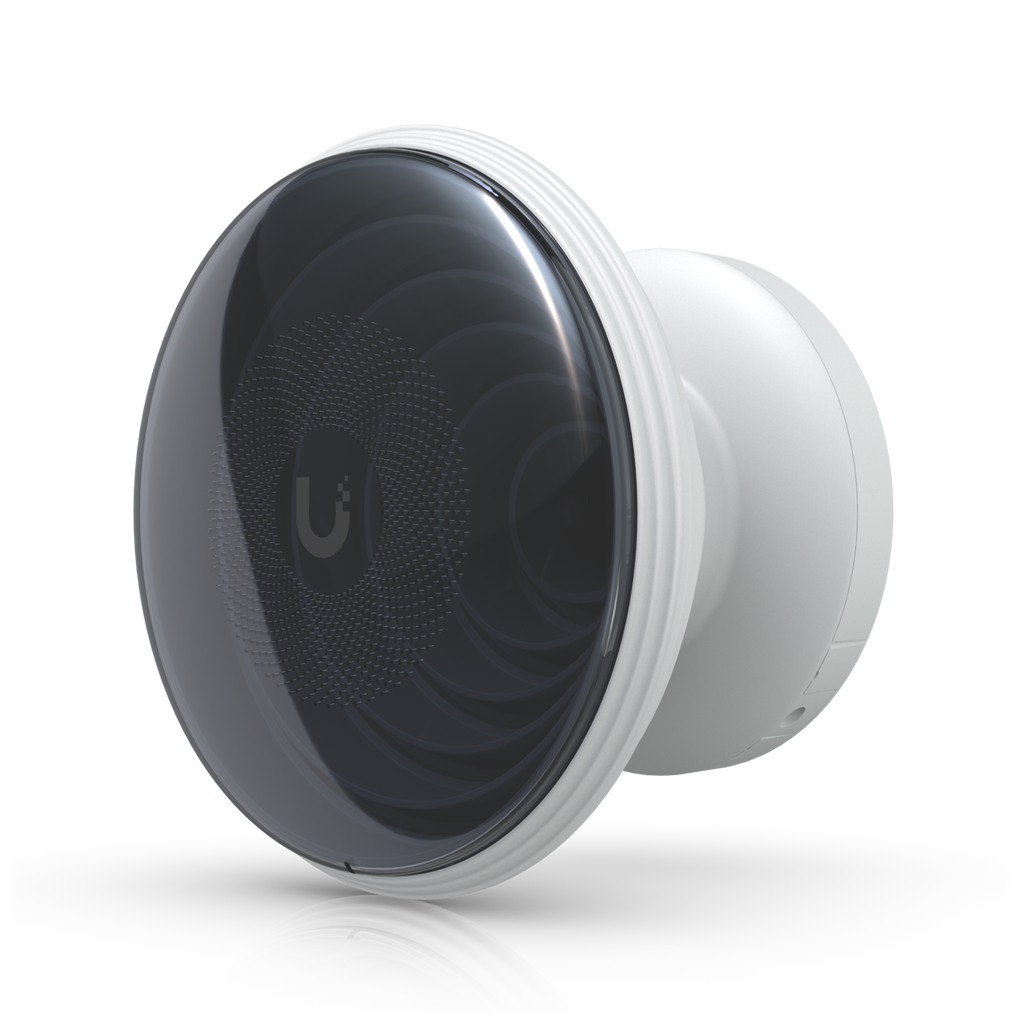

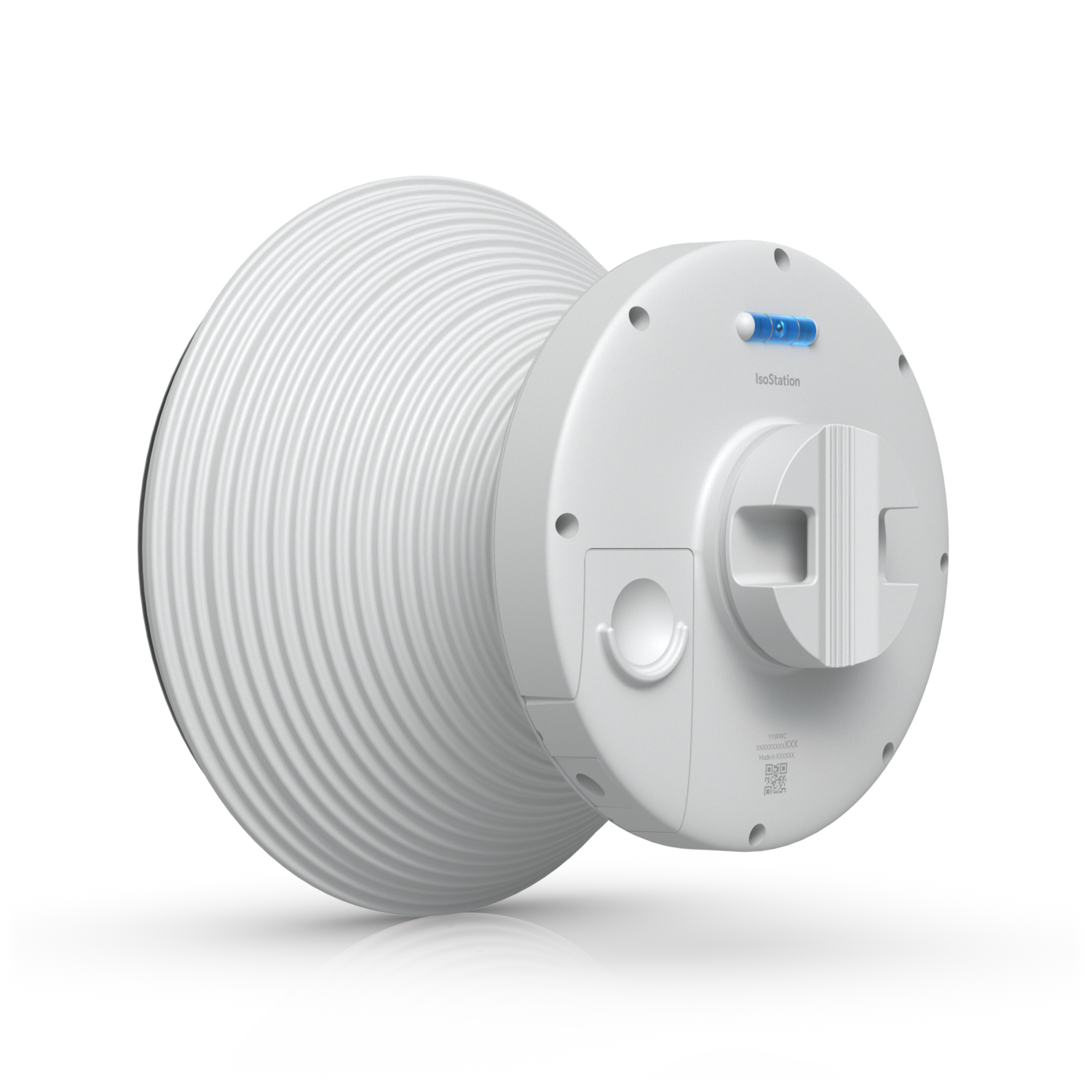

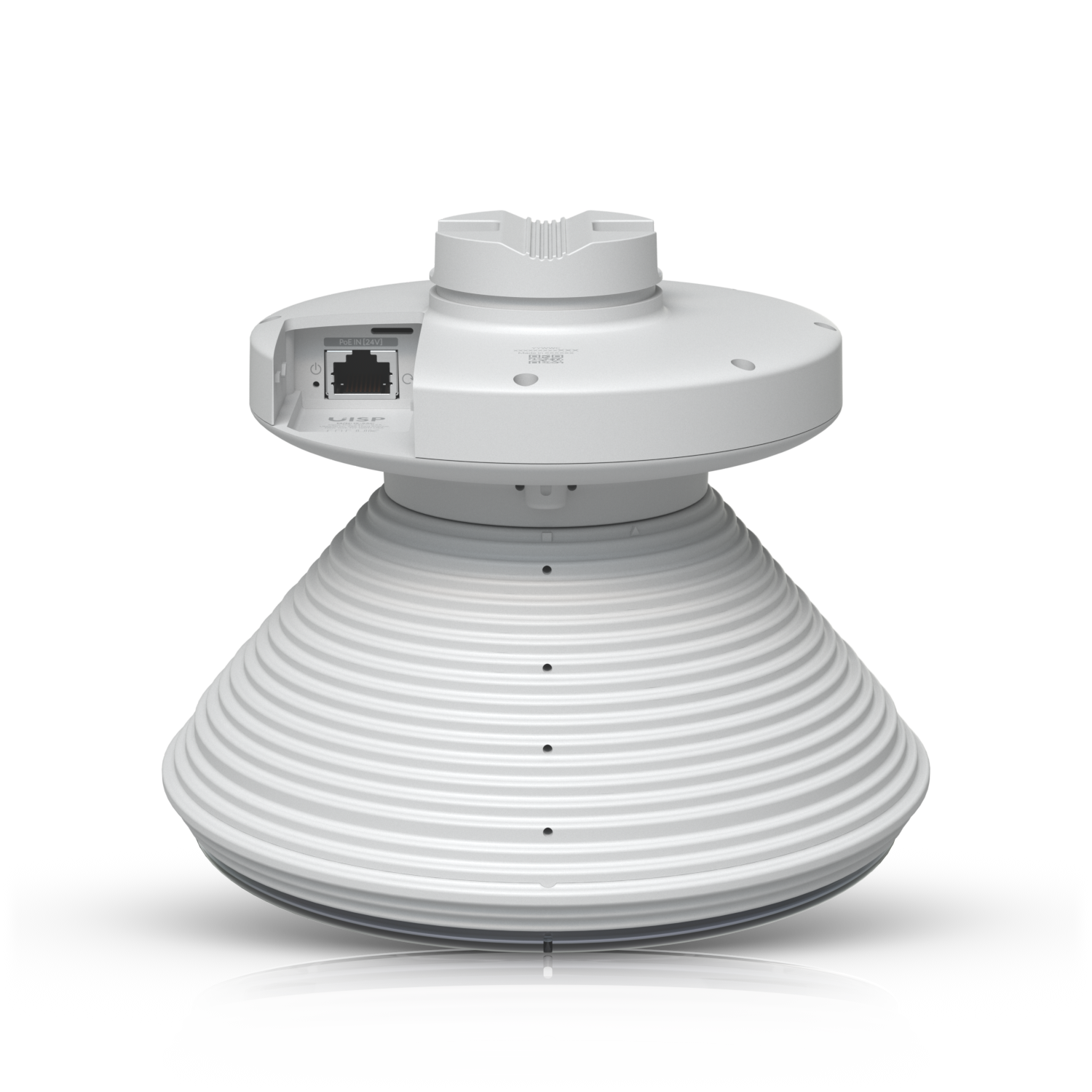

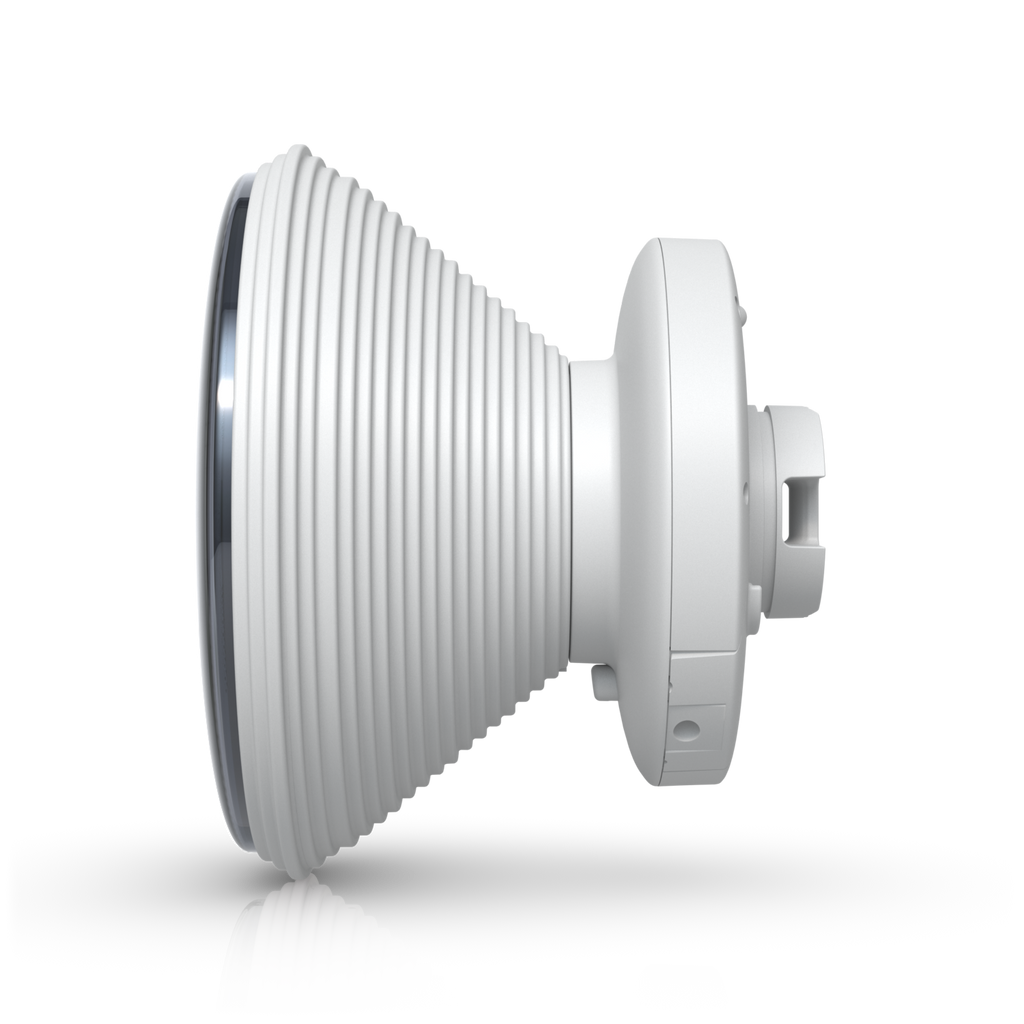

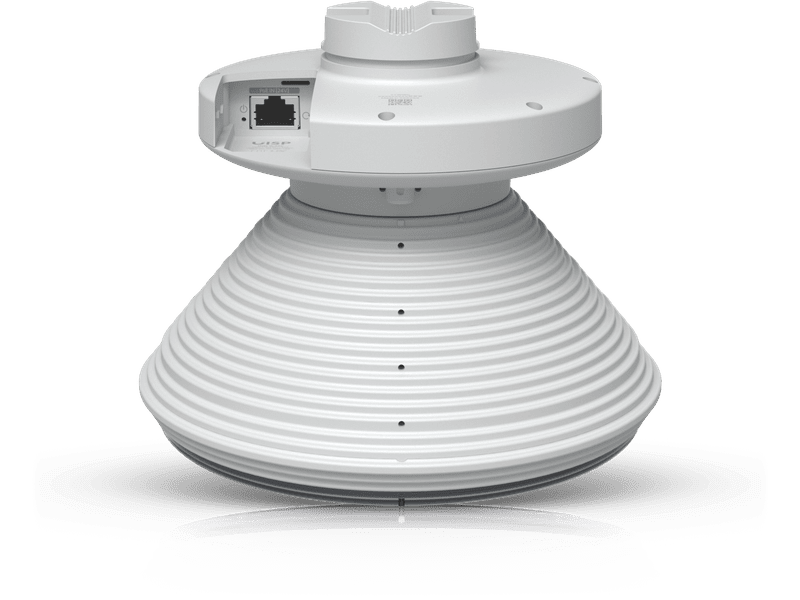

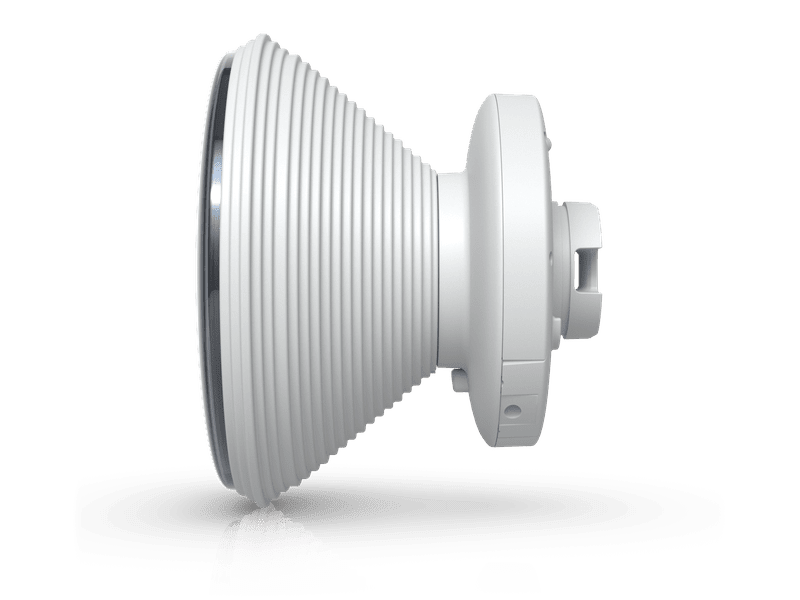

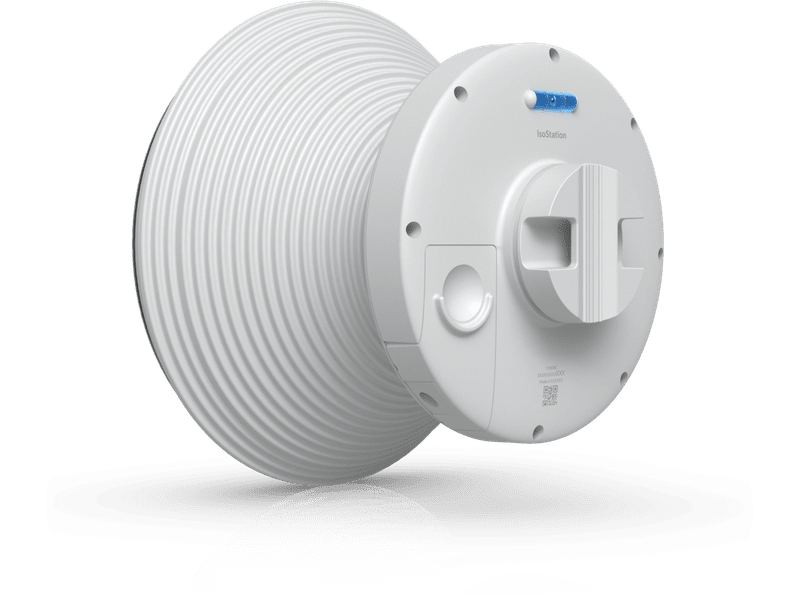

airMAX IsoStation 5AC
IS-5AC
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.
airMAX IsoStation 5AC
IS-5AC
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.
| IS-5AC Specifications | |
|---|---|
| Product Type | airMAX AC CPE with Interchangeable Horn Antenna |
| Application | Point-to-Multipoint (PtMP) or Point-to-Point (PtP) |
| Default Antenna | Horn-5-45 (45° beamwidth) |
| Antenna Gain | 14 dBi |
| Mechanical | |
| Dimensions | Without horn: 131 × 131 × 65 mm (5.2 × 5.2 × 2.6") With horn: 174 × 174 × 150 mm (6.9 × 6.9 × 5.9") |
| Weight | Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb) |
| Mounting | Pole mount kit (included) |
| Wind Loading | 36 N @ 200 km/h (8.09 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) Gigabit Ethernet RJ45 port |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Max Power Consumption | 8.5W |
| Supported Voltage Range | 20–27V DC |
| LED Indicator | Power |
| Wireless | |
| Operating Frequency | Worldwide: 5150–5875 MHz USA: U-NII-1 to U-NII-3 bands |
| Management Radio | Worldwide: 2412–2472 MHz US/CA: 2412–2462 MHz |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
