Overview

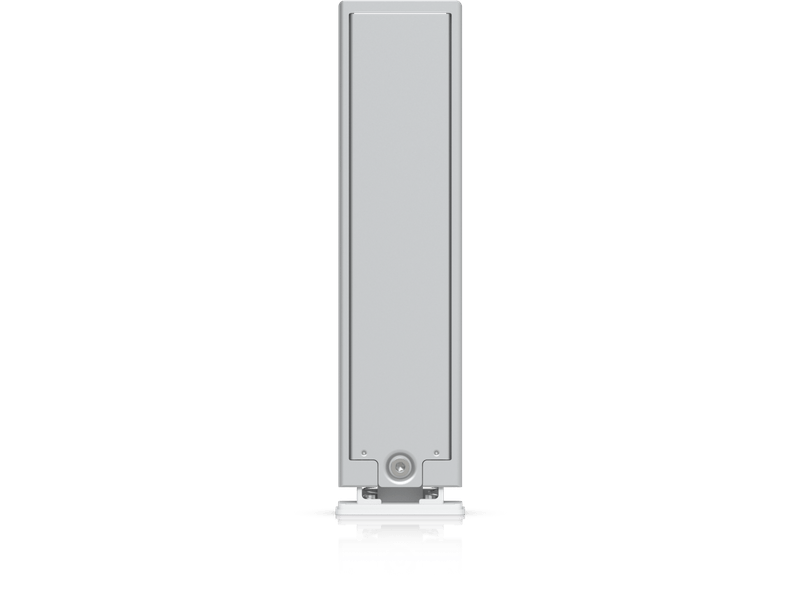

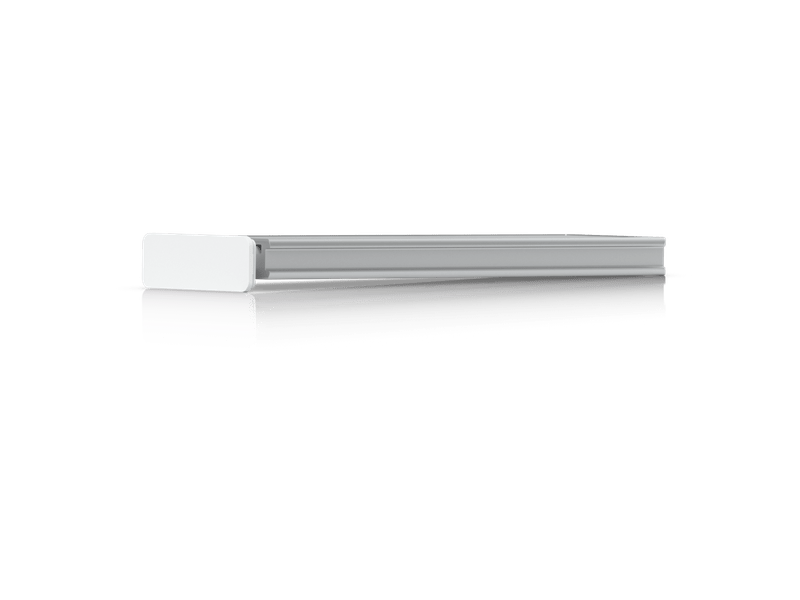

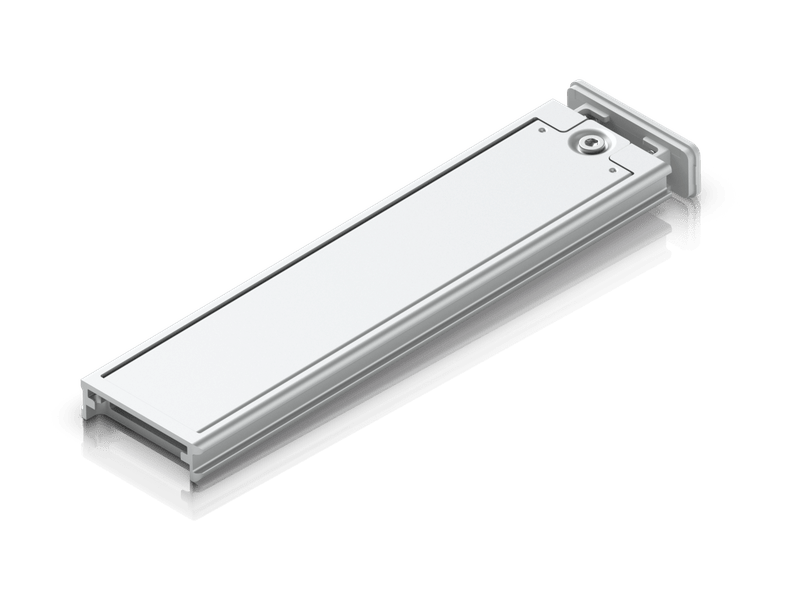

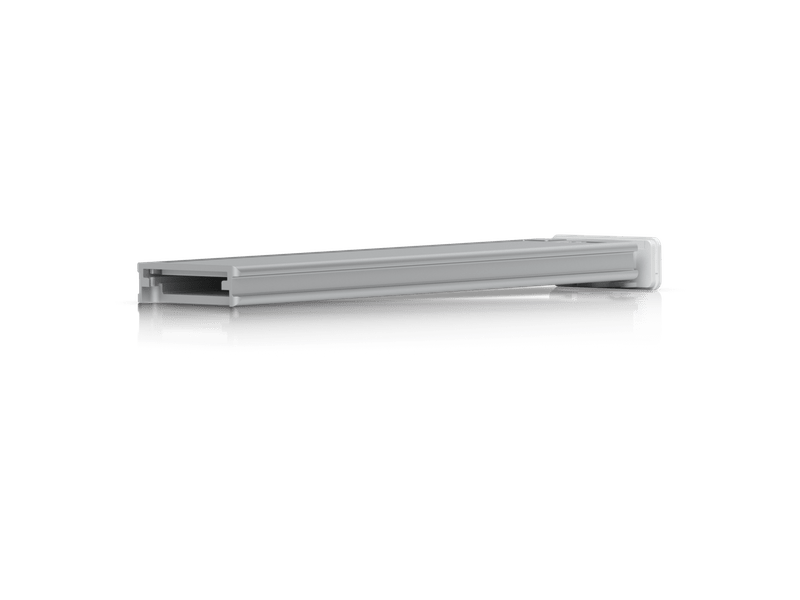

M.2 SSD Tray
UACC-SSD-Tray
Optional storage insert for Cloud Gateway Max and Fiber that supports one 2230, 2242, 2260, 2280, or 22110 sized M.2 NVMe SSD.
Cloud Gateway Max and Cloud Gateway Fiber supports M.2 NVMe with PCIe Gen3 x2 lanes. All M.2 NVMe SSDs are compatible, but will be limited to Gen3x2 performance.
Compatibility: UCG-Max-NS, UCG-Fiber
M.2 SSD Tray
UACC-SSD-Tray
Optional storage insert for Cloud Gateway Max and Fiber that supports one 2230, 2242, 2260, 2280, or 22110 sized M.2 NVMe SSD.
Cloud Gateway Max and Cloud Gateway Fiber supports M.2 NVMe with PCIe Gen3 x2 lanes. All M.2 NVMe SSDs are compatible, but will be limited to Gen3x2 performance.
Compatibility: UCG-Max-NS, UCG-Fiber
| UACC-SSD-Tray Specifications | |
|---|---|
| Dimensions | 123.4 × 31.1 × 11.2 mm (4.9 × 1.2 × 0.4") |
| Weight | 53 g (1.9 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate, stainless steel |
| Supported Devices | Cloud Gateway Max, Cloud Gateway Fiber |
| Supported SSD Sizes | M.2 NVMe: 2230, 2242, 2260, 2280, 22110 |
| Interface | M.2 NVMe (PCIe) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
