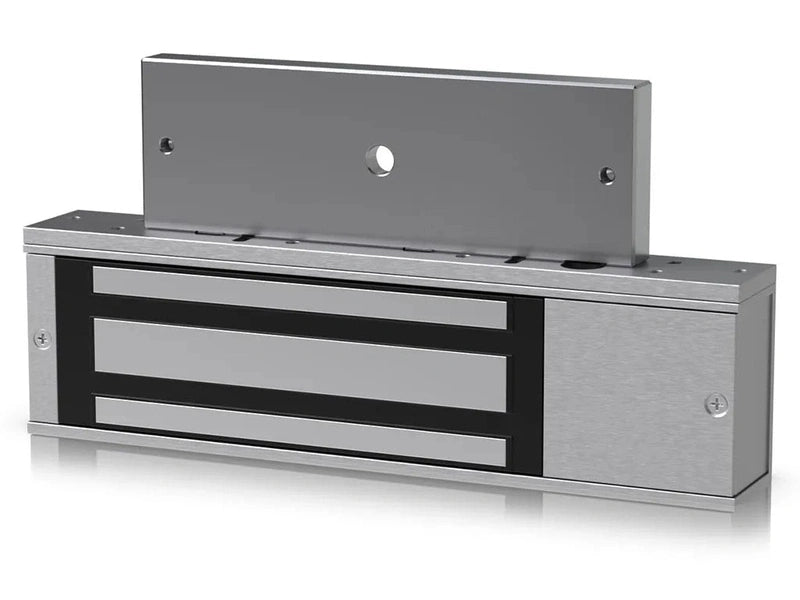

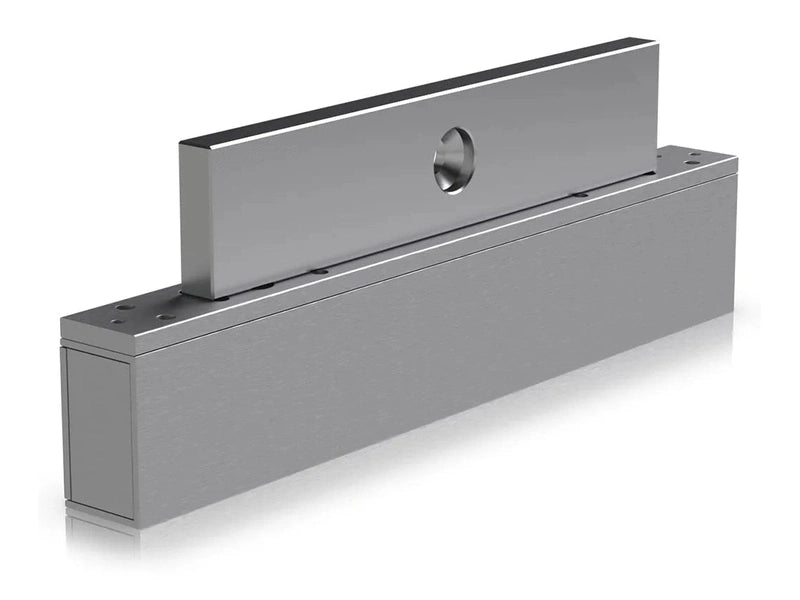

Magnetic Lock
UA-Lock-Magnetic-270kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate
Magnetic Lock
UA-Lock-Magnetic-270kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate
UA-Lock-Magnetic-270kg Specifications | |
---|---|
Lock Body Dimensions | 250 × 42.5 × 26 mm (9.8 × 1.7 × 1") |
Install Plate Dimensions | 250 × 25 × 5 mm (9.8 × 1 × 0.2") |
Armature Dimensions | 185.5 × 38.5 × 11 mm (7.3 × 1.5 × 0.4") |
Weight | Lock Body: 1 kg (2.2 lb) Install Plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) |
Enclosure Material | Aluminum (device/brackets), Steel (armature) |
Power Input | 12V DC |
Current Draw | 500 mA ±10% |
Wiring Terminals | Lock 12V/NC → UA-Hub Power Lock Relay NC Lock 12V/COM → UA-Hub Powered Lock Relay COM DPS/+ → UA-Hub DPS+ DPS/− → UA-Hub DPS− |
Holding Force | 270 kg (600 lb) |
Lock Type | Fail-safe (unlocks on power loss) |
Door Compatibility | Wood, metal, glass (single door) |
LED Indicators | Green: Unlocked, Red: Locked |

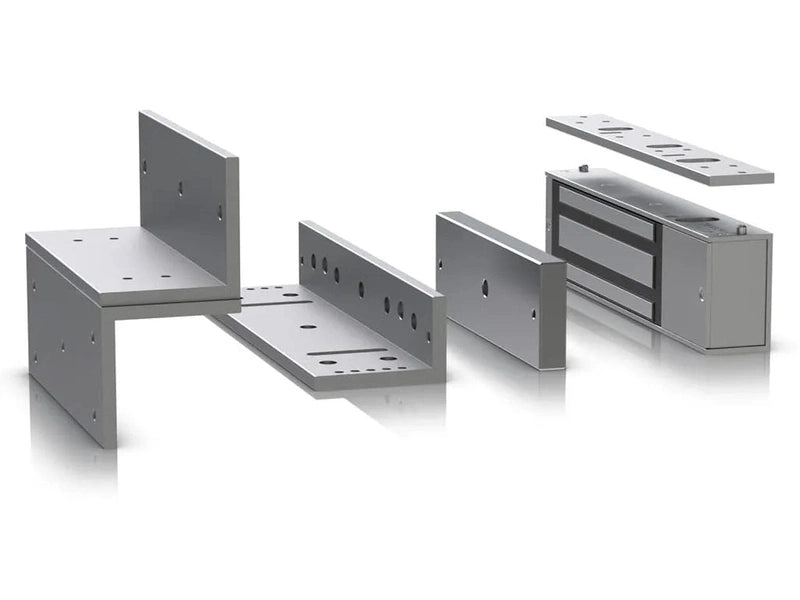

L Bracket | For outward-opening doors, thickness < 42 mm |
Z Bracket | Used with L bracket for inward-opening doors |
U Bracket | For glass doors ≤ 17 mm thick, gap ≤ 5 mm |
Ambient Operating Temperature | -10 to 50° C (14 to 122° F) |
Ambient Operating Humidity | 5 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | FCC, IC, CE |
