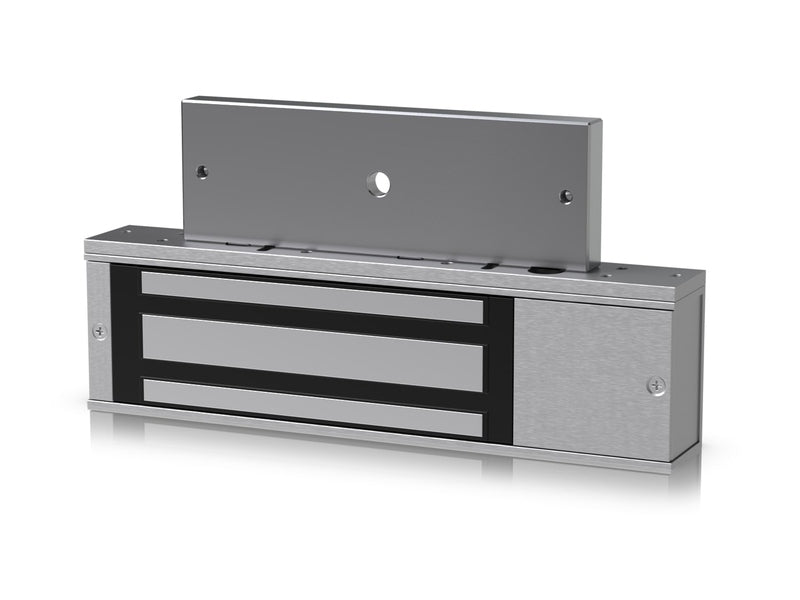

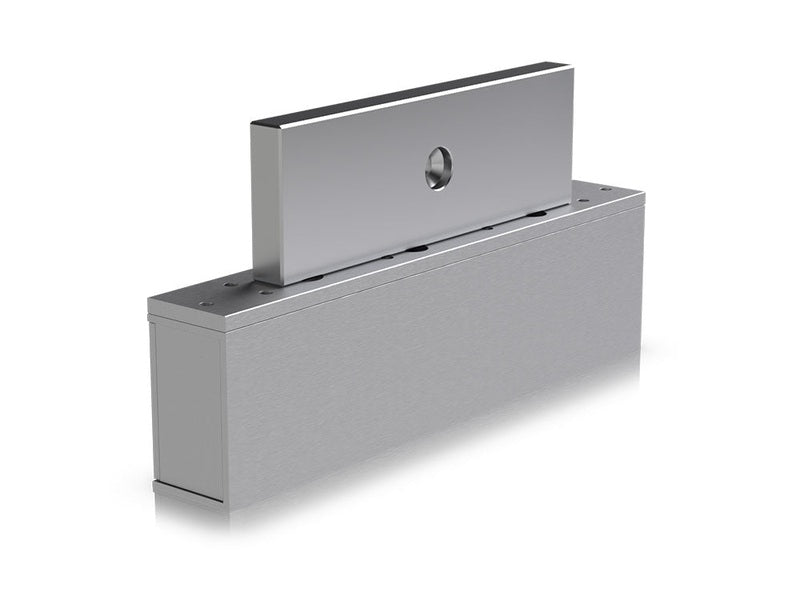

Magnetic Lock
UA-Lock-Magnetic-540kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate
Magnetic Lock
UA-Lock-Magnetic-540kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate
UA-Lock-Magnetic-540kg Specifications | |
---|---|
Lock Body Dimensions | 266 × 67.5 × 40 mm (10.5 × 2.7 × 1.6") |
Install Plate Dimensions | 266 × 40 × 6 mm (10.5 × 1.6 × 0.2") |
Armature Dimensions | 185 × 61 × 16 mm (7.3 × 2.4 × 0.6") |
Weight | Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) |
Enclosure Material | Aluminum (device/brackets), Steel (armature) |
Input Voltage | 12V DC |
Current Draw | 500mA ±10% |
Wiring Terminals | Lock 12V/NC → UA-Hub Power Lock Relay NC Lock 12V/COM → UA-Hub Powered Lock Relay COM DPS/+ → UA-Hub DPS+ DPS/- → UA-Hub DPS- |
Lock Type | Fail-safe magnetic lock |
Holding Force | 540 kg (1,200 lb) |
Door Compatibility | Wood and metal doors |
Door Configurations | Inswing and outswing |
LED Indicators | Green: unlocked, Red: locked |

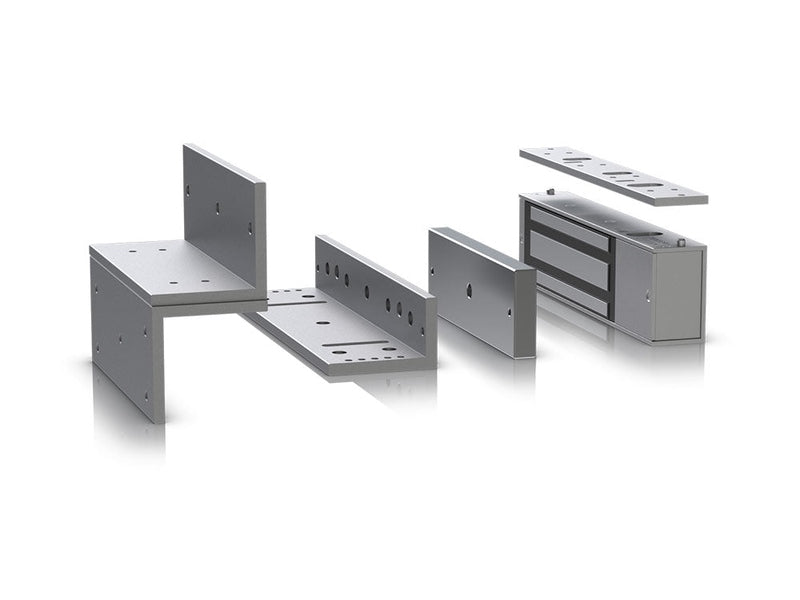

L Bracket | For outward opening doors (thickness < 42 mm) |
Z Bracket | Used with L bracket for inward opening doors |
Operating Temperature | -10 to 50° C (14 to 122° F) |
Operating Humidity | 5 to 90% noncondensing |
NDAA Compliant | ✓ |
Certifications | FCC, IC, CE |
