Description
Overview

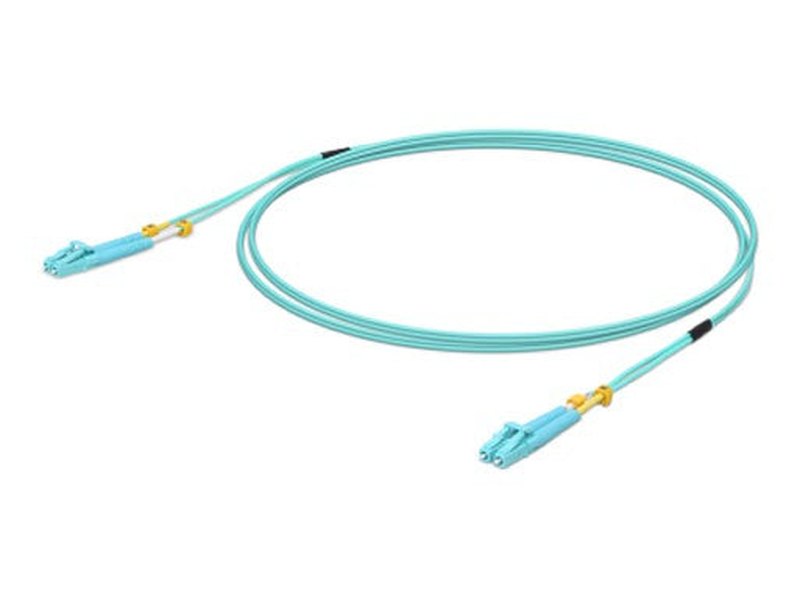

•Lightweight fiber patch cable.
•10 Gbps throughput
•LC to LC connector
•Cable length 0.5 m
•Lightweight fiber patch cable.
•10 Gbps throughput
•LC to LC connector
•Cable length 0.5 m
| UACC-OFC-MM-0.5M Specifications | |
|---|---|
| Product Type | OM3 Duplex LC Fiber Patch Cable |
| Cable Length | 0.5 meter (1.6 feet) |
| Connector Type | LC to LC (UPC polish) |
| Fiber Type | Multimode (OM3) |
| Fiber Mode | 50 / 125 µm |
| Duplex | ✓ |
| Supported Wavelengths | 850 / 1310 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 mating cycles) |
| Jacket Material | PVC |
| Jacket Outer Diameter | 2.0 mm |
| Jacket Color | Aqua |
| Cable Shape | Round |
| Weight | 10 g (0.35 oz) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Polish Type | UPC to UPC |
| Data Rate Support | Up to 10 Gbps |
| NDAA Compliant | ✓ |
