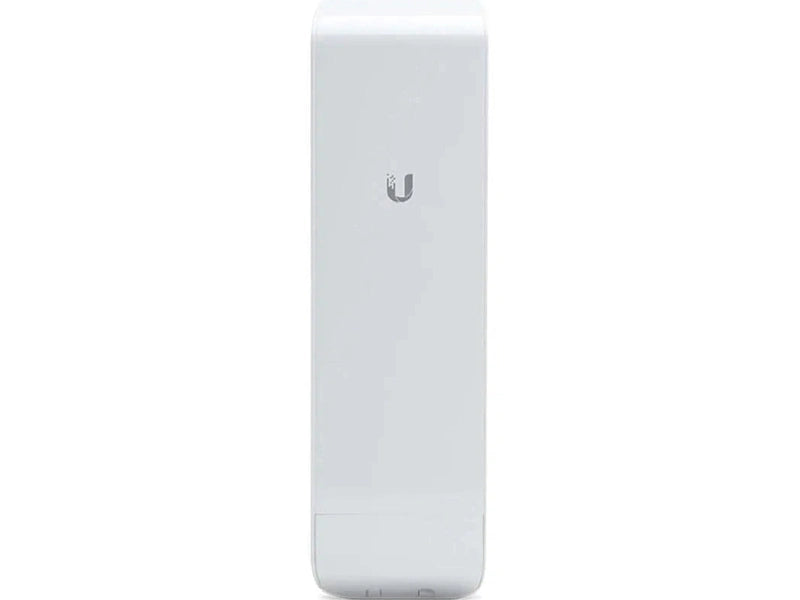

Ubiquiti Nanostation M5 5GHz 802.11a/n MIMO antenna

UbiquitiSKU: NSM5

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$165.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Specifications


Hardware
Dimensions 294 x 31 x 80 mm (11.6 x 1.3 x 3.2")
Weight 400 g (14.1 oz)
Enclosure material Outdoor UV-stabilized plastic
Mounting Pole-mount (Kit included)
Hardware
Networking interface (2) 10/100 MbE RJ45 ports
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A PoE adapter (Included)
Supported voltage range 22–27V DC
Max. power consumption 8W
Ambient operating temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% noncondensing
Shock & vibration ETSI300-019-1.4
Certifications FCC, ICC, CE, RoHS
System
Frequency 5 GHz
Operating frequency
Worldwide
USA
USA DFS

5170-5875 MHz
5725-5850 MHz
5250-5850 Mhz
Gain 14.6-16.1 dBi
Cross-pol isolation 22 dB Min.
Max. VSWR 1.6:1
Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization Dual Linear
