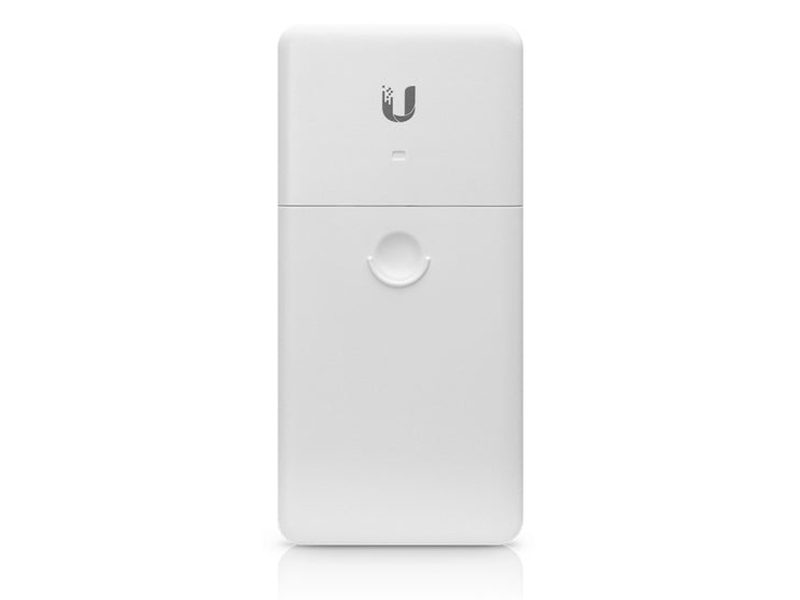

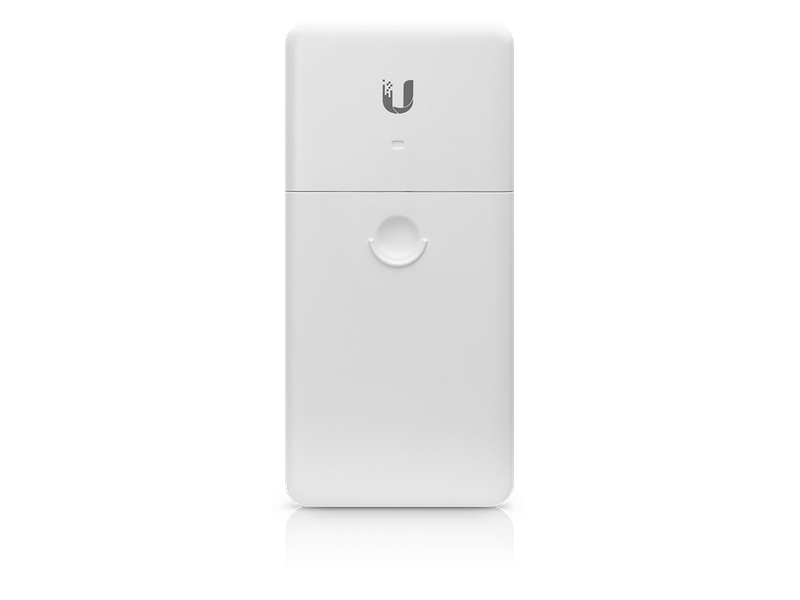

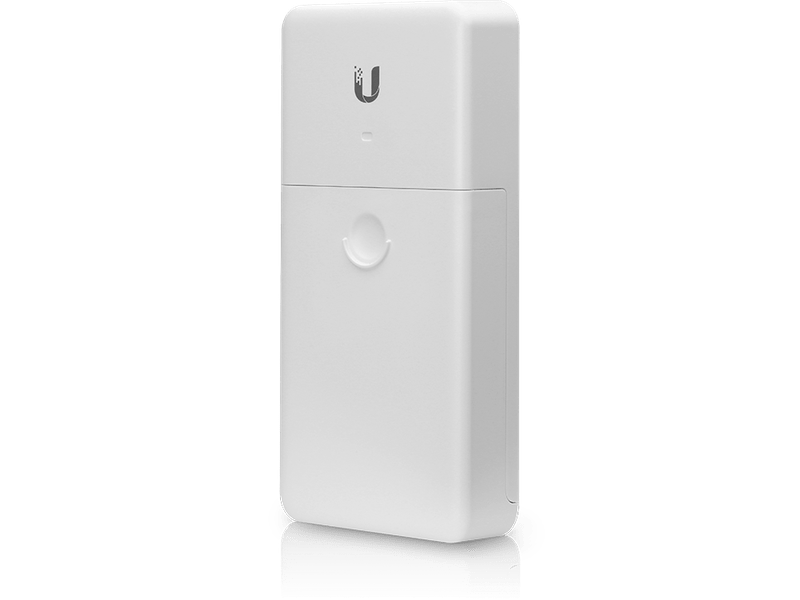

NanoSwitch
N-SW
An outdoor, 4-port Gigabit switch with up to 4 Gbps total, non-blocking line rate support.
NanoSwitch
N-SW
An outdoor, 4-port Gigabit switch with up to 4 Gbps total, non-blocking line rate support.
| N-SW (NanoSwitch) Specifications | |
|---|---|
| Product Type | Outdoor Passive PoE Gigabit Switch |
| Application | Outdoor deployments with passive PoE passthrough |
| Switch Type | Layer 2 unmanaged |
| Interfaces | |

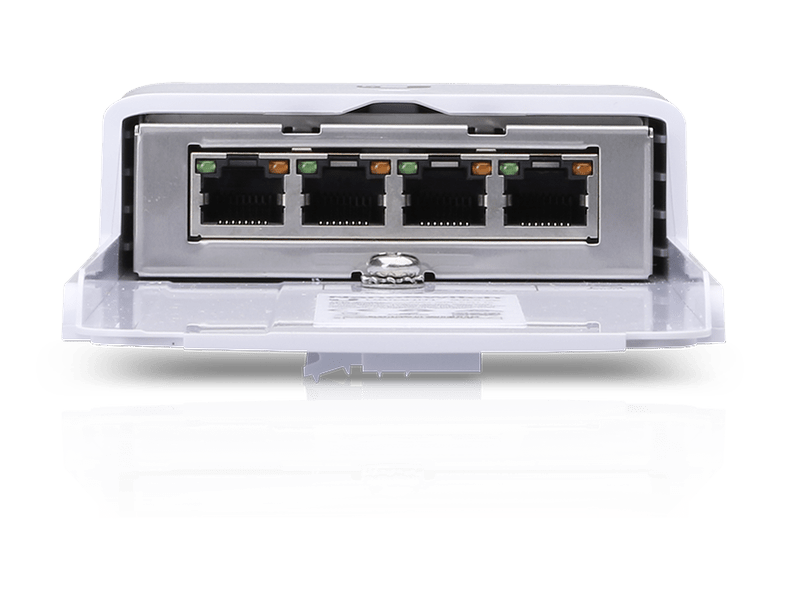

| Ethernet Ports | (4) 10/100/1000 Mbps RJ45 ports |

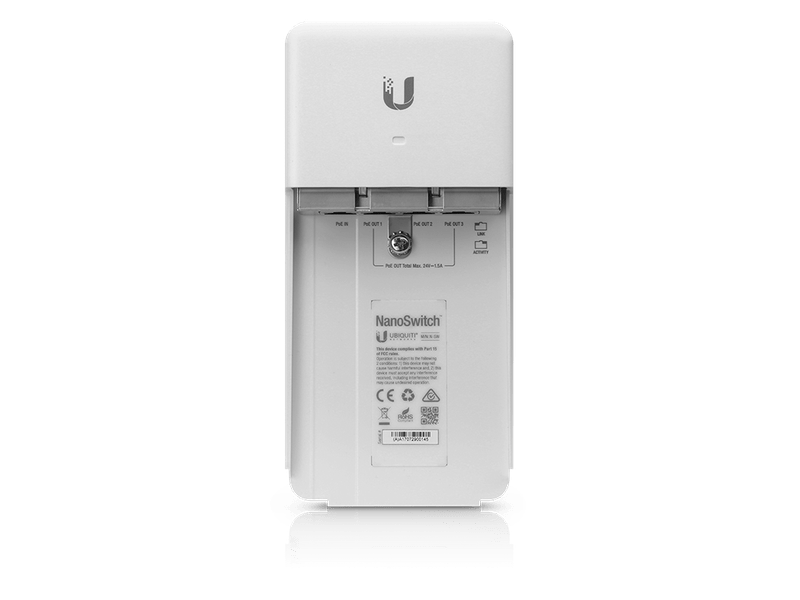

| PoE Configuration | (1) PoE In, (3) PoE Passthrough |
| PoE Standard | Passive 24V, 2-pair |
| Max PoE Output per Port | 24V, 1A (24W) |
| Total PoE Budget | 30W across 3 ports |
| Performance | |
| Total Non-Blocking Line Rate | 4 Gbps |
| Typical Power Consumption | 1.5W |
| Max Power Consumption | 30W |
| Power | |
| Power Method | Passive 24V PoE In |
| Supported Voltage Range | 21.6–30V DC |
| Power Supply | POE-24-30W-G (not included) |
| Mechanical | |
| Dimensions | 196 × 93 × 32 mm (7.7 × 3.7 × 1.3") |
| Weight | 269 g (9.5 oz) |
| Enclosure Material | White polycarbonate |
| Environmental | |
| Operating Temperature | −30 to 70°C (−22 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air / Contact |
| LEDs | Speed / Link / Activity (All ports) |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
