Overview

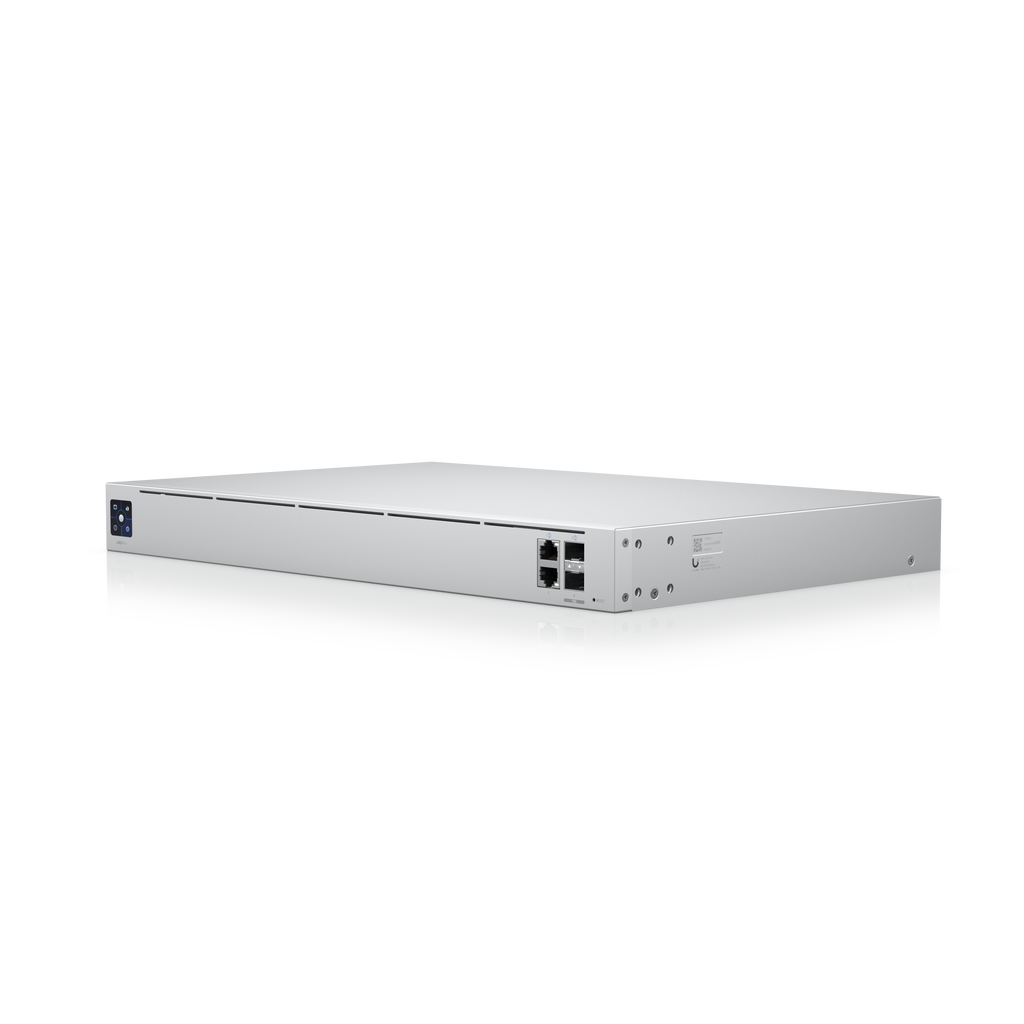

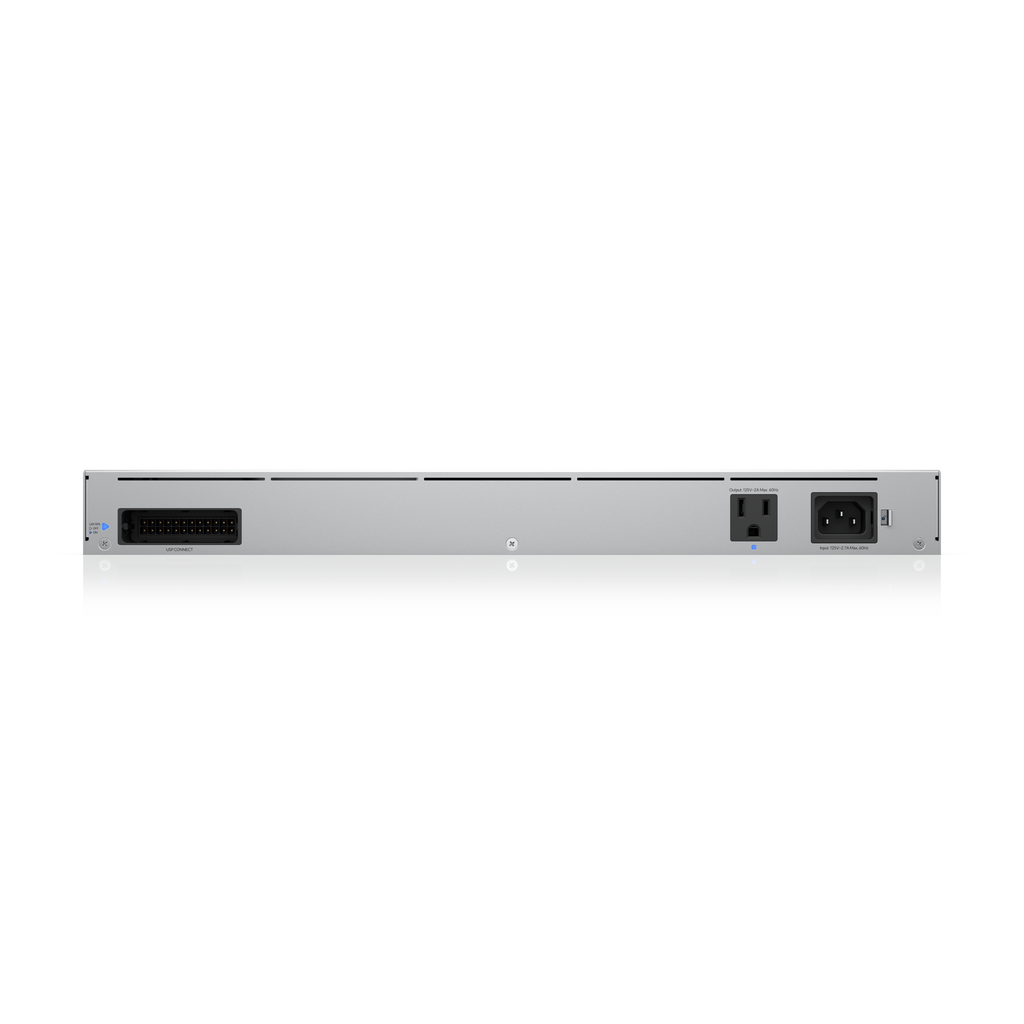

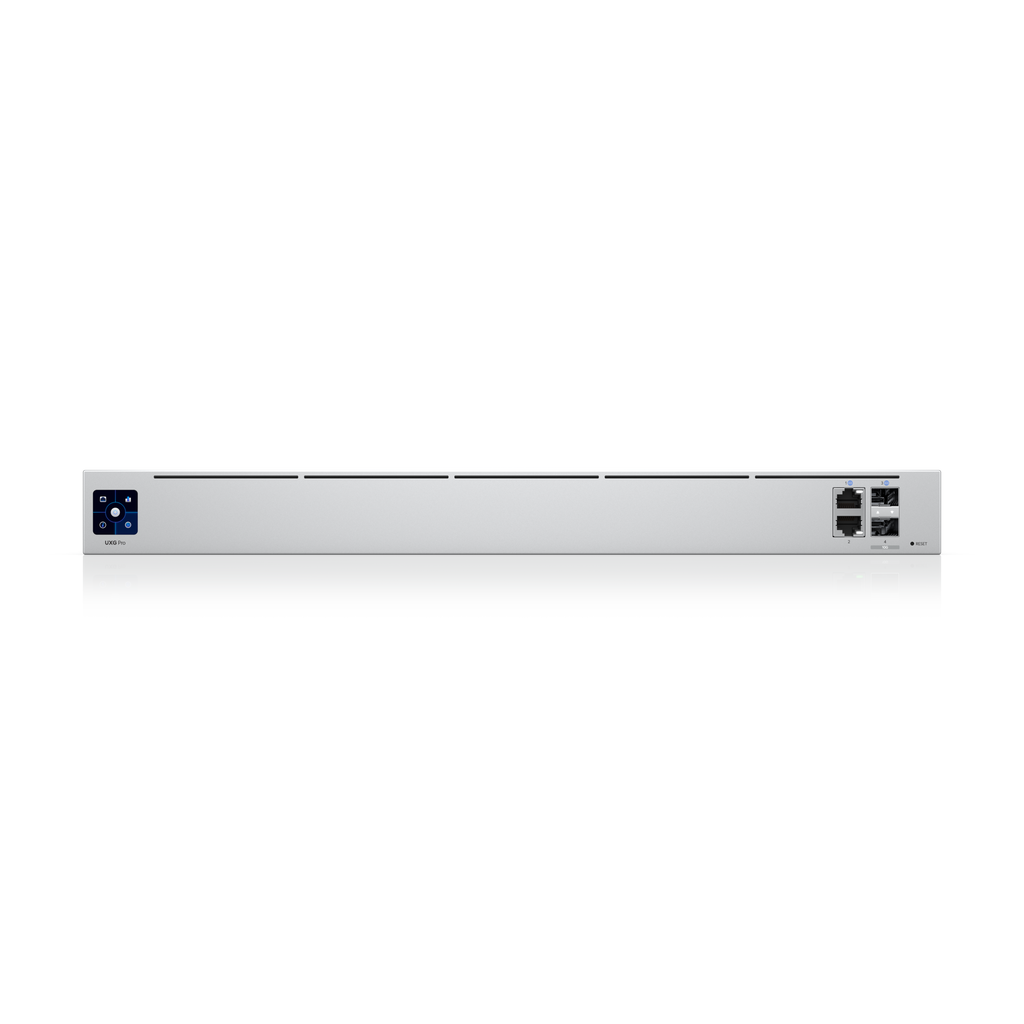

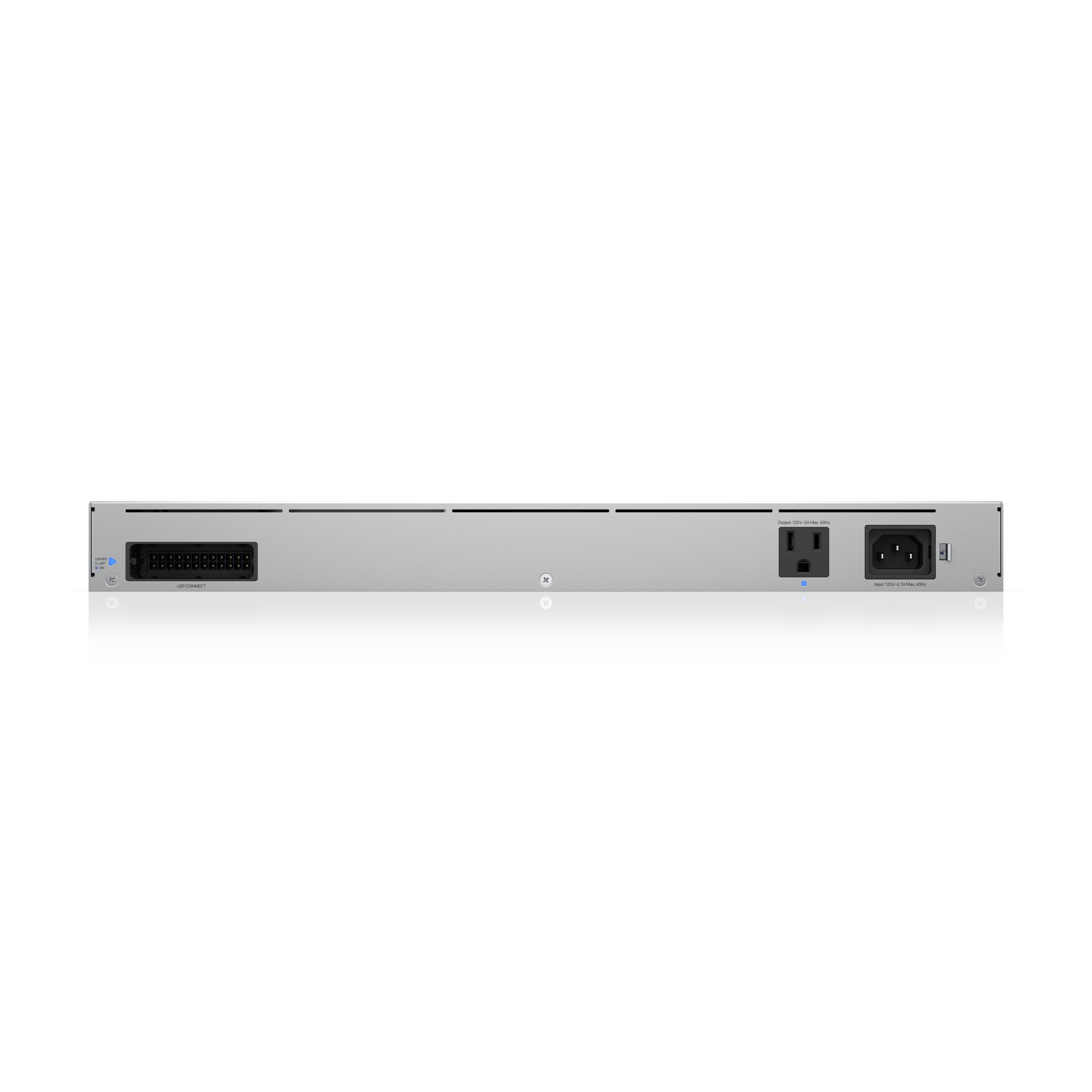

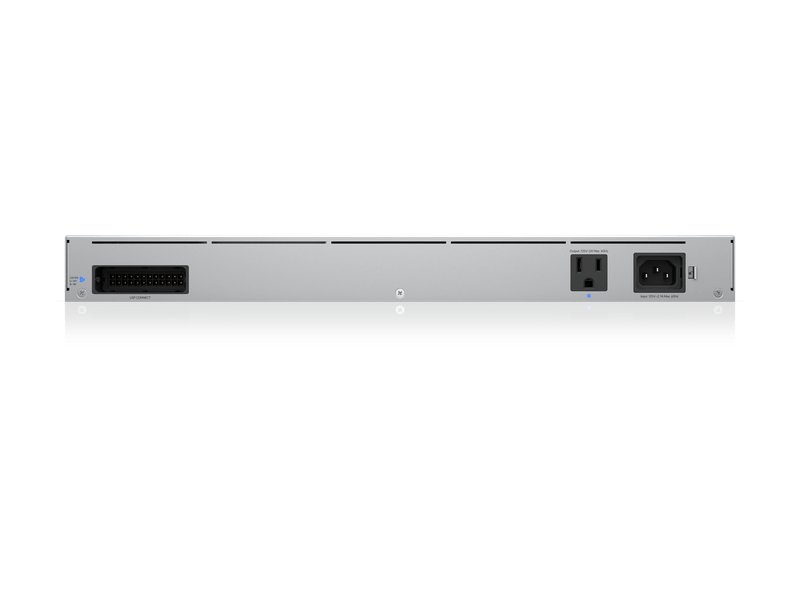

Gateway Pro
UXG-Pro
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port
UniFi Power Backup ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Gateway Pro
UXG-Pro
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port
UniFi Power Backup ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
UXG-Pro Specifications | |
---|---|
Product Type | Enterprise Security Gateway |
Form Factor | Rackmount (1U) |
Use Case | Multi-WAN gateway with advanced threat management |
WAN Ports | (1) 10G SFP+ (1) 1G RJ45 |
LAN Ports | (1) 10G SFP+ (1) 1G RJ45 |
Max WAN Port Count | 3 |
Multi-WAN Features | Load balancing, failover, LTE backup |
IDS/IPS Throughput | 3.5 Gbps |
Firewall Features | Stateful firewall Layer 7 application-aware filtering Zone-based firewall Content filtering Ad blocking |
DPI & Threat Management | ✓ (55,000+ IDS/IPS signatures) |
VPN Protocols | Site Magic IPsec OpenVPN WireGuard L2TP Teleport (zero-config VPN) |
SD-WAN | License-free |
Processor | Quad-core ARM® Cortex®-A53 @ 1.5 GHz |
System Memory | 2 GB DDR4 |
Power Supply | Internal AC/DC, 50W |
Power Method | Universal AC input (100–240V AC) RPS DC input (11.5V DC, 2.87A) |
Max Power Consumption | 30W |
Redundancy | Supports UniFi SmartPower RPS |
Dimensions | 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2") |
Weight | 3.4 kg (7.5 lb) |
Enclosure Material | Aluminum front panel, SGCC steel body |
Display | 1.3" LCM touchscreen |
Button | Factory reset |
LED Indicators | Ethernet, SFP+, RPS, AC |
Operating Temperature | -10 to 40°C (14 to 104°F) |
Operating Humidity | 5 to 95% noncondensing |
ESD/EMP Protection | ±15kV air / ±8kV contact |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
UniFi Network Version | 8.3.32 and later |
