Overview
Optical Data Transport
F-POE-G2
Connects remote PoE devices and provides data and power using fiber and DC cabling.
Reliable long-distance Gigabit PoE runs
Dependable 24V/50V passive PoE transport
Enhanced ESD protection and EMI reduction
Works reliably in extreme temperatures (-40 to 60° C)
Optical Data Transport
F-POE-G2
Connects remote PoE devices and provides data and power using fiber and DC cabling.
Reliable long-distance Gigabit PoE runs
Dependable 24V/50V passive PoE transport
Enhanced ESD protection and EMI reduction
Works reliably in extreme temperatures (-40 to 60° C)
F-POE-G2 Specifications | |
---|---|
Product Type | Optical Data Transport for Outdoor PoE Devices |
Function | Fiber-to-Ethernet converter with DC power injection |

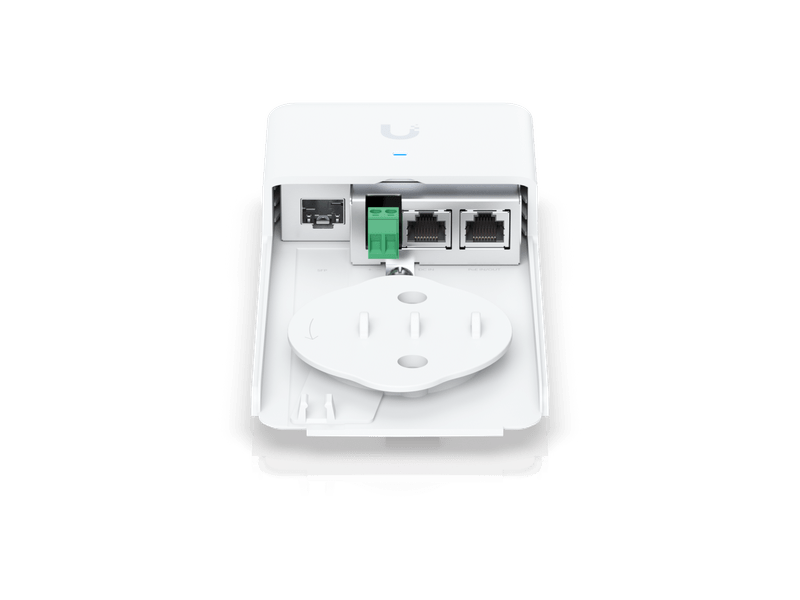

Interfaces | |
SFP Port | (1) 1 Gbps SFP |
DC Terminal Block | (1) 2-wire input/output |
DC RJ45 Port | (1) 2-pair or 4-pair input |
PoE RJ45 Port | (1) 2-pair or 4-pair PoE passthrough |
Power | |
Input Voltage | 16–57V DC |
Output Voltage | 24V DC / 50V DC via terminal block |
Power Method | DC Terminal Block (2-wire) DC RJ45 Port (2-pair or 4-pair) PoE RJ45 Port (passthrough) |
Power Consumption | 1.5W (typical) |
Protection | |
Surge Protection | Gas discharge tube (DC & PoE ports) |
ESD Protection | ±24kV Contact/Air for Ethernet |
Mechanical | |
Dimensions | 196.4 × 93.5 × 32.4 mm (7.7 × 3.7 × 1.3") |
Weight | 288 g (10.2 oz) |
Enclosure Material | Polycarbonate |
Environmental | |
Operating Temperature | −40 to 60°C (−40 to 140°F) |
Operating Humidity | 10 to 95% noncondensing |
Compliance | |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
