Description
Overview

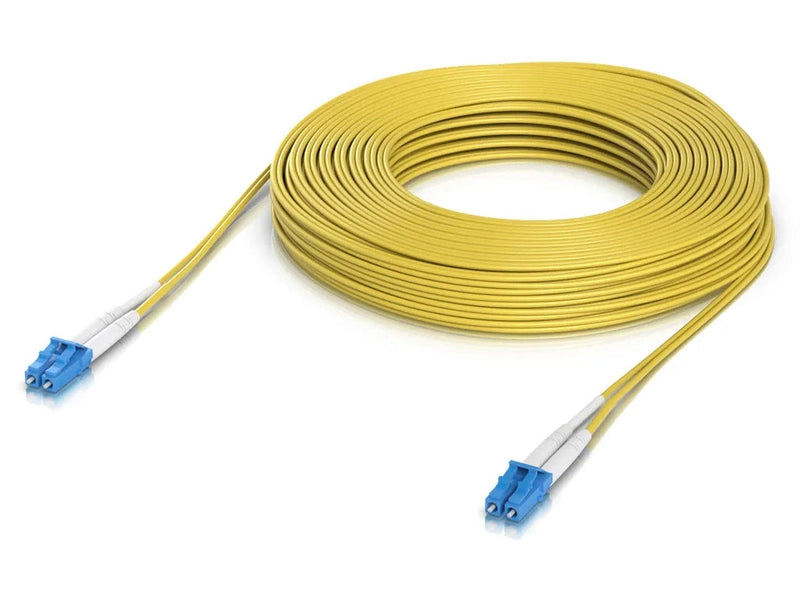

OS2 Duplex LC UPC Fiber Patch Cable
UACC-OFC-S2-LULU-30M
Lightweight fiber patch cable for up to 100G connections.
OS2 single-mode fiber
Duplex LC UPC connectors
Cable length 0.5 to 30 m
OS2 Duplex LC UPC Fiber Patch Cable
UACC-OFC-S2-LULU-30M
Lightweight fiber patch cable for up to 100G connections.
OS2 single-mode fiber
Duplex LC UPC connectors
Cable length 0.5 to 30 m
Fiber Optic Cable Specifications | |
---|---|
Connector | LC-LC |
Type | Duplex |
Mode | OS2 |
Jacket Material | Low smoke zero halogen (LSZH) |
Jacket Outer Diameter | 2.0 mm |
Jacket Color | Yellow |
Polish | UPC to UPC |
Wavelength | 1310 / 1550 nm |
Insertion Loss | ≤ 0.3 dB |
Return Loss | ≥ 50 dB |
Repeatability | ≤ 0.1 dB |
Durability | ≤ 0.2 dB (1,000 times mating) |
Pack Options | Single Unit: 0.5, 1, 3, 5, 10, 15, 30 m 50-Pack: 0.5, 1, 3 m |
Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
