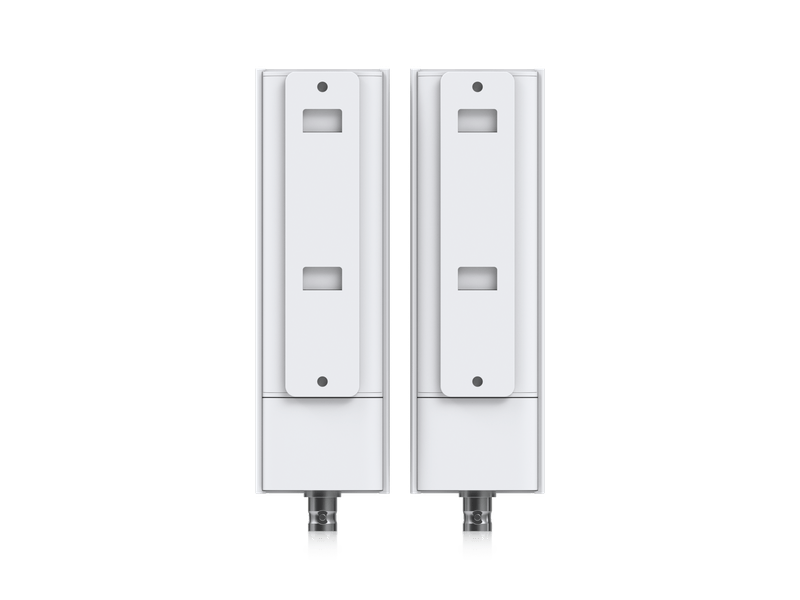

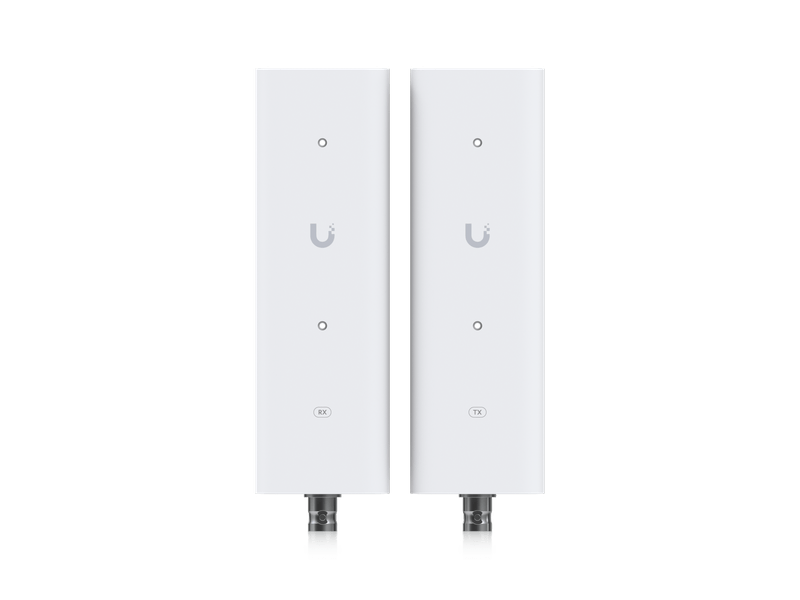

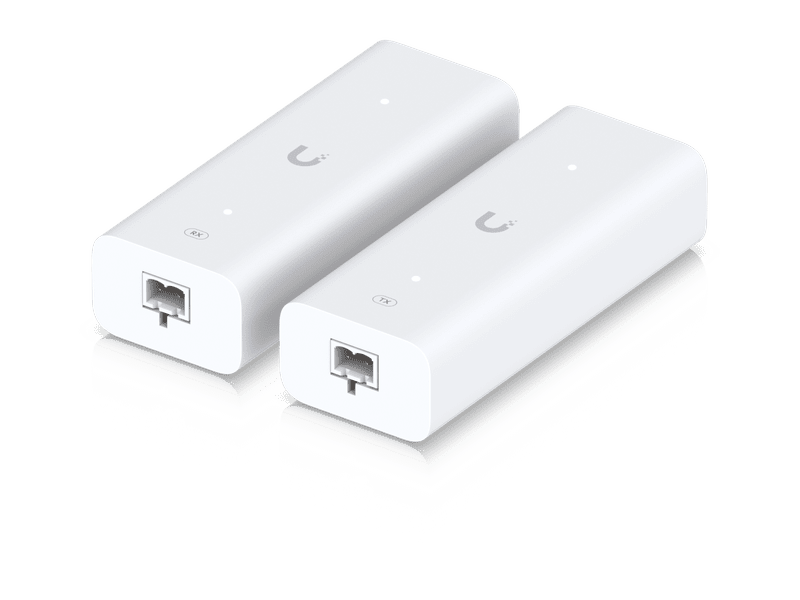

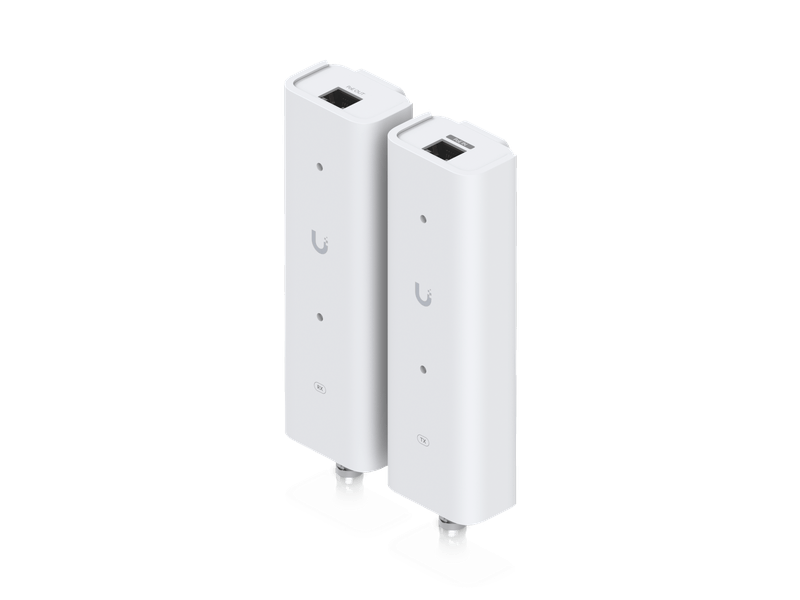

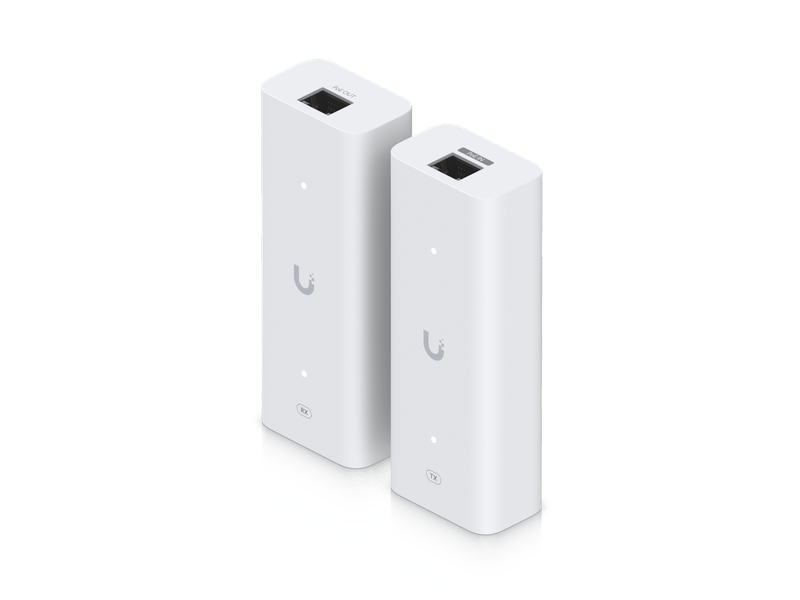

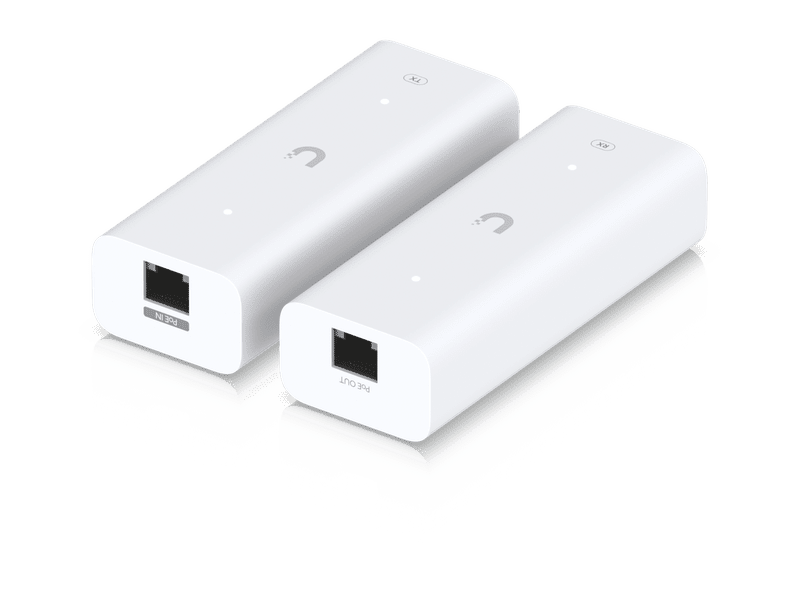

PoE Over 2-Wire Retrofit Extender
UACC-Retrofit-PoE-2Wire
A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.
Transmitter
(1) PoE++ input
(1) 2-wire output
(1) 2-wire to BNC adapter
Receiver
(1) PoE/PoE+ output
(1) 2-wire input
(1) 2-wire to BNC adapter
PoE Over 2-Wire Retrofit Extender
UACC-Retrofit-PoE-2Wire
A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.
Transmitter
(1) PoE++ input
(1) 2-wire output
(1) 2-wire to BNC adapter
Receiver
(1) PoE/PoE+ output
(1) 2-wire input
(1) 2-wire to BNC adapter
| UACC-Retrofit-PoE-2Wire Specifications | |
|---|---|
| Mechanical | |
| PoE In Module Dimensions | 40 × 105 × 25 mm (1.6 × 4.1 × 1") |
| PoE Out Module Dimensions | 40 × 105 × 25 mm (1.6 × 4.1 × 1") |
| Adapter Dimensions | 43.5 × 138 × 30 mm (1.7 × 5.4 × 1.2") |
| Weight | PoE In: 77 g (2.7 oz) PoE Out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Connector Type | BNC Female (for coaxial) |
| Hardware | |
| Networking Interface | (1) 10/100 MbE, (1) HomePlug AV |
| Power Method | PoE++ |
| PoE Input | 50V DC, 1.2A |
| PoE Output | 48V DC, 0.6A (PoE+) |
| Max. Power Consumption | 3W (without PoE output) |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| LED Indicator | White |
| Cable Performance | |
| Recommended Cable Types | UTP 24AWG (0.18Ω/m), RG-6 (0.14Ω/m) |
| Max Output by Distance |
50 m: 25W 100 m: 13–20W 150 m: 9–13W 200 m: 6–9W 250 m: 4–7W 300 m: 3–6W 350 m: 0–4W 400–450 m: 0–3W 500+ m: 0W |
| Max Bandwidth | 85 Mbps |
| Environmental | |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
