Overview

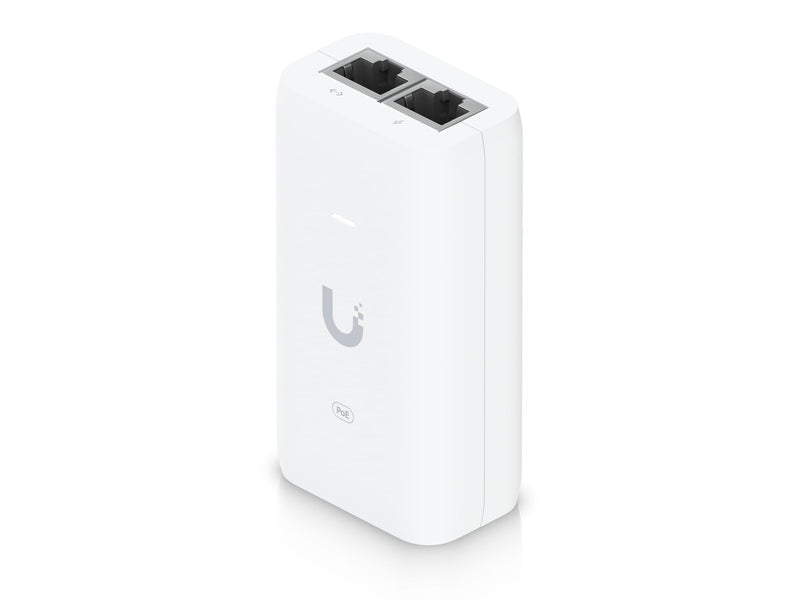

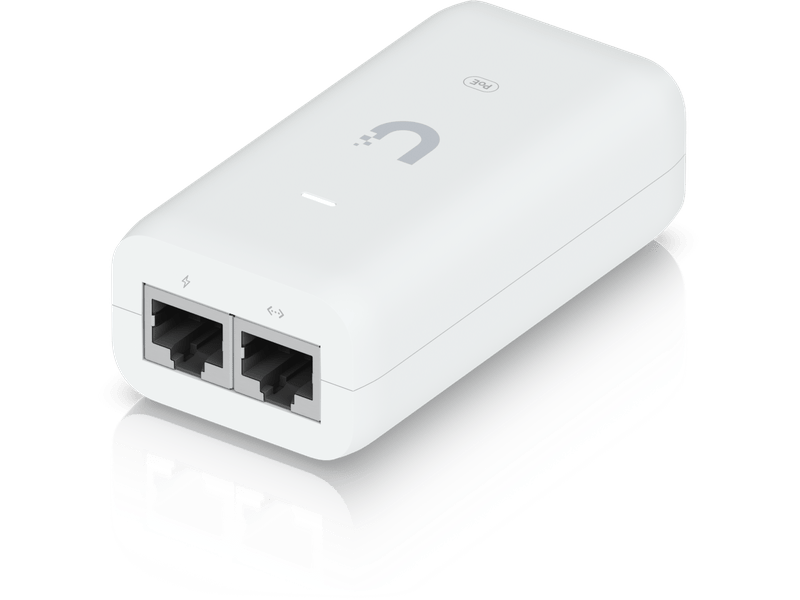

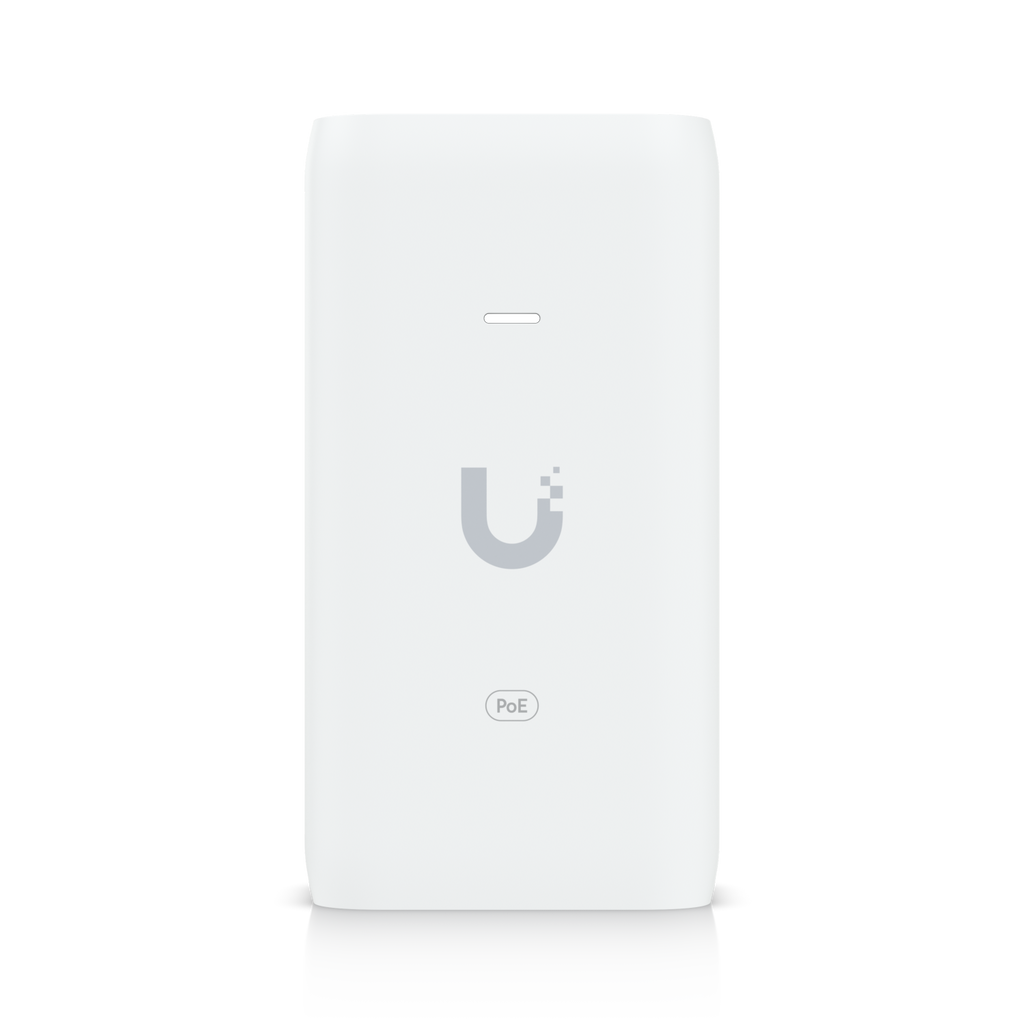

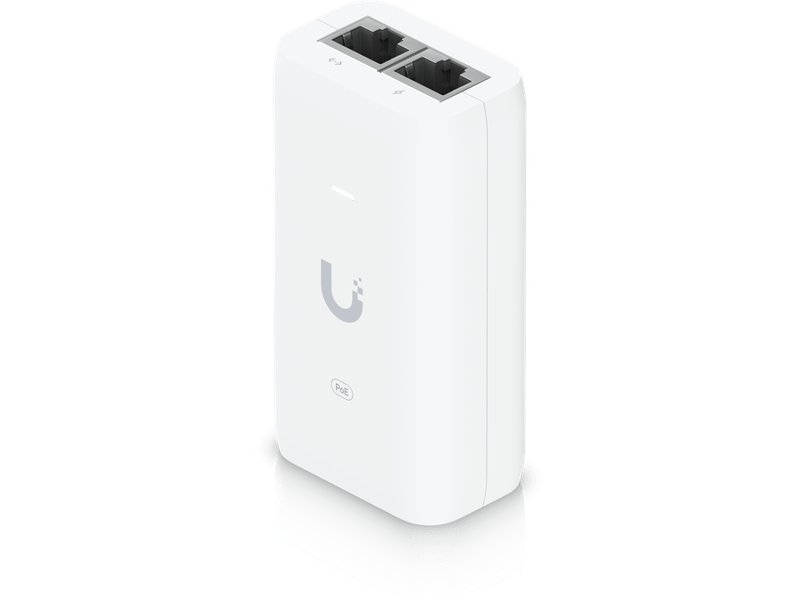

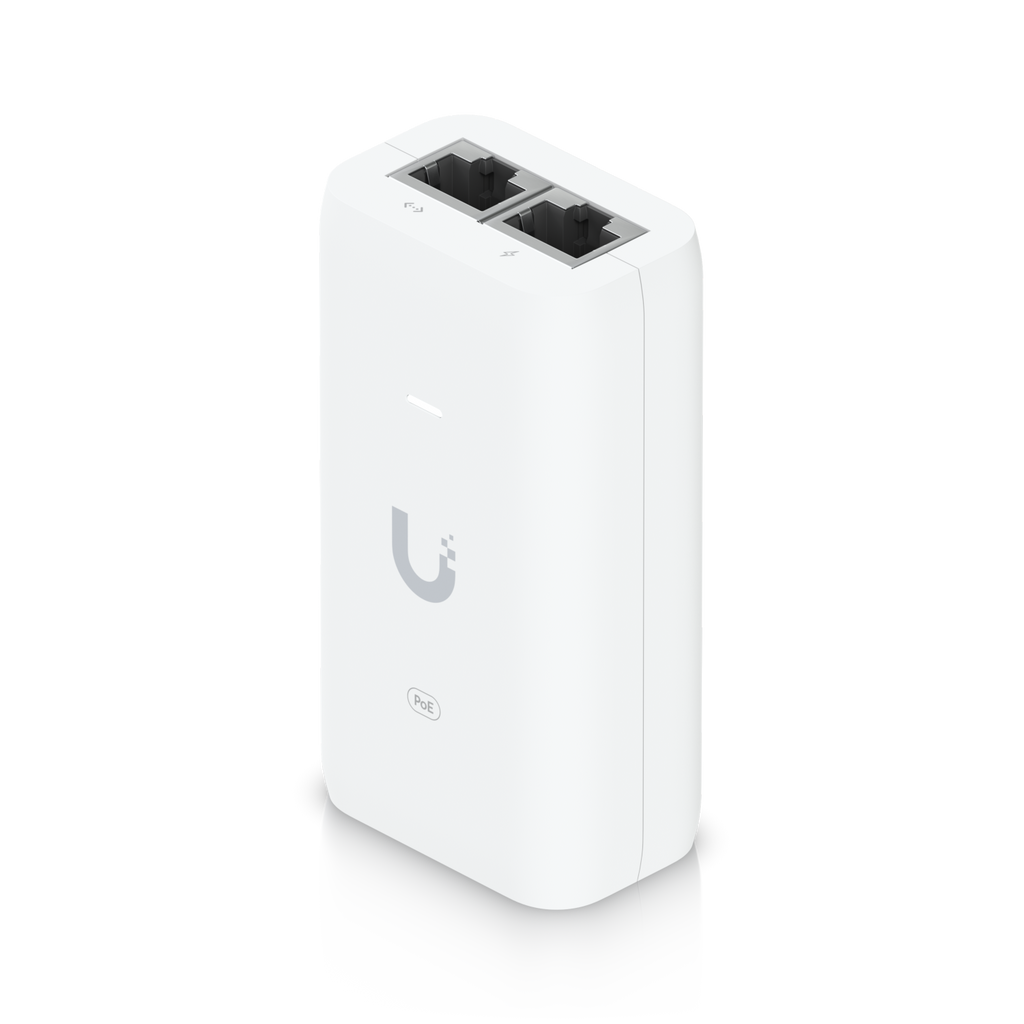

PoE Adapter (15W)
U-PoE
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Compatibility
UK-Ultra
U6-PLUS
U6-IW
U6-Mesh
U6-Pro
U6-Lite
UAP-AC-IW
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G5-Pro
UVC-G5-Flex
UVC-G5-Bullet
UVC-G5-Dome
UVC-AI-Pro
UVC-AI-DSLR
UVC-AI-360
UVC-AI-Theta-Pro
UVC-AI-Theta
UVC-AI-Theta-Hub
UVC-G4 Doorbell Pro PoE Kit
UVC-G4-DOME
UVC-G4-Bullet
UVC-G4-Pro
UVC-G3-FLEX
PoE Adapter (15W)
U-PoE
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Compatibility
UK-Ultra
U6-PLUS
U6-IW
U6-Mesh
U6-Pro
U6-Lite
UAP-AC-IW
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G5-Pro
UVC-G5-Flex
UVC-G5-Bullet
UVC-G5-Dome
UVC-AI-Pro
UVC-AI-DSLR
UVC-AI-360
UVC-AI-Theta-Pro
UVC-AI-Theta
UVC-AI-Theta-Hub
UVC-G4 Doorbell Pro PoE Kit
UVC-G4-DOME
UVC-G4-Bullet
UVC-G4-Pro
UVC-G3-FLEX
U-PoE Specifications | |
---|---|
Product Type | Passive PoE Injector |
Application | Powers UniFi PoE devices with Gigabit LAN support |
Electrical | |
Input Voltage | 100–240V AC @ 50/60Hz |
Input Current | 500 mA |
Inrush Current | <100A peak @ 25°C |
Output Voltage | 48V DC @ 0.32A |
Max Power Output | 15W |
Efficiency | ≥ 84.25% |
Switching Frequency | 65 kHz |
Output Ripple | 200 mVpp |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
PoE Pins | 2-pair: Pins 4,5 (+) and 7,8 (−) |
Protection Features | |
Surge Protection | ✓ (Difference & Common Mode) |
Clamping Voltage | 11V (Data), 60V (Power) |
Max Surge Discharge | 1500A (8/20 μs) |
Peak Pulse Current | 36A (10/1000 μs) |
Response Time | <1 ns |
Shunt Capacitance | <5 pF (Data) |
Interfaces | |

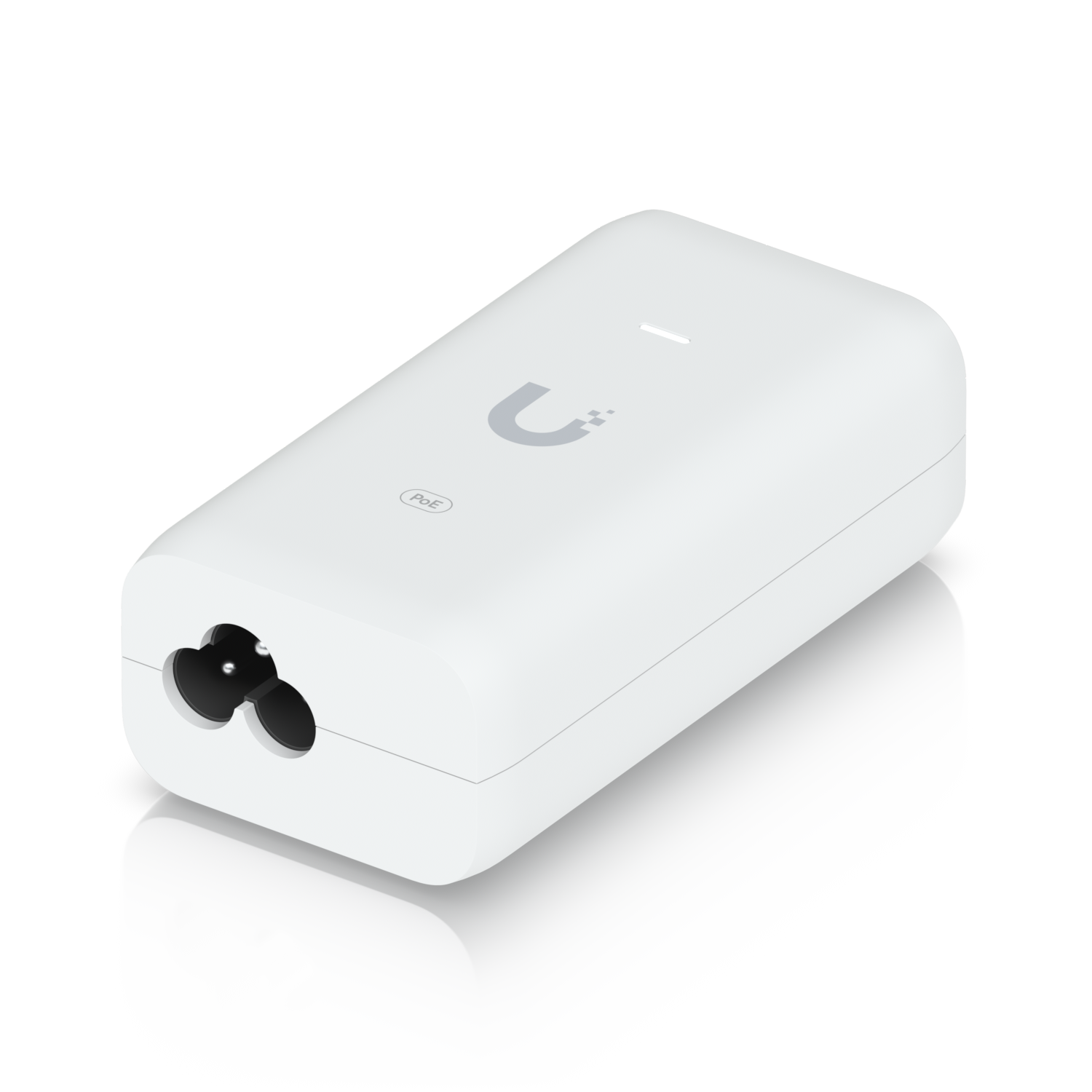

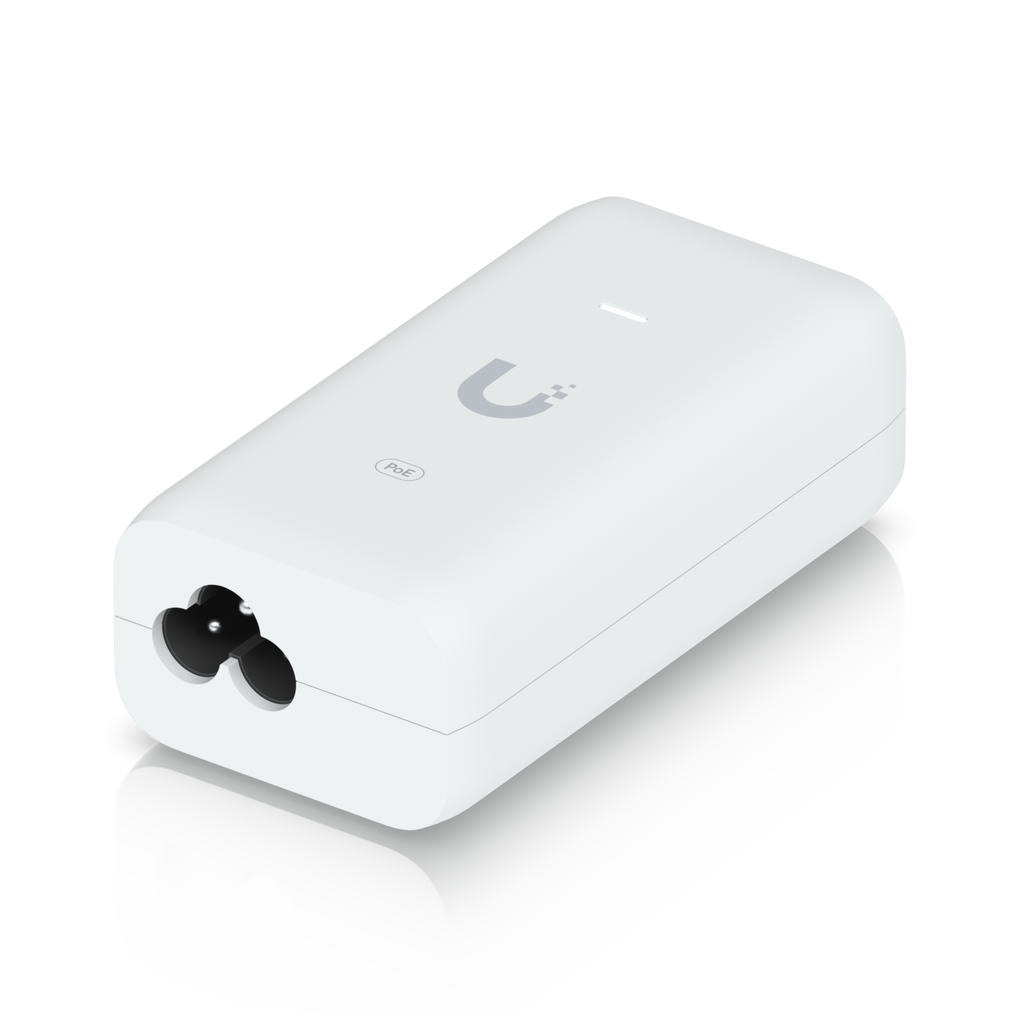

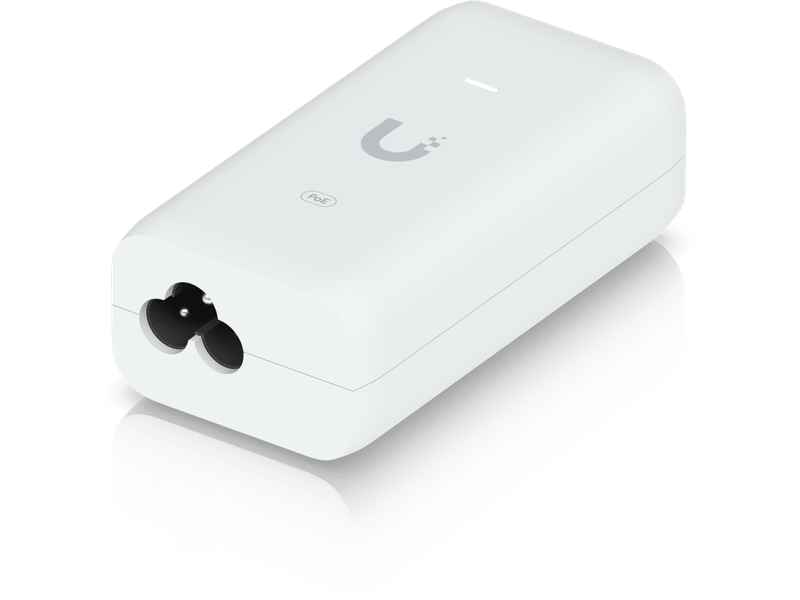

AC Connector | IEC-320 C6 |

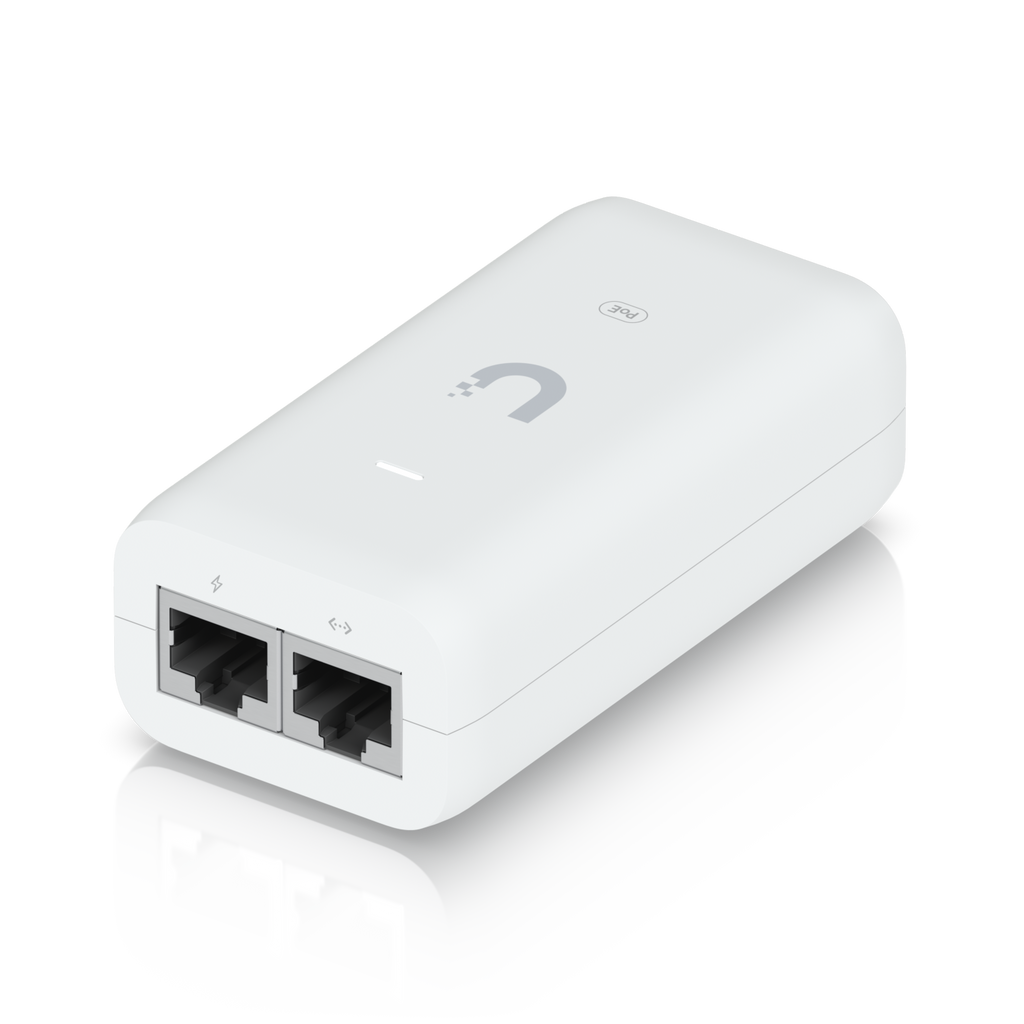

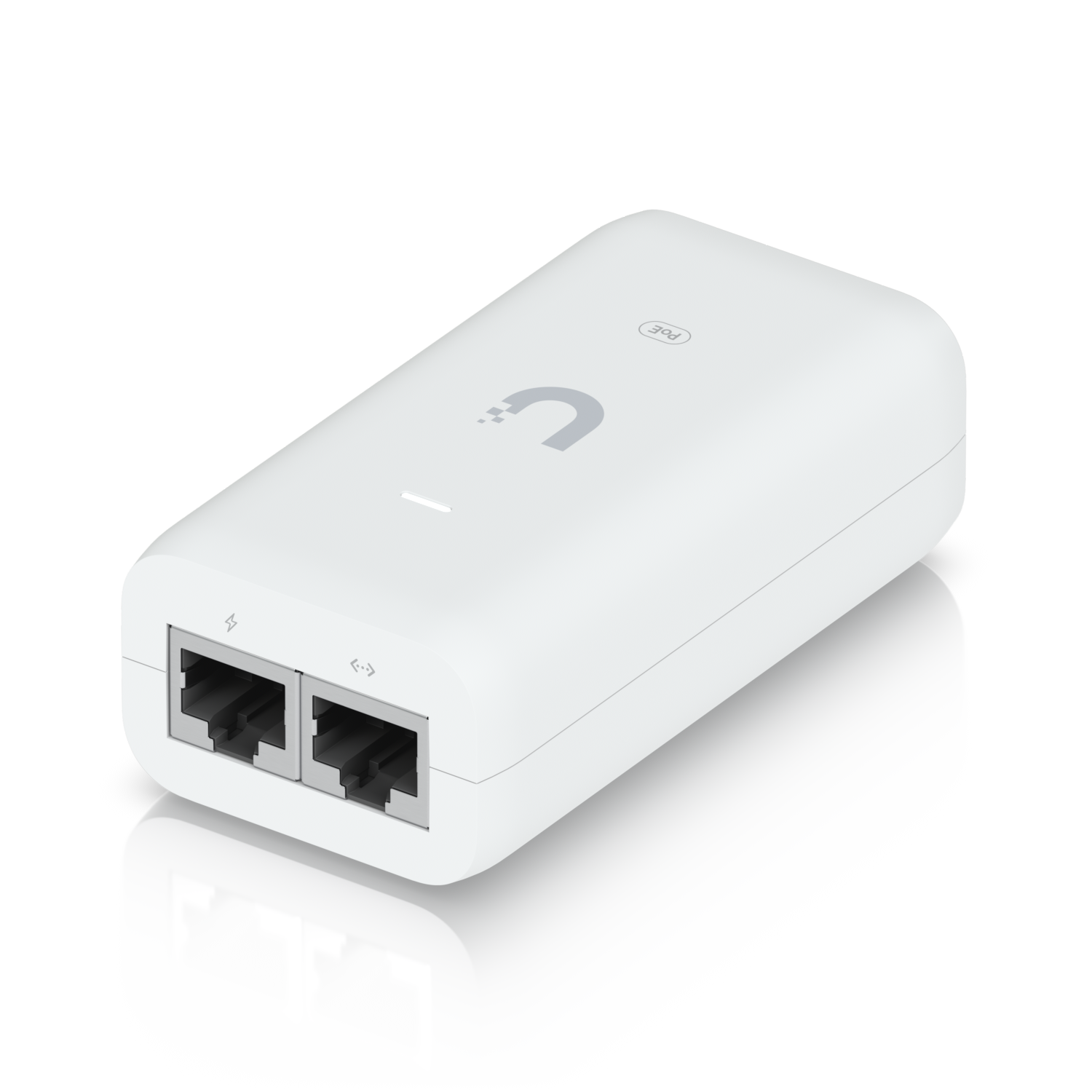

Data In / PoE Out | RJ45 Shielded Socket |
Gigabit LAN Support | ✓ |
Mechanical | |
Dimensions | 86 × 46 × 33 mm (3.4 × 1.8 × 1.3") |
Weight | 100 g (3.5 oz) |
Environmental | |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Storage Temperature | −30 to 70°C (−22 to 158°F) |
Operating Humidity | 10 to 95% noncondensing |
Compliance | |

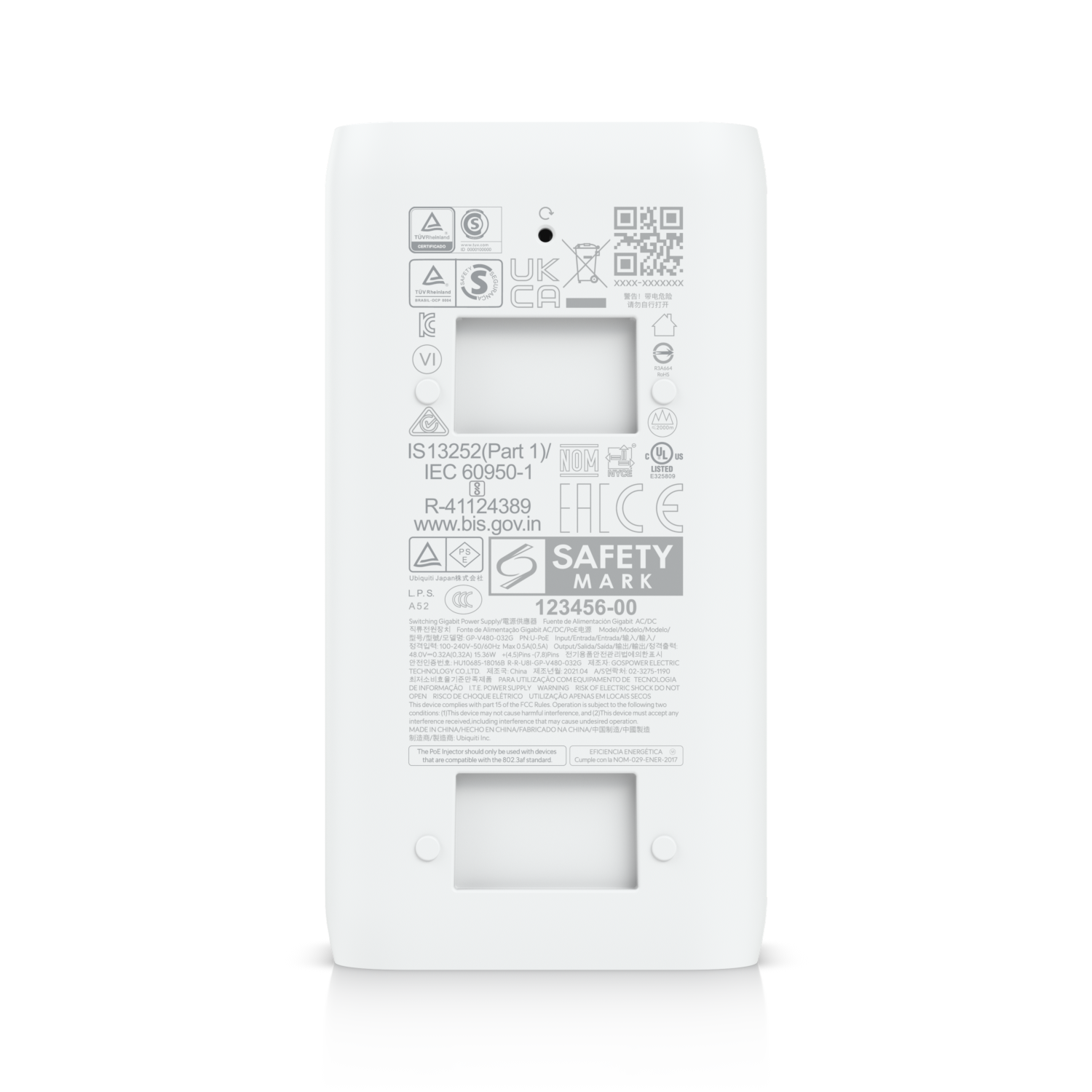

Certifications | CE, FCC, IC, UL, CCC |
NDAA Compliant | ✓ |
