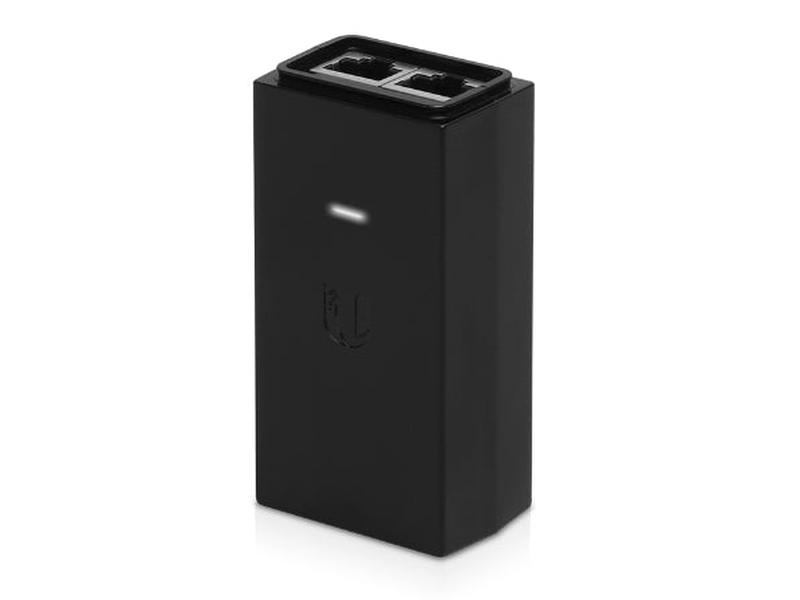

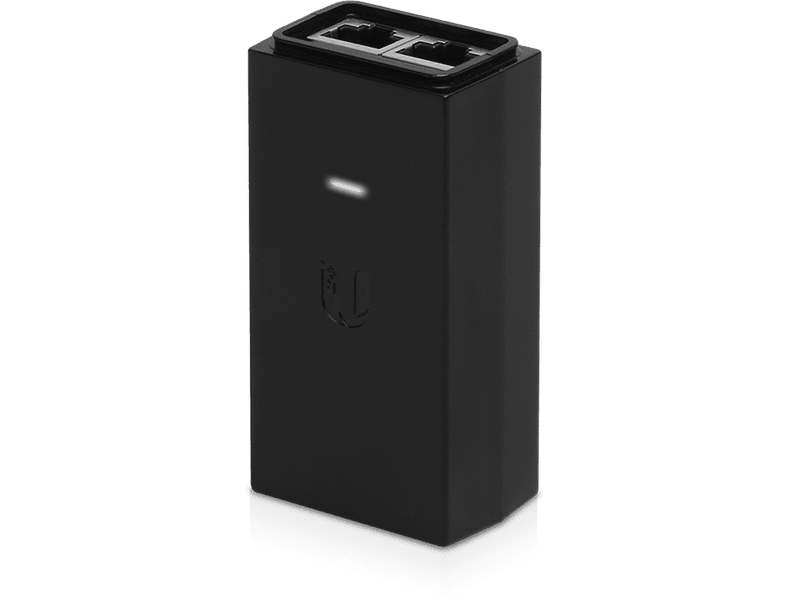

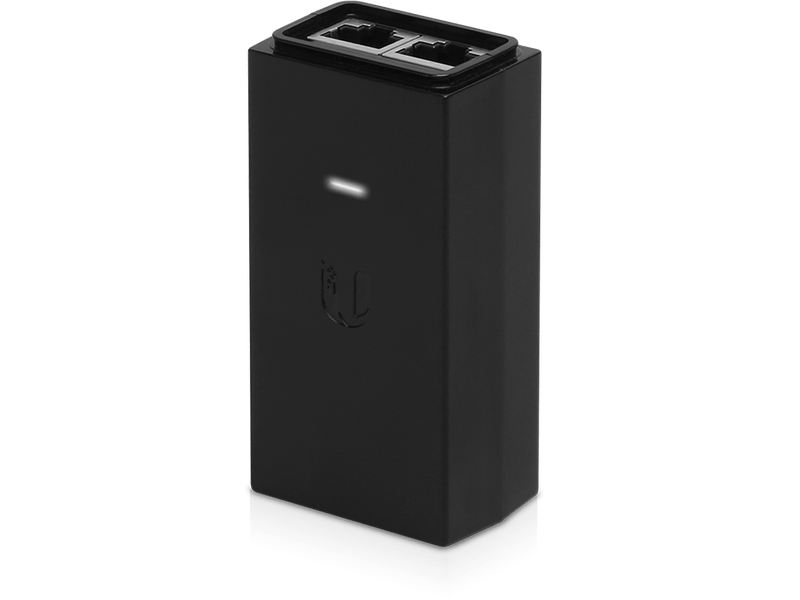

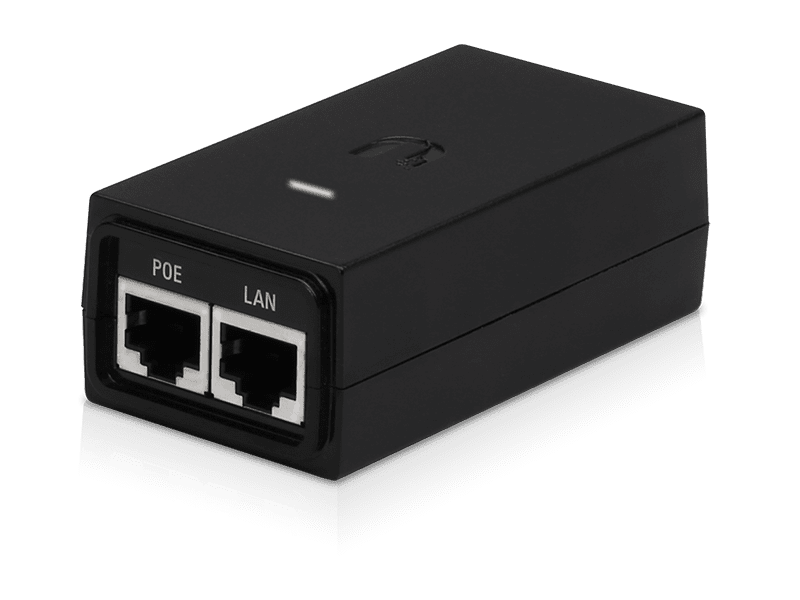

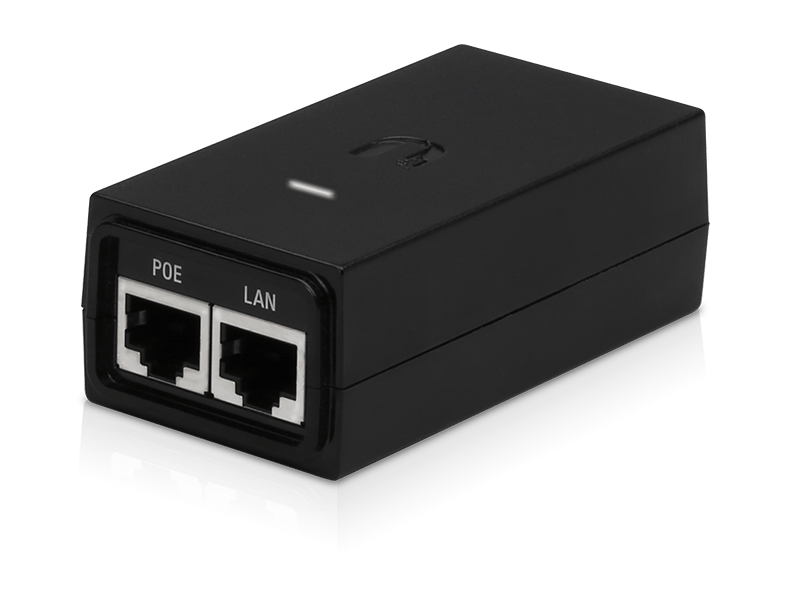

24V PoE Adapter
POE-24-12W-G
Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
24V PoE Adapter
POE-24-12W-G
Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
| POE-24-12W-G Specifications | |
|---|---|
| Product Type | Passive PoE Adapter |
| Application | Powering Ubiquiti PoE devices (airMAX, UniFi, UFiber) |
| LAN Support | Gigabit |
| Remote Reset Capability | ✓ |
| Reset Button | ✓ |
| Electrical | |
| Input Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 0.3A @ 120V / 0.2A @ 240V |
| Inrush Current | <30A @ 120V / <60A @ 230V |
| Output Voltage | 24V DC @ 0.5A |
| Max Power Output | 12W |
| Efficiency | ≥ 75% |
| Switching Frequency | 50 kHz |
| Output Ripple | ≤ 1% |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| PoE Pins | 2-pair: Pins 4,5 (+) and 7,8 (−) |
| Protection Features | |
| Surge Protection | ✓ (Differential & Common Mode) |
| Clamping Voltage | 11V (Data), 60V (Power) |
| Max Surge Discharge | 1500A (8/20 μs) |
| Peak Pulse Current | 36A (10/1000 μs) |
| Shunt Capacitance | <5 pF (Data) |
| Response Time | <1 ns |
| Interfaces | |
| AC Connector | IEC-320 C6 |

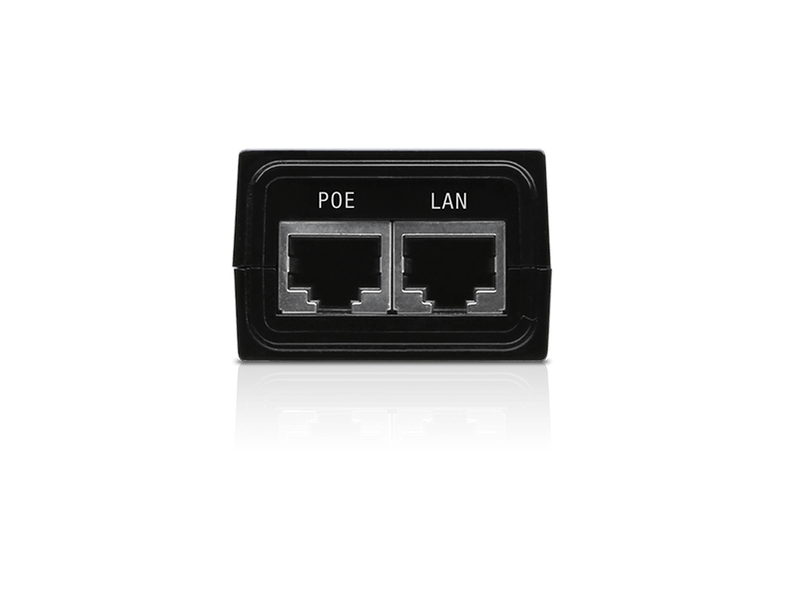

| Data/PoE Port | RJ45 Shielded Socket |
| LAN Activity Indicator | No |
| Mechanical | |
| Dimensions | 87 × 44 × 29 mm (3.4 × 1.7 × 1.1") |
| Weight | 99 g (3.5 oz) |
| Environmental | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | −30 to 70°C (−22 to 158°F) |
| Operating Humidity | 35 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | ✓ |
