Description

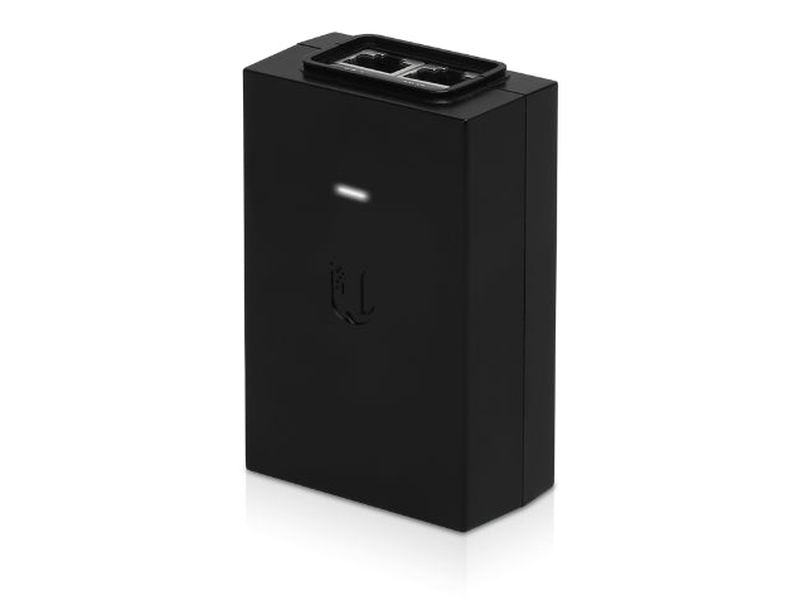

Overview
•Delivers up to 60W of PoE++
•Compatible with the UA Hub, Camera G4 PTZ, and other PoE++ devices
•Surge, peak pulse, and overcurrent protection
•AC cable with earth ground
•LED indicator for status monitoring
•Delivers up to 60W of PoE++
•Compatible with the UA Hub, Camera G4 PTZ, and other PoE++ devices
•Surge, peak pulse, and overcurrent protection
•AC cable with earth ground
•LED indicator for status monitoring
| POE-50-60W Specifications | |
|---|---|
| Product Type | PoE++ Gigabit Adapter |
| Application | Powering high-performance UniFi and airMAX devices |
| Electrical | |
| Input Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 1.3A @ 120V / 0.75A @ 230V |
| Inrush Current | <100A @ 120V / <200A @ 230V |
| Output Voltage | 50V DC @ 1.2A |
| Max Power Output | 60W |
| Efficiency | ≥ 85% |
| Switching Frequency | 65 kHz |
| Output Ripple | ≤ 1% |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| PoE Pins | 4-pair: Pins 1,2,4,5 (+) and 3,6,7,8 (−) |
| Protection Features | |
| Surge Protection | ✓ (Differential & Common Mode) |
| Clamping Voltage | 11V (Data), 60V (Power) |
| Max Surge Discharge | 1500A (8/20 μs) |
| Peak Pulse Current | 36A (10/1000 μs) |
| Shunt Capacitance | <5 pF (Data) |
| Response Time | <1 ns |
| Interfaces | |
| AC Connector | IEC-320 C6 |
| Data In / PoE Out | RJ45 Shielded Socket |
| Gigabit LAN Support | ✓ |
| LAN Activity Indicator | No |
| Reset Button | No |
| Mechanical | |
| Dimensions | 101 × 60 × 33 mm (3.98 × 2.36 × 1.30") |
| Weight | 192 g (6.77 oz) |
| Environmental | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | −30 to 70°C (−22 to 158°F) |
| Operating Humidity | 5 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | ✓ |
