Overview

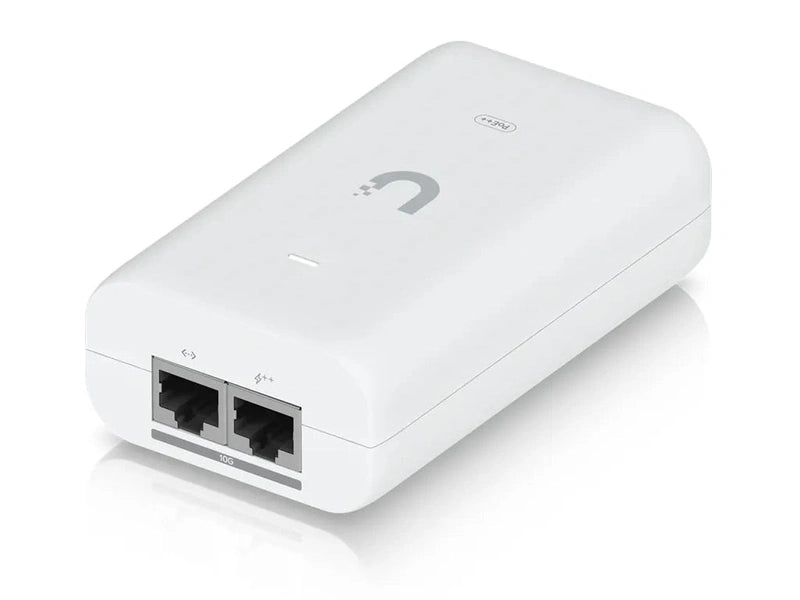

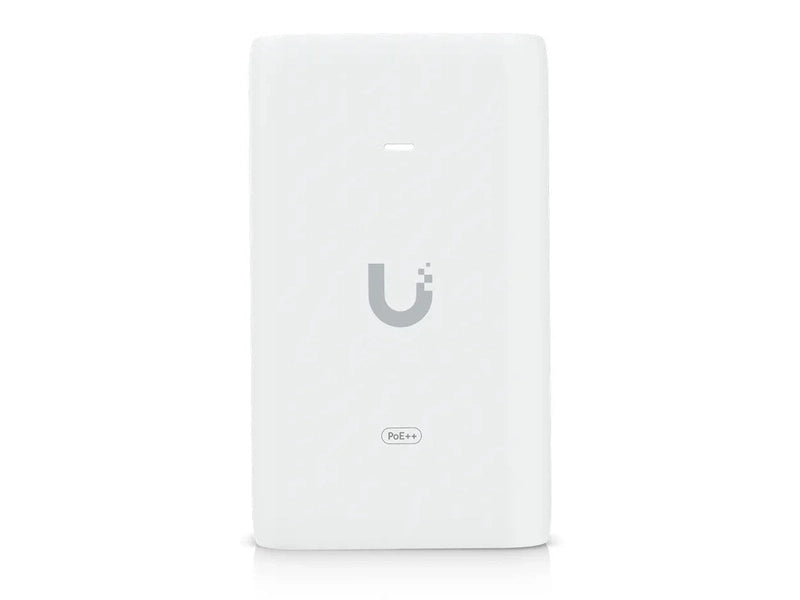

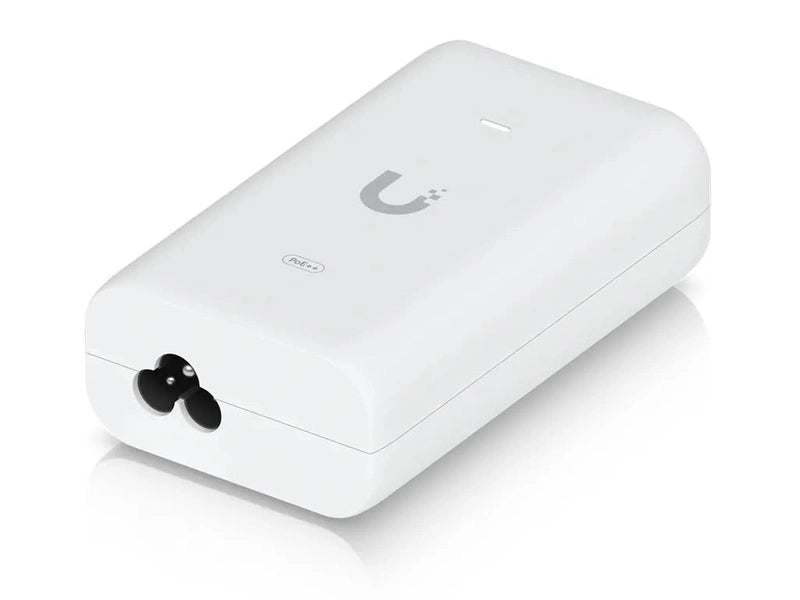

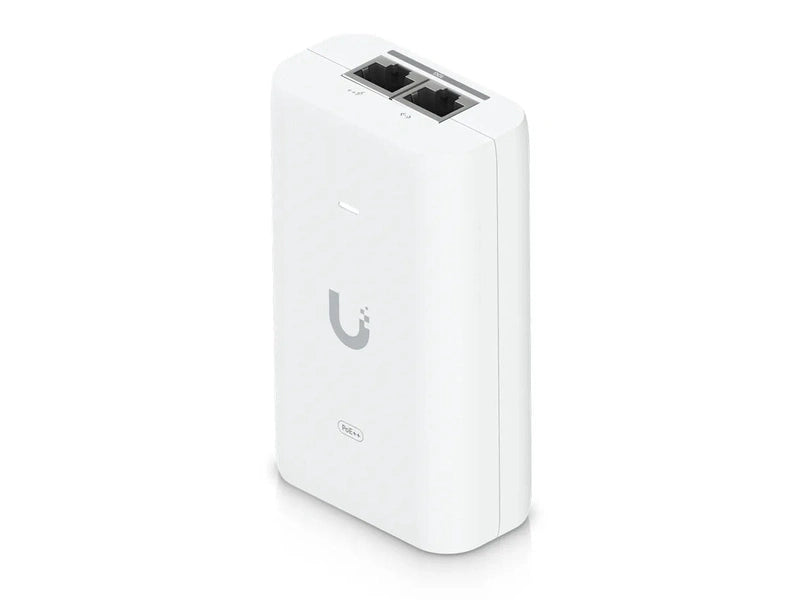

10G PoE++ Adapter (60W)
UACC-PoE++-10G
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Compatibility: E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG
10G PoE++ Adapter (60W)
UACC-PoE++-10G
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Compatibility: E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG
UACC-PoE++-10G Specifications | |
---|---|
Dimensions | 106 × 63 × 34 mm (4.2 × 2.5 × 1.3") |
Weight | 210 g (7.4 oz) |
Rated Voltage | 100–240V AC @ 50/60Hz |
Input Current | 1.5A max. |
Inrush Current | <150A peak @ 230V AC |
Output Voltage | 54V DC @ 1.12A |
Max. PoE Wattage | 60W |
Efficiency | >88% |
Switching Frequency | 65 kHz |
Output Ripple | 1% max. |
Line Regulation | ≤ 2% |
Load Regulation | ≤ 5% |
Connector Type | RJ45 shielded socket |
LAN Port | 10 GbE |
4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
Clamping Protection | 11V data, 60V power |
Surge Protection | Difference and common mode |
Max. Surge Discharge | 1500A (8/20 μs) power |
Peak Pulse Current | 36A (10/1000 μs) data |
Response Time | <1 ns |
Shunt Capacitance | <5 pF data |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Ambient Storage Temperature | -30 to 70° C (-22 to 158° F) |
Ambient Operating Humidity | 10 to 95% noncondensing |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
