Description
Overview

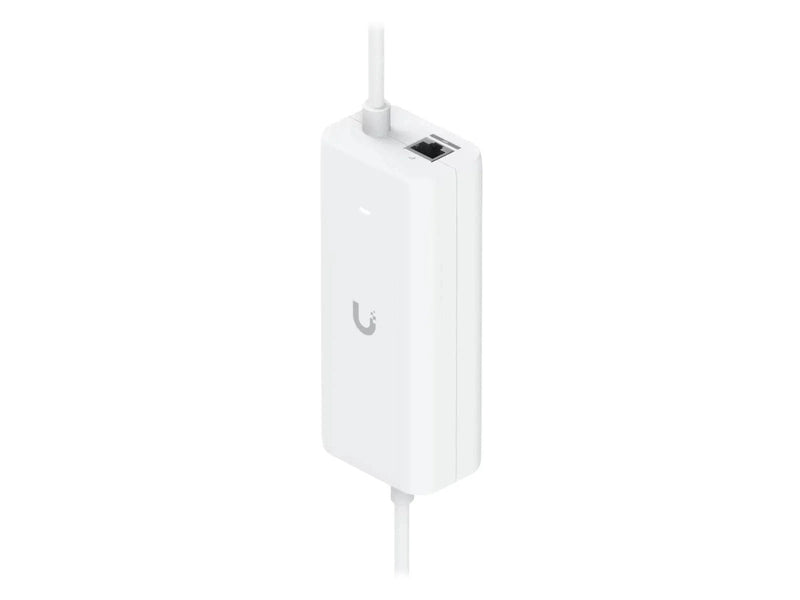

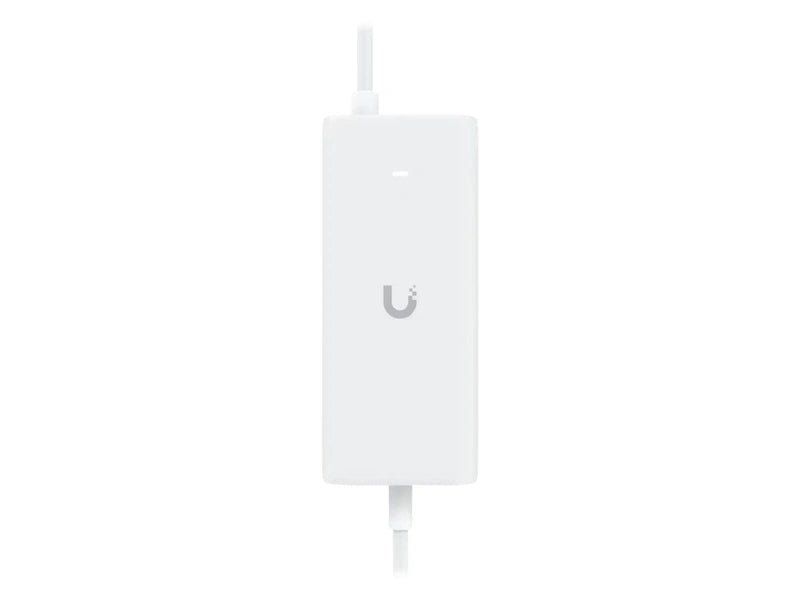

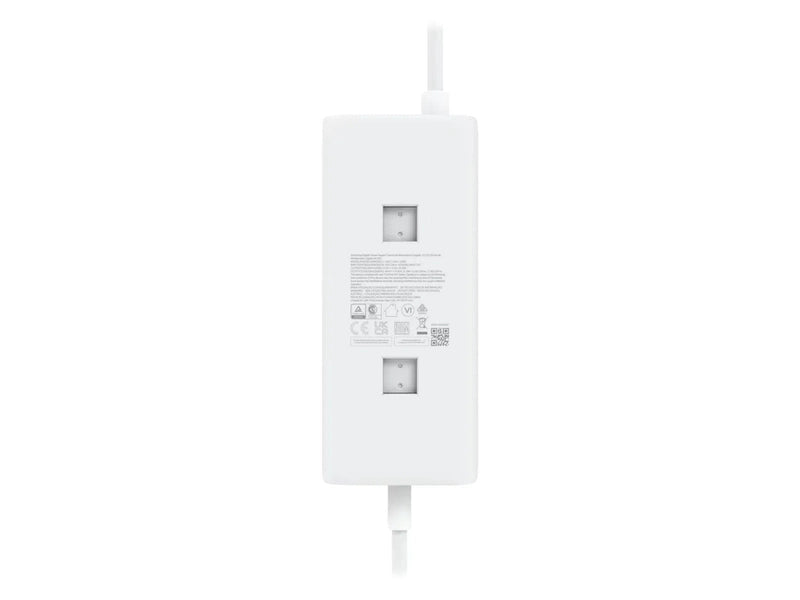

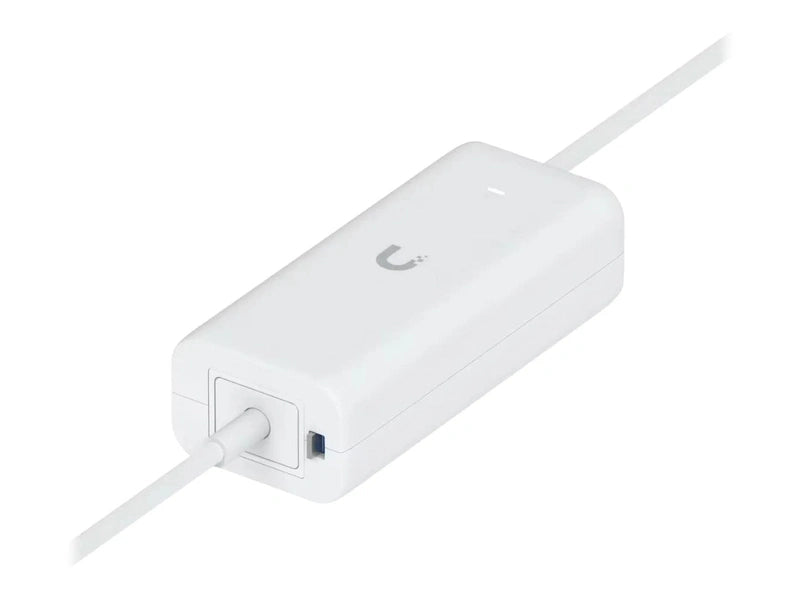

PoE Integrated AC Adapter
UACC-PoE+-USBC
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount*
Lockable latch designed for power cord security
*DIN rail and floating mount sold separately
Compatibility: UCG-Ultra, UCG-Max, UXG-Lite, UXG-Max, UX, UX7
PoE Integrated AC Adapter
UACC-PoE+-USBC
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount*
Lockable latch designed for power cord security
*DIN rail and floating mount sold separately
Compatibility: UCG-Ultra, UCG-Max, UXG-Lite, UXG-Max, UX, UX7
| AC Adapter Specifications | |
|---|---|
| Dimensions | 46 × 62 × 42 mm (5.7 × 2.4 × 1.7") |
| Weight | 358 g (12.6 oz) |
| Length | Cable: 150 cm (4.9 ft), incl. 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft) |
| Output Voltage | Type-C: 5V @ 5A PoE+: 48V @ 0.65A |
| Rated Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 1.5A max. |
| Inrush Current | 120A |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% max. |
| Line Regulation | ≤ 5% |
| Load Regulation | ≤ 5% |
| LAN Activity Indicator | — |
| Gigabit LAN Port | ✓ |
| Remote Reset Capability | — |
| Reset Button | — |
| Data In / PoE | RJ45 shielded socket |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, KC, RoHS |
