Overview

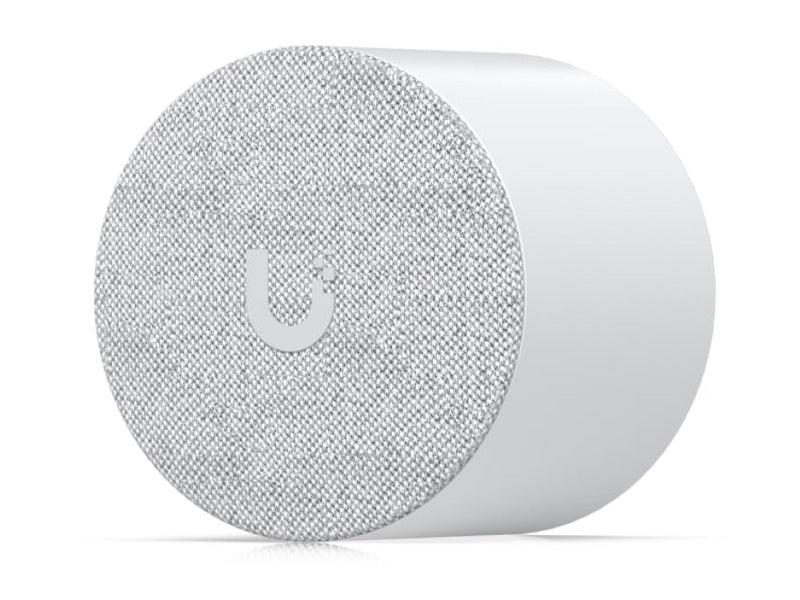

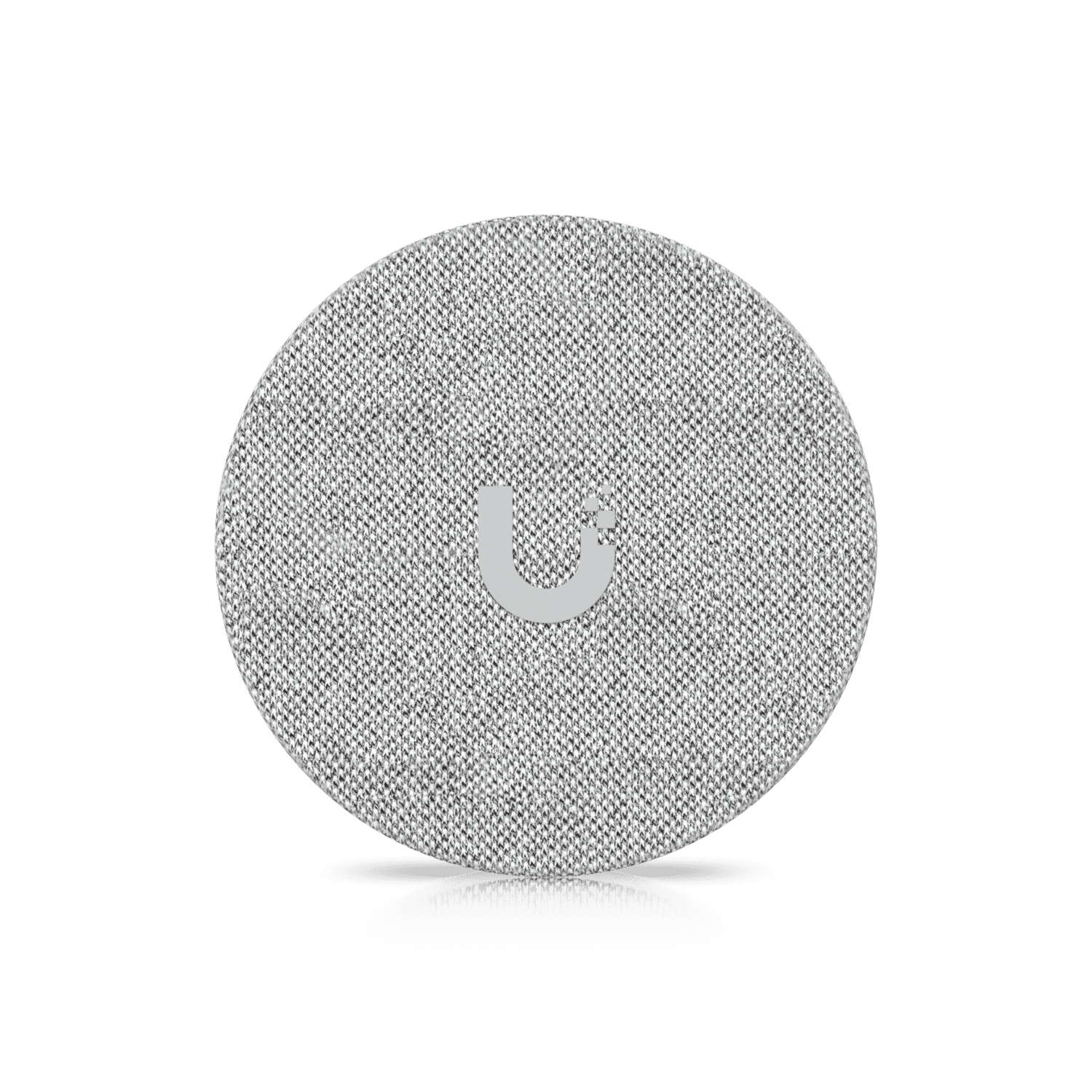

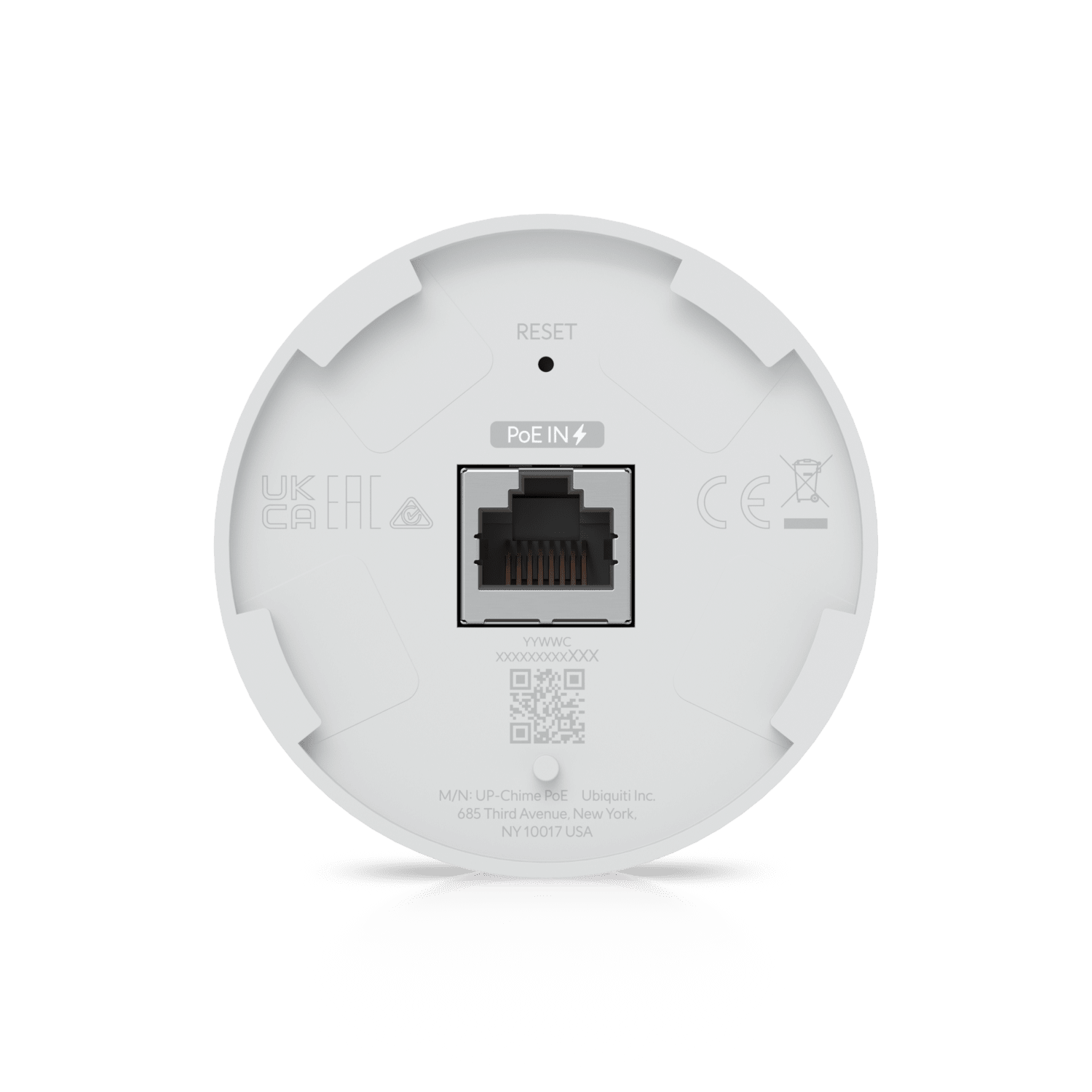

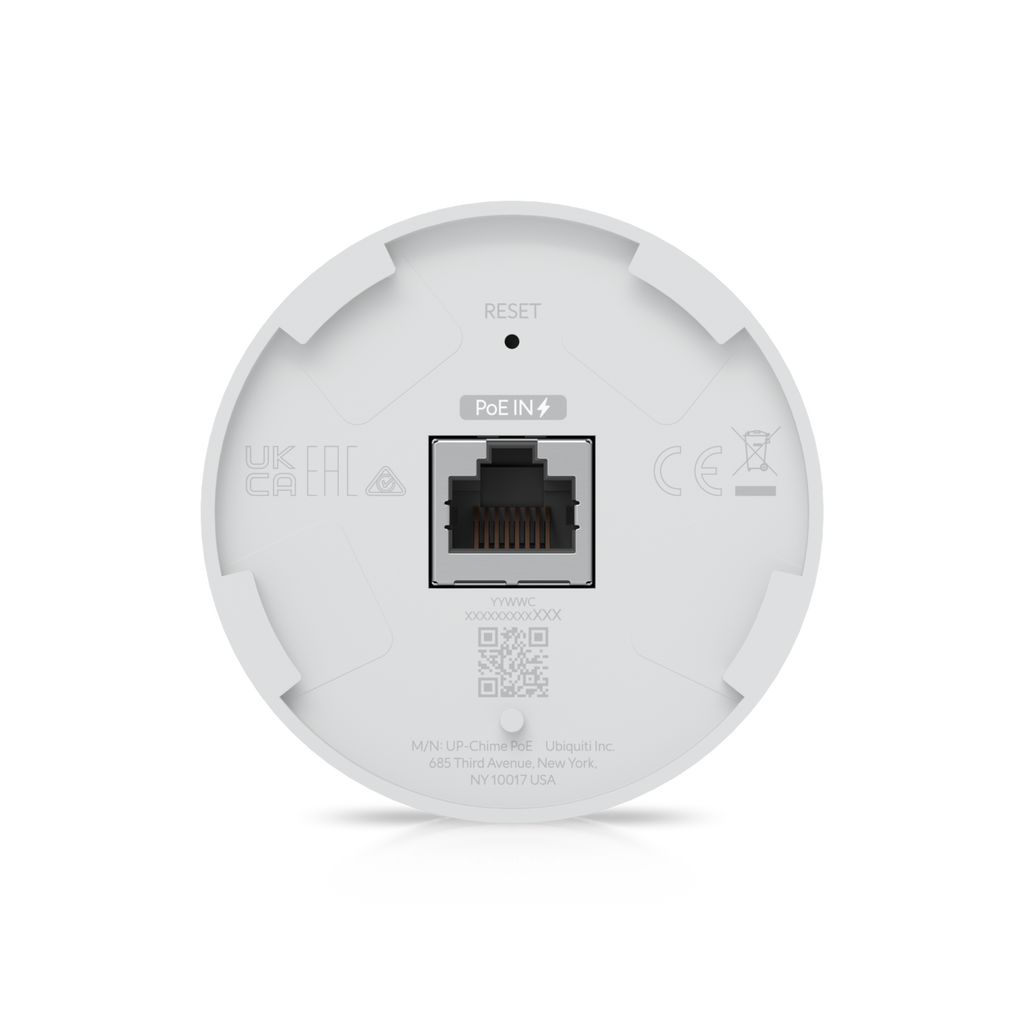

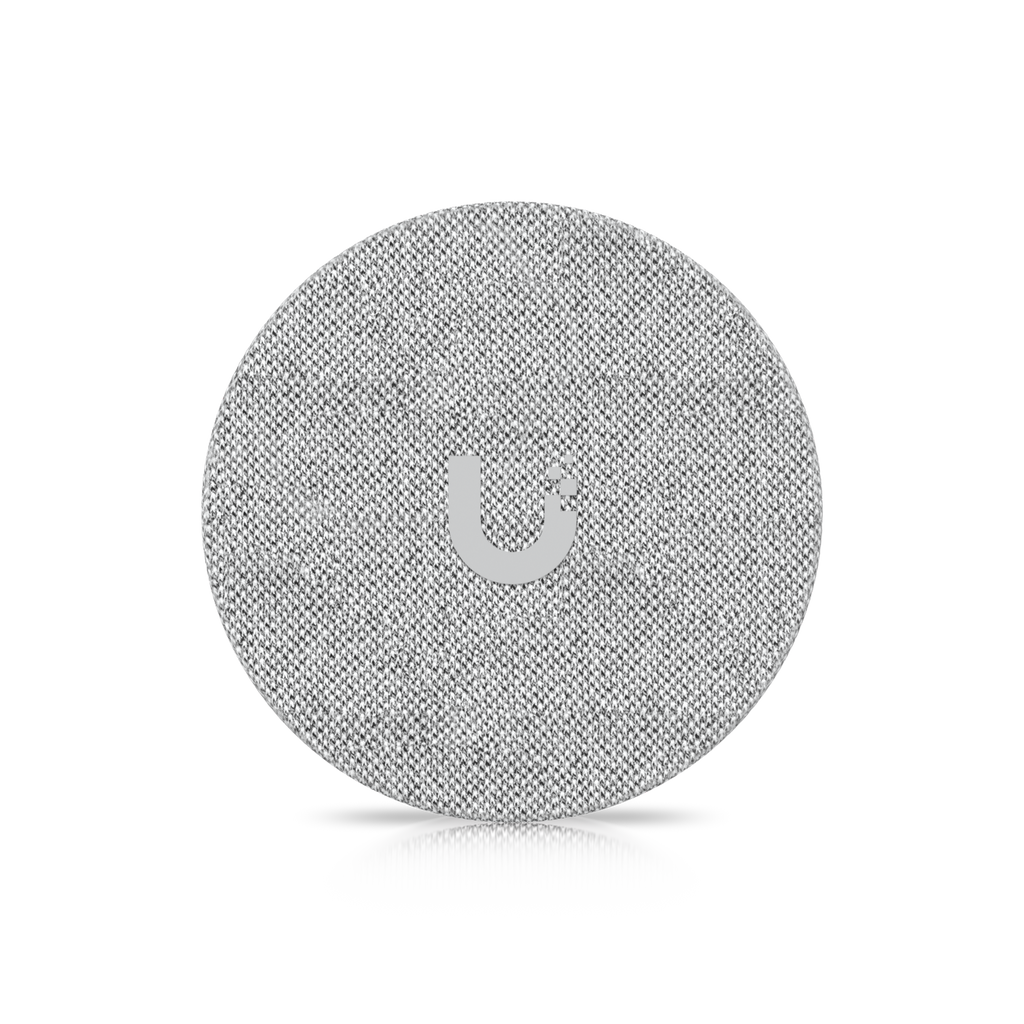

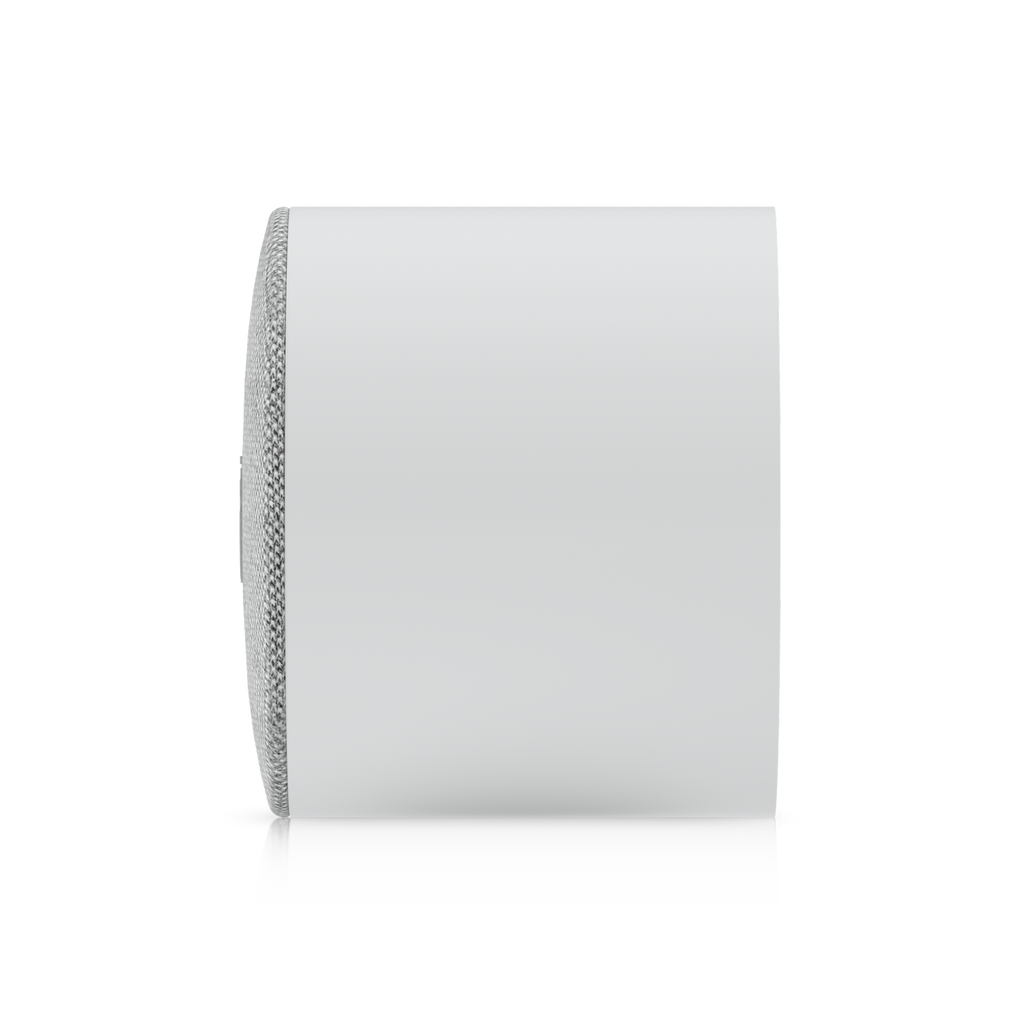

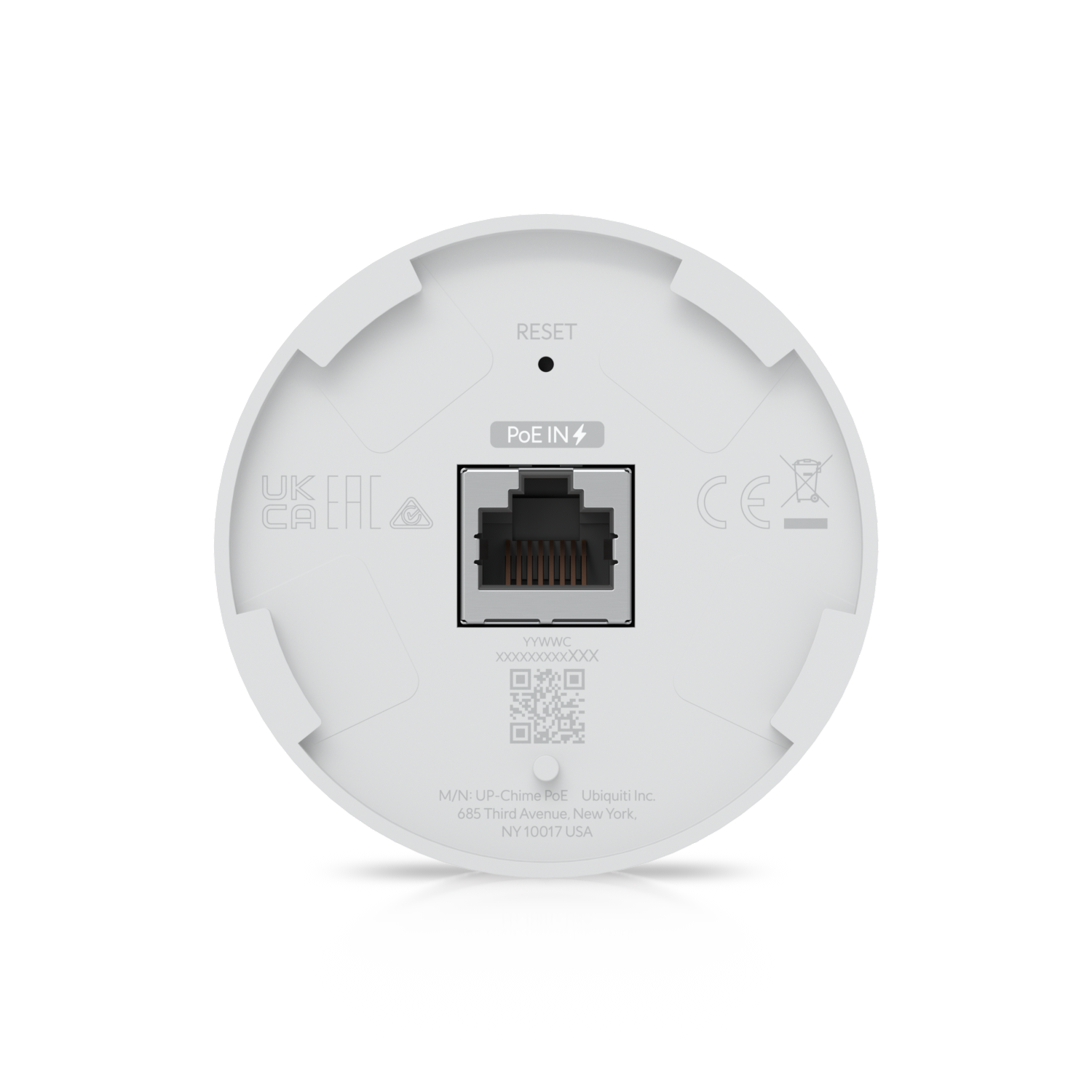

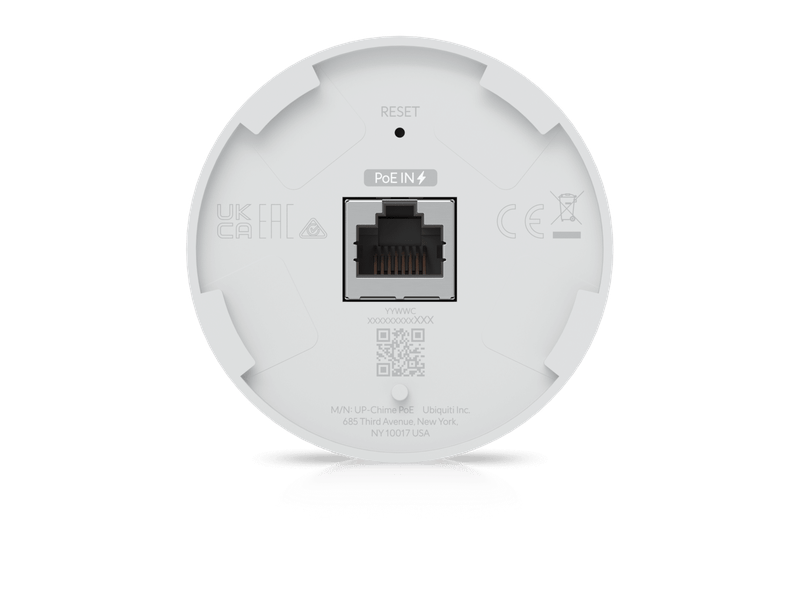

PoE Smart Chime
UACC-Chime-PoE
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
Compatibility
UVC-G4 Doorbell Pro PoE Kit
UA-G2-Pro
UVC-G4 Doorbell Pro
UA-G2-SK-Pro
UVC-G4-DoorBell
UA-G3-Pro
UA-Intercom
UA-G3-SK-Pro
PoE Smart Chime
UACC-Chime-PoE
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
Compatibility
UVC-G4 Doorbell Pro PoE Kit
UA-G2-Pro
UVC-G4 Doorbell Pro
UA-G2-SK-Pro
UVC-G4-DoorBell
UA-G3-Pro
UA-Intercom
UA-G3-SK-Pro
| UACC-Chime-PoE Specifications | |
|---|---|
| Product Type | PoE Smart Chime Notification Device |
| Function | Audible alerts for UniFi doorbells and access hubs |
| Compatibility | UVC-G4 Doorbell Pro UA-G2-Pro UA-Intercom UniFi Protect & UniFi Access |
| Mounting Options | In-wall and on-wall (both included) |
| Device Dimensions | Ø62 × 54 mm (Ø2.5 × 2.1") |
| In-wall Mount Dimensions | Ø89 × 63.1 mm (Ø3.5 × 2.5") |
| On-wall Mount Dimensions | Ø62 × 20.2 mm (Ø2.5 × 0.8") |
| Weight | Device: 158 g (5.6 oz) In-wall Mount: 91 g (3.2 oz) On-wall Mount: 28 g (1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
| Networking Interface | 10/100 MbE RJ45 port |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| Speaker Output | Up to 80 dB |
| Buzzer | ✓ |
| LED Indicator | R/G/B/W |
| Button | Factory Reset |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Management Platform | UniFi Protect (Web & Mobile) UniFi Access (Web & Mobile) |
