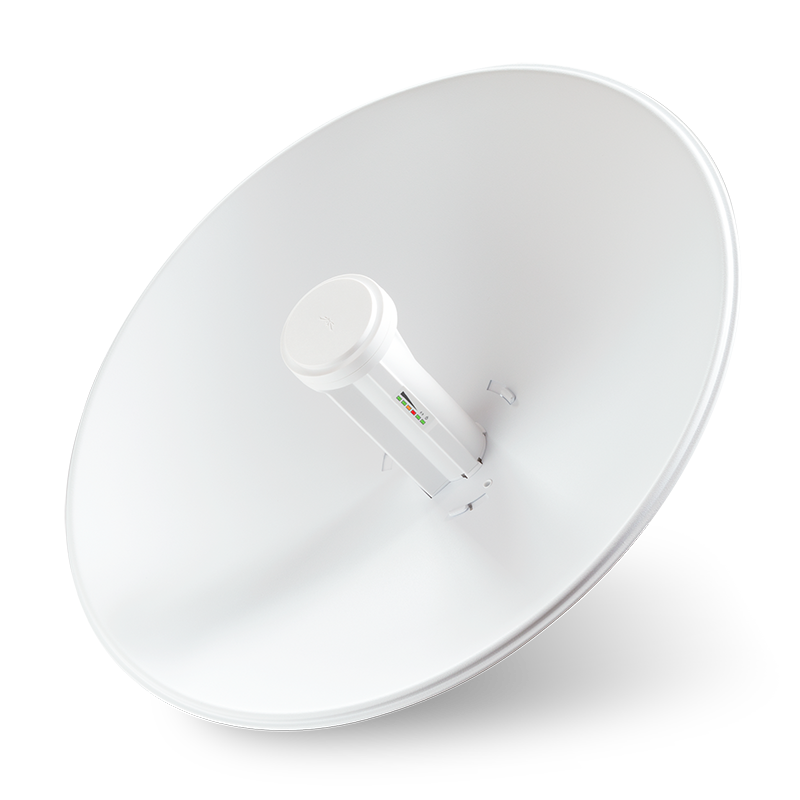

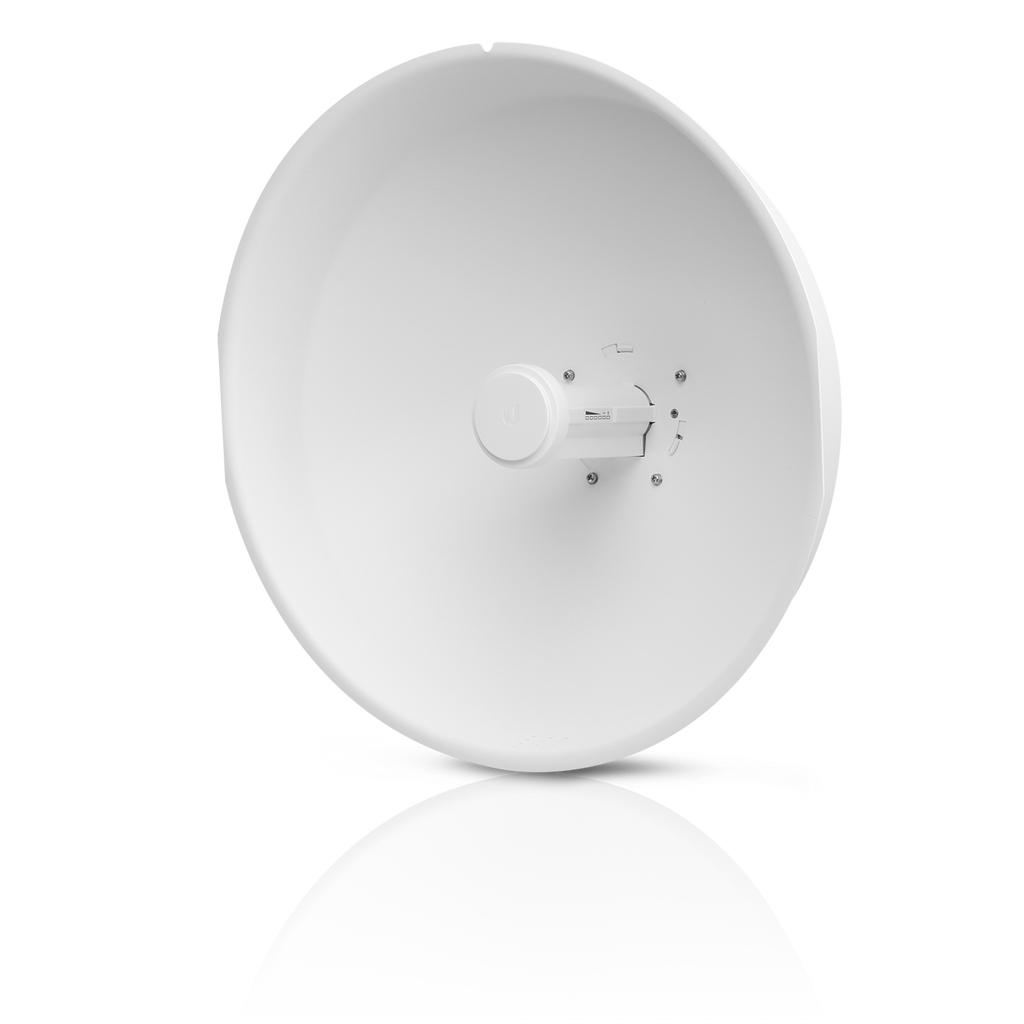

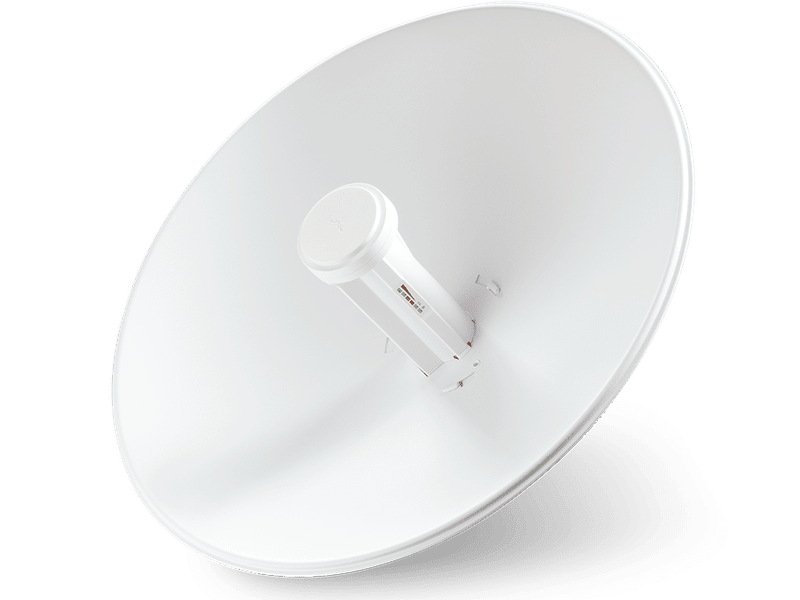

airMAX PowerBeam M5 400
PBE-M5-400
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
airMAX PowerBeam M5 400
PBE-M5-400
5 GHz, 25 dBi bridge with 150+ Mbps throughput.
| PBE-M5-400 Specifications | |
|---|---|
| Product Type | airMAX 5 GHz CPE/Bridge |
| Application | Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links |
| Max Throughput | 150+ Mbps |
| Wireless | |
| Operating Frequency | Worldwide: 5170–5875 MHz US/CA: 5725–5850 MHz |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Max TX Power | 26 dBm |
| Antenna Gain | 25 dBi |
| Polarization | Dual linear |
| System Gain | 22 dBi |
| Interfaces | |
| Networking | (1) Gigabit Ethernet RJ45 port |
| Power | |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 20–27V DC |
| Max Power Consumption | 8W |
| Mechanical | |
| Dimensions | 420 × 420 × 275 mm (16.5 × 16.5 × 10.8") |
| Weight | 1.8 kg (4.8 lb) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Environmental | |
| Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | ±24kV Air/Contact |
| LEDs | Power, LAN, (4) WLAN Signal Strength (custom RSSI mapping) |
| Compliance | |
| Certifications | CE, FCC, IC |
| Environmental Tests | Salt Fog: IEC 68-2-11 / ASTM B117 Vibration: IEC 68-2-6 Temperature Shock: IEC 68-2-14 UV: IEC 68-2-5 @ 40°C Wind-Driven Rain: ETS 300 019-1-4 |
| NDAA Compliant | ✓ |
