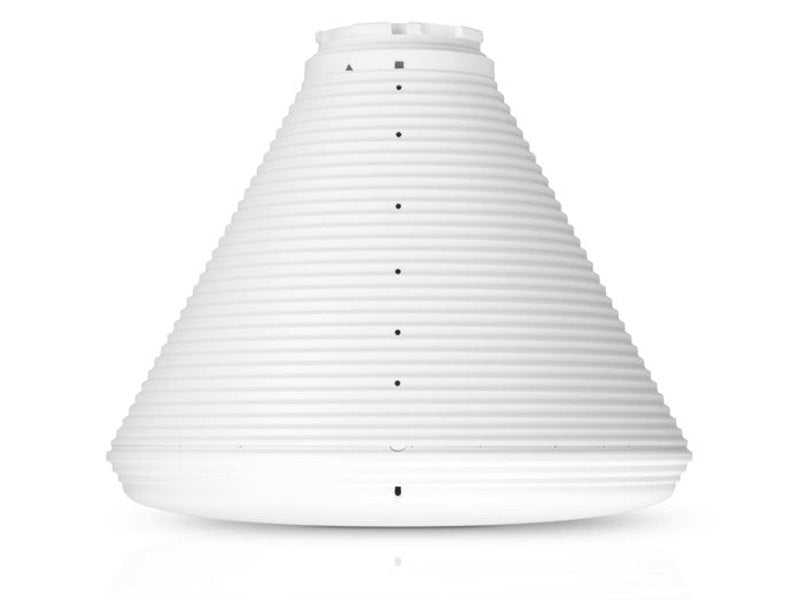

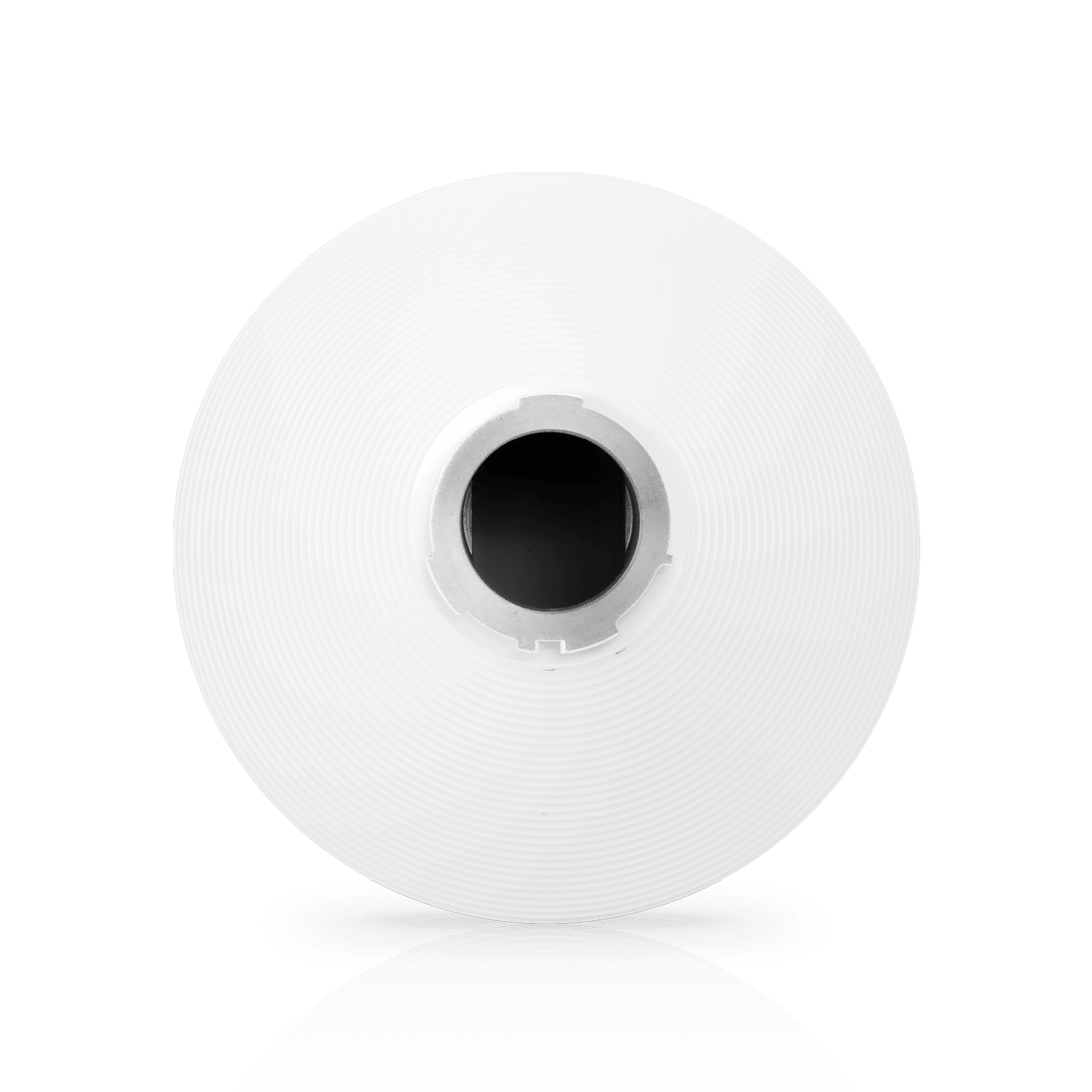

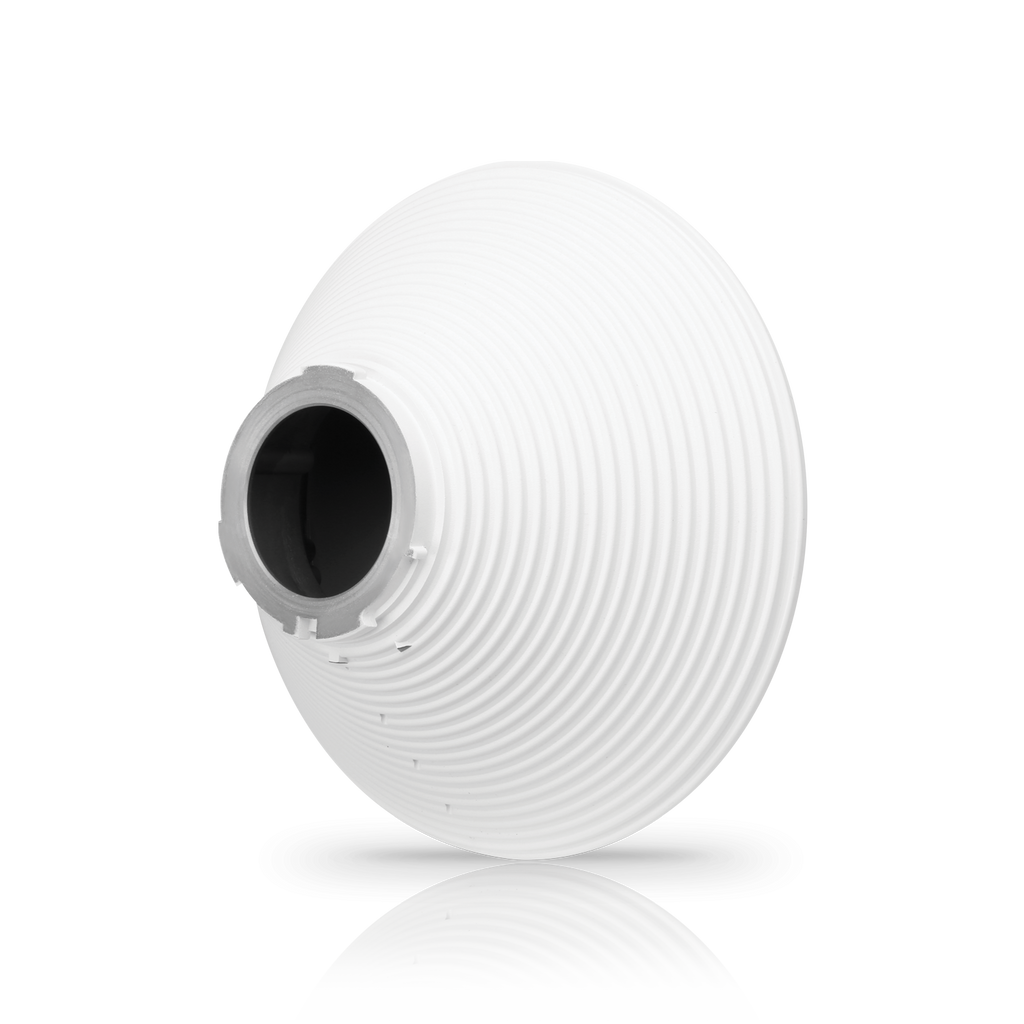

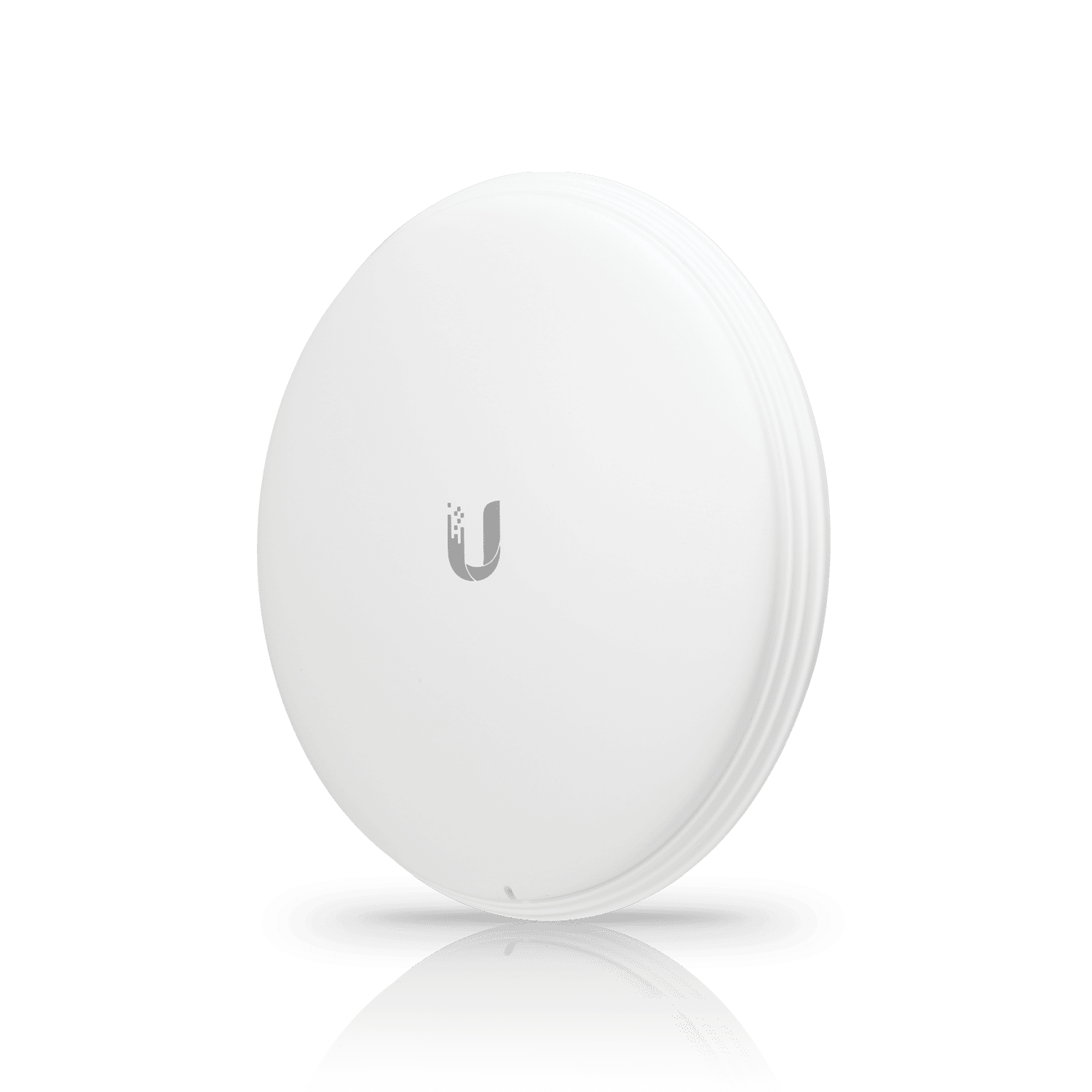

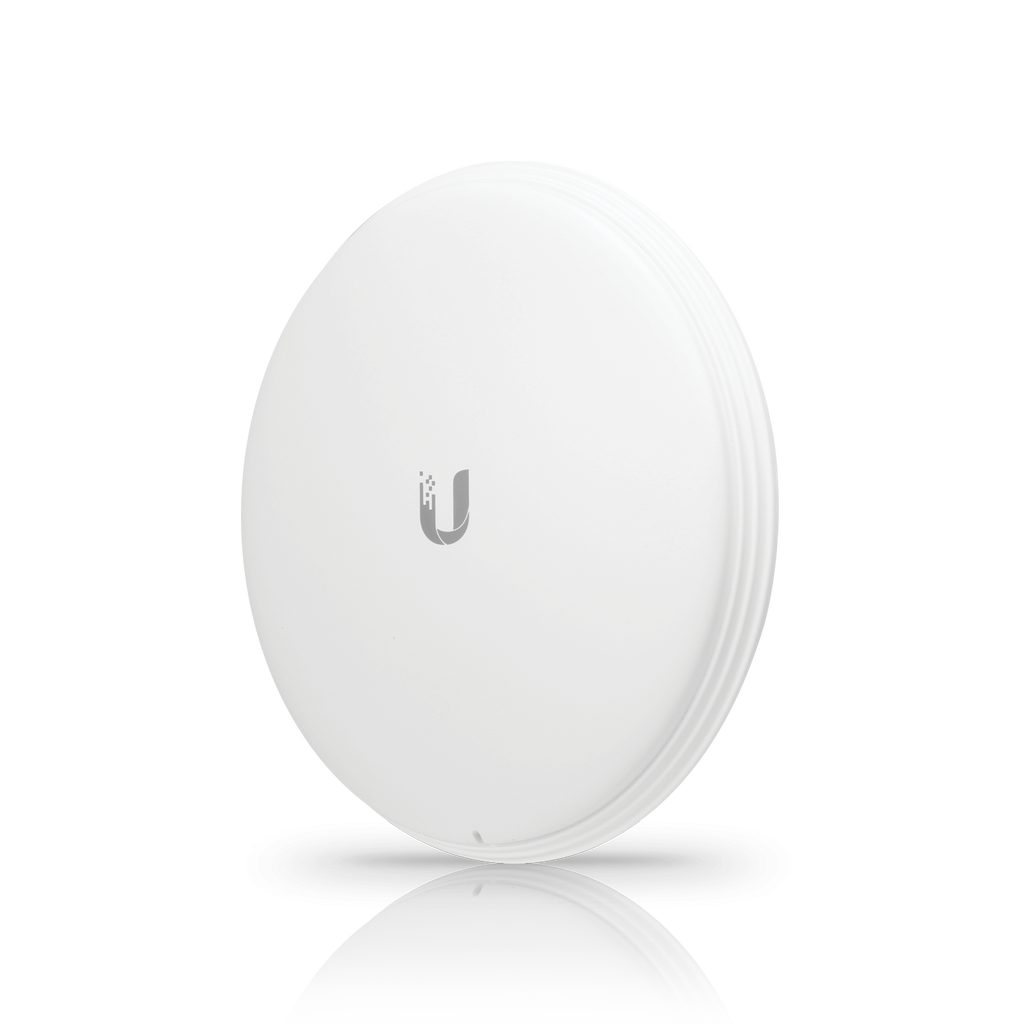

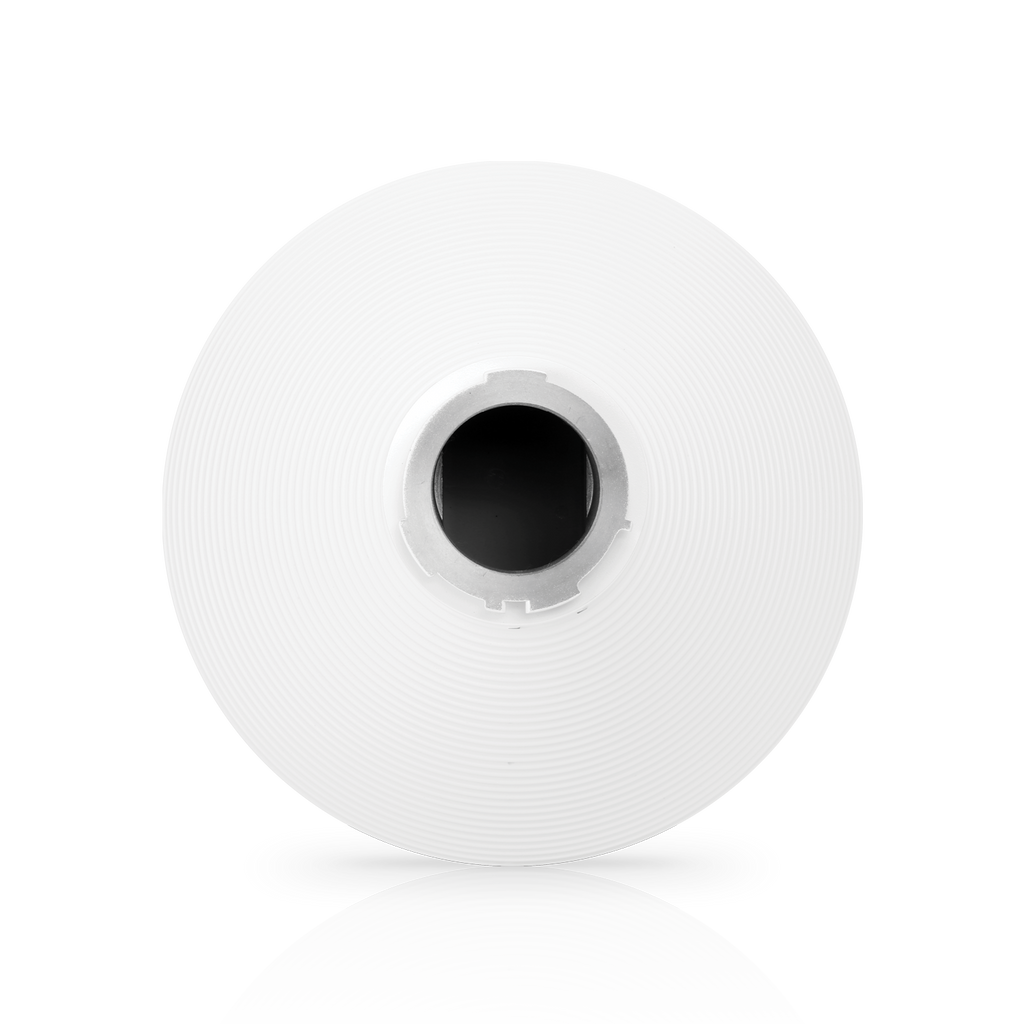

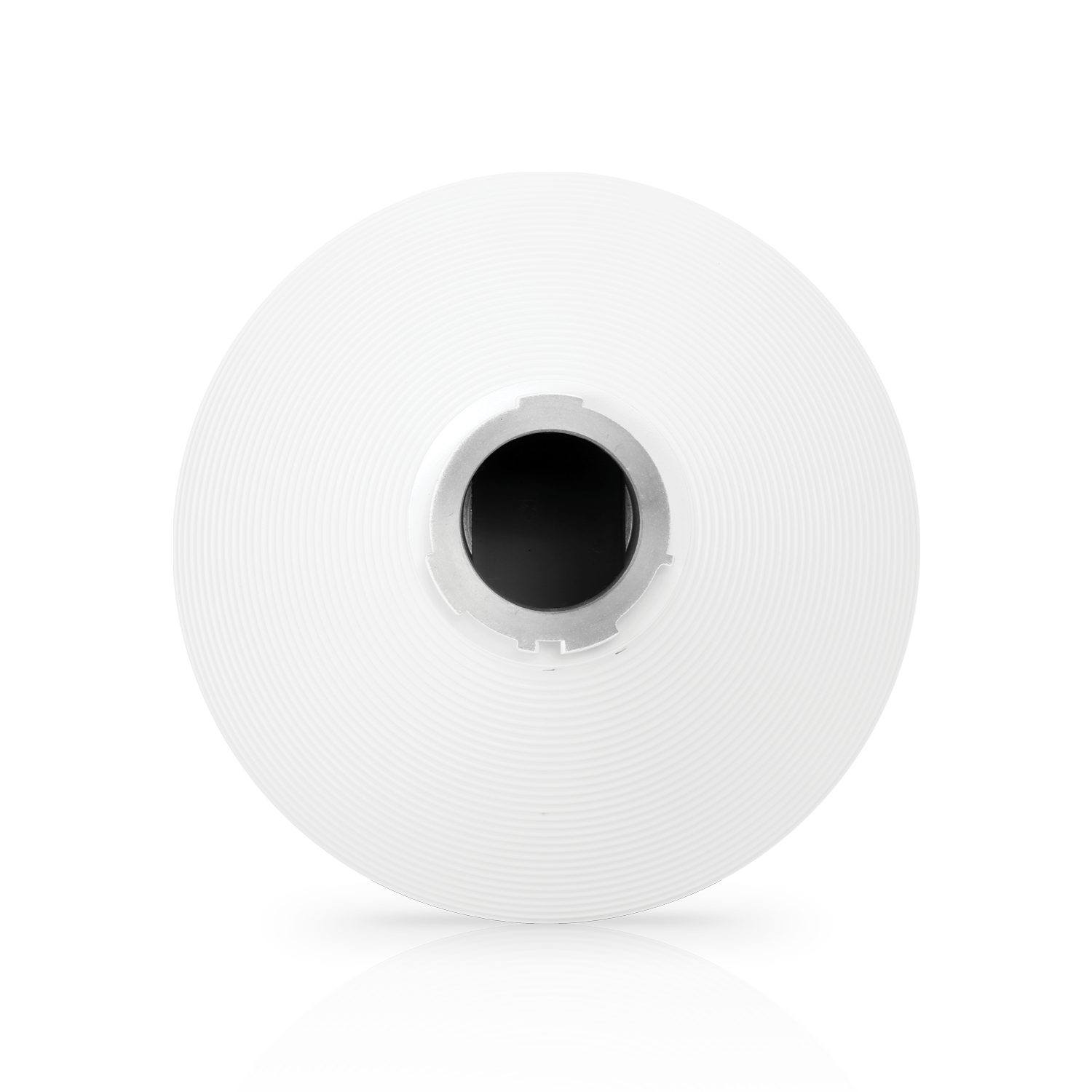

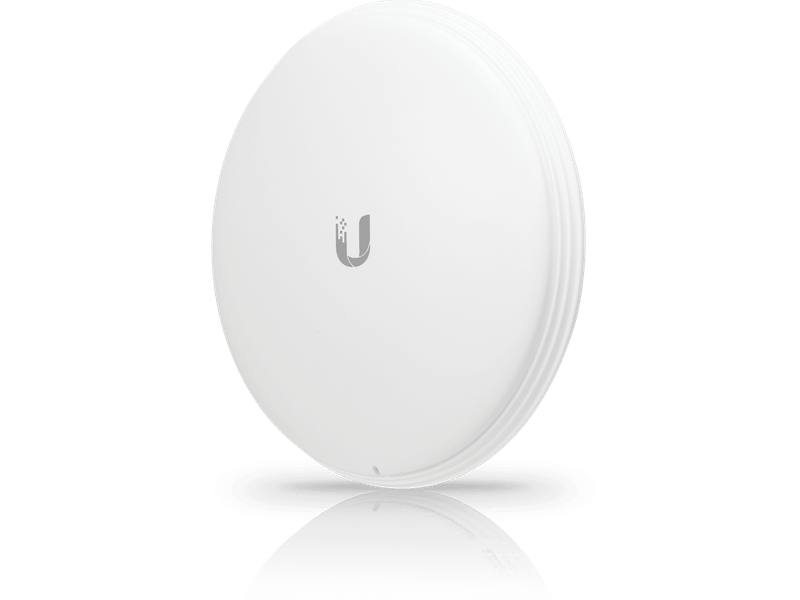

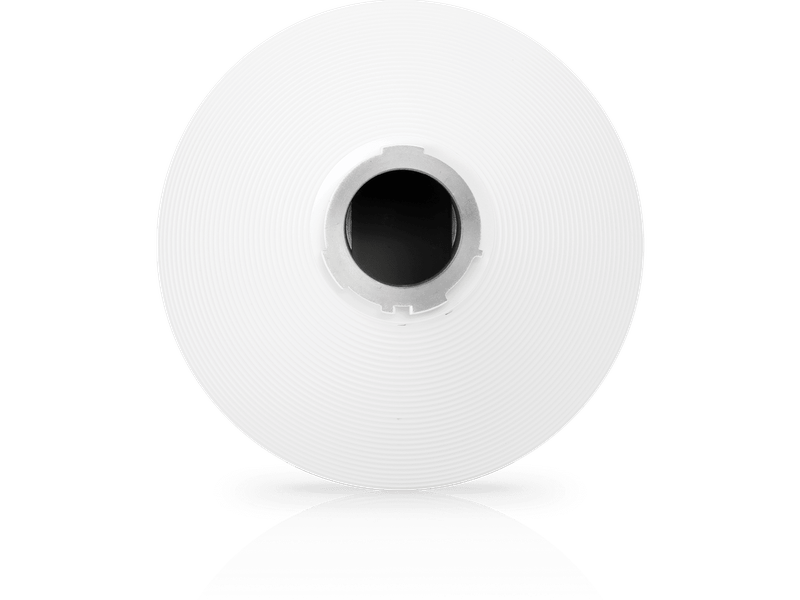

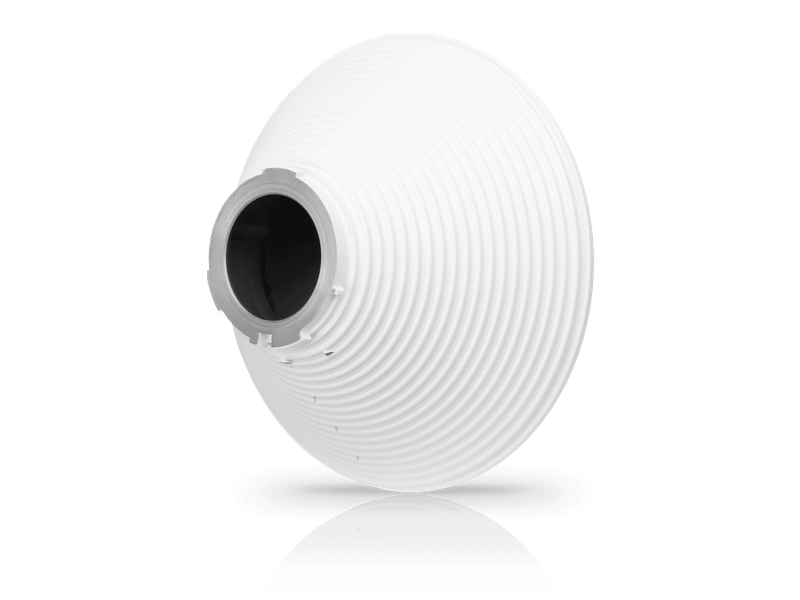

airMAX PrismStation Horn
Horn-5-30
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
airMAX PrismStation Horn
Horn-5-30
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
| Horn-5-30 Specifications | |
|---|---|
| Product Type | 5 GHz Isolation Horn Antenna |
| Application | High-density PtMP deployments with precise beam shaping |
| Compatible Radios | PrismStation PS-5AC, IsoStation IS-5AC, airFiber LTU |
| RF Characteristics | |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 19 dBi |
| HPOL Beamwidth | 30° |
| VPOL Beamwidth | 30° |
| Elevation Beamwidth | 30° |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | 17 dB |
| Max VSWR | 1.7:1 |
| Mechanical | |
| Dimensions | Ø221.4 × 184.2 mm (Ø8.71 × 7.3") |
| Weight | 1.1 kg (2.4 lb) |
| Mounting | Quick-release system for PrismStation and IsoStation |
| Environmental | |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Installation Environment | Outdoor |
| Compliance | |
| NDAA Compliant | ✓ |
