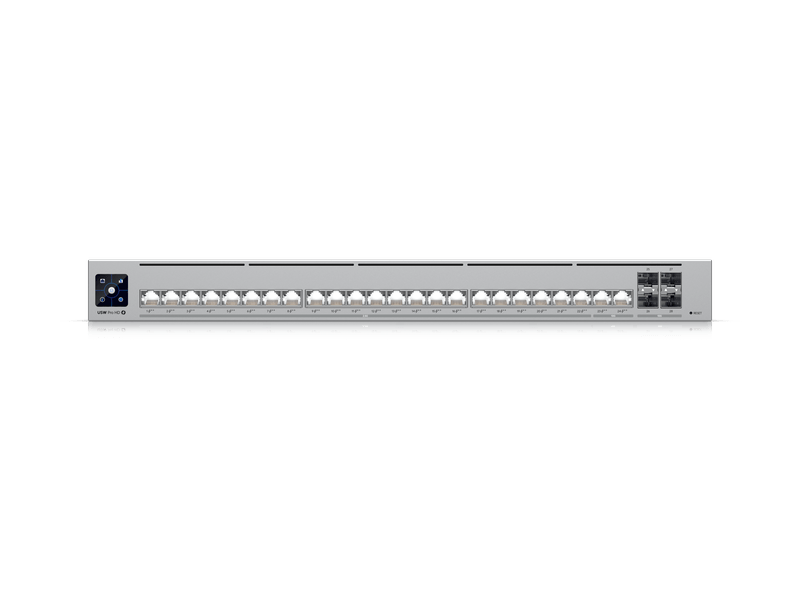

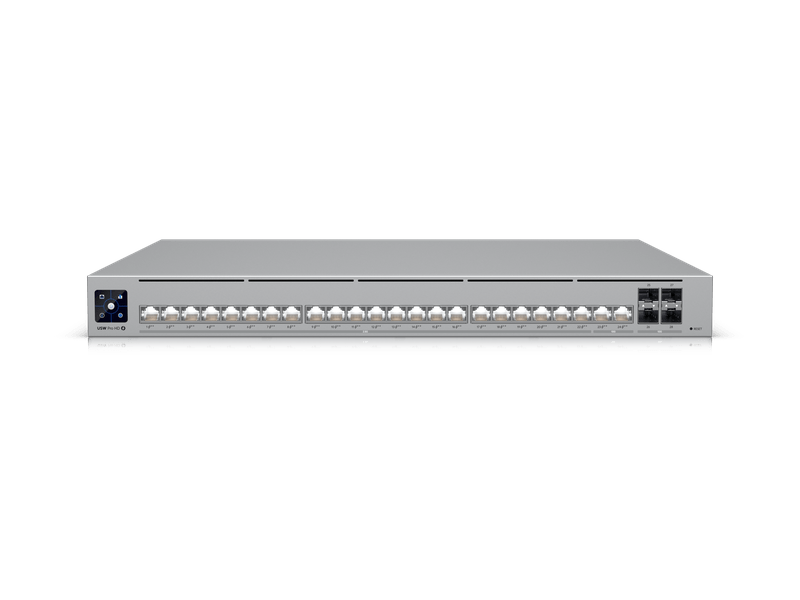

Pro HD 24 PoE
USW-Pro-HD-24-PoE (600W)
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
Pro HD 24 PoE
USW-Pro-HD-24-PoE (600W)
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
USW-Pro-HD-24-PoE Specifications | |
---|---|
Dimensions | 442 × 400 × 44 mm (17.4 × 15.7 × 1.7") |
Weight | Without brackets: 6.2 kg (13.7 lb) With brackets: 6.3 kg (13.9 lb) |
Form Factor | Rack mount (1U) |
Enclosure Material | SGCC steel |
Supported Rack Depth | 600–1200 mm (23.6–47.2") |
RJ45 Ports | 22 × 2.5 GbE PoE++ (2.5G/1G/100M/10M) 2 × 10 GbE PoE++ (10G/5G/2.5G/1G/100M) |
SFP+ Ports | 4 × 10G (10G/1G) |
Etherlighting™ | ✓ (Port illumination) |
PoE Type | PoE++ (IEEE 802.3bt) |
PoE Ports | 24 total |
Max. PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 64W |
Total PoE Budget | 600W |
Switching Capacity | 230 Gbps |
Non-Blocking Throughput | 115 Gbps |
Forwarding Rate | 171 Mpps |
MAC Address Table | 32,000 entries |
Packet Buffer Size | 2 MB |
Routing | Static, Inter-VLAN |
DHCP | Server & Relay |
IPv4 Routes | 12,000 |
ARP Entries | 12,000 |
VLANs Supported | 1,000 |
QoS | DSCP |
Port Aggregation | LACP |
Spanning Tree | STP & RSTP |
Multicast | IGMP Snooping, Querier |
Security | 802.1X, MAC/IP ACLs DHCP Snooping & Guarding Port Isolation & Mirroring MAC Blocking, Storm Control |
Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz (1) USP RPS DC input (redundancy) |
Power Supply | Internal AC/DC, 660W |
Max. Power Consumption | 60W (excluding PoE) 660W (including PoE) |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
LCM Display | 1.3" touchscreen |
Button | Factory reset |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Management Platform | UniFi Network |
Minimum Version | 9.0.114 and later |
