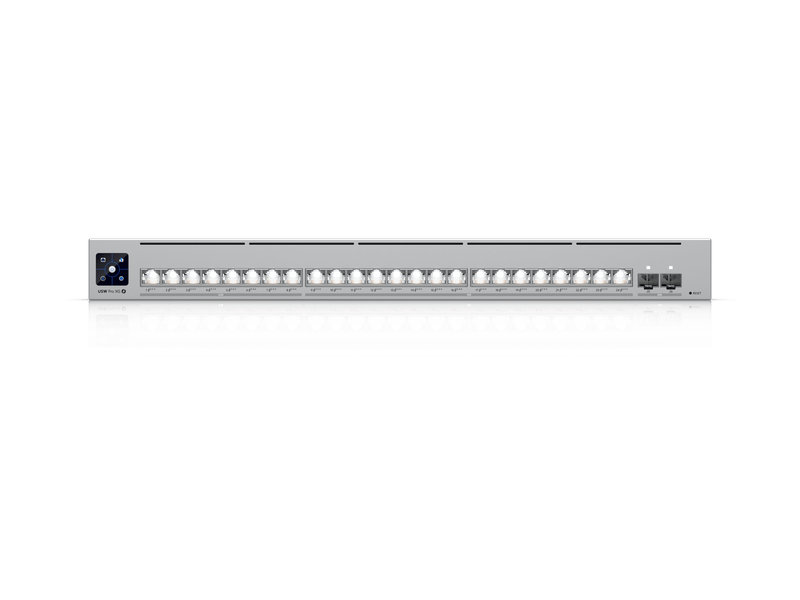

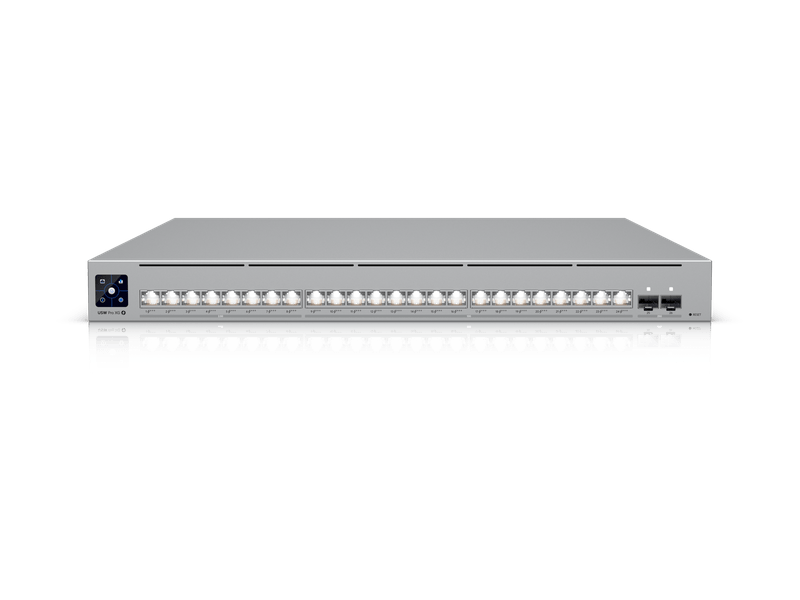

Pro XG 24 PoE
USW-Pro-XG-24-PoE (720W)
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Pro XG 24 PoE
USW-Pro-XG-24-PoE (720W)
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
USW-Pro-XG-24-PoE Specifications | |
---|---|
Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
Weight | Without brackets: 7.9 kg (17.4 lb) With brackets: 8.0 kg (17.6 lb) |
Form Factor | Rack mount (1U) |
Enclosure Material | SGCC steel |
Supported Rack Depth | 600–1,066 mm (23.6–42") |
RJ45 Ports | 8 × 2.5 GbE RJ45 (PoE+++) 16 × 10 GbE RJ45 (PoE+++) |
SFP Ports | 2 × 25G SFP28 |
Max. PoE Output | Up to PoE+++ (90W per port) |
Total PoE Availability | 720W |
Switching Capacity | 460 Gbps |
Non-Blocking Throughput | 230 Gbps |
Forwarding Rate | 342 Mpps |
MAC Address Table | 128,000 entries |
Supported VLANs | 1,000 |
IPv4 Routes | 256,000 |
ARP Entries | 128,000 |
Packet Buffer Size | 8 MB |
DHCP Server | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing | ✓ |
Static Routing | ✓ |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
QoS (DSCP) | ✓ |
Pro AV Profiles | Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
IGMP Snooping & Querier | ✓ |
802.1X Control | ✓ |
ACLs & Isolation | MAC/IP-based ACLs DHCP Snooping & Guarding Port Isolation, Mirroring, Restriction Rate Limiting, Flow & Storm Control |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Power Method | AC input + USP RPS DC input |
Power Supply | AC/DC internal, 870W |
Supported Voltage Range | 100–240V AC, 50/60 Hz |
Max. Power Consumption | 150W (excluding PoE) 870W (including PoE) |
LCM Display | 1.3" touchscreen |
LEDs | System, RPS |
Button | Factory-reset |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
Etherlighting™ | ✓ (Ethernet & SFP28) |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Application Requirements | UniFi Network version 9.1.120 and later |
