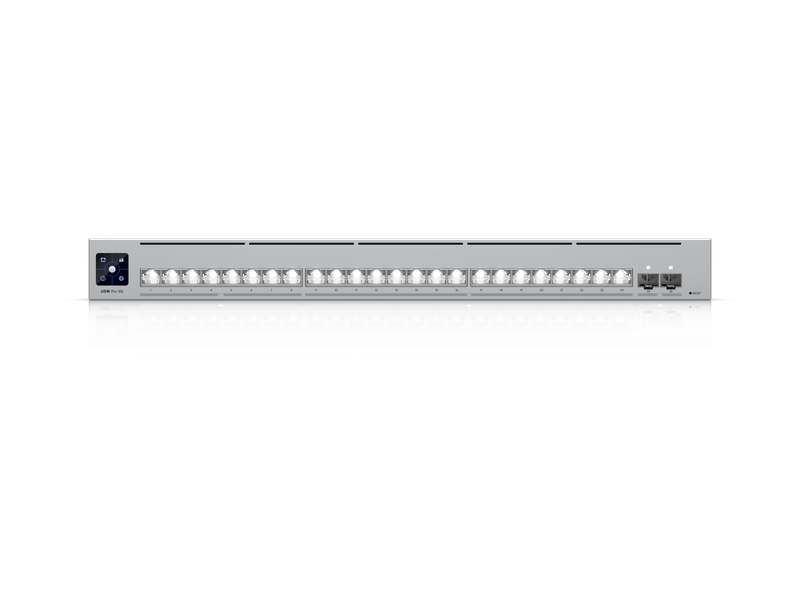

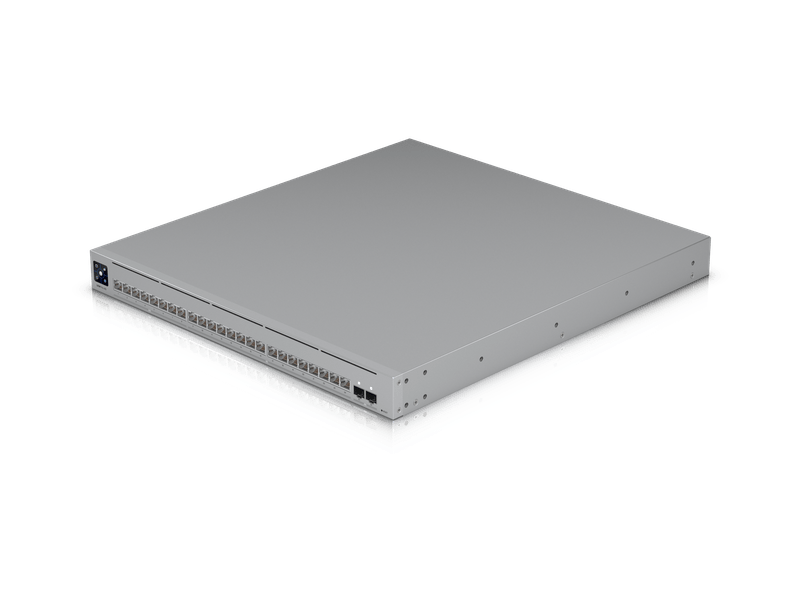

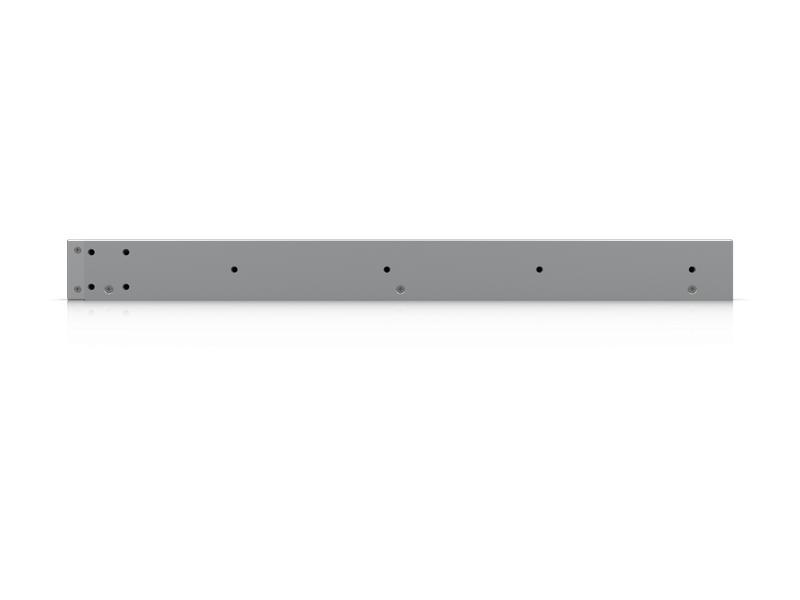

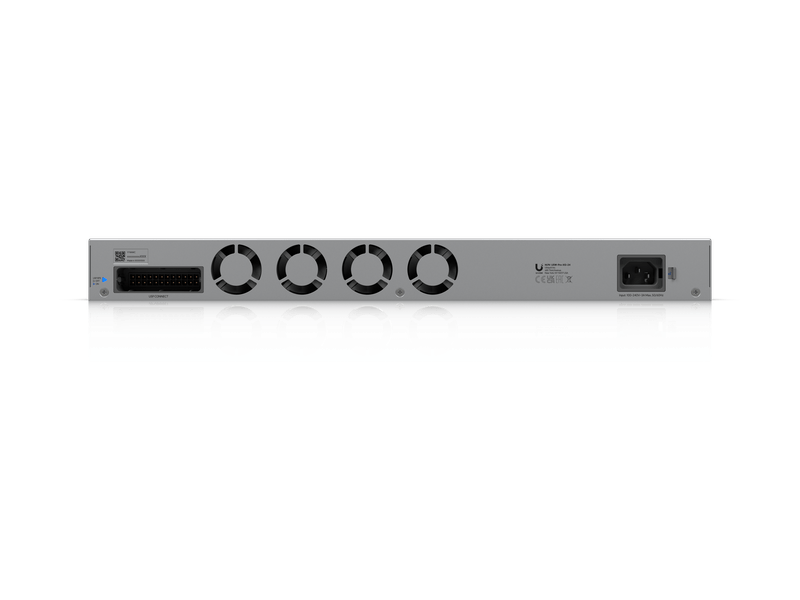

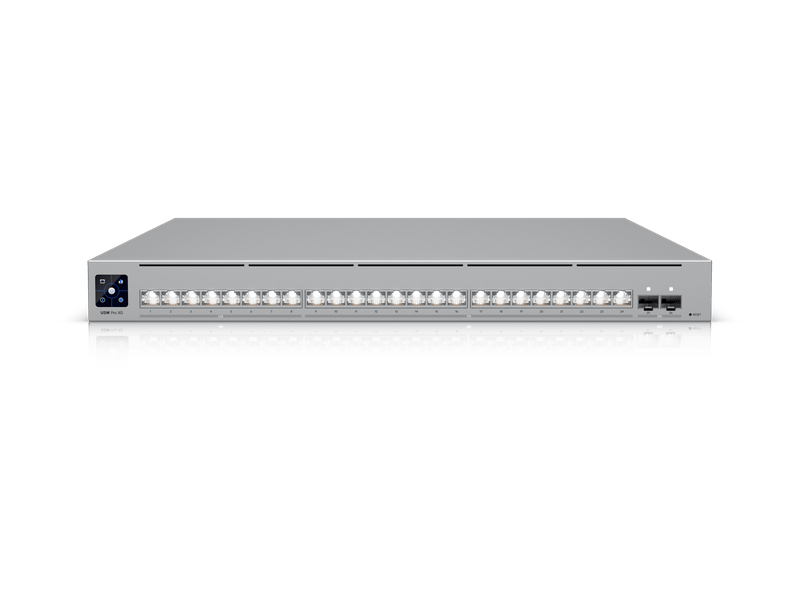

Pro XG 24
USW-Pro-XG-24
Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Pro XG 24
USW-Pro-XG-24
Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Switch Specifications | |
---|---|
Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
Port Layout | 2.5 GbE RJ45: 8 ports (2.5G/1G/100M/10M) 10 GbE RJ45: 16 ports (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 2 ports (25G/10G/1G) |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
Switching Capacity | 460 Gbps |
Total Non-Blocking Throughput | 230 Gbps |
Forwarding Rate | 342 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 128,000 |
ARP Entries | 128,000 |
IPv4 Routes | 256,000 |
Packet Buffer Size | 8 MB |
Access Lists | IPv4: 256 MAC: 256 |
DHCP Server (Local Networks) | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing (Local Networks) | ✓ |
Static Routing (Local Networks) | ✓ |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Max. Power Consumption | 150W |
Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 200W |
Supported Voltage Range | 100–240V AC |
Management | Ethernet AR |
Weight | Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
