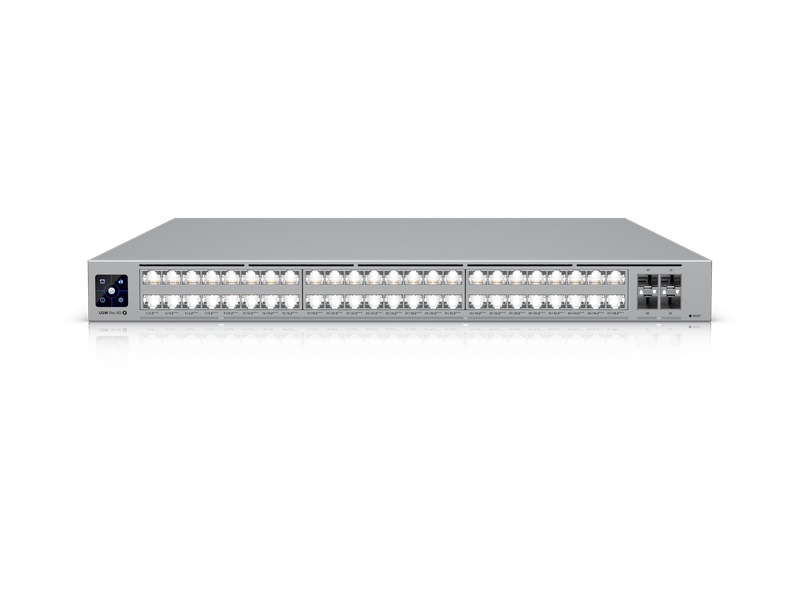

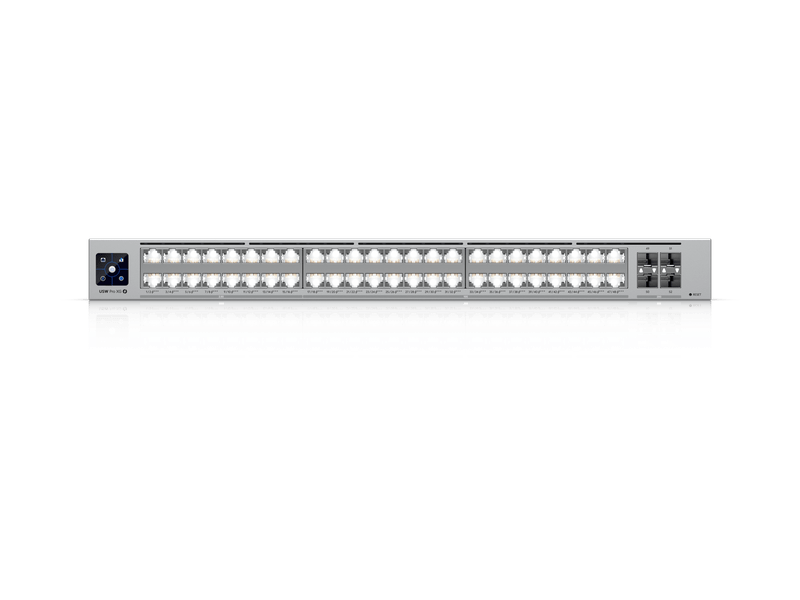

Pro XG 48 PoE
USW-Pro-XG-48-PoE (1080W)
Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
Pro XG 48 PoE
USW-Pro-XG-48-PoE (1080W)
Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
USW-Pro-XG-48-PoE Specifications | |
---|---|
Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
Form Factor | Rack mount (1U) |
Port Layout | 16 × 2.5 GbE RJ45 (PoE+++) 32 × 10 GbE RJ45 (PoE+++) 4 × 25G SFP28 |
Max. PoE Output | Up to PoE+++ (90W per port) |
Total PoE Availability | 200–240V AC: 1080W 100–120V AC: 972W |
Redundancy | DC Power Backup (USP RPS) |
Etherlighting™ | ✓ (Ethernet & SFP28) |
Layer 3 Support | ✓ |
Switching Capacity | 920 Gbps |
Non-Blocking Throughput | 460 Gbps |
Forwarding Rate | 684 Mpps |
Supported VLANs | 1,000 |
MAC Address Table | 128,000 entries |
ARP Entries | 128,000 |
IPv4 Routes | 256,000 |
Packet Buffer Size | 8 MB |
Access Lists | IPv4: 256, MAC: 256 |
DHCP Server | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing | ✓ |
Static Routing | ✓ |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
QoS (DSCP) | ✓ |
Pro AV Profiles | ✓ (Dante, Q-SYS, NDI, SDVoE, AES67, Crestron, Shure) |
Advanced IGMP | ✓ (Querier, Fast Leave, Router Port) |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
ACLs & Isolation | MAC/IP-based ACLs DHCP Snooping & Guarding Port Isolation, Mirroring, Restriction Rate Limiting (Egress, Multicast, Broadcast) Flow & Storm Control |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
PoE Ports | 48 × PoE+++ RJ45 |
PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
Max. Power Consumption | 200W (excluding PoE) 1,280W @ 240V AC 1,172W @ 120V AC |
Power Supply | AC/DC internal, 1,350W |
Power Input | Universal AC (100–240V, 50/60 Hz), USP RPS DC |
Management | Ethernet, AR |
Weight | Without brackets: 8.7 kg (15.4 lb) With brackets: 8.8 kg (15.7 lb) |
Enclosure & Mount Material | SGCC steel |
Rack Depth Compatibility | 600–1,066 mm (23.6–42") four-post racks |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ±30kV, Contact: ±20kV |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
LED Indicators | System, RPS |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Application Requirements | UniFi Network version 9.1.120 and later |
