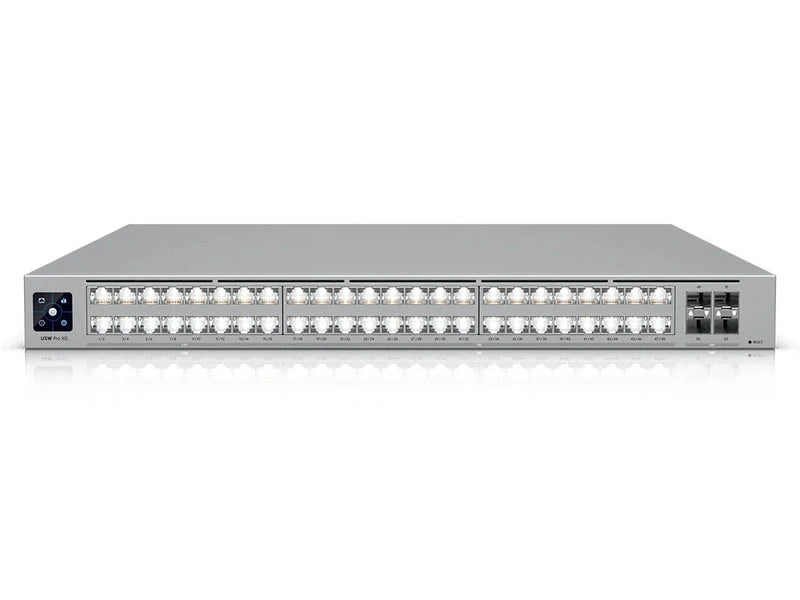

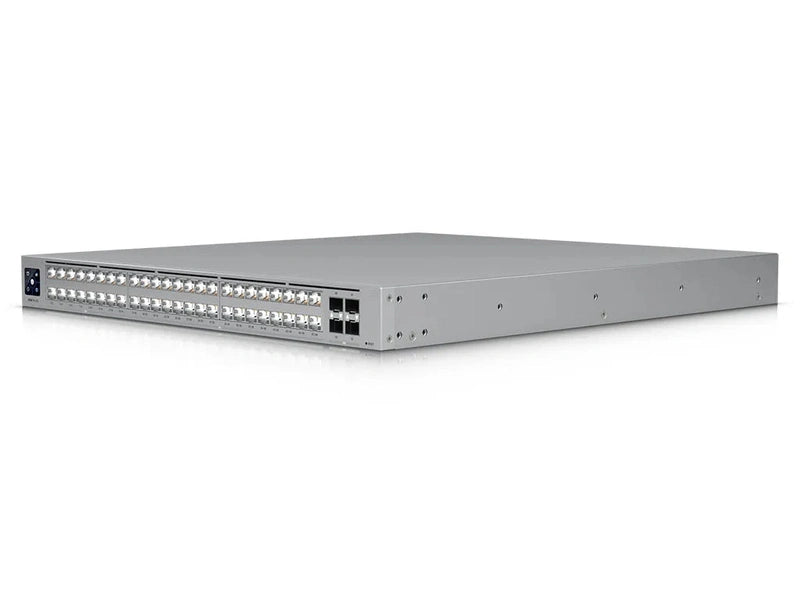

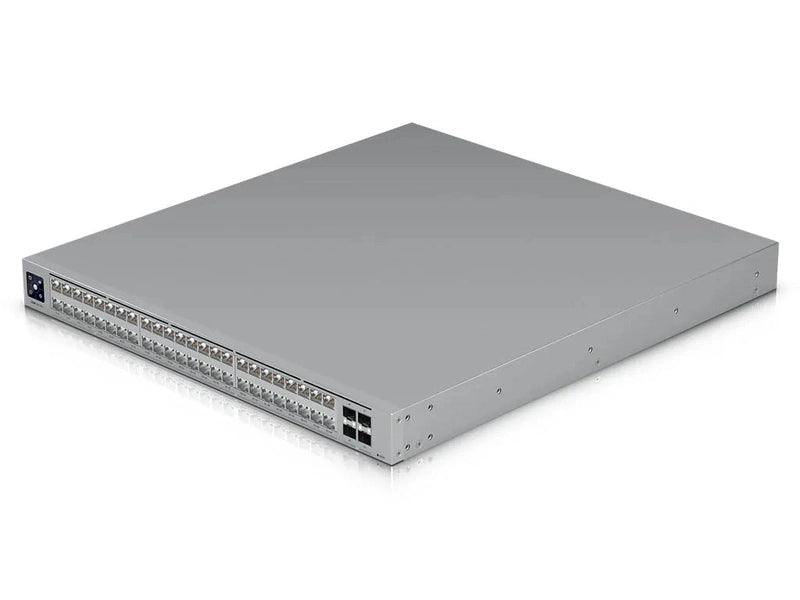

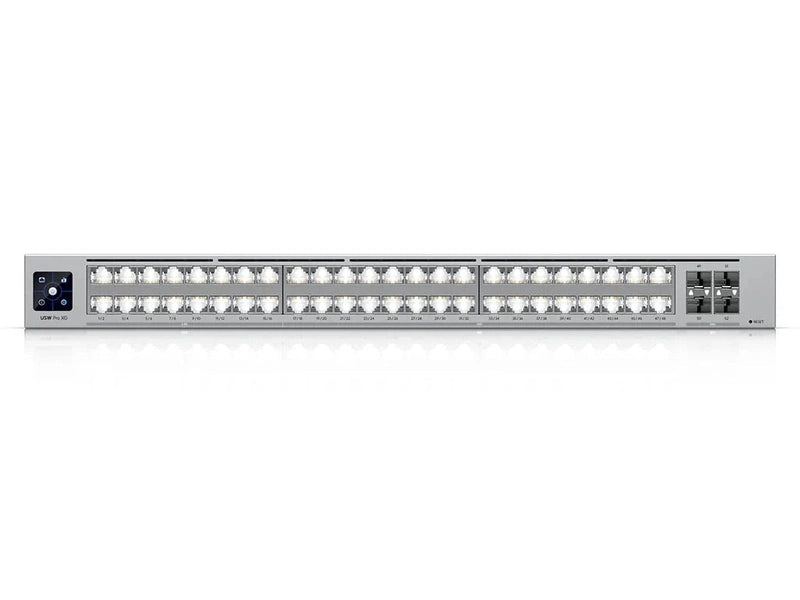

Pro XG 48
USW-Pro-XG-48
Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Pro XG 48
USW-Pro-XG-48
Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
USW-Pro-XG-48 Specifications | |
---|---|
Overview | |
Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
Port Layout | 2.5 GbE RJ45: 16 (2.5G/1G/100M/10M) 10 GbE RJ45: 32 (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 4 (25G/10G/1G) |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
Performance | |
Switching Capacity | 920 Gbps |
Total Non-Blocking Throughput | 460 Gbps |
Forwarding Rate | 684 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 128,000 |
ARP Entries | 128,000 |
IPv4 Routes | 256,000 |
Packet Buffer Size | 8 MB |
Access Lists | IPv4: 256, MAC: 256 |
Layer 3 Features | |
DHCP Server (Local Networks) | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing | ✓ |
Static Routing | ✓ |
Layer 2 Features | |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
Advanced IGMP Configuration | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Hardware | |
Max. Power Consumption | 250W |

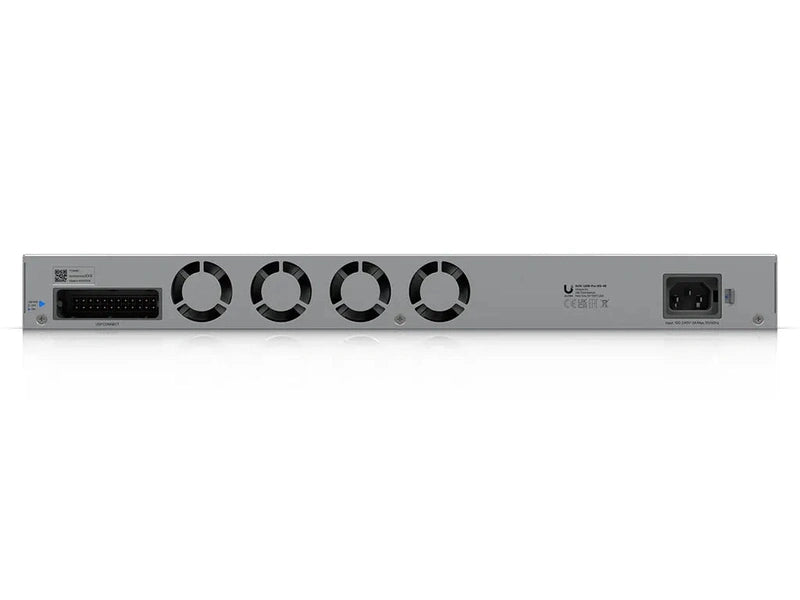

Power Method | Universal input: 100–240V AC, 50/60 Hz USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 300W |
Supported Voltage Range | 100–240V AC |
Weight | Without brackets: 7.5 kg (16.5 lb) With brackets: 7.6 kg (16.8 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Supported Rack Depth | 482.6 mm (19") four-post racks, 600–1066 mm depth |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ±30kV, Contact: ±14kV |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting™ | SFP+, QSFP28: ✓ |
LEDs | RPS: ✓ |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Software | |
Application Requirements | UniFi Network, version 9.0.114 and later |
