Description
Overview
Pro XG 8 PoE
USW-Pro-XG-8-PoE (155W)

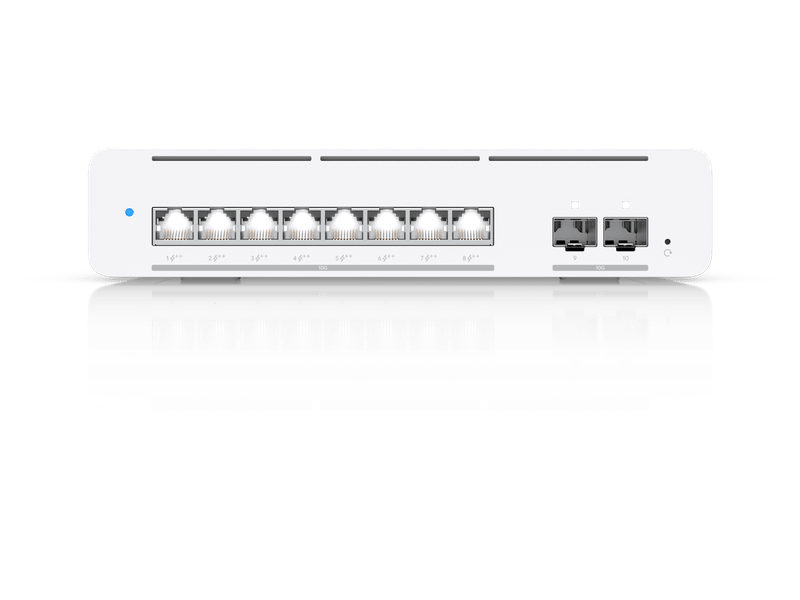

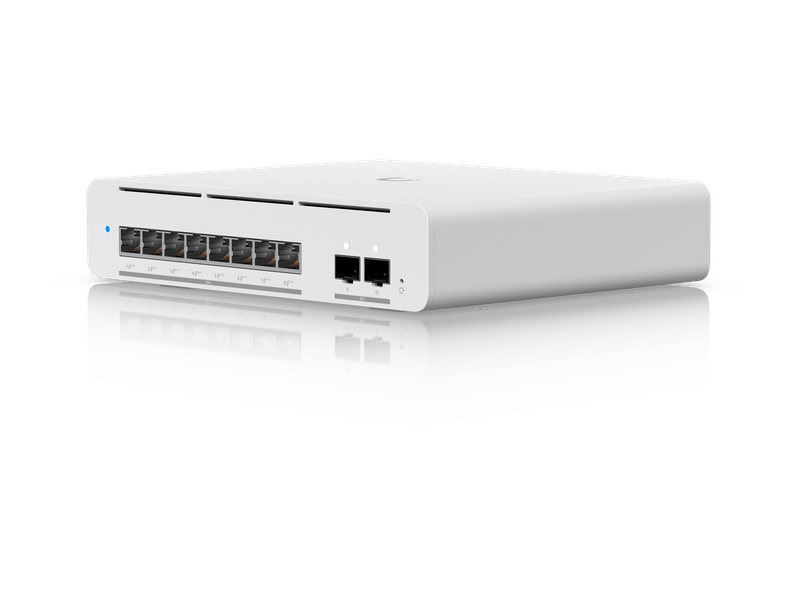

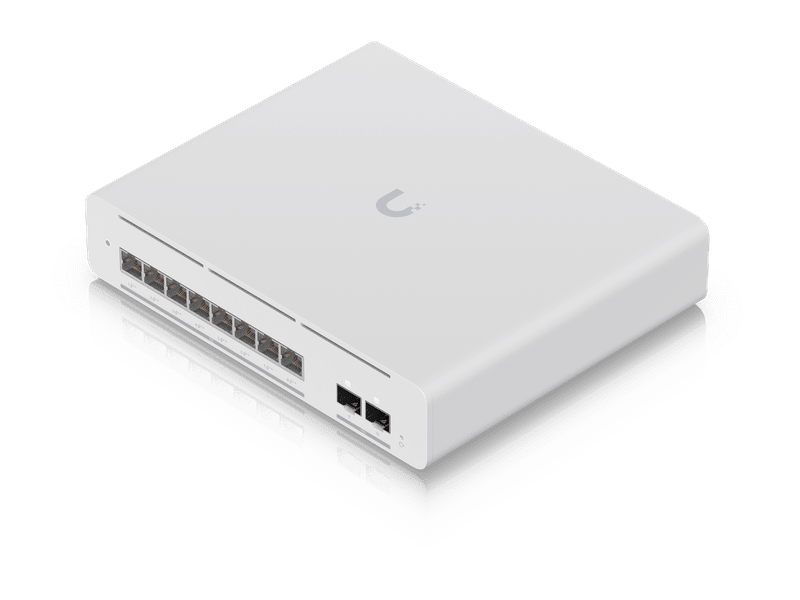

Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Pro XG 8 PoE
USW-Pro-XG-8-PoE (155W)
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
USW-Pro-XG-8-PoE Specifications | |
---|---|
Dimensions | 210.4 × 173.8 × 43.7 mm (8.28 × 6.84 × 1.7") |
Weight | 1.6 kg (3.5 lb) |
Form Factor | Compact desktop, wall-mountable |
Enclosure Material | SGCC steel |
Mounting Material | Polycarbonate |
RJ45 Ports | 8 × 10 GbE (PoE++) |
SFP+ Ports | 2 × 10G |
Etherlighting™ | ✓ (Port illumination) |
PoE Type | PoE++ (IEEE 802.3bt) |
Max. PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 60W |
Total PoE Budget | 155W |
Switching Capacity | 200 Gbps |
Non-Blocking Throughput | 100 Gbps |
Forwarding Rate | 149 Mpps |
MAC Address Table | 32,000 entries |
Packet Buffer Size | 2 MB |
Routing | Static, Inter-VLAN |
DHCP | Server & Relay |
IPv4 Routes | 12,000 |
ARP Entries | 12,000 |
VLANs Supported | 1,000 |
QoS | DSCP |
Port Aggregation | LACP |
Spanning Tree | STP & RSTP |
Multicast | IGMP Snooping, Querier |
Security | 802.1X, MAC/IP ACLs DHCP Snooping & Guarding Port Isolation & Mirroring |
Power Method | AC/DC Adapter (included) |
Power Supply | External 210W |
Max. Power Consumption | 61W (excluding PoE) 220W (including PoE) |
Supported Voltage Range | 50–57V DC |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 10 to 90% noncondensing |
ESD Protection | ±30kV (air/contact) |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Management Platform | UniFi Network |
Minimum Version | 9.0.114 and later |
