Overview

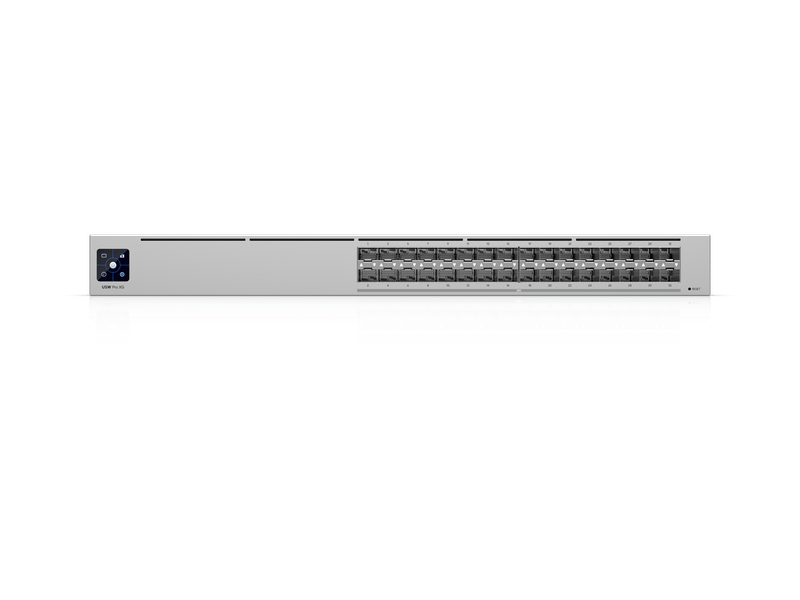

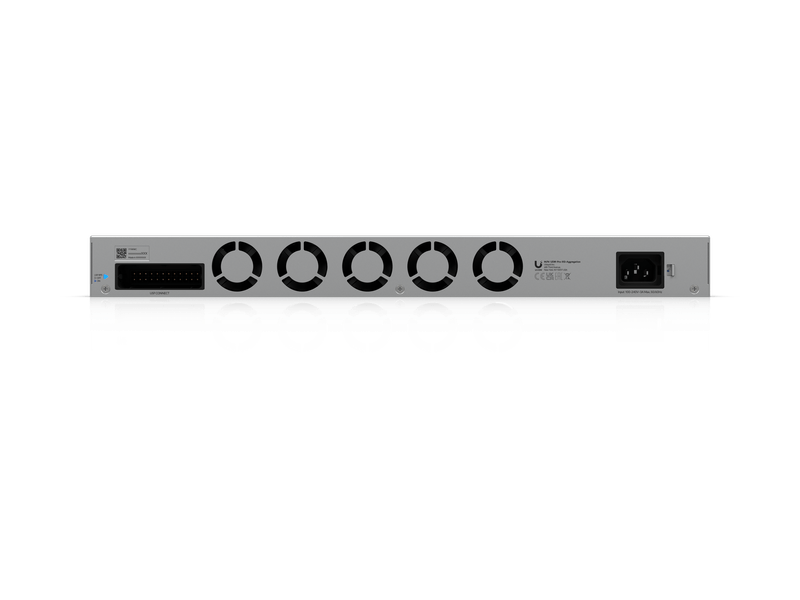

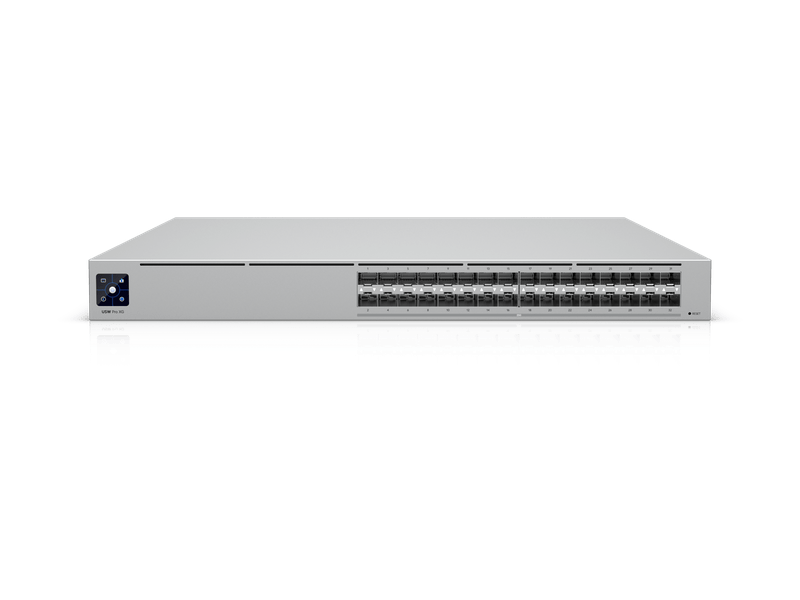

Pro XG Aggregation
USW-Pro-XG-Aggregation
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Pro XG Aggregation
USW-Pro-XG-Aggregation
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
| USW-Pro-XG-Aggregation Specifications | |
|---|---|
| Form Factor | 1U Rack Mount |
| Dimensions | 442.4 × 43.7 × 480 mm (17.4 × 1.7 × 18.9") |
| Weight | 7 kg (15.4 lb) |
| Enclosure Material | SGCC Steel |
| Mounting Depth | 482.6 mm (19") four-post racks (600–1066 mm depth) |
| LCM Display | 1.3" Touchscreen |
| Port Layout | (32) 25G SFP28 (25G/10G/1G) |
| Management Interface | Ethernet AR |
| Etherlighting™ | ✓ (SFP28) |
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Packet Buffer Size | 8 MB |
| MAC Address Table Size | 32,000 entries |
| Supported VLANs | 1,000 |
| DHCP Server | ✓ (Local Networks) |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| ARP Table Size | 128,000 entries |
| IPv4 Routes | 256,000 |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| IGMP Snooping & Configuration | ✓ (Querier, Fast Leave, Router Port) |
| 802.1X Control | ✓ |
| ACLs | ✓ (MAC & IP-based) |
| DHCP Snooping & Guarding | ✓ |
| Rate Limiting | ✓ (Egress, Multicast, Broadcast) |
| Port Features | ✓ (Isolation, Mirroring, Restriction) |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Max. Power Consumption | 200W |
| Power Method | (1) Universal AC input (100–240V AC, 50/60 Hz) (1) USP RPS DC input |
| Power Supply | Internal AC/DC, 200W |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| ESD/EMP Protection | Air: ±12kV, Contact: ±8kV |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
