Description
Overview
Reader Flex
UA-G3-Flex-B
Third-generation NFC card reader with a keypad and Touch Pass support.
Note. 10 free 1-year Touch Passes included.
Reader Flex
UA-G3-Flex-B
Third-generation NFC card reader with a keypad and Touch Pass support.
Note. 10 free 1-year Touch Passes included.
| UA-G3-Flex-B Specifications | |
|---|---|
| Product Type | Third-Generation NFC Card Reader with Keypad |
| Color | Black |
| Access Methods | NFC Card & Keyfob PIN Access Apple/Google Wallet Mobile Unlock Touch Pass |
| Weatherproofing | IP55 |
| Mounting Options | Wall (Included), Gang box, Junction box (Optional) |

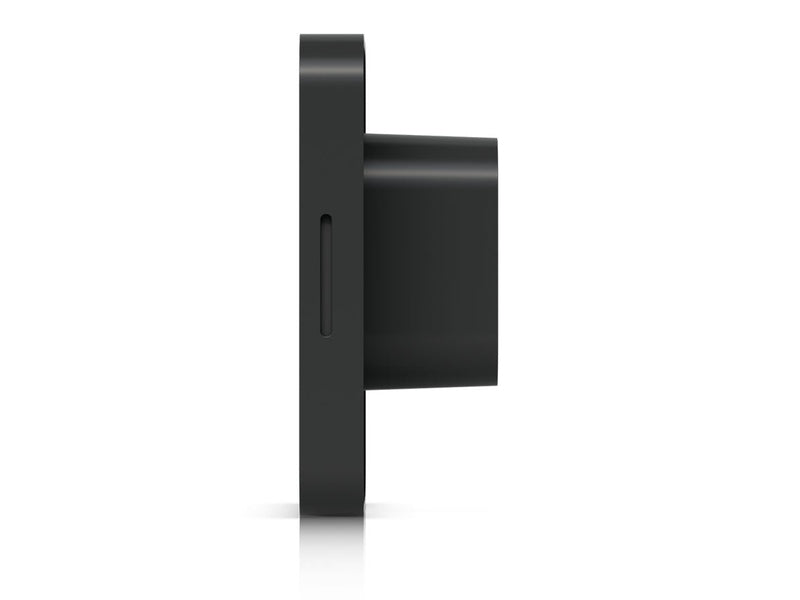

| Dimensions | 84 × 84 × 40.8 mm (3.3 × 3.3 × 1.6") |
| Weight | 165 g (5.8 oz) |
| Enclosure Material | Polycarbonate, glass, aluminum alloy |
| Mount Material | Polycarbonate, aluminum alloy |

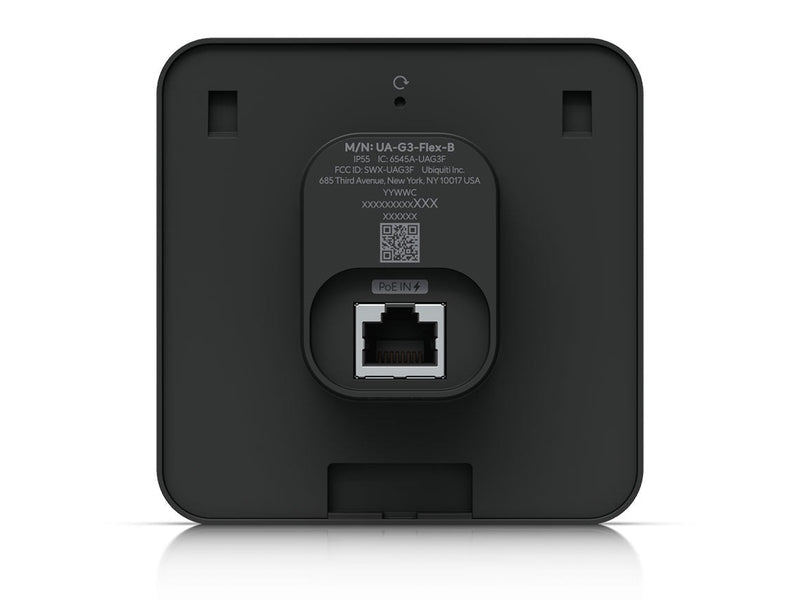

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 5W |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |

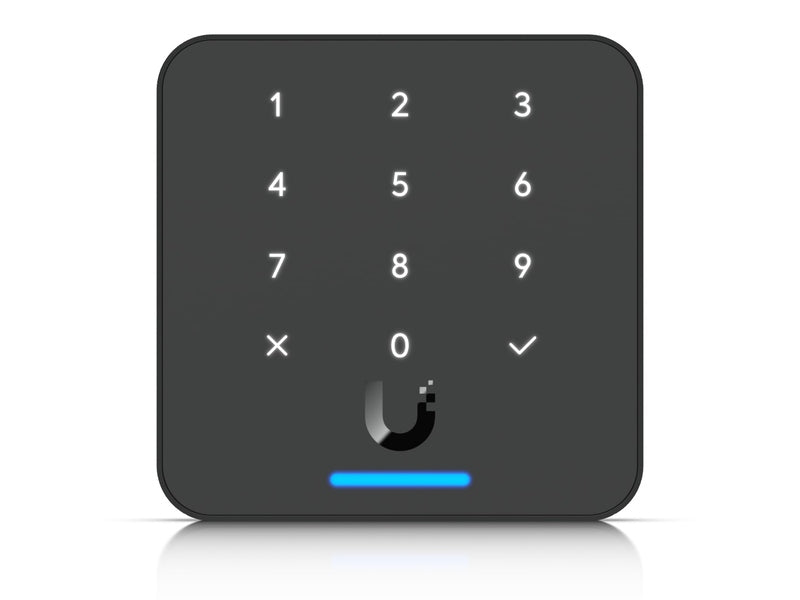

| Sensors | (12) Capacitive buttons |
| Speaker | ✓ |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / DESFire Sony FeliCa™ (ID only) NFC Forum Tags T1T–T5T ECP 2.0 |
| Operating Environment | Indoor / Outdoor |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |
| Management Application | UniFi Access |
| Software Version | Check via unifi.ui.com |
