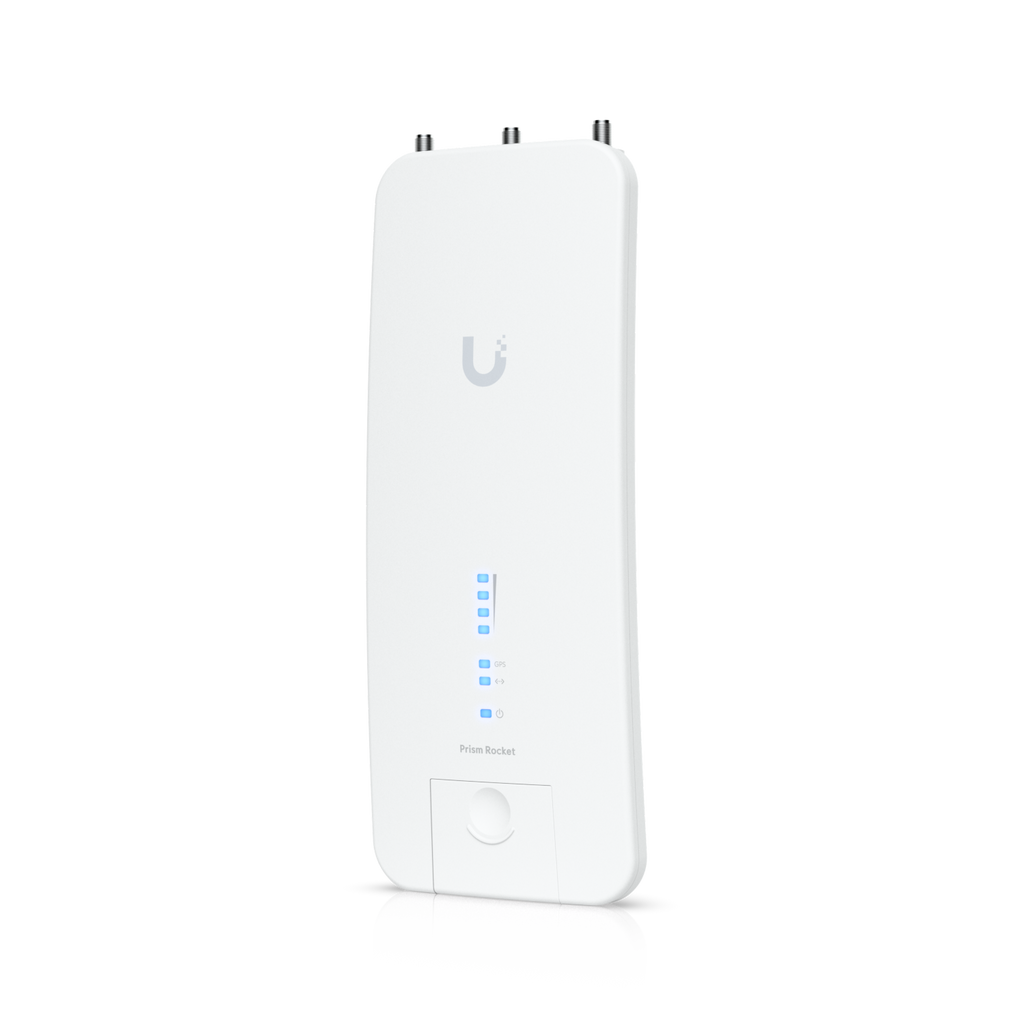

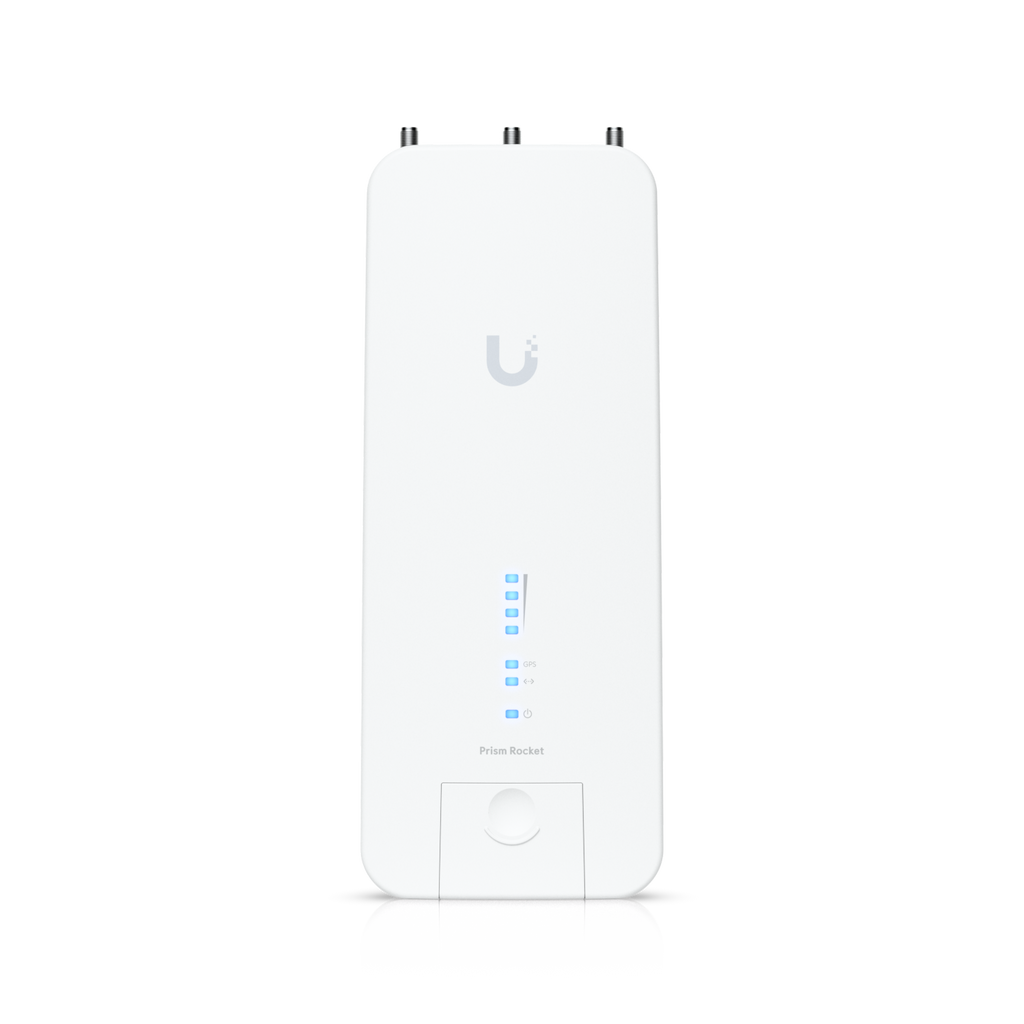

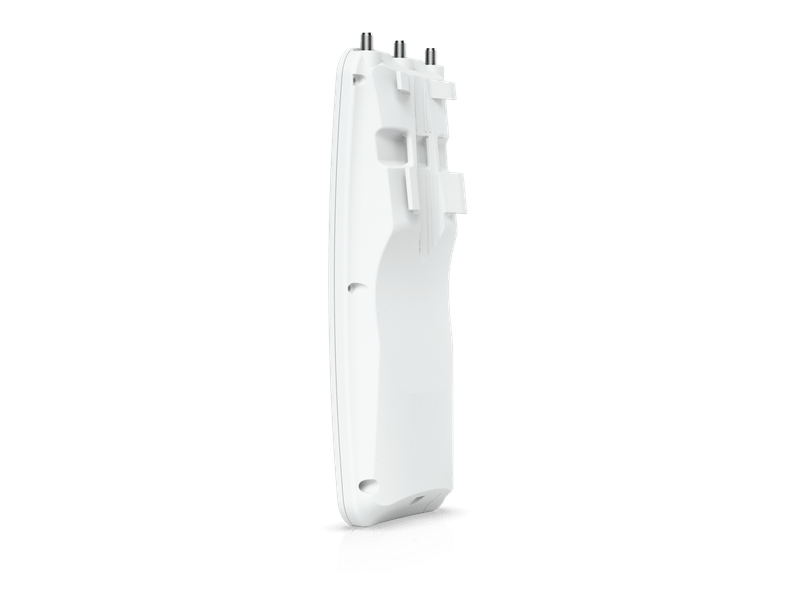

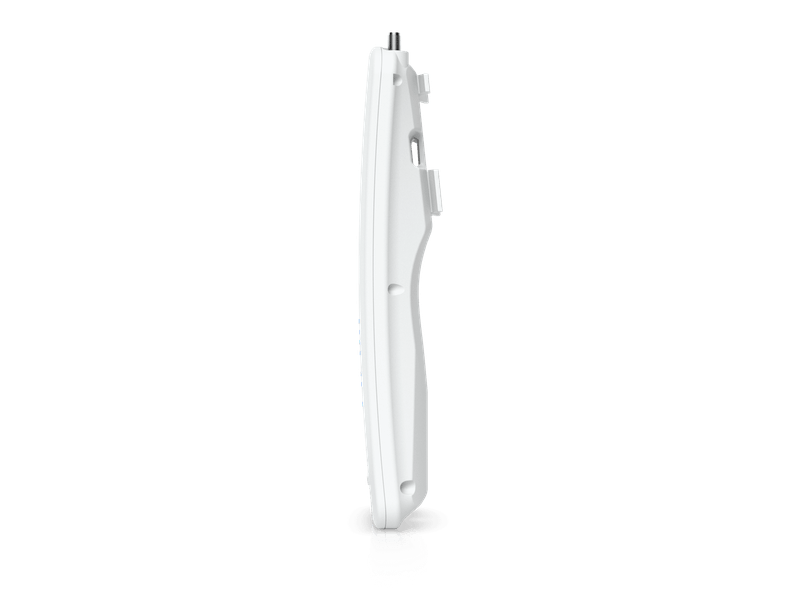

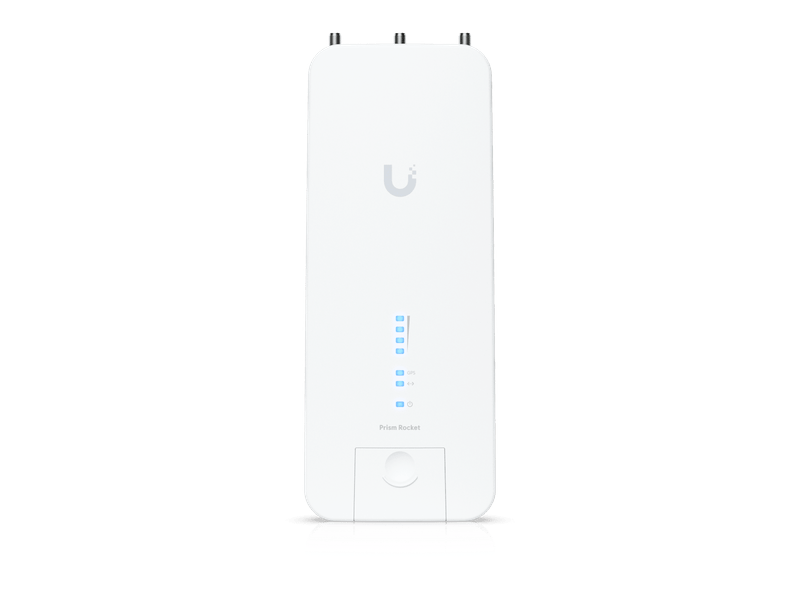

airMAX Rocket Prism 5AC
RP-5AC-Gen2
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
airMAX Rocket Prism 5AC
RP-5AC-Gen2
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
| RP-5AC-GEN2 Specifications | |
|---|---|
| Product Type | airMAX ac BaseStation with airPrism Technology |
| Application | PtP backhaul or PtMP deployments |
| Max Throughput | 500+ Mbps |
| Wireless | |
| Operating Frequency | Worldwide: 5150–5875 MHz USA: U-NII-1 to U-NII-3 bands |
| Management Radio | Worldwide: 2412–2472 MHz USA: 2412–2462 MHz |
| Channel Sizes | PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz |
| Interfaces | |

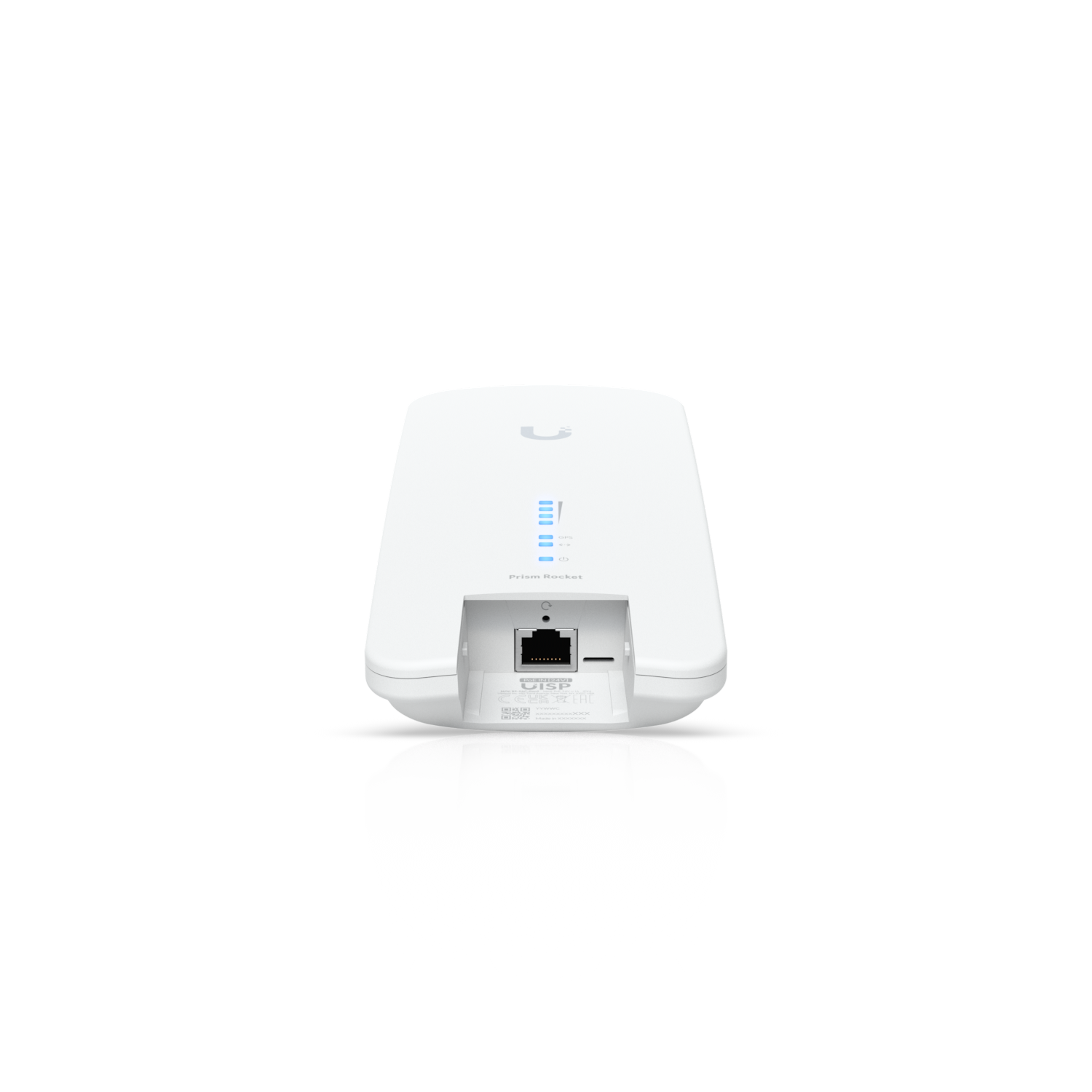

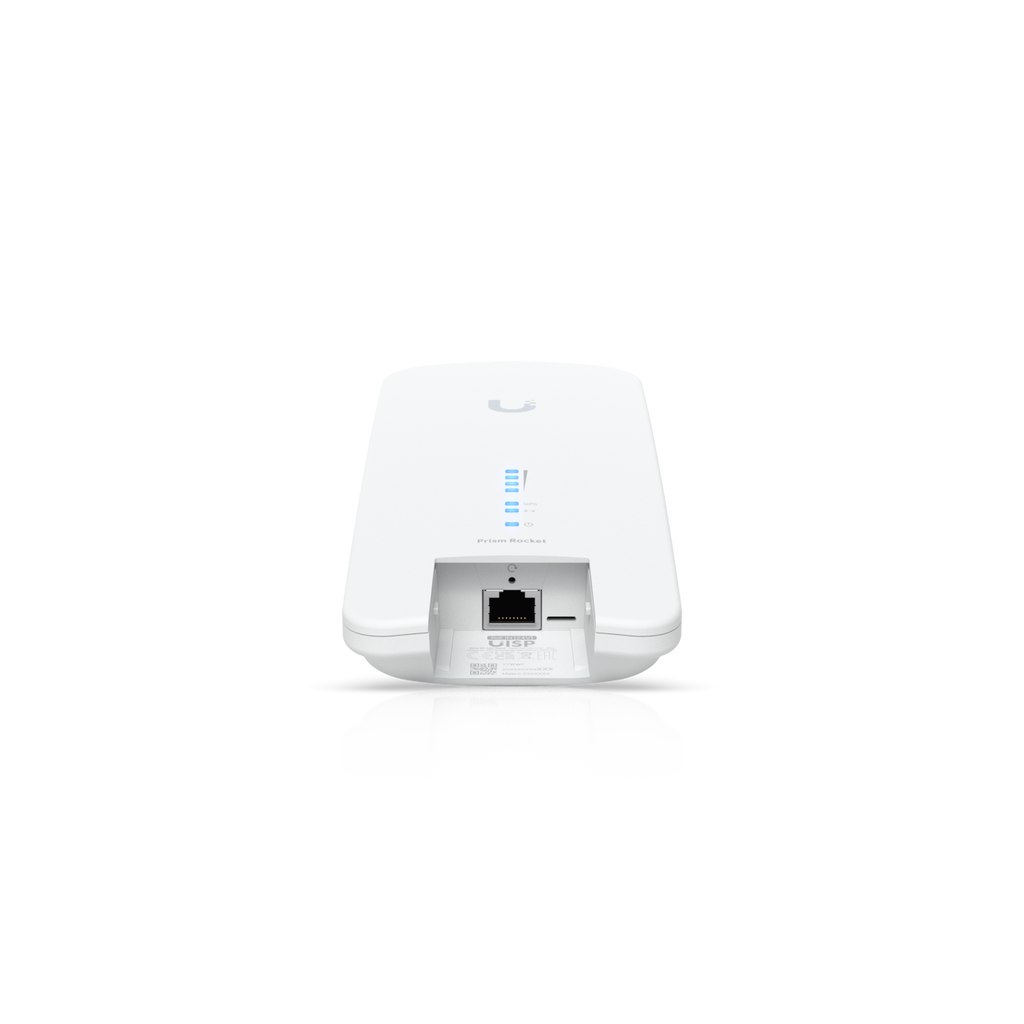

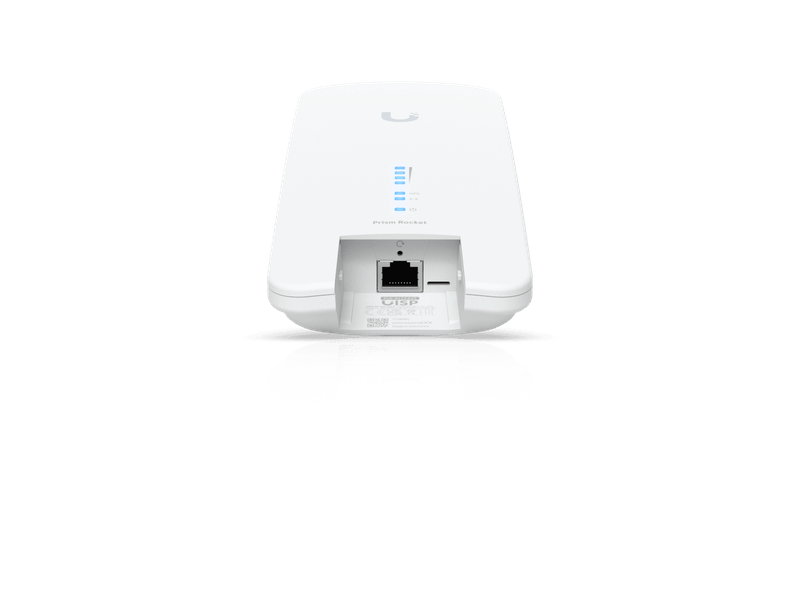

| Networking | (1) Gigabit RJ45 Ethernet |
| RF Connectors | (2) RP-SMA waterproof (1) GPS waterproof |
| Power | |
| Power Method | Passive PoE 2-pair (Pins 4,5+; 7,8−) |
| Power Supply | 24V, 1A Gigabit PoE adapter (included) |
| Supported Voltage Range | 18–27V DC |
| Max Power Consumption | 9.5W |
| Mechanical | |

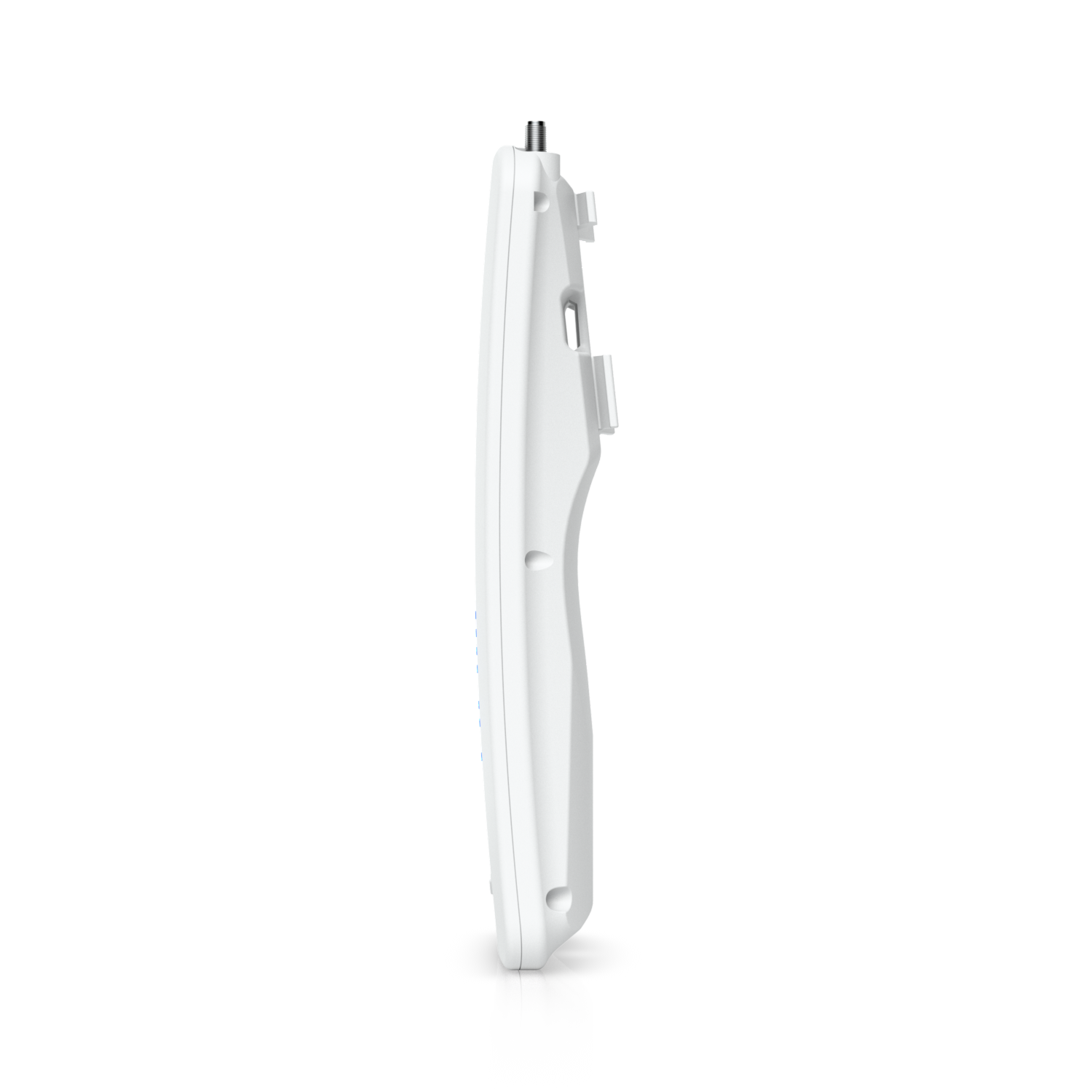

| Dimensions | 88 × 40 × 230 mm (3.5 × 1.6 × 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Die-cast aluminum |

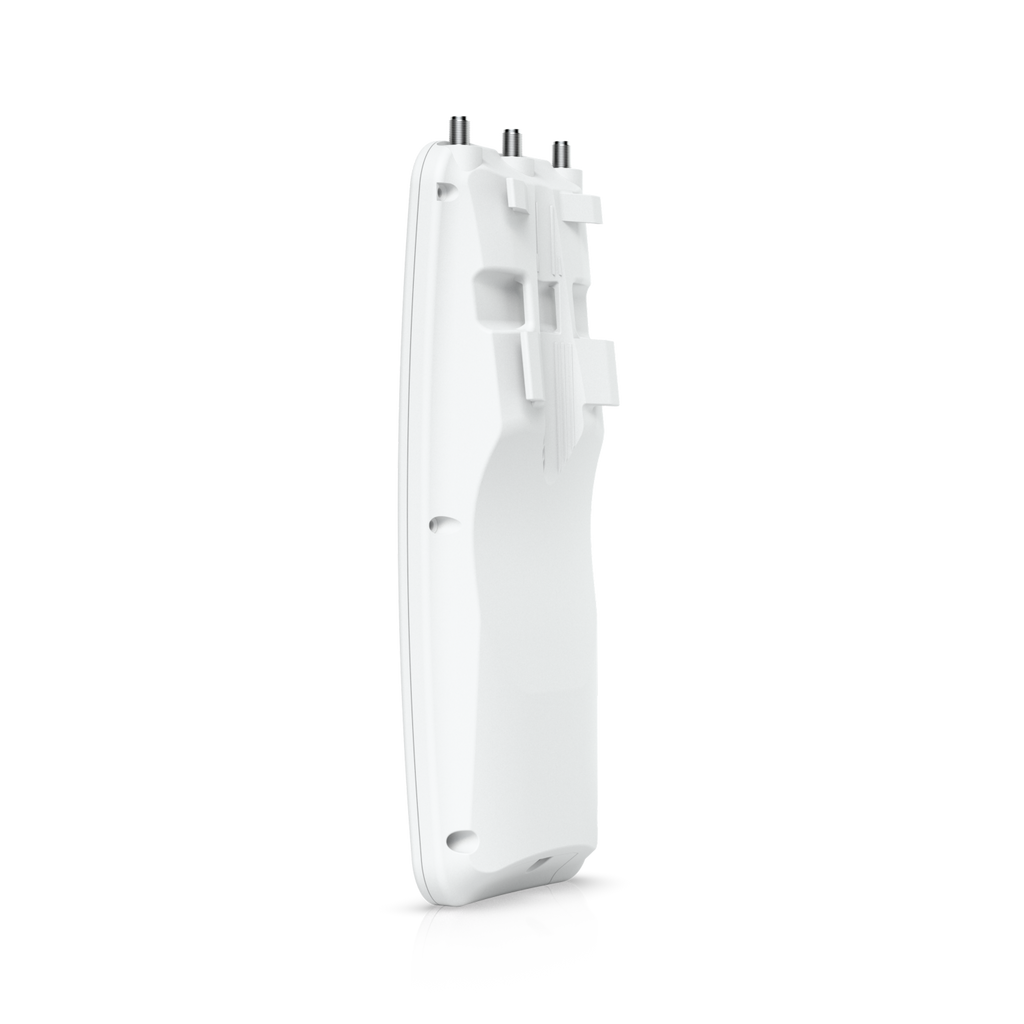

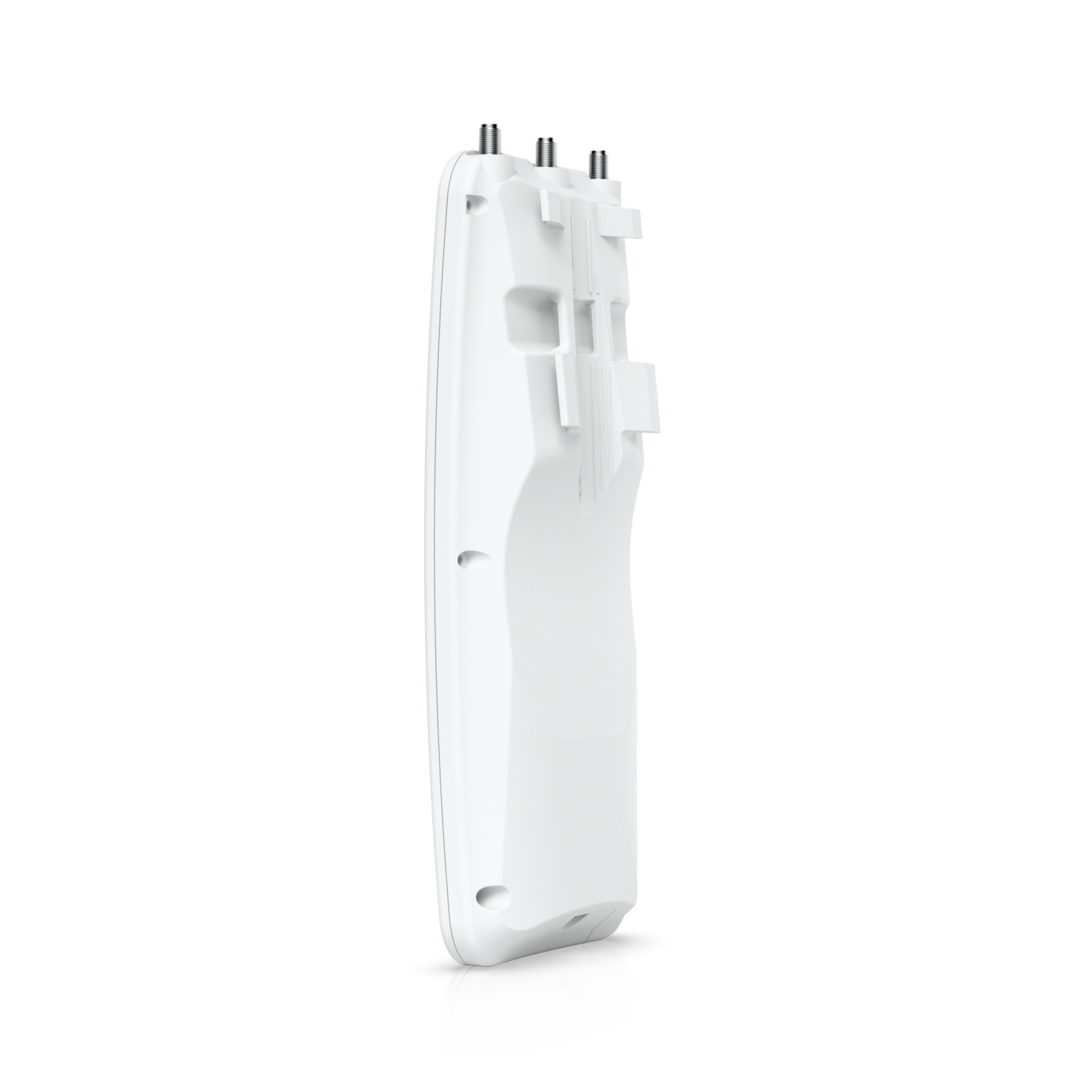

| Mounting | Pole mount kit (included) |
| Wind Loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Environmental | |
| Operating Temperature | −40 to 80°C (−40 to 176°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Software & Features | |
| Operating Modes | Access Point, Station |
| Services | Web server, SNMP, SSH, Telnet, DHCP, NAT, Bridging, Routing, Ping watchdog |
| Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, speed test |
| Security | WPA2 AES only |
| QoS | WMM + user-defined priority levels |
| Ubiquiti Features | airMAX ac mode, airPrism filtering, Ackless mode, frequency band offset, traffic shaping with burst support |
| LEDs | (4) Signal strength (custom RSSI mapping) GPS, LAN, Power |
| Compliance | |
| Certifications | CE, FCC, IC, RoHS |
| NDAA Compliant | ✓ |
