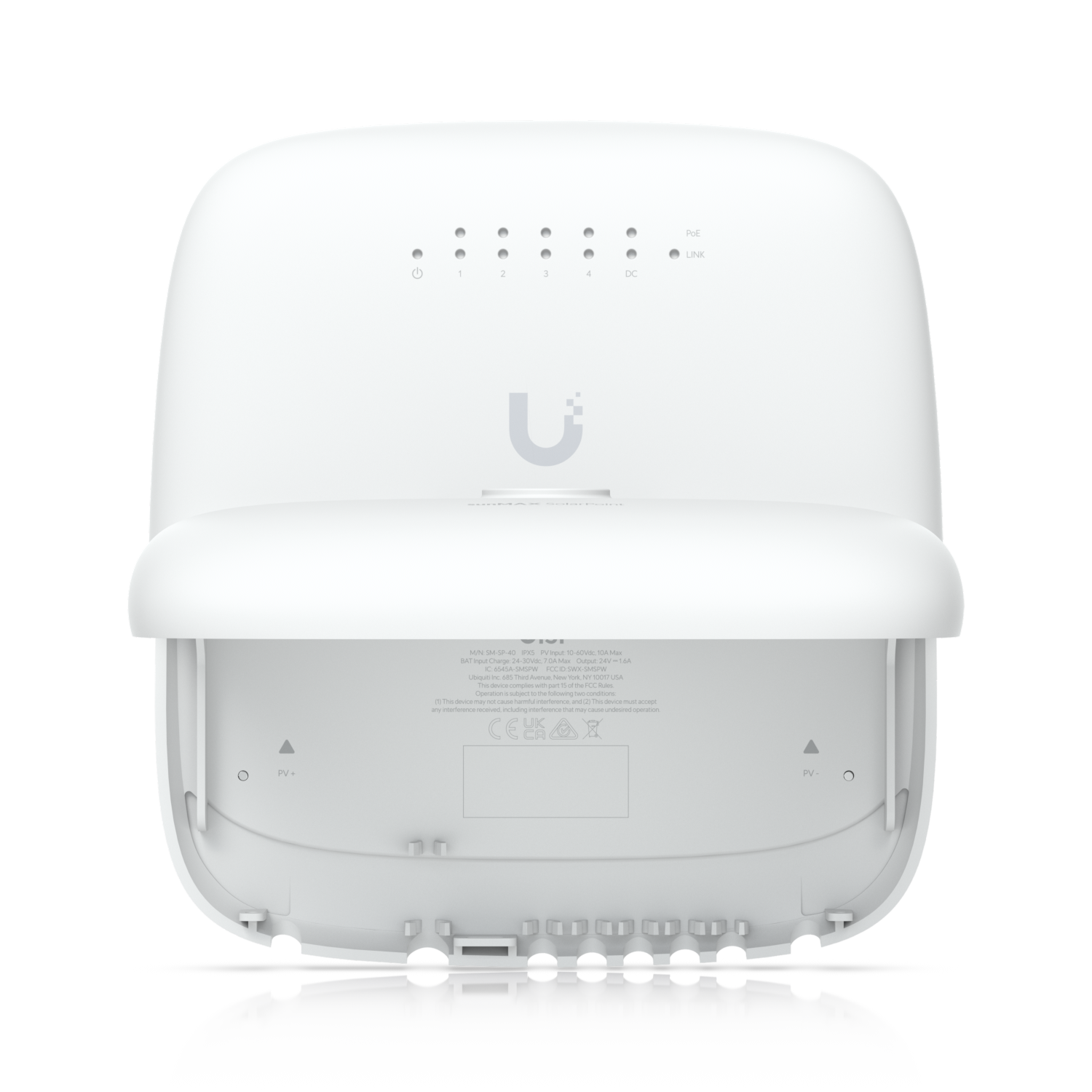

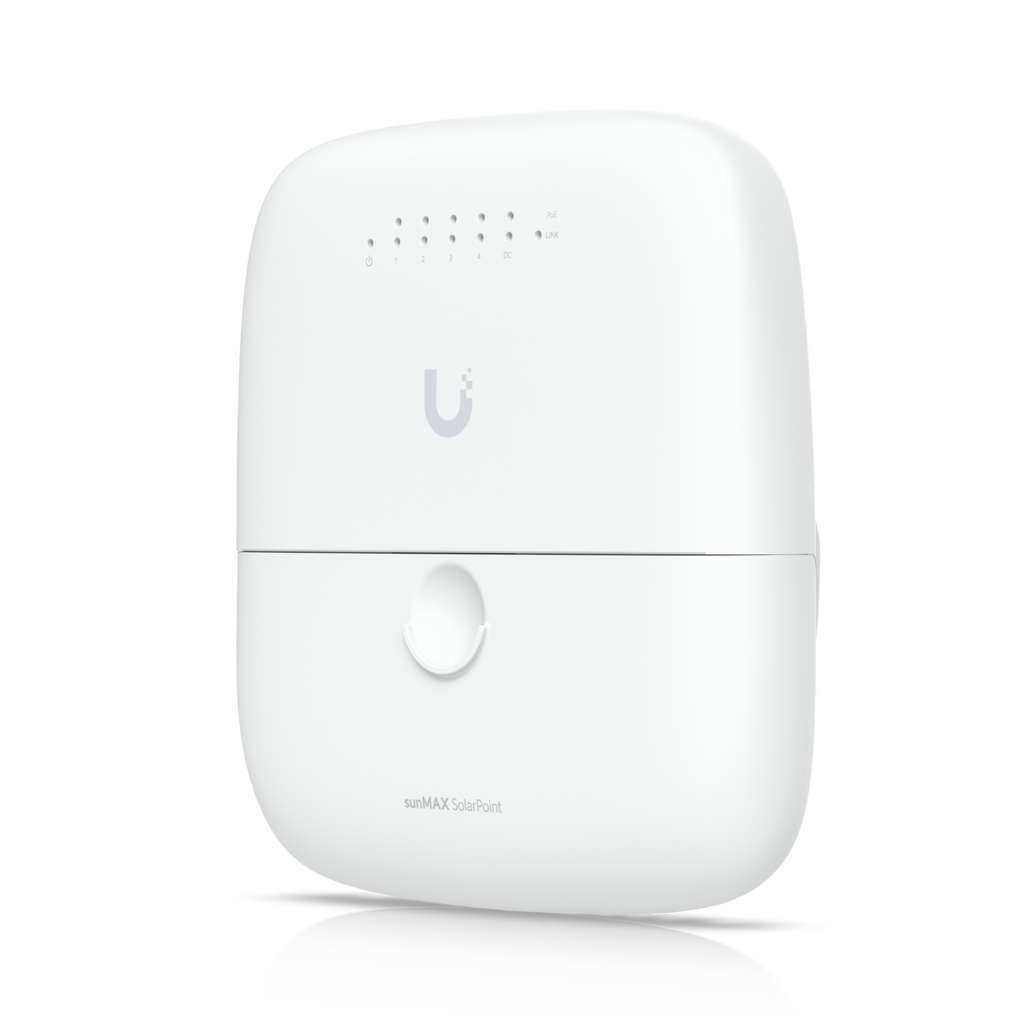

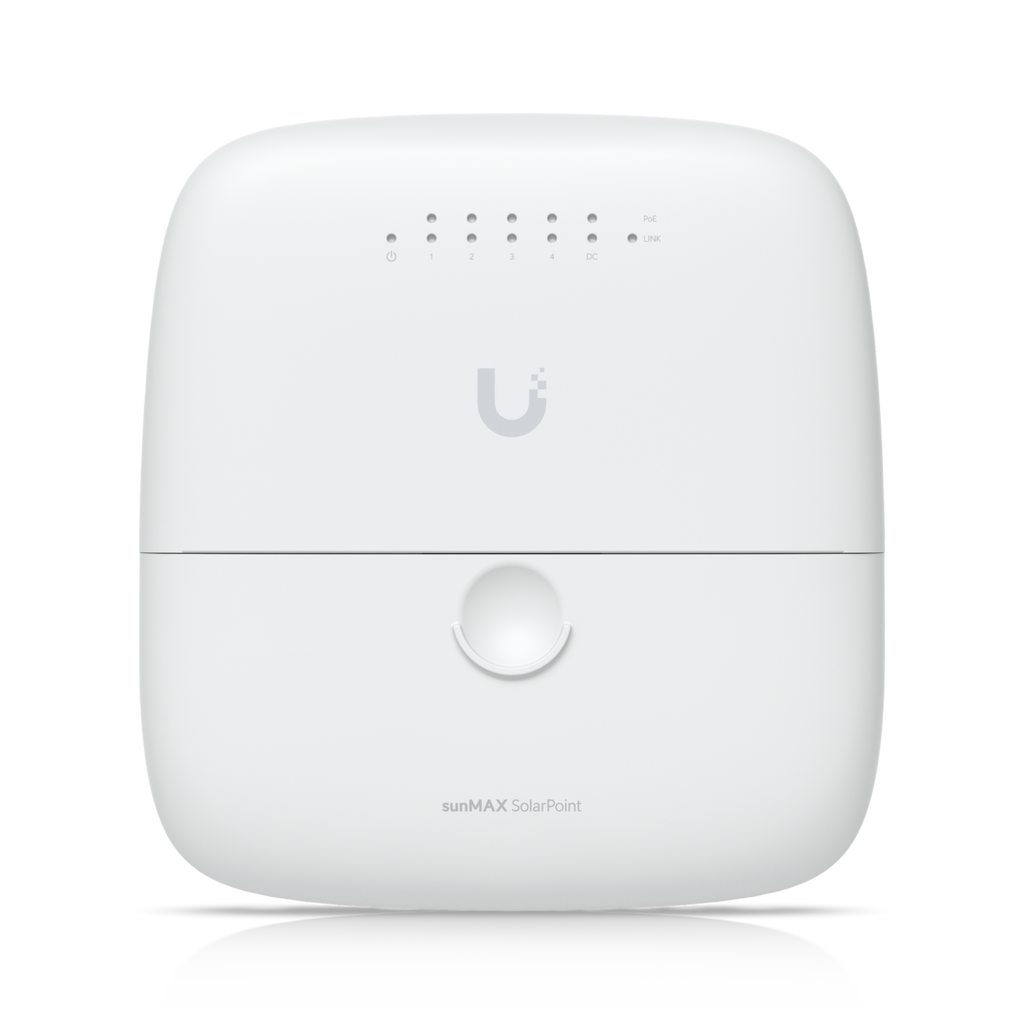

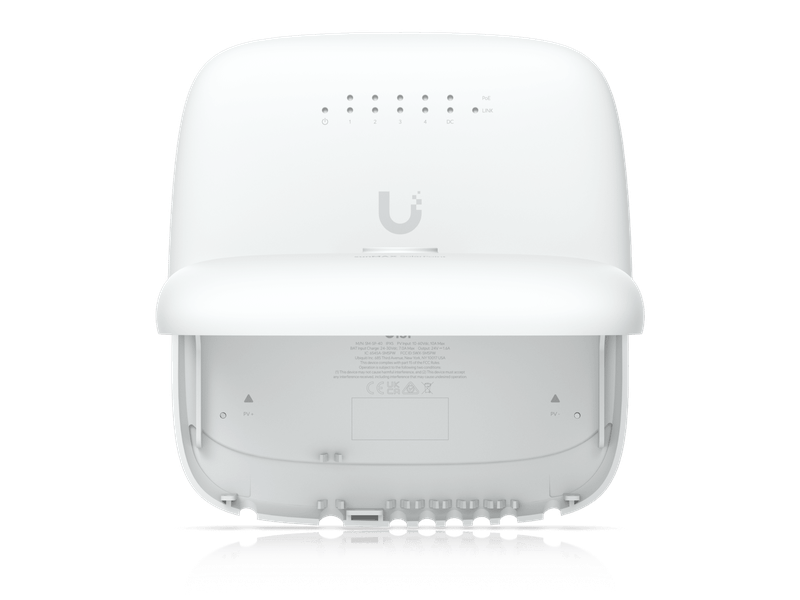

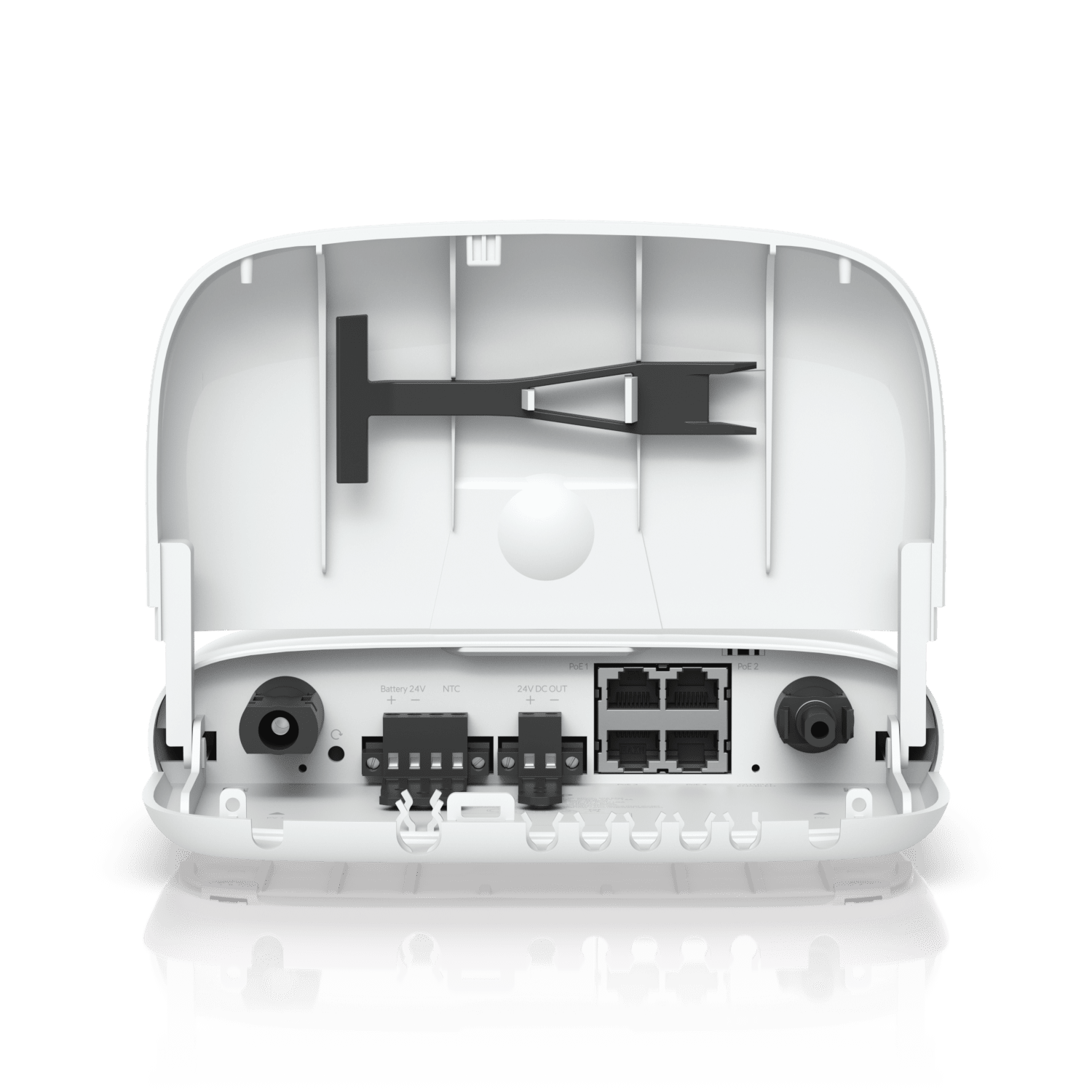

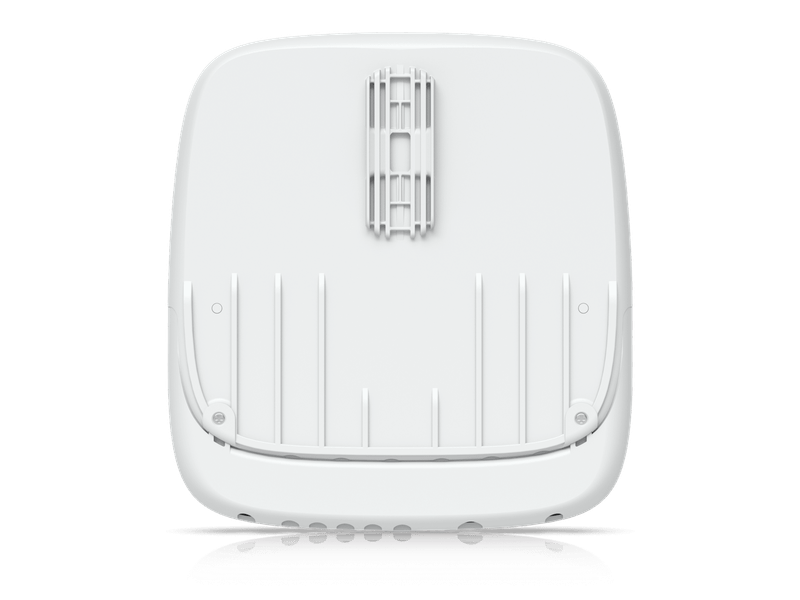

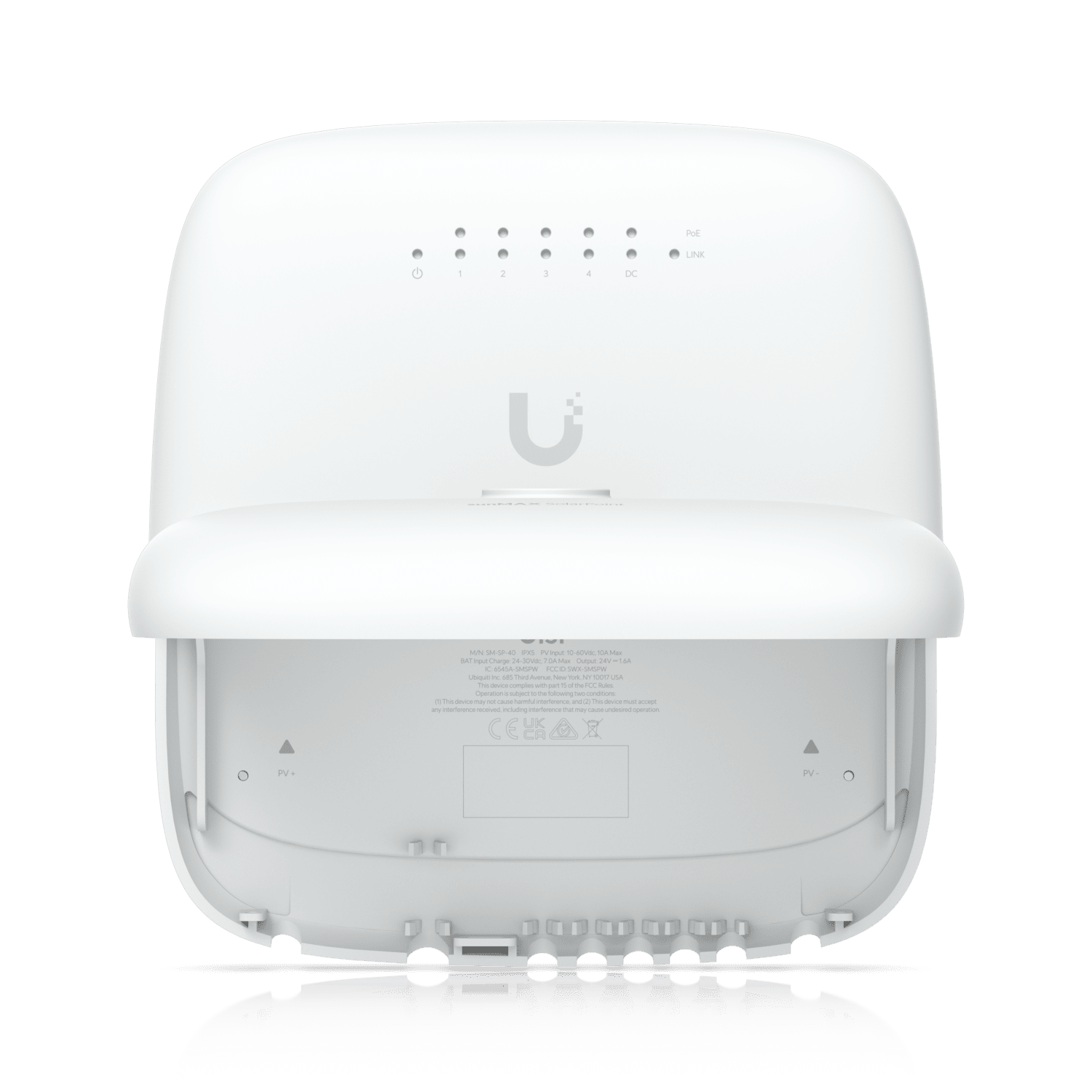

sunMAX SolarPoint
SM-SP-40
Remotely managed MPPT 24V 7A solar site charging appliance.
sunMAX SolarPoint
SM-SP-40
Remotely managed MPPT 24V 7A solar site charging appliance.
| SM-SP-40 Specifications | |
|---|---|
| Product Type | Remotely Managed MPPT Solar Charge Controller |
| Application | 24V 7A solar site charging with integrated PoE switching |
| Max Output Power | 40W |
| Mechanical | |
| Dimensions | 202 × 190 × 50 mm (8 × 7.5 × 2") |
| Weight | 650 g (1.4 lb) |
| Enclosure Material | UV-stabilized polycarbonate |

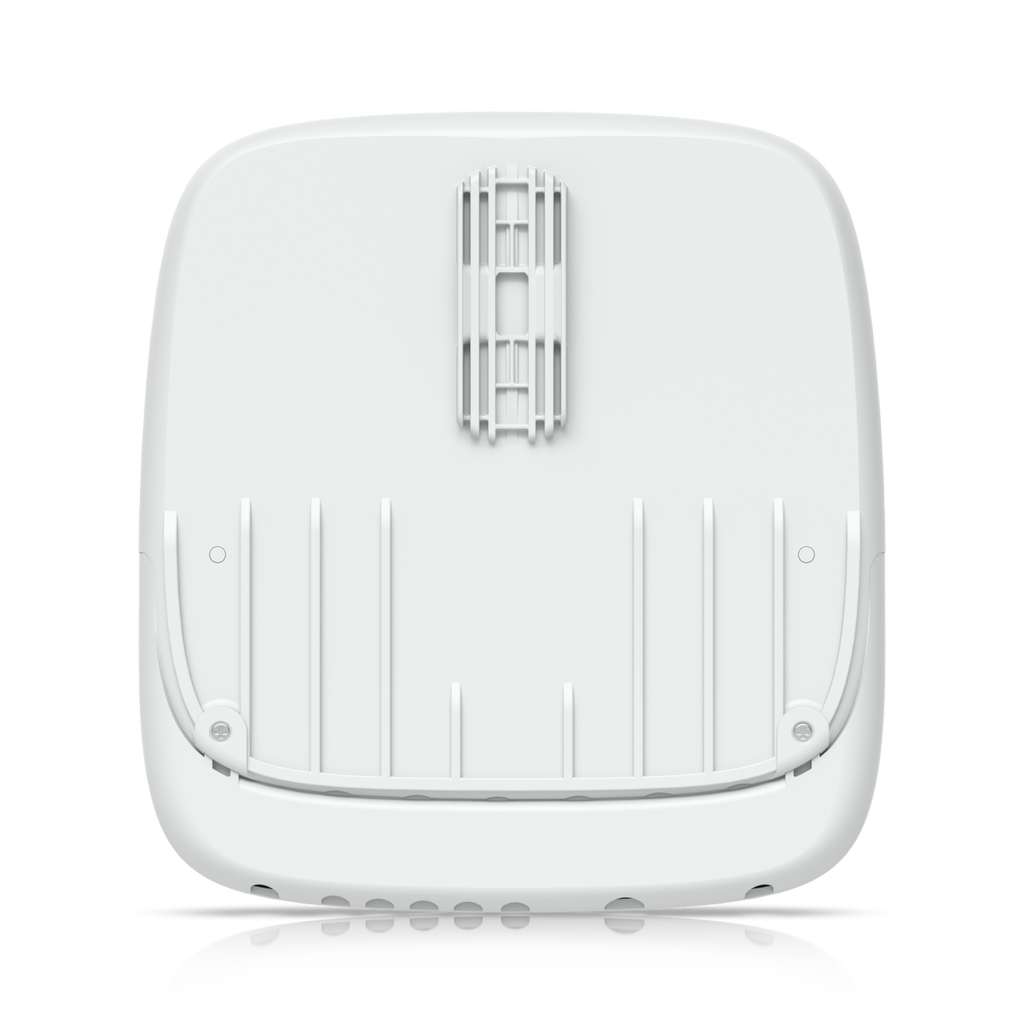

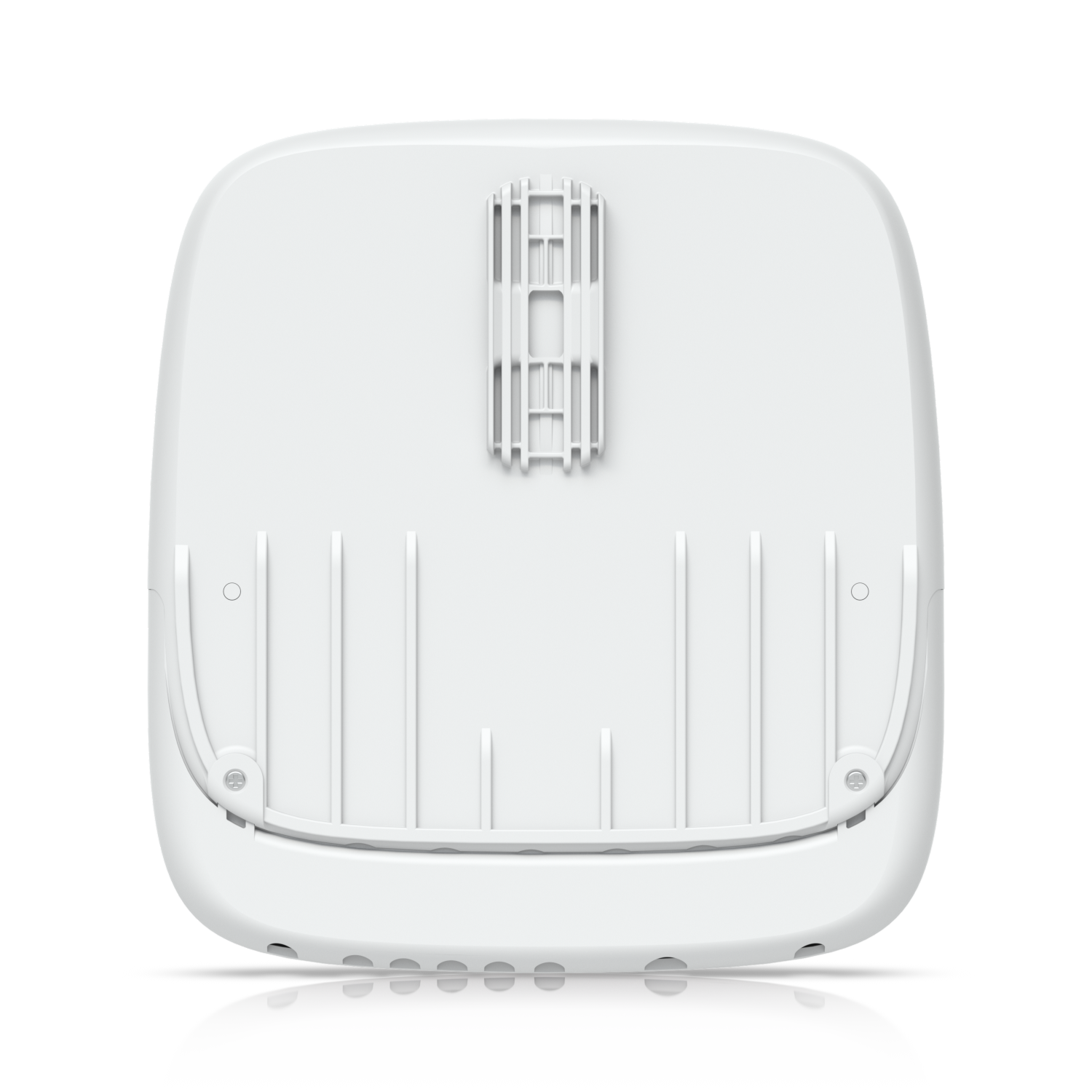

| Mounting | Pole mount (35–60 mm outer diameter) |
| Weatherproofing | IPX4 |

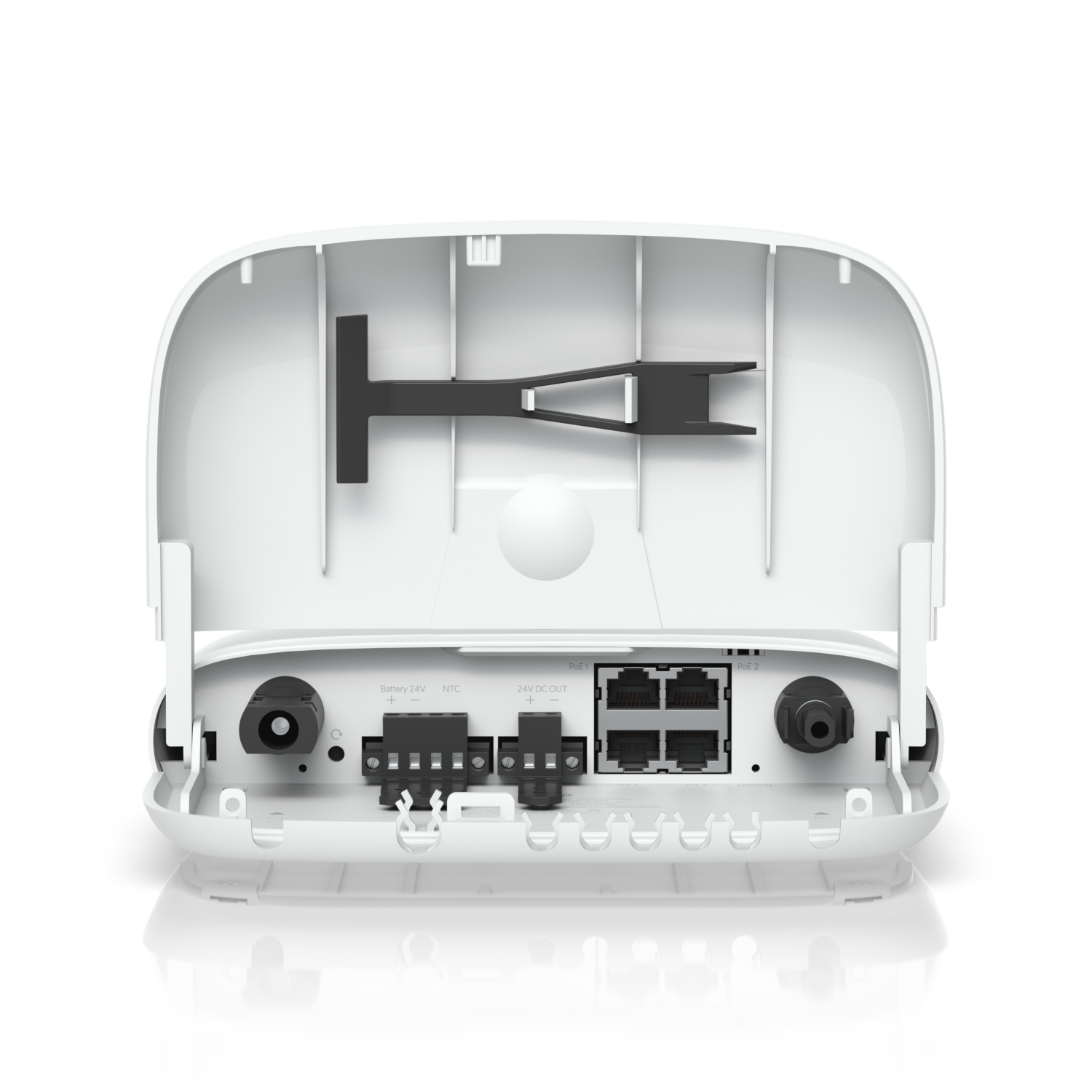

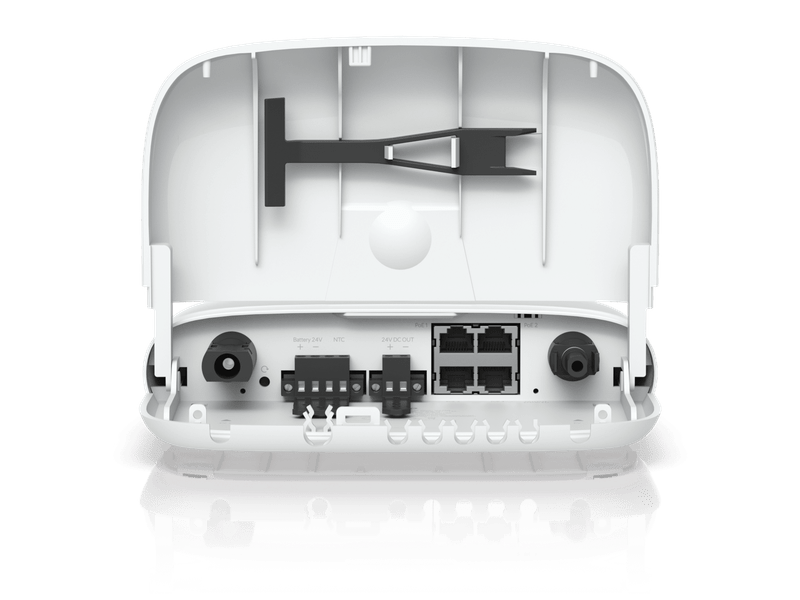

| Interfaces | |
| Networking | (4) 10/100 Mbps Ethernet ports |
| Management | Ethernet and WiFi |
| Power Input | PV panel via H4 connectors |
| Button | Factory reset |
| LED Indicators | System status, output status |
| Electrical | |
| Max Power Consumption | 2W |
| Supported Voltage Range | 10–60V DC |
| Max Open Circuit Voltage | 60V |
| Protection Features | Reverse polarity and surge protection |
| Environmental | |
| Operating Temperature | −20 to 50°C (−4 to 122°F) |
| Software & Features | |
| Operating Mode | Access Point |
| Security | WPA2-AES |
| Services | UISP integration, SNMP, NTP client, Timezone sync, weather prediction service |
| Tools | Discovery, ping, traceroute via UISP app |
| App Requirements | UISP v2.0.0 or later |
| Compliance | |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
