Ubiquiti USW Enterprise XG 24 Port Managed Switch

UbiquitiSKU: USW-EnterpriseXG-24

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$2,450.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

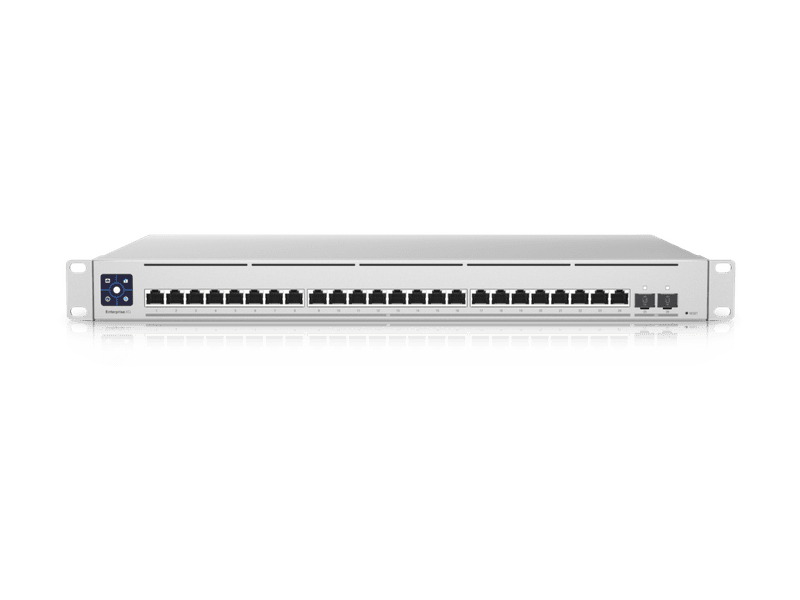

Ubiquiti USW Enterprise XG 24 Port Managed Switch

EnterpriseXG 24


24x10GbE Ports/2x 25G SFP28 Ports For Uplinks/Managed Layer 3 Switch



The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.



Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the Smart Power Redundant Power System (USP RPS sold separately). This switch can be monitored or conjured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.


- (24) 10 GbE ports
- (2) 25G SFP28 ports
- DC power backup-ready
- Layer 3 switching

Specifications

Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (9.9 lb)
With mounting brackets: 4.6 kg (11 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) 1/2.5/5/10 GbE ports
(2) 25G SFP28 ports*
*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
Total non-blocking throughput 290 Gbps
Switching capacity 580 Gbps
Forwarding rate 431.52 Mpps
Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
Services SMB Layer 3 GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet Link/activity
Application Requirements
UniFi Network Version 6.1.67 and later
