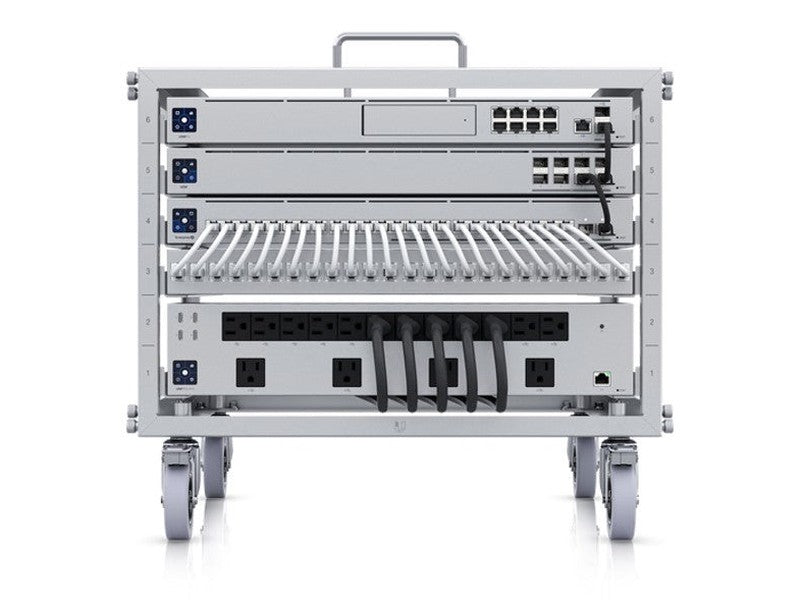

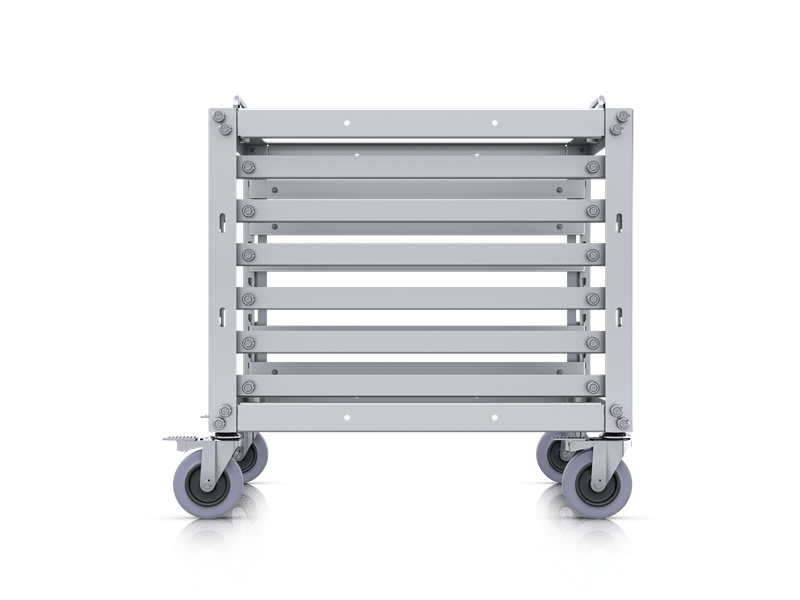

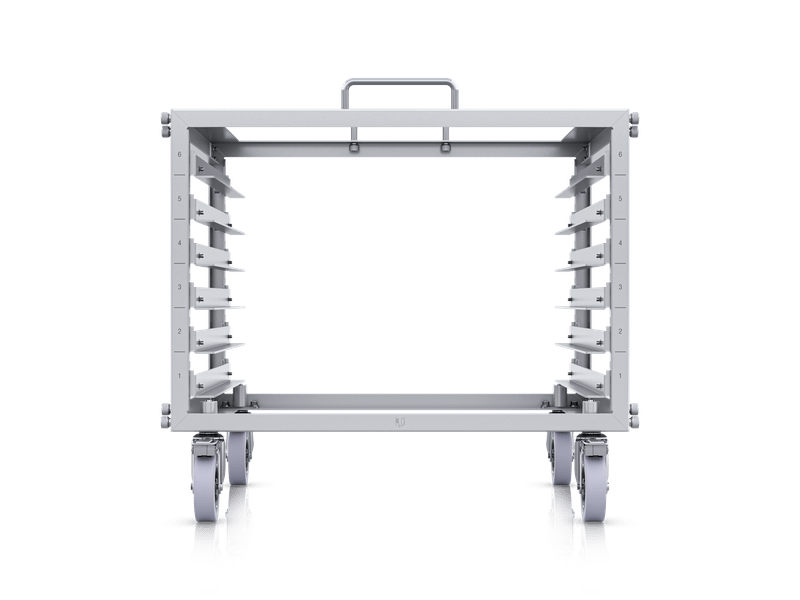

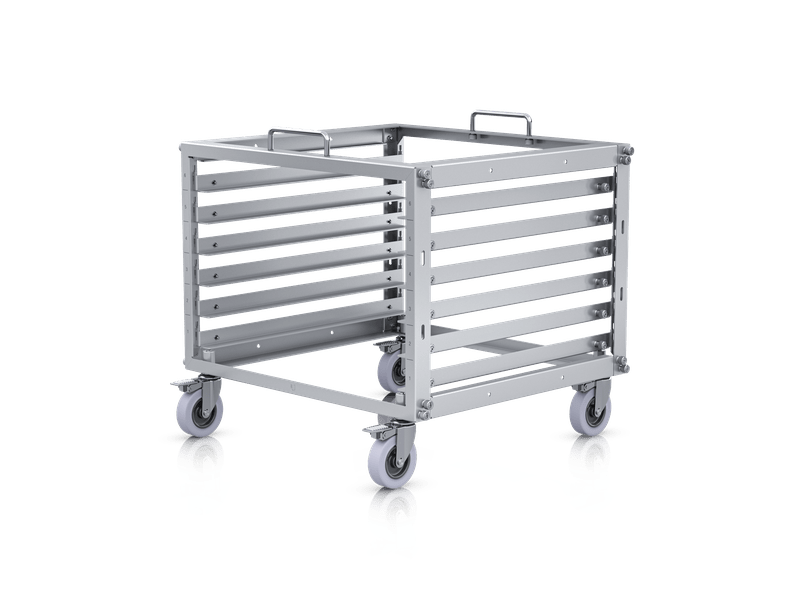

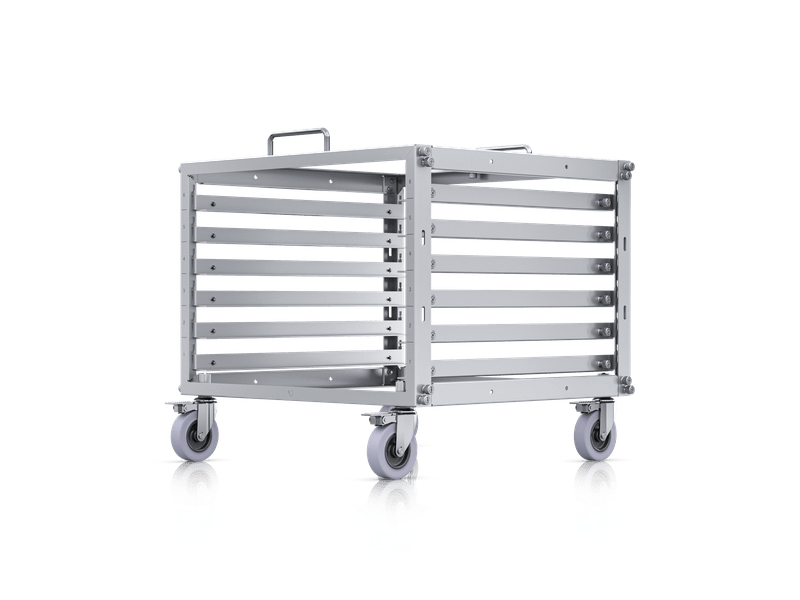

Toolless Mini Rack
U-Rack-6U-TL
Compact, stackable, and toolless 6U open-frame rack designed for UniFi rack-mount devices.*
6U-sized device rack
Combine two Mini Racks into a 12U rack with a Stacking Kit
Toolless assembly and device mounting
Lockable casters
*Check the technical specification for device compatibility.
Toolless Mini Rack
U-Rack-6U-TL
Compact, stackable, and toolless 6U open-frame rack designed for UniFi rack-mount devices.*
6U-sized device rack
Combine two Mini Racks into a 12U rack with a Stacking Kit
Toolless assembly and device mounting
Lockable casters
*Check the technical specification for device compatibility.
| U-Rack-6U-TL Specifications | |
|---|---|
| Product Type | Toolless Mini Rack (6U) |
| Rack Type | Open frame |
| U Height | 6U |
| Patch Panel | 24-port blank panel (included) |
| Assembly | Toolless design |
| Casters | Lockable |
| Dimensions (with handle & caster) | 519 × 460 × 485 mm (20.43 × 18.11 × 19.09") |
| Dimensions (without handle & caster) | 519 × 460 × 351 mm (20.43 × 18.11 × 13.82") |
| Weight | 10.27 kg (22.7 lb) |
| Frame Material | Cold rolled carbon steel (SPCC) |
| Handle Material | Stainless steel |
| Surface Treatment | Liquid coating |
| Max. Static Load (Single Rack) | 80 kg (176 lb) |
| Max. Rolling Load (Single Rack) | 45 kg (99 lb) |
| Max. Static Load (Stacked) | 70 kg (154 lb) |
| Max. Rolling Load (Stacked) | 35 kg (77 lb) |
| Incompatible Devices | UniFi Switch Gen1 (US-24-250W, US-24-500W, US-48-500W, US-48-750W) USG, USG-Pro-4, EdgeSwitch ES series, EdgeRouter ER-8 CKG2-RM, ER-RMKIT UACC-Pro-Max-16-RM |
| NDAA Compliant | ✓ |
