U6 Mesh Pro
U6-Mesh-Pro
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
U6 Mesh Pro
U6-Mesh-Pro
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
U6-Mesh-Pro Specifications | |
---|---|
Product Type | Indoor/Outdoor WiFi 6 Access Point |
WiFi Standard | 802.11a/b/g/n/ac/ax (WiFi 6) |
Spatial Streams | 4 |
Coverage Area | 185 m² (2,000 ft²) |
Max. Client Count | 350+ |
Mounting Options | Wall, Pole (mounts included) |
Weatherproofing | IPX6 |
MIMO | 2×2 DL/UL MU-MIMO (2.4 GHz & 5 GHz) |
Max. Data Rate | 5 GHz: 2.4 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
Antenna Gain | 5 GHz: 8 dBi 2.4 GHz: 8 dBi |
Max. TX Power | 5 GHz: 27 dBm 2.4 GHz: 22 dBm |
Max. BSSIDs | 8 per radio |

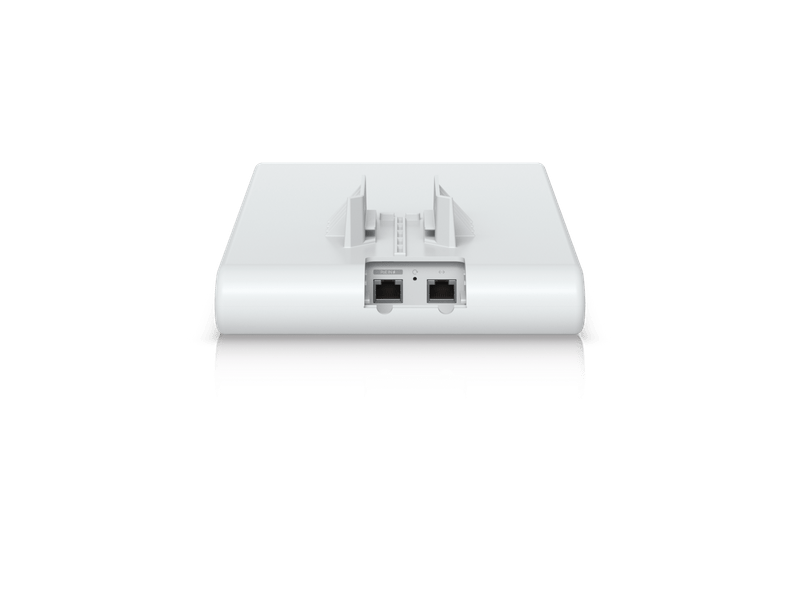

Interfaces | (2) GbE RJ45 ports |
Power Method | PoE (adapter included) |
Supported Voltage Range | 42.5–57V DC |
Max. Power Consumption | 9W |
Dimensions | 343.2 × 181.2 × 60.2 mm (13.5 × 7.1 × 2.4") |
Weight | 819 g (1.8 lb) |
Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
Enclosure Material | UV-stabilized polycarbonate |
Mount Material | Aluminum alloy, steel |
Operating Temperature | -30 to 60° C (-22 to 140° F) |
Operating Humidity | 5 to 95% noncondensing |
Management | Ethernet, WiFi |
Application Requirement | UniFi Network v8.1.127+ |
Wireless Features | Wireless Meshing, Band Steering, Fast Roaming (802.11r), BSS Transition (802.11v), RRM (802.11k) Guest Network Isolation, PPSK, Captive Portal, Passpoint, VLAN, RADIUS over TLS |
Certifications | CE, FCC, IC, Anatel |
NDAA Compliant | ✓ |
