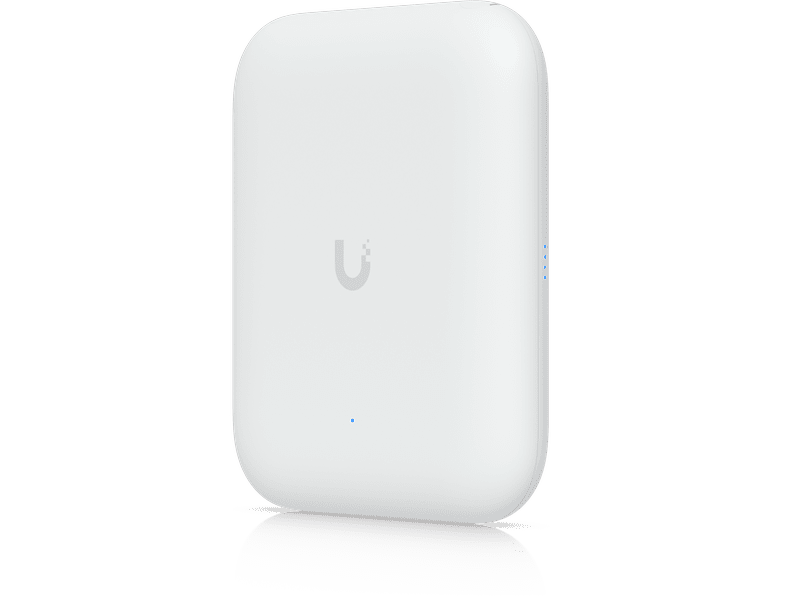

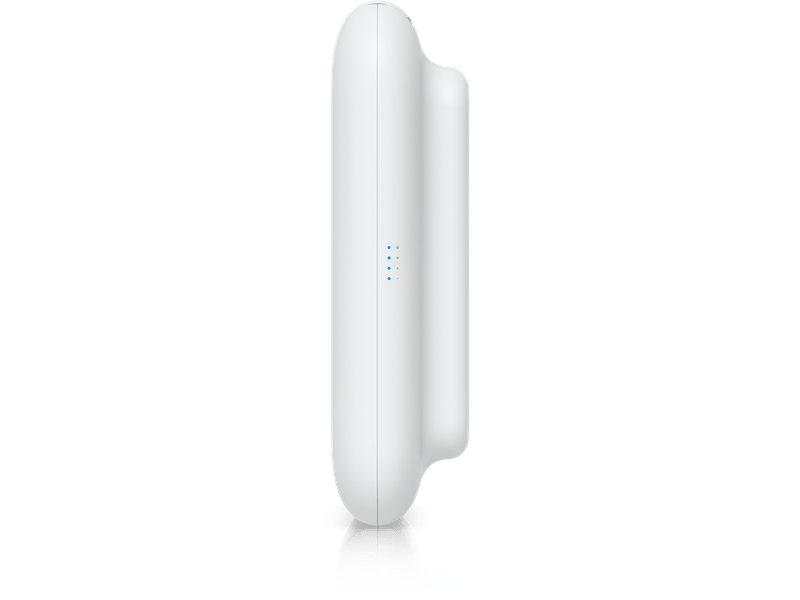

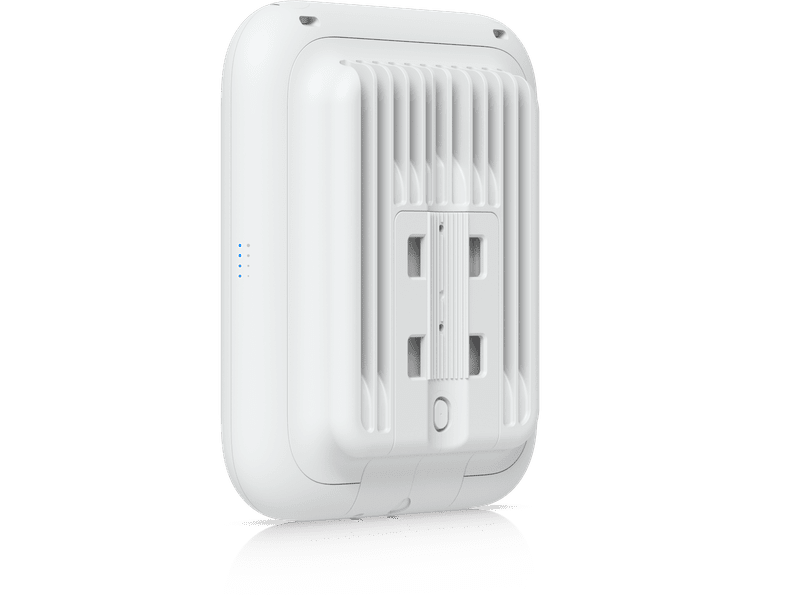

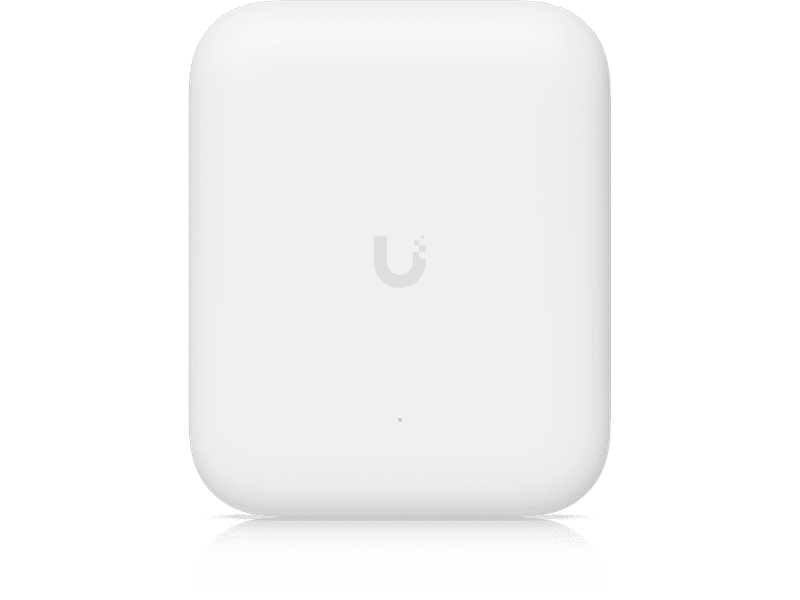

U7 Outdoor
U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
U7 Outdoor
U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
| U7-Outdoor Specifications | |
|---|---|
| Dimensions | 170 × 208 × 54.5 mm (6.7 × 8.2 × 2.1") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| Mounting Options | Wall, pole (mounts included) |
| Pole Mount Diameter | 25–60 mm (1–2.36") |
| Weatherproofing | IPX6 |
| Wind Loading | 74.6 N @ 200 km/h (16.8 lbf @ 125 mph) |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max Client Count | 250+ |
| MIMO | 2.4 GHz: 2×2 DL/UL MU-MIMO 5 GHz: 2×2 DL/UL MU-MIMO |
| Max Data Rate | 2.4 GHz: 688 Mbps (BW40) 5 GHz: 4.3 Gbps (BW240) |
| Antenna Gain | 2.4 GHz: Internal 8 dBi / External 3 dBi 5 GHz: Internal 12.5 dBi / External 4 dBi |
| Antenna Beamwidth | 2.4 GHz: 90° 5 GHz: 45° |
| Antennas | (1) Internal directional antenna (2) External omni antennas (2) RP-SMA connectors |
| Max TX Power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Supported Data Rates | WiFi 7: 7.3 Mbps–4.3 Gbps WiFi 6: 7.3 Mbps–2.4 Gbps WiFi 5: 6.5 Mbps–1.7 Gbps WiFi 4: 6.5 Mbps–300 Mbps |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Max Power Consumption | 19W |
| Wireless Features | Wireless Meshing, Band Steering, Fast Roaming (802.11r), BSS Transition (802.11v), RRM (802.11k), Passpoint (Hotspot 2.0) |
| Guest & Security Features | Captive Portal, PPSK, VLAN, WPA3, RADIUS over TLS (RadSec), Guest Isolation, Voucher & Payment Authentication |
| LED Indicators | Power, System, Mesh Signal |
| Button | Factory-reset |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Application Requirements | UniFi Network Version 8.2.93 or later |
