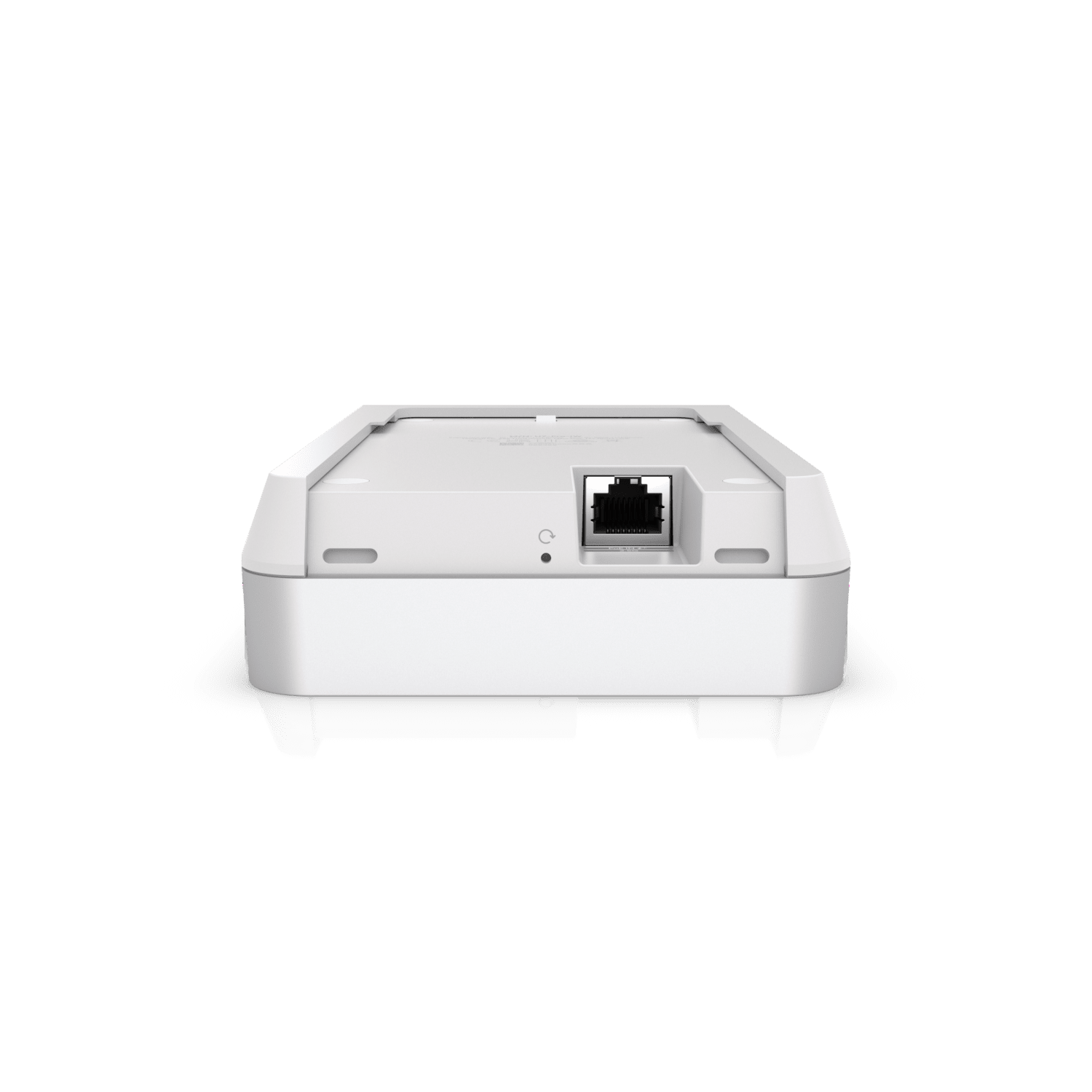

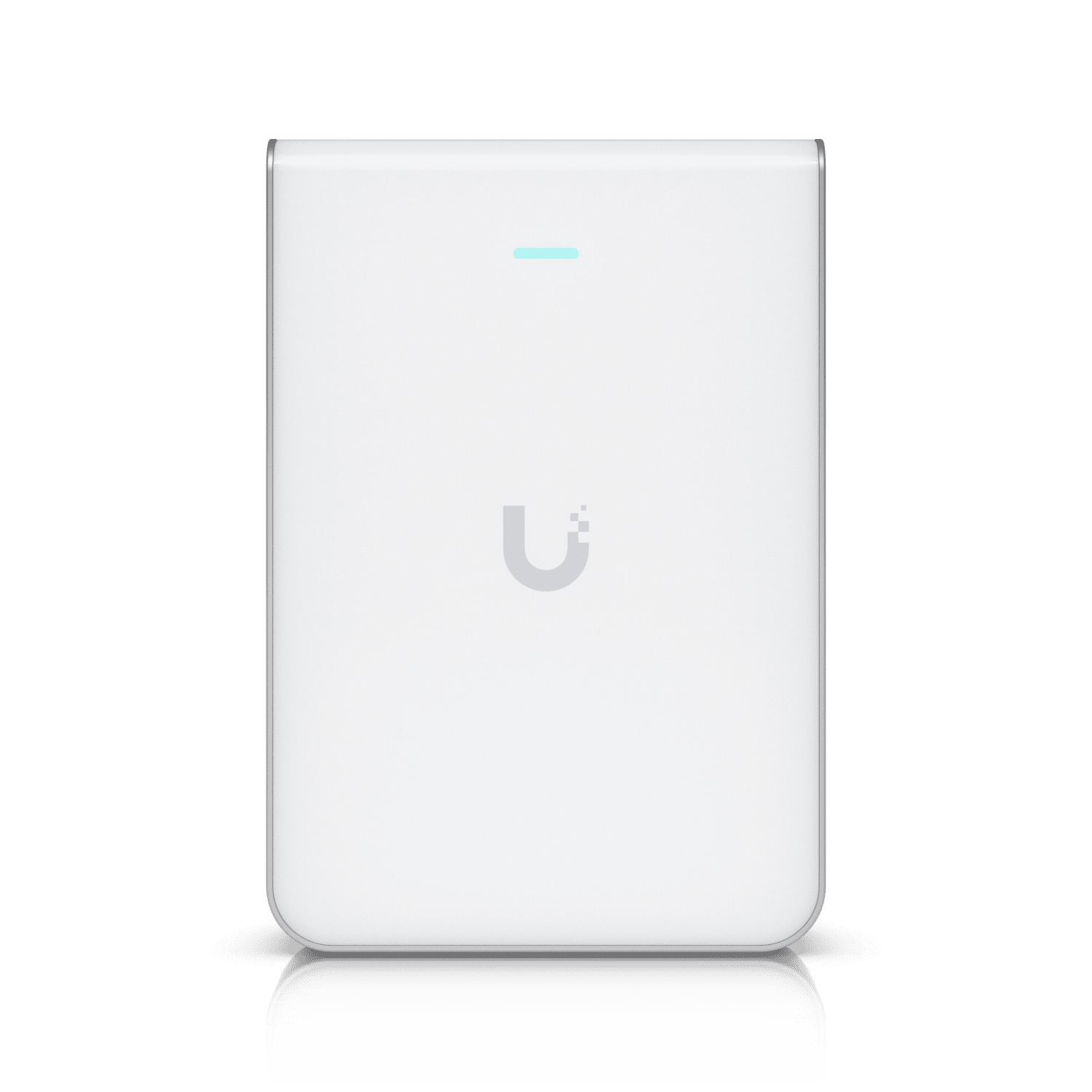

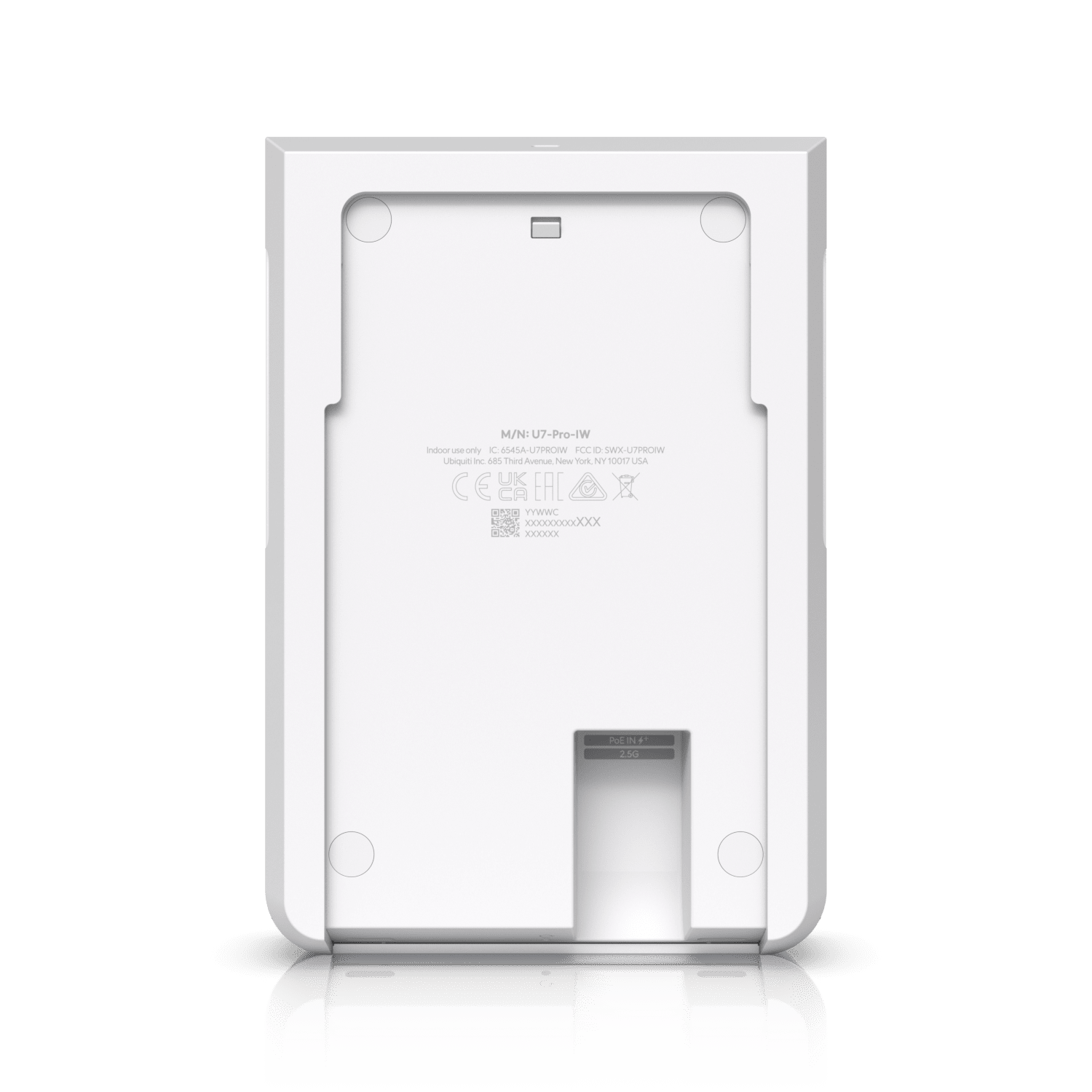

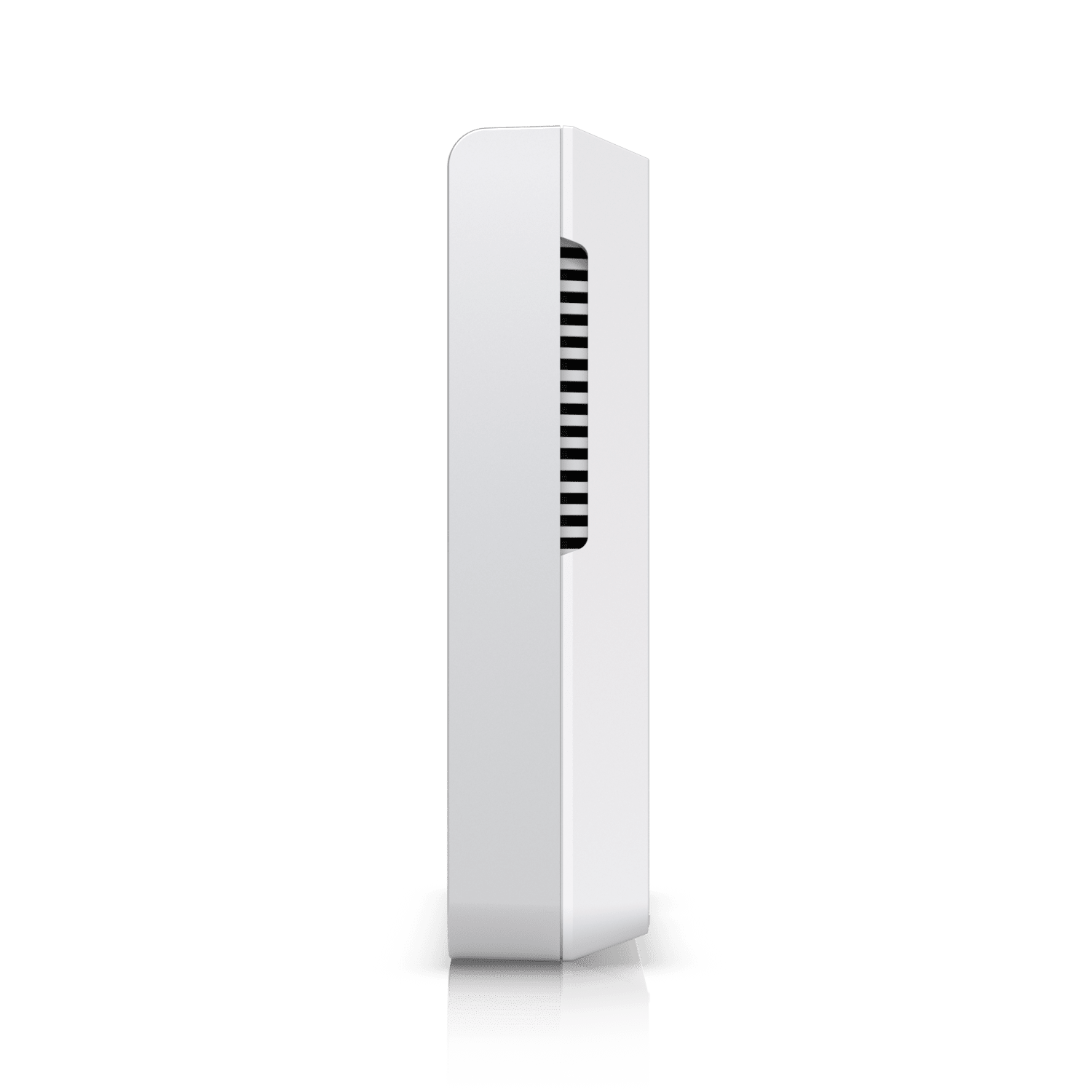

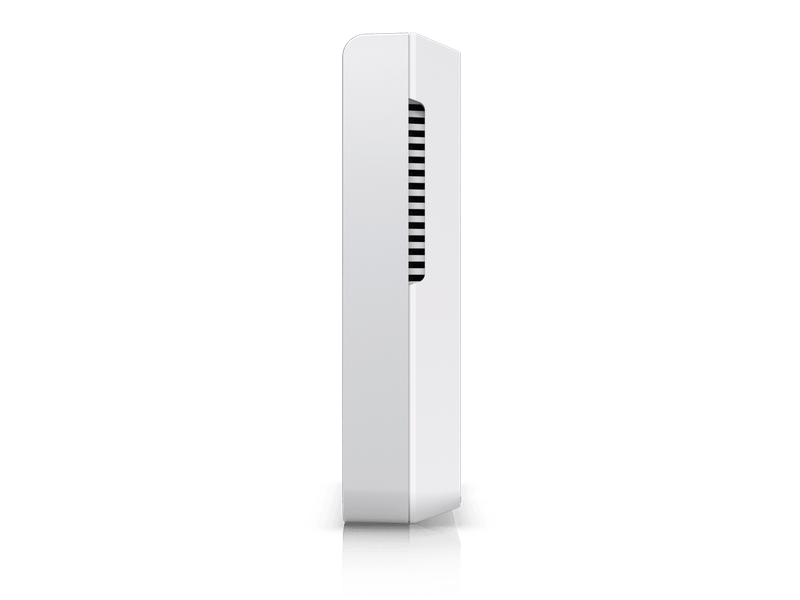

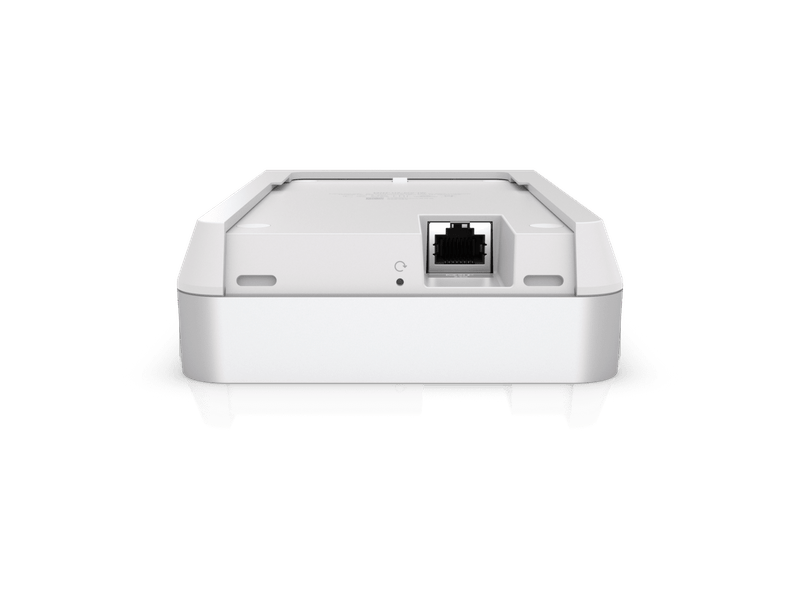

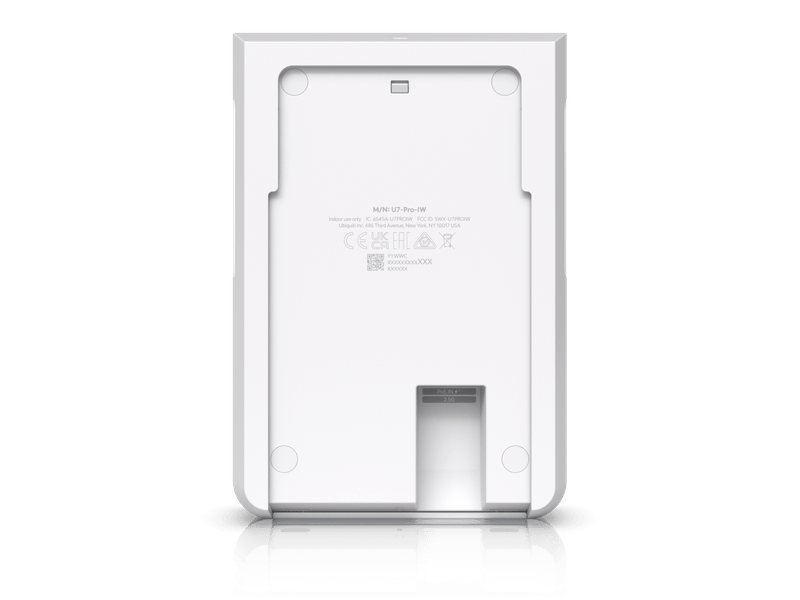

U7 Pro Wall
U7-Pro-Wall
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
U7 Pro Wall
U7-Pro-Wall
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
U7-Pro-Wall Specifications | |
---|---|
Dimensions | 150 × 103 × 36 mm (5.9 × 4.1 × 1.4") |
WiFi Standard | WiFi 7 (802.11be) |
Spatial Streams | 6 |
Coverage Area | 140 m² (1,500 ft²) |
Max. Client Count | 300+ |
Uplink | 2.5 GbE |
Mounting | Wall (Mount Included) |
Power Method | PoE+ |
MIMO | 6 GHz: 2×2 DL/UL MU-MIMO 5 GHz: 2×2 DL/UL MU-MIMO 2.4 GHz: 2×2 DL/UL MU-MIMO |
Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
Antenna Gain | 6 GHz: 6 dBi 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
Max. TX Power | 6 GHz: 23 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
Max. BSSIDs | 8 per Radio |
Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps – 5.8 Gbps (MCS0–13, NSS1/2, EHT 20–320 MHz) 802.11ax (WiFi 6/6E): 7.3 Mbps – 2.4 Gbps (MCS0–11, NSS1/2, HE 20–160 MHz) 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps (MCS0–9, NSS1/2, VHT 20–160 MHz) 802.11n: 6.5 Mbps – 300 Mbps (MCS0–15, HT 20/40 MHz) |
Wireless Features | Wireless Meshing, Band Steering, 802.11v BSS Transition, 802.11r Fast Roaming, 802.11k RRM Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Portal with Custom Branding Voucher & Payment Authentication, External Portal Server, Password Authentication Guest Network Isolation, PPSK, WiFi Speed Limiting, Client Isolation, WiFi Schedules RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
Max. Power Consumption | 22W |
Supported Voltage Range | 44–57V DC |
Networking Interface | (1) 1/2.5 GbE RJ45 port |
Weight | 580 g (1.3 lb) |
Management | Ethernet |
Enclosure Material | Polycarbonate, aluminum |
Mount Material | Aluminum |
LEDs | System: White / Blue |
Channel Bandwidth | HT, VHT, HE, EHT 20–320 MHz |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Anatel |
Frequency (US/CA) | 2400–2472 MHz U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz U-NII-5 to U-NII-8: 5925–7125 MHz |
Frequency (Worldwide) | 2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
Operating Temperature | -30 to 60°C (-22 to 140°F) |
Operating Humidity | 5 to 95% noncondensing |
Application Requirements | UniFi Network v8.1.113 and later |
