Description
Overview

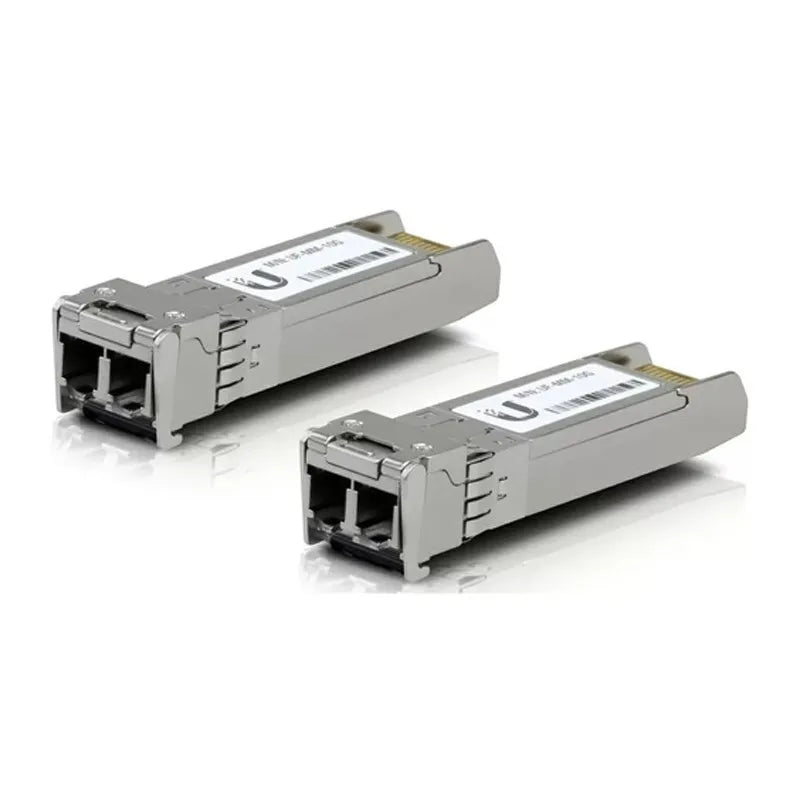

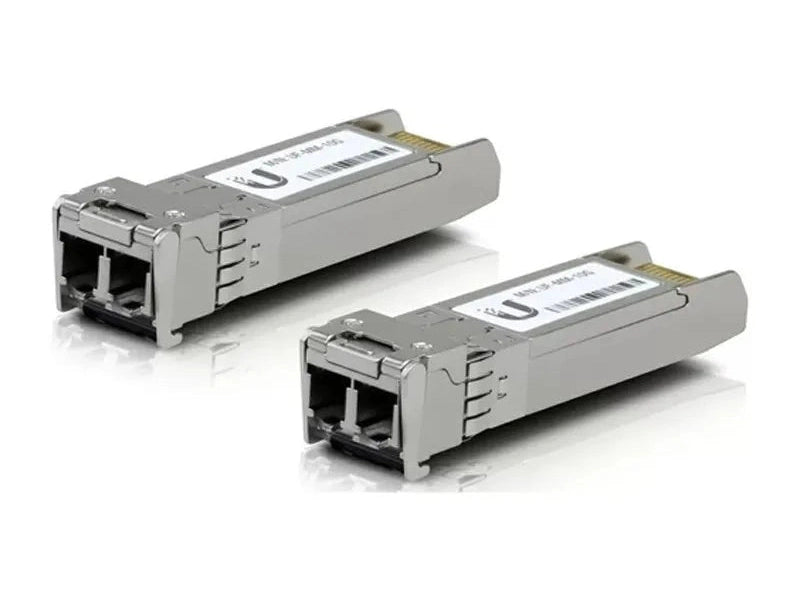

10G Multi-Mode Optical Module
UACC-OM-MM-10G-D-2
SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 300 m*
*Fiber cable is not included.
10G Multi-Mode Optical Module
UACC-OM-MM-10G-D-2
SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 300 m*
*Fiber cable is not included.
UACC-OM-MM-10G-D-2 Specifications | |
---|---|
Product Type | 10G Multi-Mode Optical Transceiver |
Pack Quantity | 2 modules |
Connector Type | Duplex LC UPC |
Supported Media | Multi-Mode Fiber |
Max. Data Rate | 10 Gbps |
Supported Distance | Up to 300 m (984 ft) |
TX Wavelength | 850 nm |
RX Wavelength | 850 nm |
Max. Power Consumption | 0.8W |
Operating Temperature | 0 to 70°C (32 to 158°F) |
Laser Classification | Class 1 Laser Product (IEC/EN 60825-1:2014) |
Installation Warning | Do not look into fiber ends or powered modules |
NDAA Compliant | ✓ |
