Description
Overview

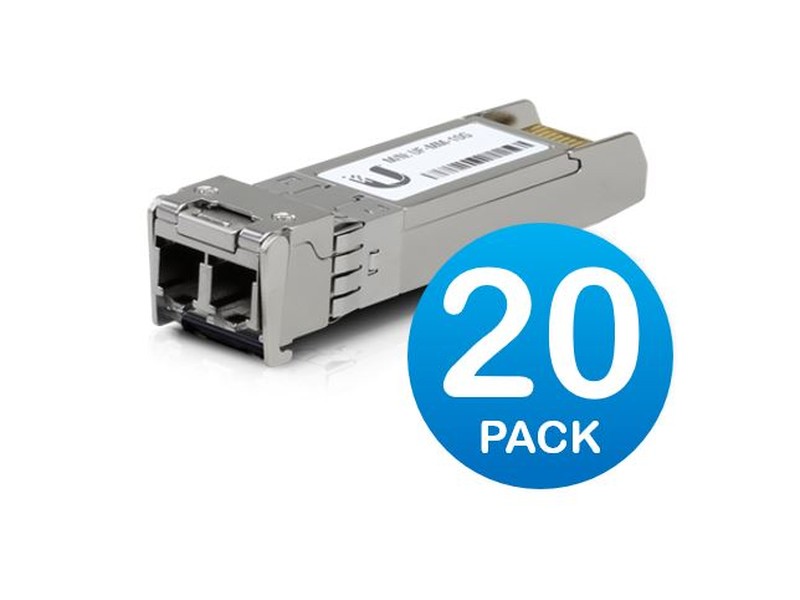

10G Multi-Mode Optical Module
UACC-OM-MM-10G-D-20
SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 300 m*
*Fiber cable is not included.
10G Multi-Mode Optical Module
UACC-OM-MM-10G-D-20
SFP+ transceiver that supports 10G connections up to 300 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 300 m*
*Fiber cable is not included.
| UACC-OM-MM-10G-D-20 Specifications | |
|---|---|
| Product Type | 10G Multi-Mode Optical Module |
| Pack Quantity | 20 units |
| Application | 10G SFP+ fiber uplinks over multi-mode fiber |
| Connector Type | Duplex LC UPC |
| Form Factor | SFP+ |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Media | Multi-mode fiber |
| Max Cable Distance | 300 m (984 ft) |
| Max Power Consumption | 0.8W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Safety | Class 1 Laser Product (IEC/EN 60825-1:2014) |
| NDAA Compliant | ✓ |
