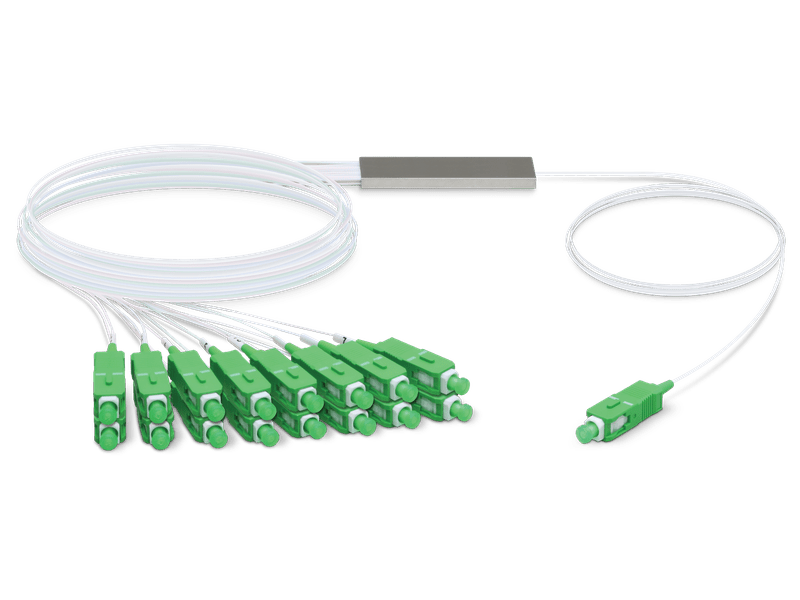

Fiber Splitter
UF-SPLITTER-16
The Fiber splitter carries data from a Fiber OLT’s long-haul cable and shares it with multiple Fiber ONUs.
Fiber Splitter
UF-SPLITTER-16
The Fiber splitter carries data from a Fiber OLT’s long-haul cable and shares it with multiple Fiber ONUs.
| UF-SPLITTER-16 Specifications | |
|---|---|
| Input Connector | (1) SC/APC |
| Output Connectors | (16) SC/APC |
| Fiber Type | G657A1 |
| Wavelength Bandwidth | 1260–1650 nm |
| Insertion Loss (with connectors) | 13.7 dB |
| Uniformity Loss | 1.2 dB |
| Polarization Dependent Loss | 0.3 dB |
| Return Loss (All Ports) | 50 dB |
| Directivity | 55 dB |
| Total Length | 4.06 m (13.32 ft) |
| Weight | 110 g (3.9 oz) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
