Overview

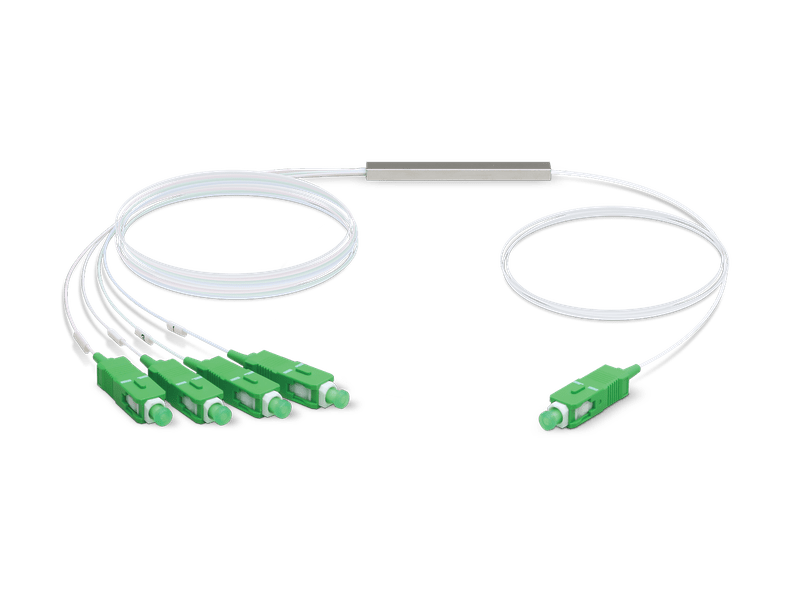

Fiber Splitter
UF-SPLITTER-4
The Fiber splitter carries data from a Fiber OLT’s long-haul cable and shares it with multiple Fiber ONUs.
Fiber Splitter
UF-SPLITTER-4
The Fiber splitter carries data from a Fiber OLT’s long-haul cable and shares it with multiple Fiber ONUs.
| UF-SPLITTER-4 Specifications | |
|---|---|
| Product Type | Passive Optical Network (PON) Splitter |
| Split Ratio | 1:4 |
| Application | Distributes GPON signal from OLT to multiple ONUs |
| Optical Interfaces | |
| Input Port | (1) SC/APC |
| Output Ports | (4) SC/APC |
| Fiber Type | G.657A1 |
| Wavelength Bandwidth | 1260–1650 nm |
| Optical Performance | |
| Insertion Loss (with connectors) | 7.4 dB |
| Uniformity Loss | 0.6 dB |
| Polarization Dependent Loss | 0.3 dB |
| Return Loss (All Ports) | 50 dB |
| Directivity | 55 dB |
| Mechanical | |
| Total Length | 4.06 m (13.32 ft) |
| Weight | 58 g (2.0 oz) |
| Form Factor | Mini-module with steel tube housing |
| Environmental | |
| Operating Temperature | −40 to 85°C (−40 to 185°F) |
| Installation Environment | Indoor/Outdoor |
| Compliance | |
| NDAA Compliant | ✓ |
