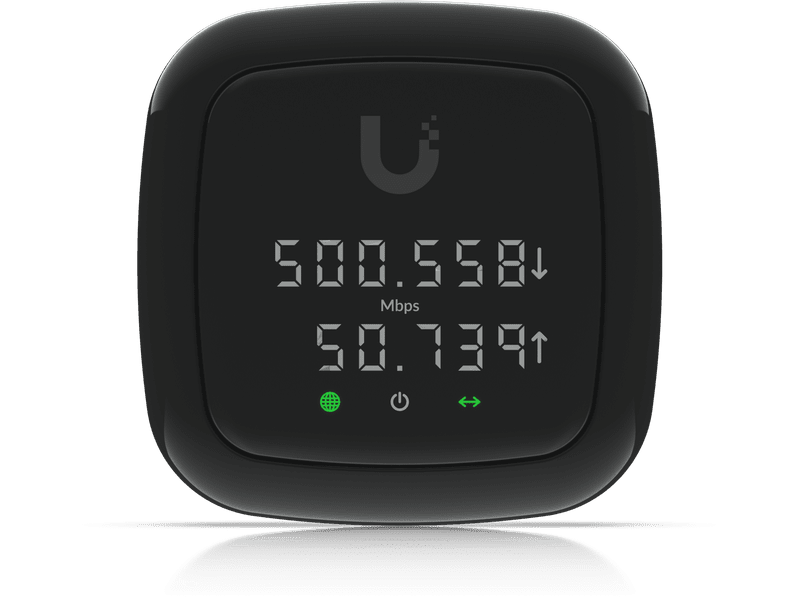

Fiber Nano
UF-Nano

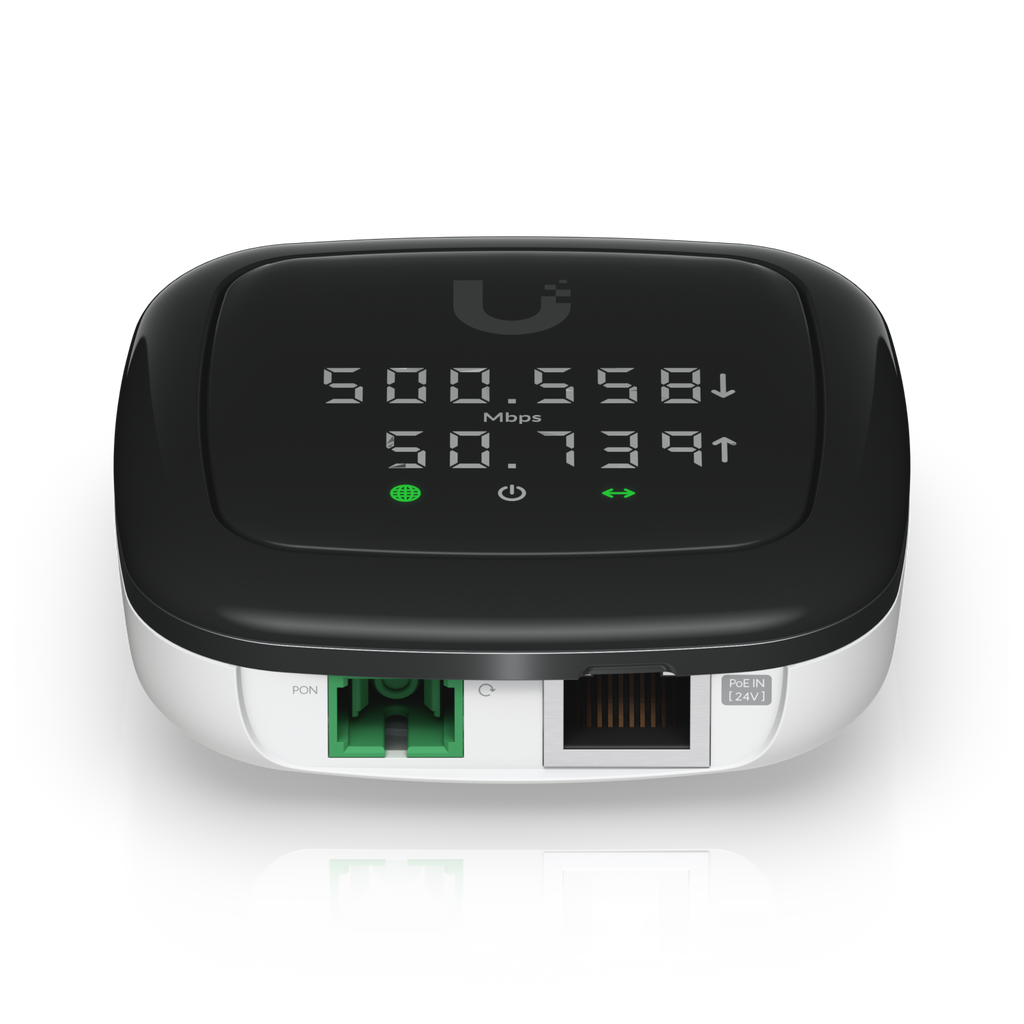

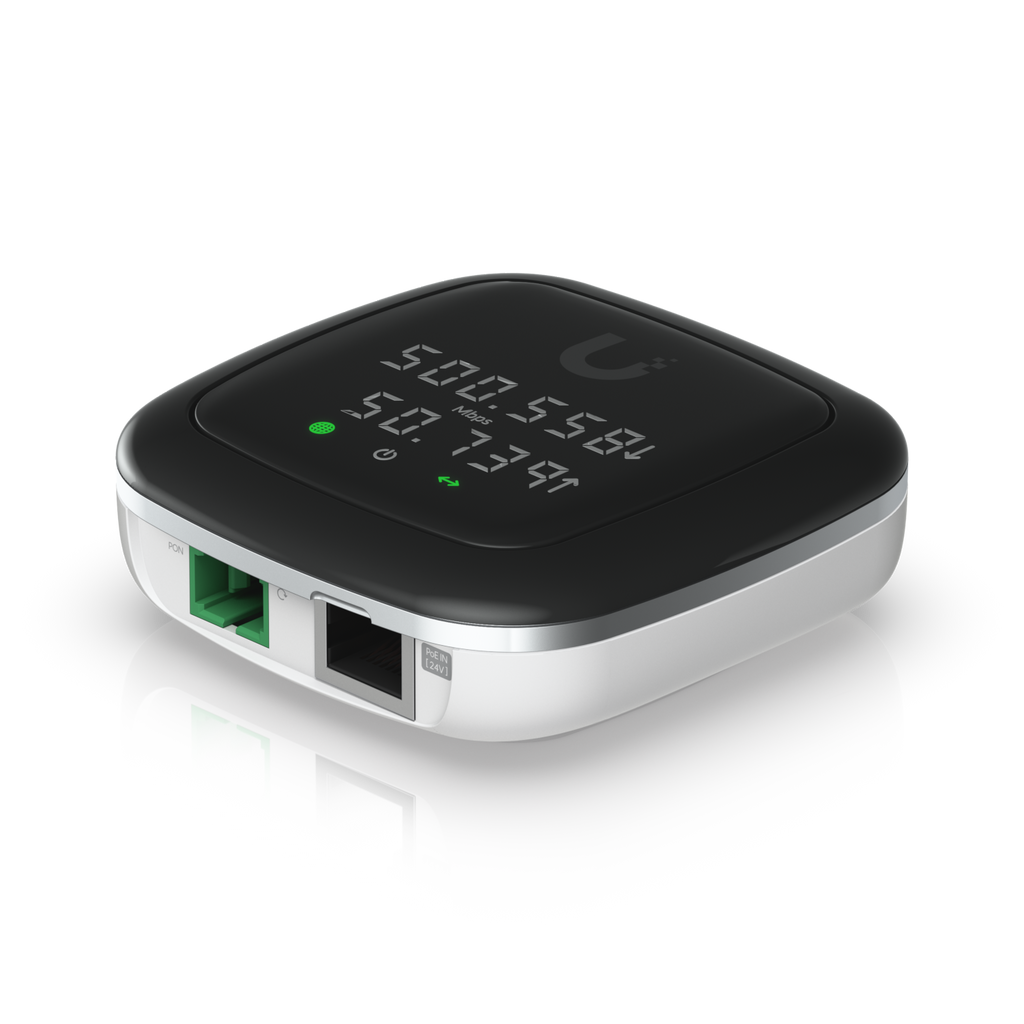

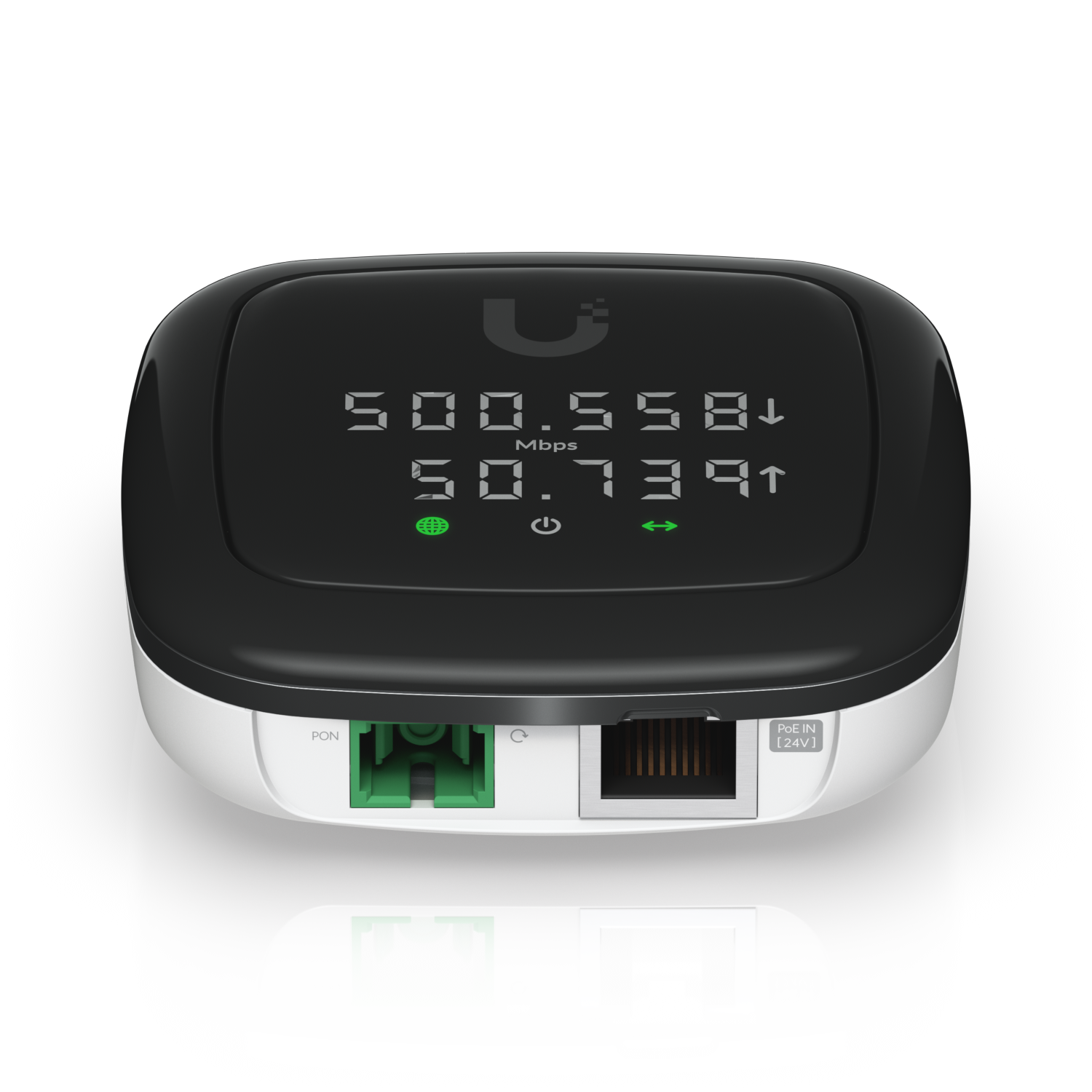

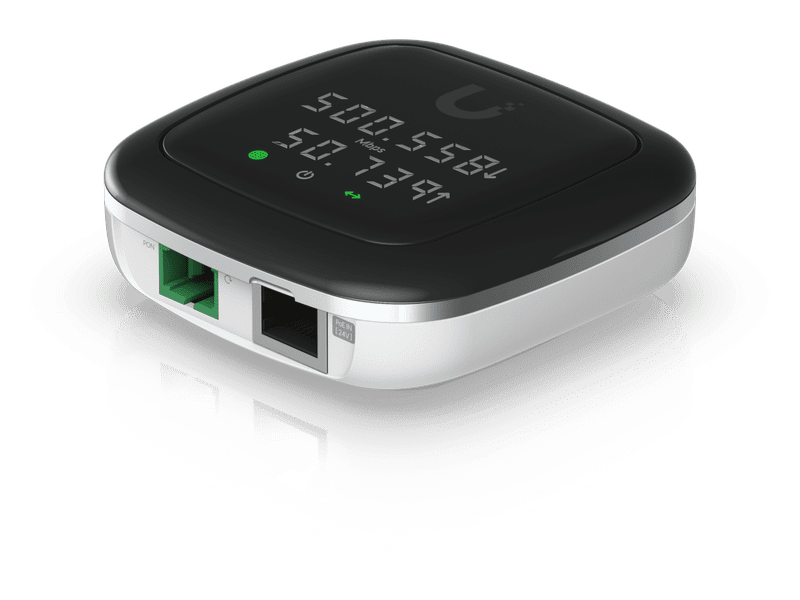

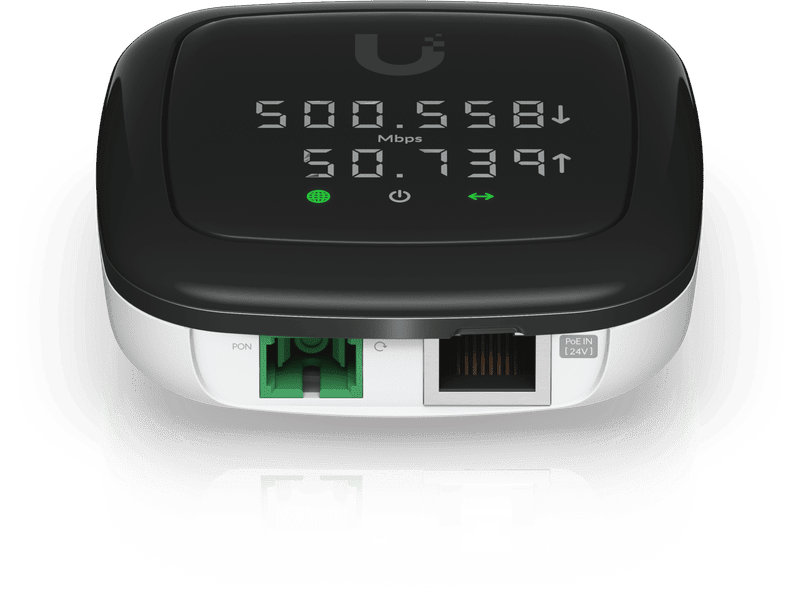

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
Fiber Nano
UF-Nano
GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
| UF-Nano Specifications | |
|---|---|
| Product Type | GPON Customer-Premises Equipment (CPE) |
| Function | Layer 2/3 Ethernet switch with LED display for fiber monitoring |
| Interfaces | |
| GPON WAN Port | (1) SC/APC, ITU-G.984 compliant |
| LAN Port | (1) Gigabit RJ45 Ethernet |
| Management Interface | Ethernet In-Band |
| Button | Factory Reset |
| Optical Performance | |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1490 nm |
| TX Power | 1.5 to 5 dBm |
| RX Sensitivity | −8 to −28 dBm |
| Downstream Rate | 2.488 Gbps |
| Upstream Rate | 1.244 Gbps |
| Physical Reach | Up to 20 km |
| Power | |
| Power Method | 24V Passive PoE (Pins 4,5+; 7,8−) |
| Supported Voltage Range | 20–28V DC |
| Max Power Consumption | 7W |
| Mechanical | |
| Dimensions | 77 × 77 × 28 mm (3 × 3 × 1.1") |
| Weight | 110 g (3.9 oz) |
| Enclosure Material | UV-stabilized polycarbonate (PC110U) |
| Environmental | |
| Operating Temperature | −40 to 55°C (−40 to 131°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Software & Features | |
| Operating Mode | ONU/ONT Layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging/routing, firewall, VLAN support, remote reset/reboot, firmware upgrade, application passthrough |
| Security | GEM Port Encryption |
| Management | UISP Mobile App |
| Display & Indicators | |

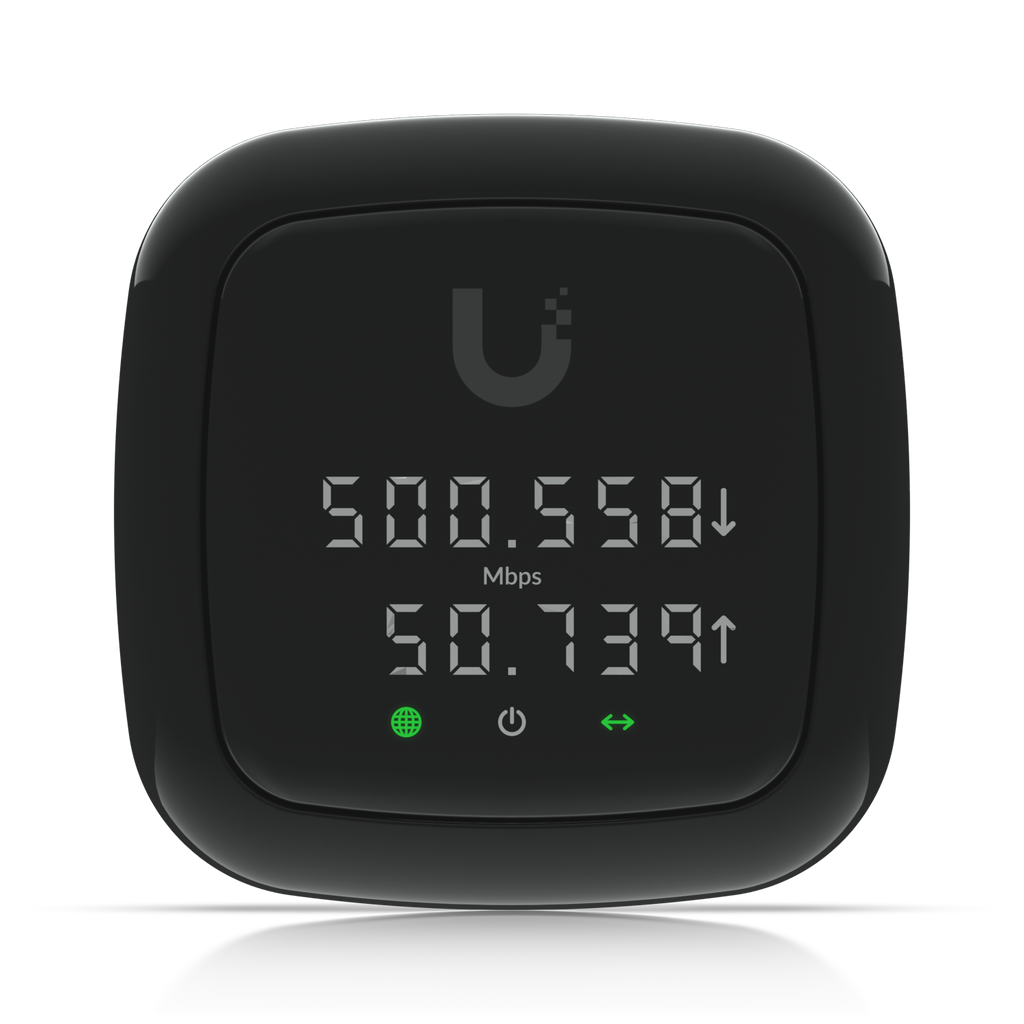

| LED Display | Digital status display for fiber signal and device state |
| Status LEDs | PON: White (link), Blinking (activity), Red (no signal) Ethernet: White (link), Blinking (activity) Power: White (ON) |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
