Description
Overview

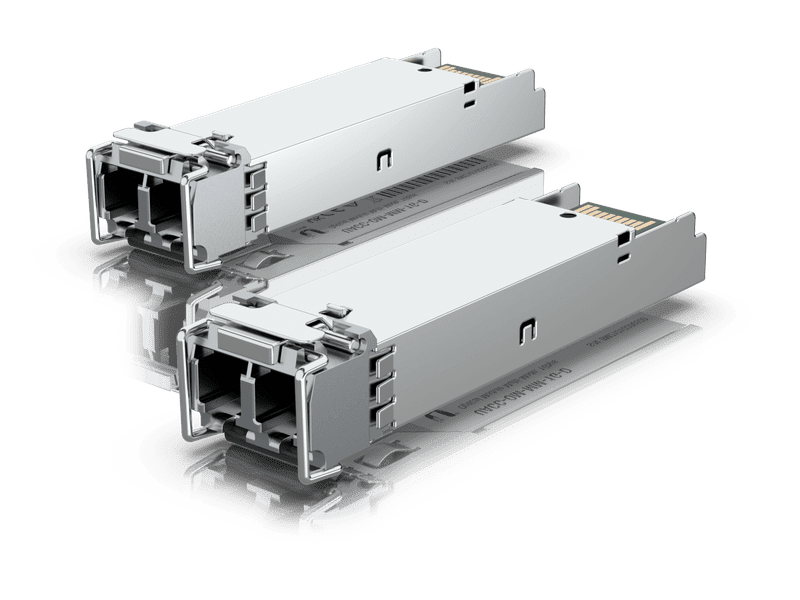

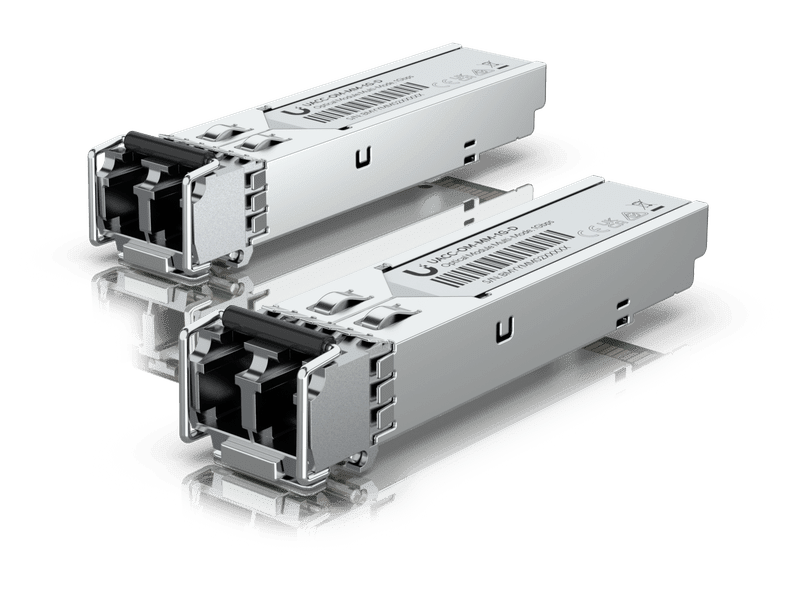

1G Multi-Mode Optical Module
UACC-OM-MM-1G-D-20
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 550 m*
*Fiber cable is not included.
1G Multi-Mode Optical Module
UACC-OM-MM-1G-D-20
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 550 m*
*Fiber cable is not included.
| UACC-OM-MM-1G-D-20 Specifications | |
|---|---|
| Product Type | 1G Multi-Mode Optical Transceiver |
| Pack Quantity | 20 modules |
| Connector Type | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| Max. Data Rate | 1 Gbps |
| Supported Distance | Up to 550 m (1,804 ft) |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Max. Power Consumption | 0.66W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Classification | Class 1 Laser Product (IEC/EN 60825-1:2014) |
| Installation Warning | Do not look into fiber ends or powered SFP modules |
| NDAA Compliant | ✓ |
