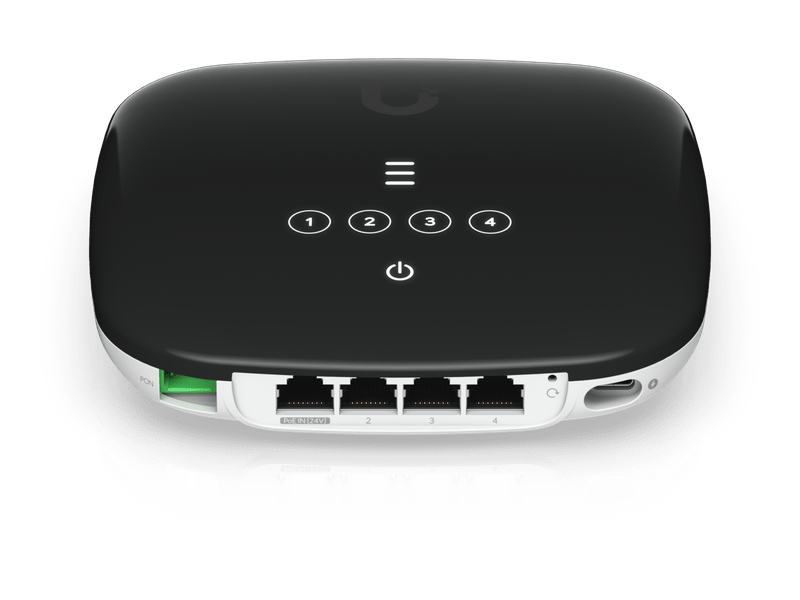

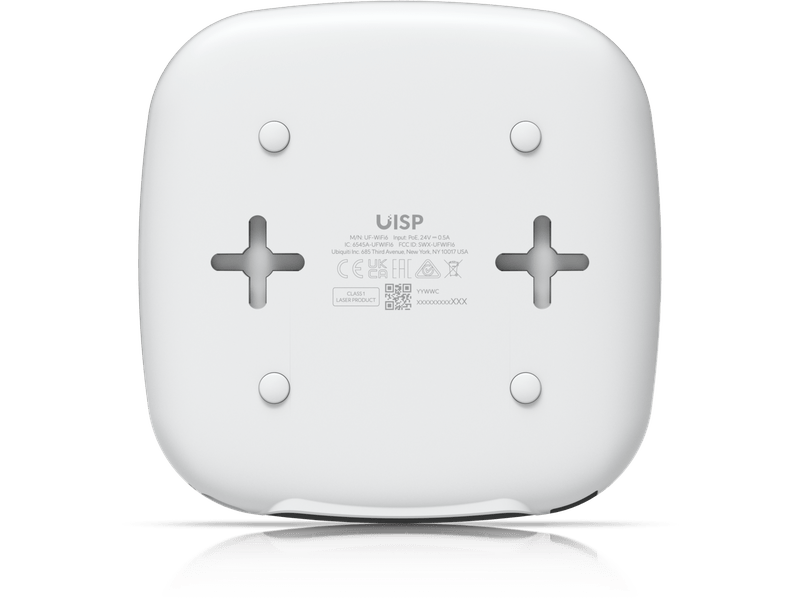

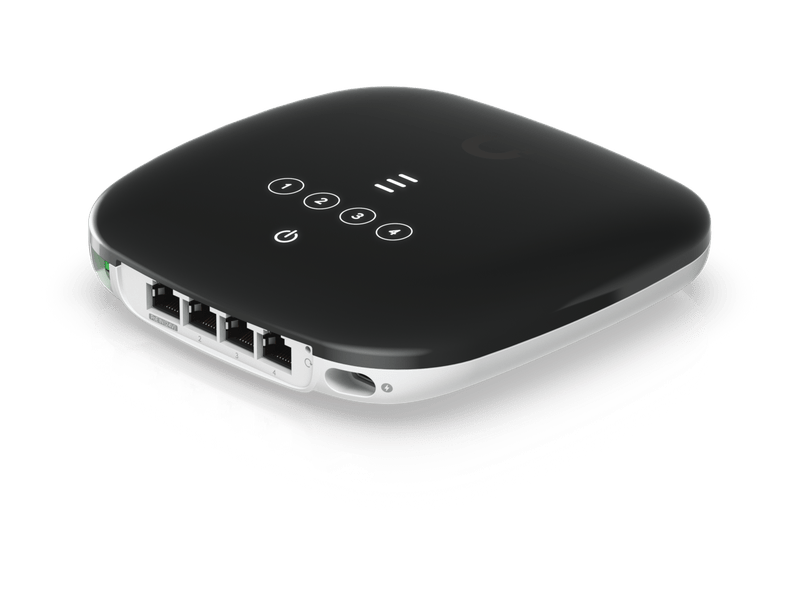

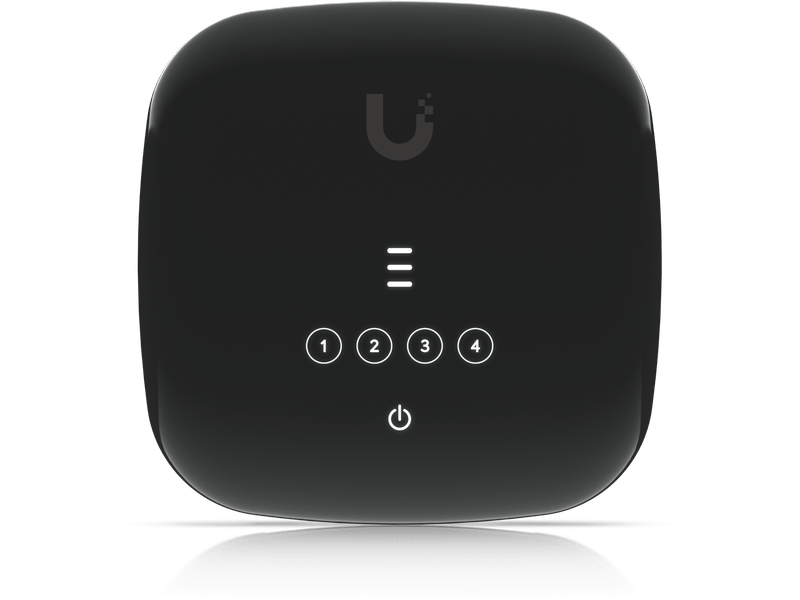

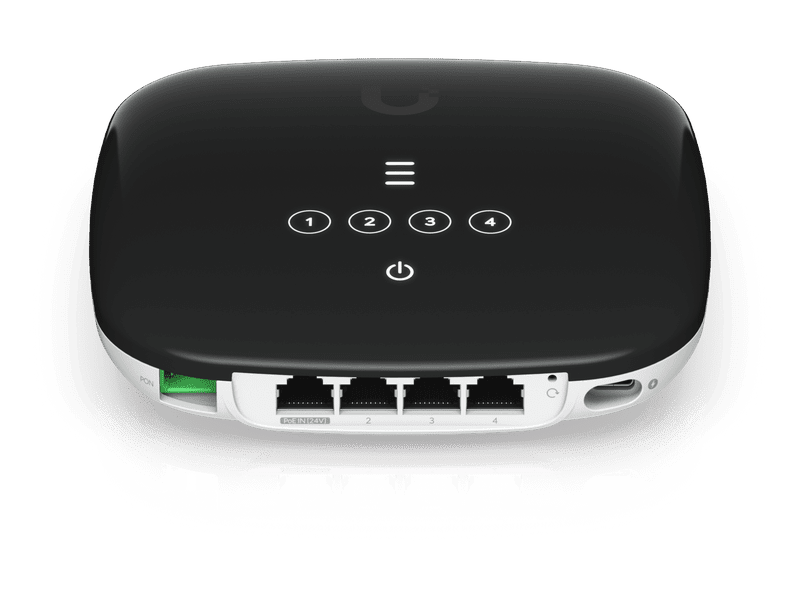

Fiber WiFi
UF-WIFI
GPON customer-premises equipment (CPE) with a built-in WiFi router.
Fiber WiFi
UF-WIFI
GPON customer-premises equipment (CPE) with a built-in WiFi router.
| UF-WIFI Specifications | |
|---|---|
| Product Type | GPON CPE with Integrated WiFi Router |
| Function | Customer-premises equipment for fiber deployments |
| WiFi Standard | 802.11b/g/n (2.4 GHz) |
| Max WiFi Rate | 300 Mbps |
| MIMO | 2×2 |
| Antenna Gain | 1 dBi |
| Mechanical | |
| Dimensions | 126.3 × 126.1 × 31.7 mm (5 × 5 × 1.3") |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | UV-stabilized polycarbonate (PC110U) |
| Interfaces | |
| GPON WAN Port | (1) SC/APC, ITU-G.984 compliant |
| LAN Ports | (4) Gigabit RJ45 Ethernet ports |
| PoE Input | 24V Passive PoE (Pins 4,5+; 7,8−) |
| Button | Factory reset |
| LED Indicators | Power, Ethernet, PON signal strength Multi-level signal feedback via 3 white/red LEDs |
| Optical Performance | |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1490 nm |
| TX Power | 1.5 to 5 dBm |
| RX Sensitivity | −8 to −28 dBm |
| Max Physical Reach | 20 km |
| Line Rate | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Power | |
| Power Method | DC Jack or 24V Passive PoE |
| Power Supply | 24V DC, 0.5A (AC/DC adapter included) |
| Supported Voltage Range | 10–30V DC (PoE) / 5V DC (adapter) |
| Max Power Consumption | 7W |
| Environmental | |
| Operating Temperature | −10 to 45°C (14 to 113°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Software & Features | |
| Operating Mode | ONU/ONT Layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, firewall, bridging/routing, VLAN support, remote reset/reboot, firmware upgrade |
| Security | GEM Port Encryption, WPA/WPA2/WPA3 |
| Management | UISP Mobile App, Ethernet In-Band |
| Compliance | |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
