Description
Overview
1G Bidirectional Single-Mode Optical Module
UACC-OM-SM-1G-S-20
SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 3 km*
*Fiber cable is not included.
1G Bidirectional Single-Mode Optical Module
UACC-OM-SM-1G-S-20
SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 3 km*
*Fiber cable is not included.
| UACC-OM-SM-1G-S-20 Specifications | |
|---|---|
| Product Type | Bidirectional Single-Mode SFP Optical Module |
| Pack Quantity | 20 modules |
| Application | 1G fiber uplinks over single-mode fiber |
| Connector Type | Simplex LC UPC |
| Max Data Rate | 1.25 Gbps |
| Supported Cable Type | Single-Mode Fiber |
| Supported Distance | Up to 3 km (1.9 miles) |
| TX/RX Wavelengths | Blue latch: TX 1310 nm / RX 1550 nm Yellow latch: TX 1550 nm / RX 1310 nm |
| BiDi Support | ✓ |
| Max Power Consumption | 0.66W |
| Form Factor | SFP |

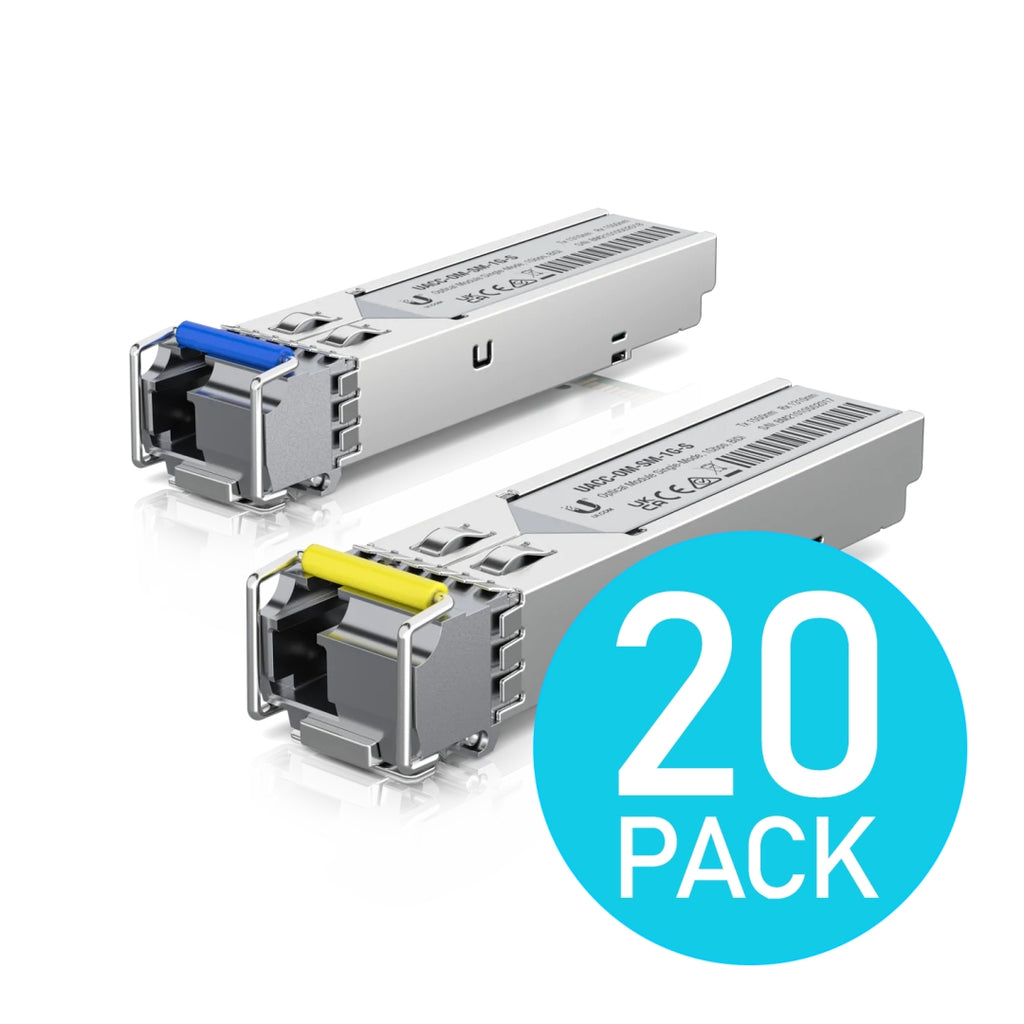

| Latch Color Coding | Blue and Yellow (paired modules) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Laser Safety | Class 1 Laser Product (IEC/EN 60825-1:2014) |
| NDAA Compliant | ✓ |
